Vulcan-Hart VS2 SERIES Manuale utente

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

Item # __________________________

C.S.I. Section 11420

A2780

ISO9001

Vulcan-Hart Co.

F-32101 (10-03)

■■VS2 Cabinet Base

STANDARD FEATURES

■Stainless steel front, stub back and front top ledge.

■6" adjustable stainless steel legs.

■Sides finished in black epoxy powder coat paint.

■Open storage base compartment with removable center

shelf.

■Three 5 KW cast iron hot tops, 12"w x 24"d each.

■One thermostat control per hot top, adjusts from 340° to

800°F.

■Porcelain on steel baffled grease drawer and warming

drawer under range top.

■21/2" fiberglass insulation in sides, top, back and bottom.

■Requires 208V or 240V, 60 Hz, 1 or 3 phase power supply.

■One year limited parts and labor warranty.

OPTIONS

■■Stainless steel side(s).

■■Without legs for masonry base - 31" working height.

■■Marine features (provided upon request).

■■Export voltages.

■■480V, 60 Hz, 3 phase.

■■Second year extended limited parts and labor warranty.

ACCESSORIES

■■Set of four 5" diameter casters, (2 locking).

■■35" high double deck high shelf.

■■VB73 elevated broiler, rated at 6 KW input.

VS2 SERIES

HEAVY DUTY ELECTRIC HOT TOP RANGE

MODEL: VS2 SERIES

Heavy Duty Electric Hot Top Range

VS2

SPECIFICATIONS:

Heavy duty electric hot top range with cabinet base, Vulcan-

Hart Model No. VS2. Stainless steel front, stub back and front

top ledge. 6" adjustable stainless steel legs. Sides finished

in black epoxy powder coat paint. Open storage compartment

with removable center shelf. Three 5 KW cast iron hot tops.

One thermostat control per hot top adjusts from 340° to 800°F.

Porcelain on steel baffled grease drawer and warming drawer

under range top. 21/2" fiberglass insulation in sides, top, back

and bottom. Requires 208 or 240 volt, 1 or 3 phase.

Exterior dimensions: 36"w x 381/4"d x 37"h.

NSF listed. U L listed. U L listed to Canadian safety standards.

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

Printed On Recycled Paper

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specifications without notice.

F-32101 (10-03)

VS2 SERIES

HEAVY DUTY ELECTRIC HOT TOP RANGE

NOMINAL AMPS/LINE WIRE

TOTAL 3 PHASE LOAD 3 PHASE 1 PHASE

KW KW PER PHASE 208V 240V

UNIT CONN. X-Y Y-Z X-Z X Y Z X Y Z 208V 240V

VS2 15 5 5 5 4242423636367263

VS2 W/VB73 21 8 8 5 54 67 54 47 58 47 101 88

VS RANGES

208/240 VOLT

3 PHASE LOAD NOMINAL AMPS

TOTAL KW PER PHASE PER LINE WIRE

KW 408 VOLT 3 PHASE 1 PHASE

UNIT CONN. X-Y Y-Z X-Z X Y Z X & Z

VS2 15 5 5 5 18 18 18 31

VS2 W/VB73 21 5 11 5 18 29 29 44

VS RANGES

480 VOLT

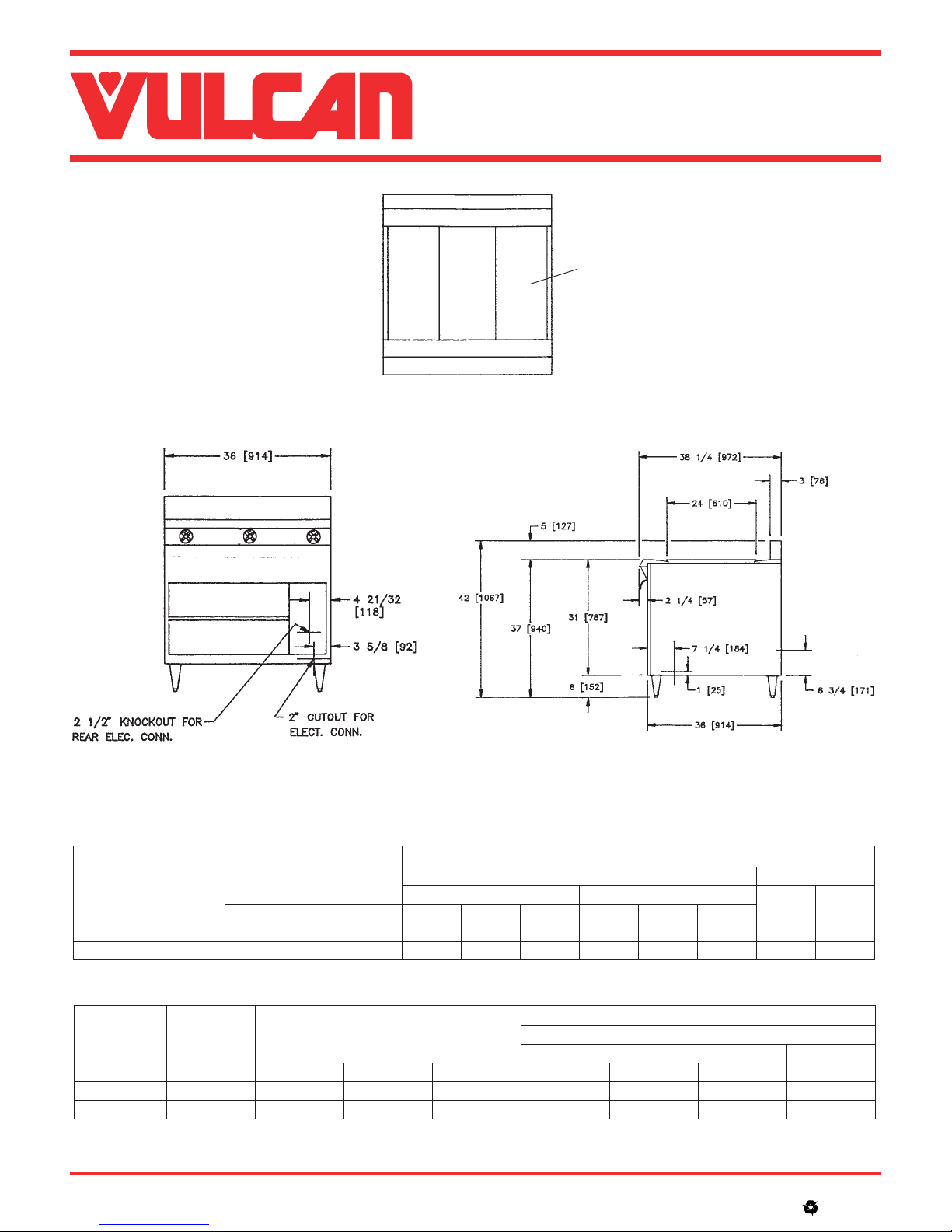

FRONT VIEW SIDE VIEW

TOP VIEW

HOT TOP

SINGLE TEMP.

CONTROL
