VT540 / Vibration sensor
Product page: https://vutlan.com/analog-sensors/19-vt540-vibration.html
Function and purpose
Detects vibration. For installation on walls, windows, etc., the sensor controls vibration. For example, detects the breaking of
the window by an intruder if installed on the window glass.
Technical specifications
Feature Description
Sensor type Analog sensor
Dimensions 60×18×18 mm
Weight 60 g

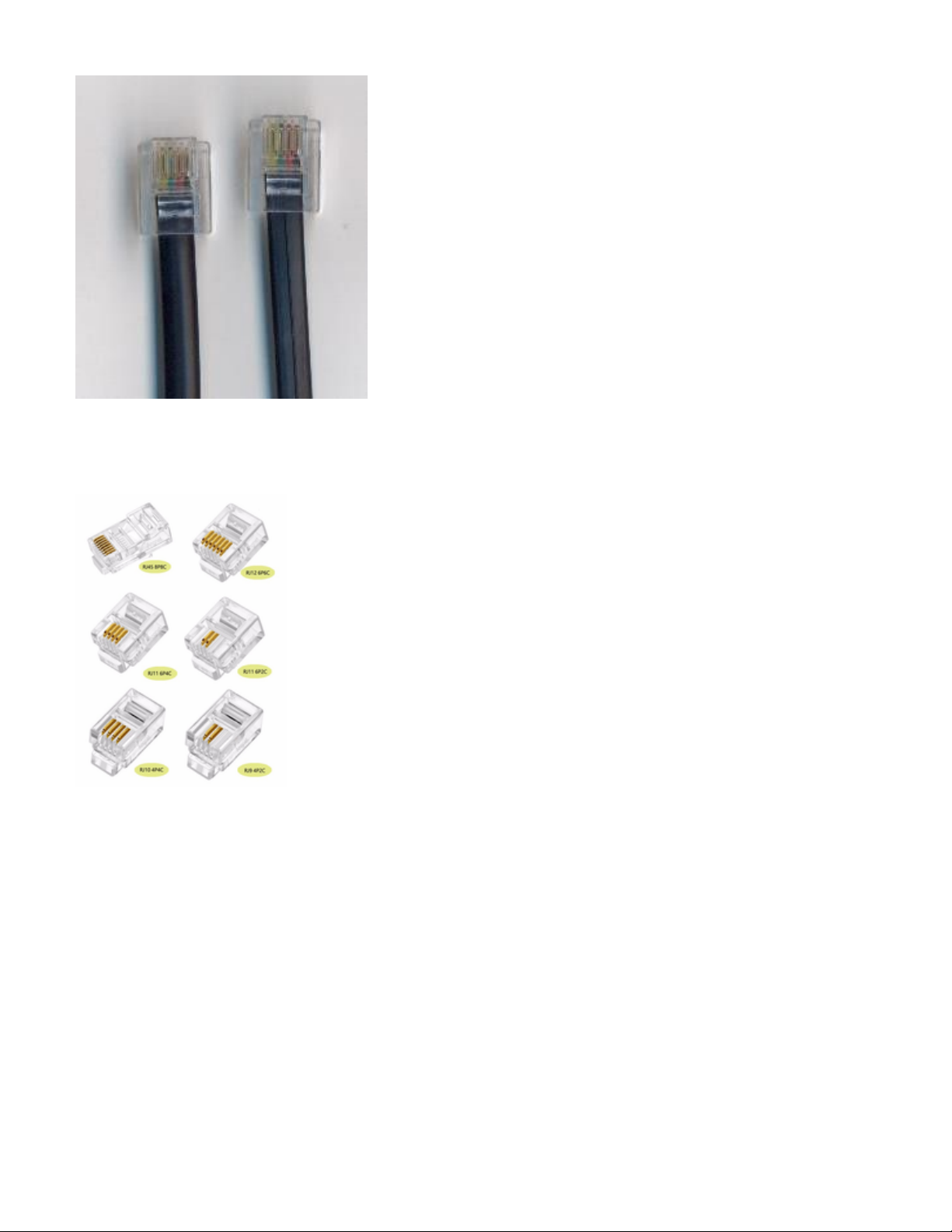

Input RJ-12 / RJ-11 (6p4c)
Outputs RJ11 / RJ12 (6p4c)
Operating
temperature
-10 °C to +80 °C
Operating
humidity
5% to 95% (Non-Condensing)

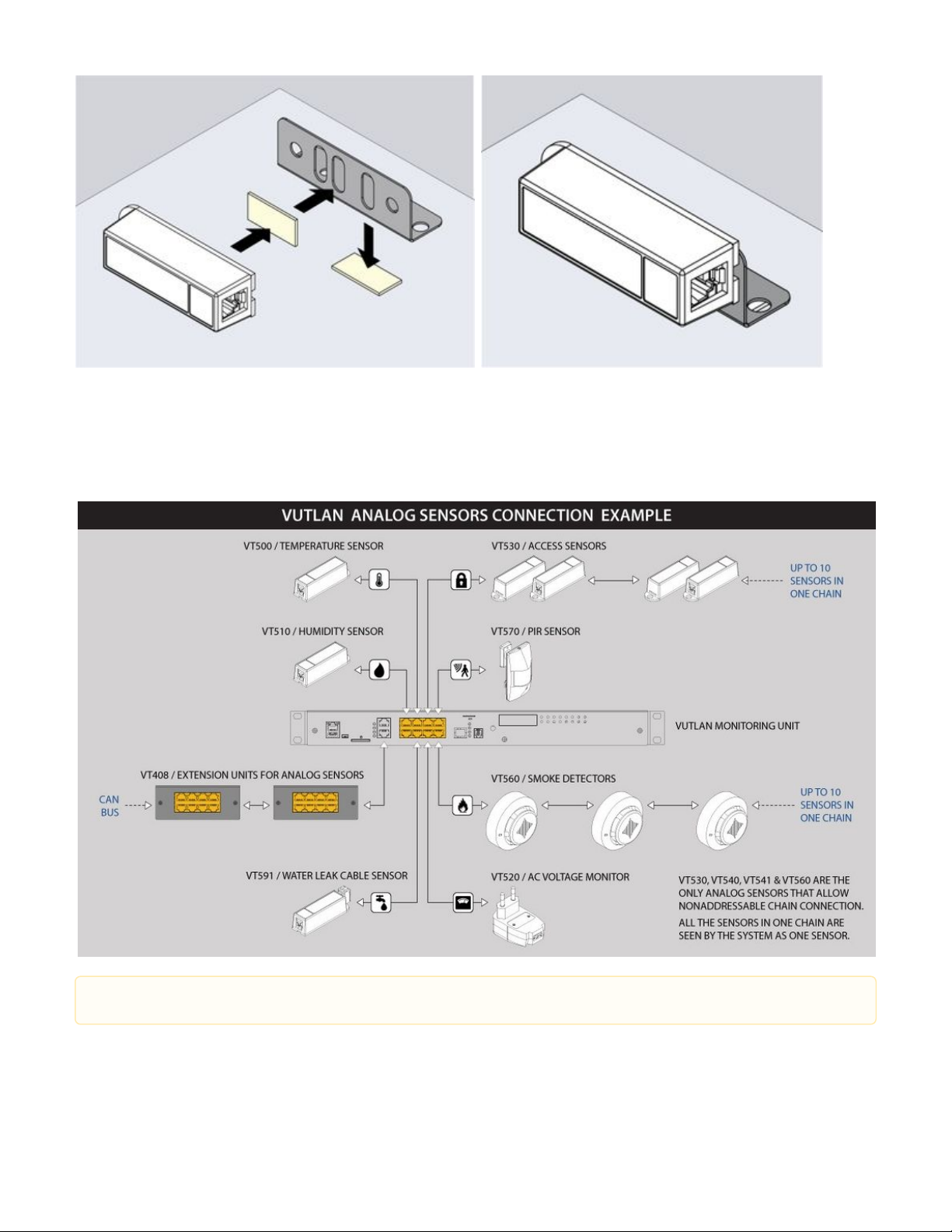

Mounting Mounting bracket, sticker, and screws are included. Installed on the surface where possible vibration is
possible. E.g. windows, doors, etc.
Power
consumption
60mW
Max. distance m 150 m
HS Code 9025 11 800
Components Manufactured in E.U.
Daisy chain
possible
No
Package includes
