INSTALLATION INSTRUCTIONS
AUCKLAND
9 Levene Place, Mount Wellington
PO Box 12 249, Penrose, Auckland 1061
New Zealand
P +64 9 525 6051 F +64 9 525 5799
VYNCO INDUSTRIES (NZ) LIMITED
CHRISTCHURCH
388 Tuam Street, Phillipstown, Christchurch, 8011
PO Box 9022, Tower Junction, Christchurch 8149
New Zealand
P +64 3 379 9283 F +64 3 379 6838
VYNCO.CO.NZ

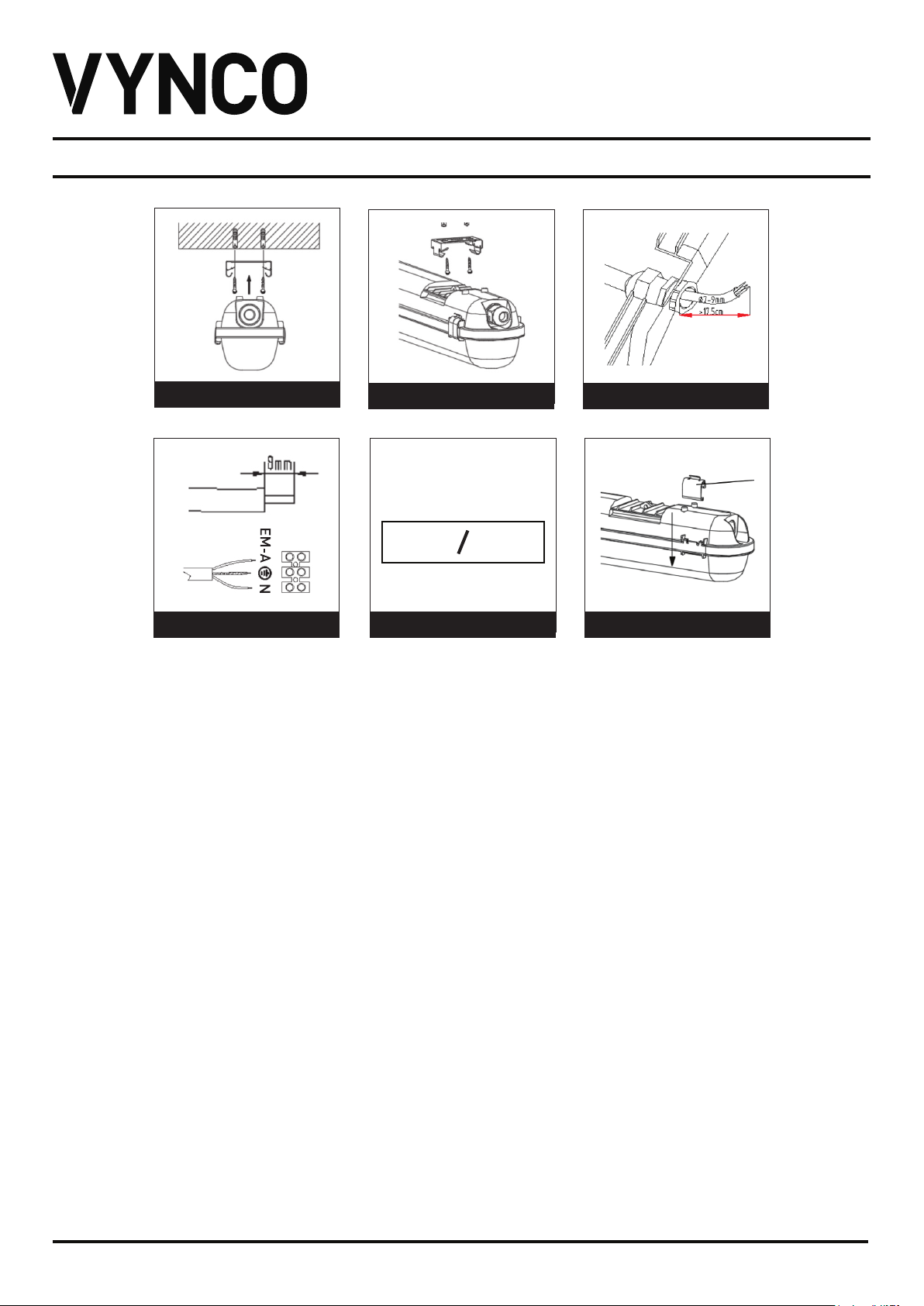

MOORE446E / MOORE546E / MOORE5E - EMERGENCY UNDERVERANDAH
INSV0046
SPECIFICATIONS
Input Voltage 220 - 240V AC
Emergency Wattage 4W
Emergency Lumens 400lm
LED Lifetime Hours 50,000
IP Rating IP65
SAFETY
Turn off power before installation or before doing
any maintenance work. Do not install any luminaire
near a heat source.
Do not exceed the nominal supply voltage or
amperage ratings. Take care not to pull any
electrical wires during unpacking as this may
damage the connection.
Lay out all the components on a smooth surface
and make sure there are no components missing
before assembling.
Handle with care to avoid injury or damage to the
tting. Ensure that the power lead, fasteners and
battery connection are secure before powering on.
All wiring and installation of the light tting must
adhere to AS/NZS 3000 Wiring Rules.
This tting is designed for permanent connection.
16 hour charging period is required before the
emergency feature can be used.
WARRANTY
This product is covered by the standard 3 Year Vynco
Warranty - proof of purchase is required. Please
contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
TEST PROCEDURE: EMERGENCY
1. Remove the diffuser.
2. Find RED test button.
3. Press the RED test button – this will change from
normal operation mode to emergency mode.
4. Hold for 2-3 Seconds.
5. Light will change from Mains Power supply to
being supplied from the battery.
6. The GREEN LED indicator will be OFF when
testing. ON when the RED button is released.
IP65
