WAC Lighting H-LED160 Manuale utente

WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUGUST, 2014

INSTALLATION INSTRUCTION

160 LED Track Luminaires

H-LED160, L-LED160, J-LED160

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and

local regulations.

- Place the wall switch in the“OFF”position.

- Go to the main fuse box, or circuit breaker. Switch“OFF”the circuit breaker switch(es) that control the power

to the xture or room that you are working on.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et

les règlements locaux.

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en

position d’arrêt (« OFF »).

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are

worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.

OVERVIEW:

Fixtures are designed for use on WAC Lighting’s track systems.

LED TRACK FIXTURE TRACK SYSTEMS

H-LED160 Series H Track

L-LED160 Series L Track

J-LED160 Series J and J2 Track

INSTALLING ON TRACK:

1. Align the alignment tab on the adapter with the groove/slot

on the track (Figure 1).

2. Once aligned, insert adapter into track slot and rotate it 90°.

The arrow should point to the grooved side

of the track (Figure 2).

Groove

Alignment tab

WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUGUST, 2014

INSTALLATION INSTRUCTION

160 LED Track Luminaires

H-LED160, L-LED160, J-LED160

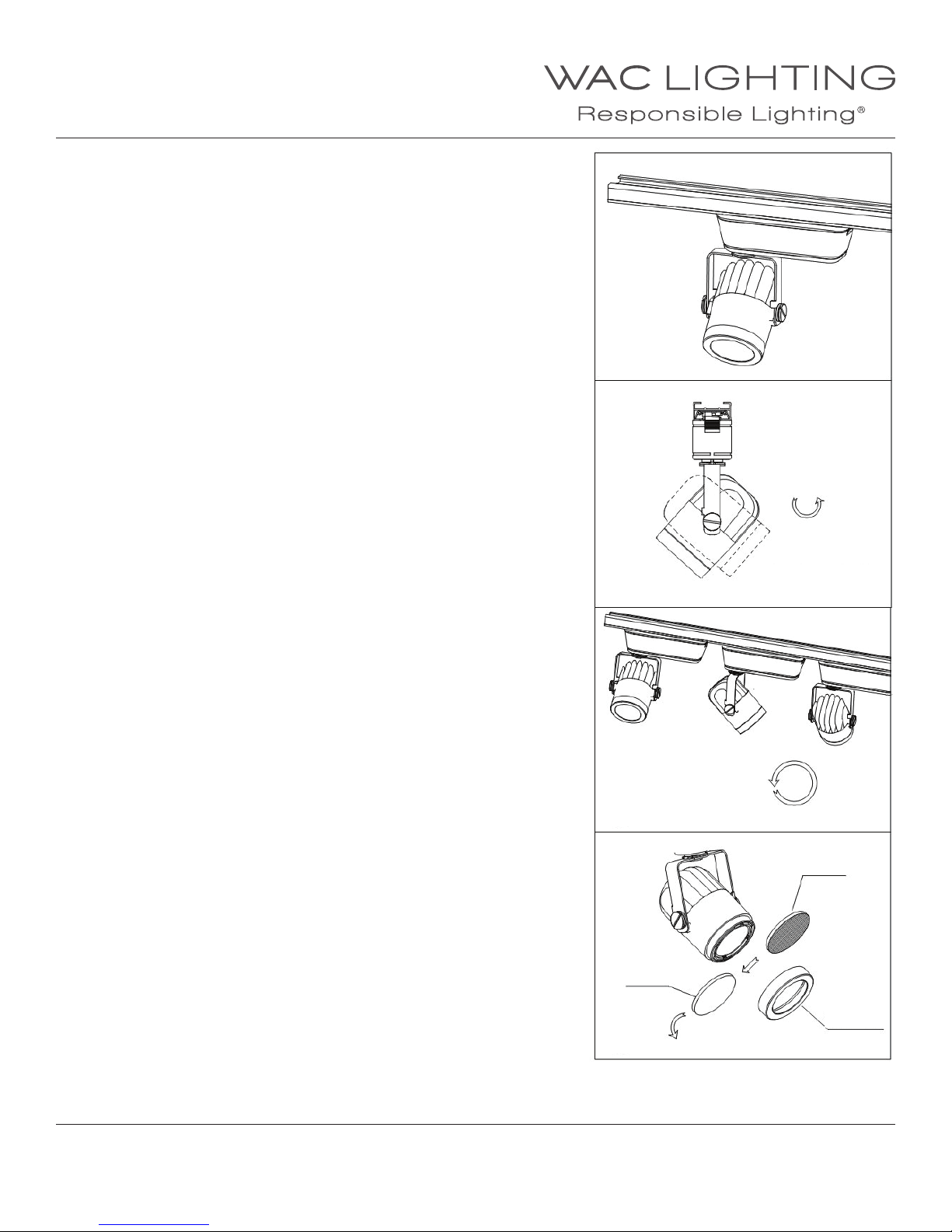

3. Make sure the alignment tab seats in the track slot (see Figure 3).

4. Reverse procedure to remove. Enter track luminaire may be positioned

anywhere along the track length.

POSITIONING THE FIXTURE:

1. After the light is on, rotate the luminaire’s body horizontally

and vertically to aim it properly. (Figure 4 & 5)

2. Visit our website at www.waclighting.com for optional accessories

(Figure 6)

180° vertical tilt

Click

360° rotation

Accessories

Frame

Glass
