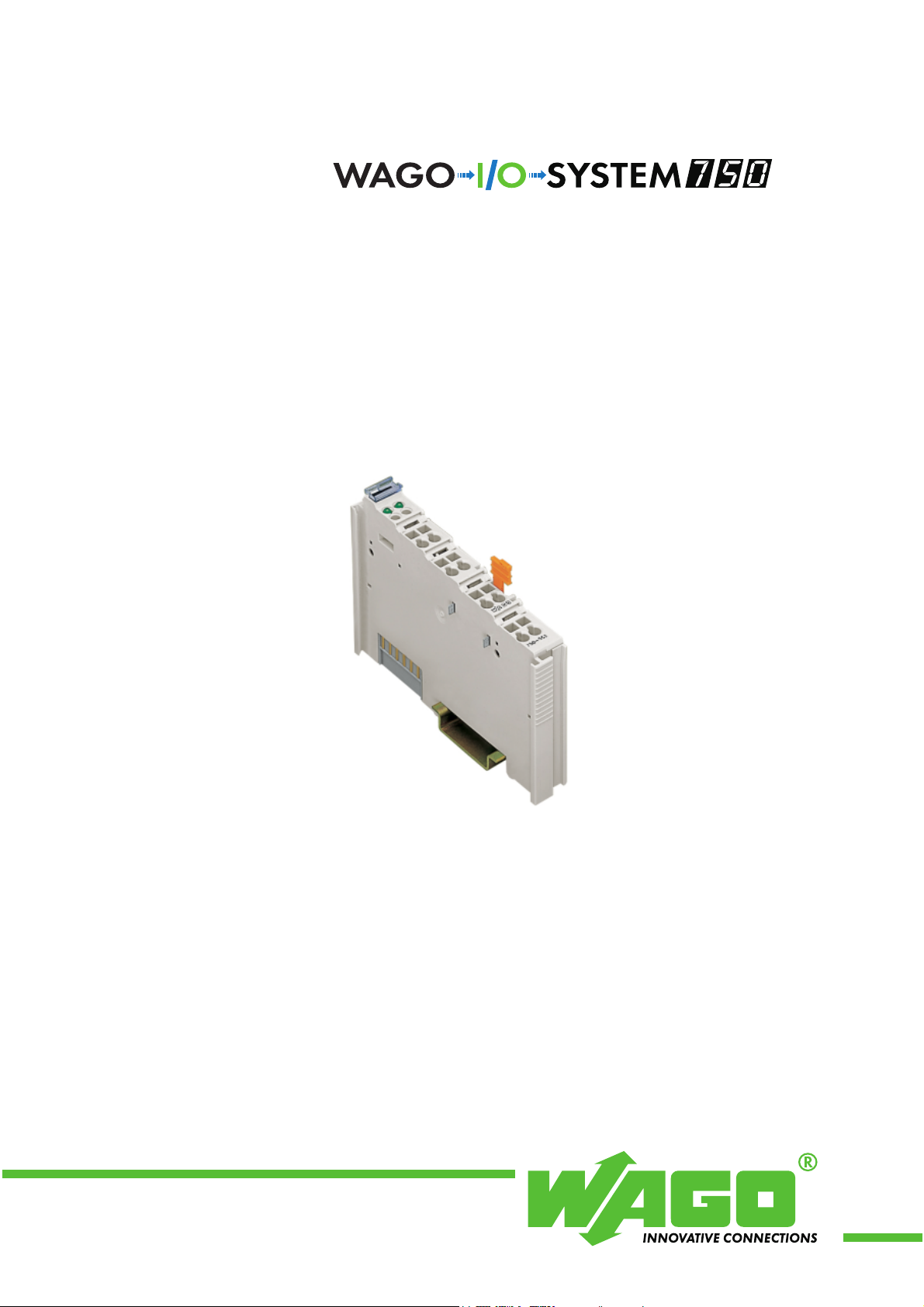

WAGO 750-559 Manuale utente

Fieldbus Independent

I/O Modules

4 AO DC 0-10 V

750-559(/xxx-xxx)

Manual

Version 1.0.6

ii • General

WAGO-I/O-SYSTEM 750

I/O Modules

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27

D-32423 Minden

Phone: +49 (0) 571/8 87 – 0

Fax: +49 (0) 571/8 87 – 1 69

E-Mail: [email protected]

Web: http://www.wago.com

Technical Support

Phone: +49 (0) 571/8 87 – 5 55

Fax: +49 (0) 571/8 87 – 85 55

E-Mail: [email protected]

Every conceivable measure has been taken to ensure the correctness and com-

pleteness of this documentation. However, as errors can never be fully ex-

cluded, we would appreciate any information or ideas at any time.

E-Mail: [email protected]

We wish to point out that the software and hardware terms as well as the

trademarks of companies used and/or mentioned in the present manual are

generally trademark or patent protected.

Content • iii

WAGO-I/O-SYSTEM 750

I/O Modules

Content

1Important Comments ................................................................................. 4

1.1 Legal Principles........................................................................................4

1.1.1 Copyright............................................................................................. 4

1.1.2 Personnel Qualification .......................................................................4

1.1.3 Intended Use ........................................................................................4

1.2 Symbols....................................................................................................5

1.3 Number Notation......................................................................................5

1.4 Safety Notes .............................................................................................6

1.5 Scope ........................................................................................................6

2I/O Modules ................................................................................................. 7

2.1 Analog Output Modules ...........................................................................7

2.1.1 750-559(/xxx-xxx) [4 AO DC 0-10 V]................................................7

2.1.1.1 Variations........................................................................................7

2.1.1.2 View................................................................................................7

2.1.1.3 Description......................................................................................8

2.1.1.4 Display Elements ............................................................................9

2.1.1.5 Schematic Diagram......................................................................... 9

2.1.1.6 Technical Data ..............................................................................10

2.1.1.7 Process Image ...............................................................................11

2.1.1.7.1 Standard Format .......................................................................11

4 •Important Comments

Legal Principles

WAGO-I/O-SYSTEM 750

I/O Modules

1 Important Comments

To ensure fast installation and start-up of the units described in this manual,

we strongly recommend that the following information and explanations are

carefully read and abided by.

1.1 Legal Principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations

contained therein. Any use of this manual which infringes the copyright

provisions stipulated herein, is not permitted. Reproduction, translation and

electronic and photo-technical archiving and amendments require the written

consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will

entail the right of claims for damages.

WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform

modifications allowed by technical progress. In case of grant of a patent or

legal protection of utility patents all rights are reserved by WAGO

Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always

named without referring to patent rights. The existence of such rights can

therefore not be ruled out.

1.1.2 Personnel Qualification

The use of the product detailed in this manual is exclusively geared to

specialists having qualifications in PLC programming, electrical specialists or

persons instructed by electrical specialists who are also familiar with the valid

standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability

resulting from improper action and damage to WAGO products and third party

products due to non-observance of the information contained in this manual.

1.1.3 Intended Use

For each individual application, the components supplied are to work with a

dedicated hardware and software configuration. Modifications are only

permitted within the framework of the possibilities documented in the

manuals. All other changes to the hardware and/or software and the non-

conforming use of the components entail the exclusion of liability on part of

WAGO Kontakttechnik GmbH & Co. KG.

Please direct any requirements pertaining to a modified and/or new hardware

or software configuration directly to WAGO Kontakttechnik GmbH & Co.

KG.

Important Comments •5

Symbols

WAGO-I/O-SYSTEM 750

I/O Modules

1.2 Symbols

Danger

Always abide by this information to protect persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Attention

Marginal conditions must always be observed to ensure smooth operation.

ESD (Electrostatic Discharge)

Warning of damage to the components by electrostatic discharge. Observe

the precautionary measure for handling components at risk.

Note

Routines or advice for efficient use of the device and software optimization.

More information

References on additional literature, manuals, data sheets and internet pages.

1.3 Number Notation

Number Code Example Note

Decimal 100 normal notation

Hexadecimal 0x64 C notation

Binary '100'

'0110.0100'

within inverted commas,

nibble separated with dots

6 •Important Comments

Safety Notes

WAGO-I/O-SYSTEM 750

I/O Modules

1.4 Safety Notes

Warning

Switch off the system prior to working on bus modules!

In the event of deformed contacts, the module in question is to be replaced, as

its functionality can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and

insulating properties. Belonging to this group of materials is: e.g. aerosols,

silicones, triglycerides (found in some hand creams).

If it cannot be ruled out that these materials appear in the component

environment, then additional measures are to be taken:

- installation of the components into an appropriate enclosure

- handling of the components only with clean tools and materials.

Attention

Cleaning of soiled contacts may only be done with ethyl alcohol and leather

cloths. Thereby, the ESD information is to be regarded.

Do not use any contact spray. The spray may impair the functioning of the

contact area.

The WAGO-I/O-SYSTEM 750 and its components are an open system. It

must only be assembled in housings, cabinets or in electrical operation

rooms. Access must only be given via a key or tool to authorized qualified

personnel.

The relevant valid and applicable standards and guidelines concerning the

installation of switch boxes are to be observed.

ESD (Electrostatic Discharge)

The modules are equipped with electronic components that may be destroyed

by electrostatic discharge. When handling the modules, ensure that the

environment (persons, workplace and packing) is well grounded. Avoid

touching conductive components, e.g. gold contacts.

1.5 Scope

This manual describes the Analog Output Module 750-559(/xxx-xxx)

4 AO DC 0-10 V of the modular WAGO-I/O-SYSTEM 750.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

750-559(/xxx-xxx) [4 AO DC 0-10 V] • 7

Variations

WAGO-I/O-SYSTEM 750

I/O Modules

2 I/O Modules

2.1 Analog Output Modules

2.1.1 750-559(/xxx-xxx) [4 AO DC 0-10 V]

4-Channel Analog Output Module 0-10 V

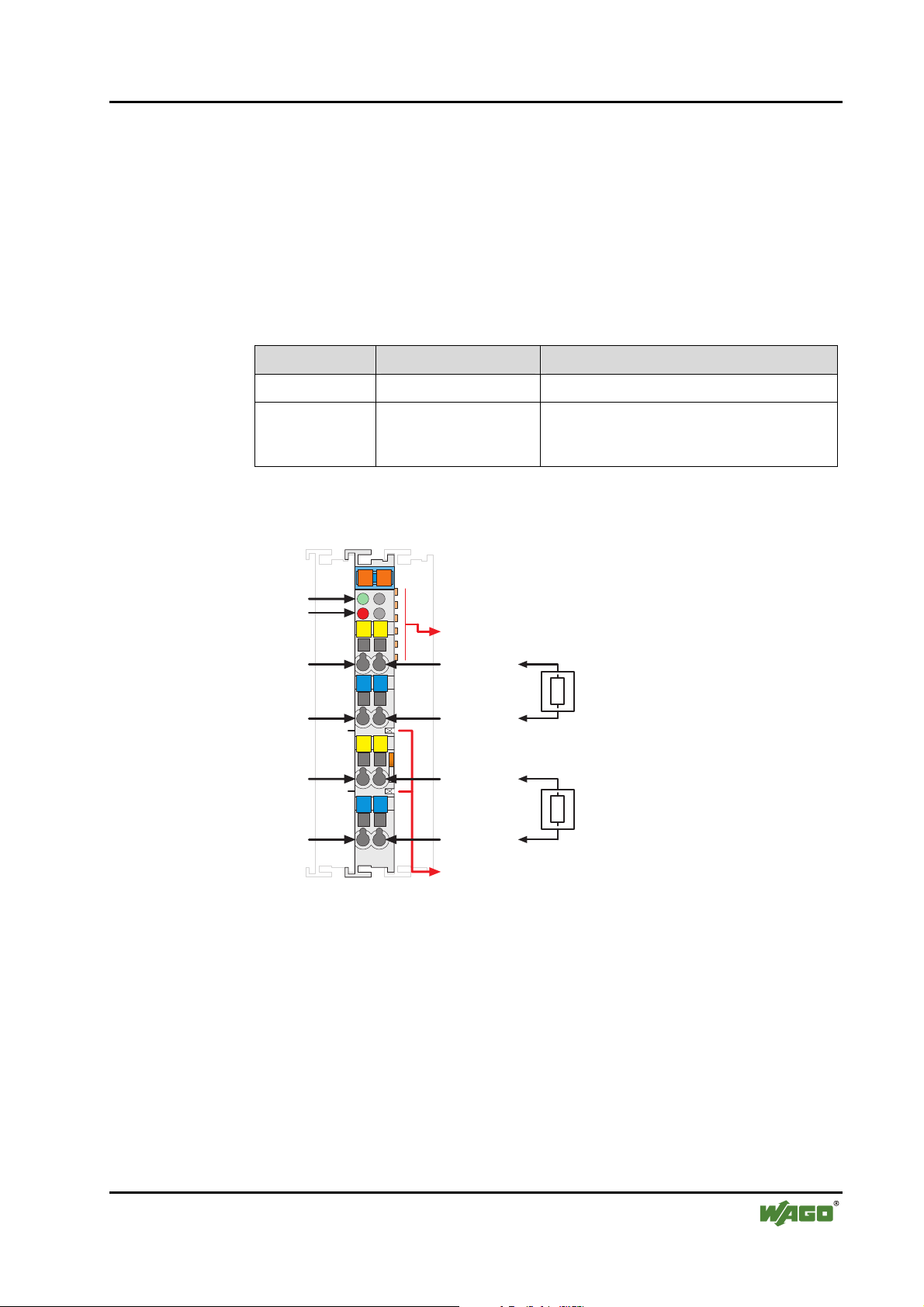

2.1.1.1 Variations

Item-No. Designation Description

750-559 4 AO DC 0-10 V 4-Channel Analog Output Module 0-10 V

750-559/025-000 4 AO DC 0-10 V/T 4-Channel Analog Output Module 0-10 V

extended temperature range from –20 °C to

+60 °C

2.1.1.2 View

A1 A2

13 14

750-559

A3 A4

AO 2

Power jumper

contacts

Datacontacts

Common

(ground)

Function

AO 1

Common

(ground)

Common

(ground)

AO 4

AO 3

Common

(ground)

Error

Fig. 2.1.1-1: 4- Channel Analog Output Module 750-559 g055900e

8 •750-559(/xxx-xxx) [4 AO DC 0-10 V]

Description

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.3 Description

The analog output module 750-559 creates a standardized signal of 0-10 V.

The module has four output channels and enables, for example, the direct

wiring of four 2-conductor actuators to the connections AO 1 and Common

(ground) or AO 2, AO 3, AO 4 and each with Common (ground). The signals

are transmitted via AO 1, AO 2, AO 3 or AO 4.

The channels have a common ground.

The input signal is electrically isolated and will be transmitted with a

resolution of 12 bits.

The operational readiness and the trouble-free internal data bus

communication of the channels are indicated via a green function LED.

In addition, a red error LED will show if there are any overload or a short

circuit to ground in either channel.

Any configuration of the output modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

The system supply is used for the power supply of the module.

The field side supply voltage of 0 V and 24 V to downstream I/O modules is

derived from adjacent I/O modules or from a supply module.The supply

voltage for the field side is made automatically through the individual I/O

modules by means of power jumper contacts.

Warning

The maximum current of the internal power jumper contacts is 10 A. When

configuring the system it is important not to exceed the maximum/sum

current. However, if such a case should occur, another supply module must be

added.

The analog output module 750-559 can be used with all couplers/controllers

of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320,

-323, -324 and -327).

750-559(/xxx-xxx) [4 AO DC 0-10 V] • 9

Display Elements

WAGO-I/O-SYSTEM 750

I/O Modules

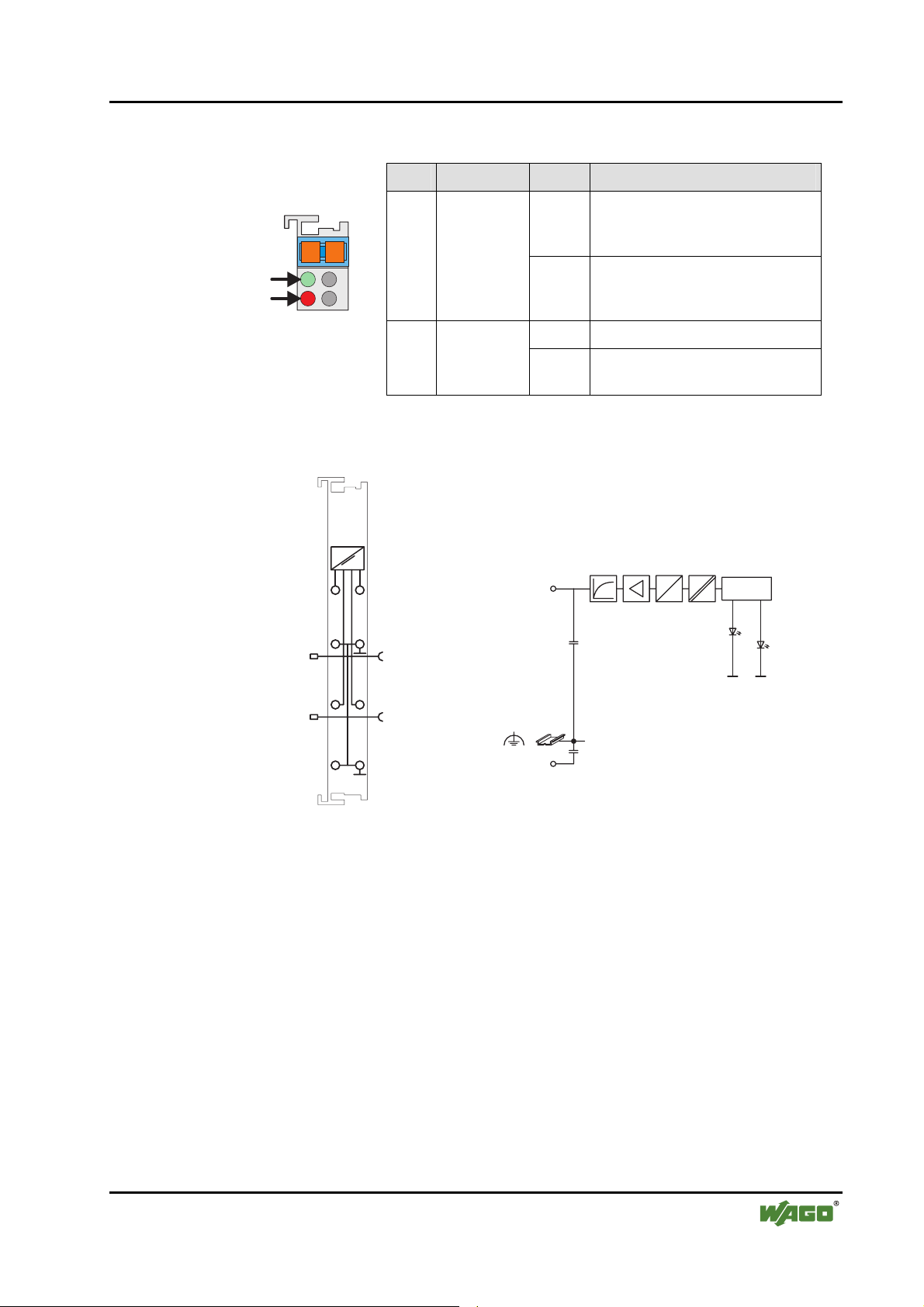

2.1.1.4 Display Elements

LED Designation State Function

off

No operational readiness or the

internal data bus communication is

interrupted

green Function

Operational readiness and trouble-

free internal data bus

communication

off No Error

13 14

Fig. 2.1.1-2: Display

elements g055702x B

red Error on Overload or short circuit to ground

in one of the output channels

2.1.1.5 Schematic Diagram

750-559

AO 1 AO 2

Common

(ground)

24V

AO 3

Common

(ground)

AO 4

Logic

Function

270 pF

10 nF

Common

(ground)

Error

Fig. 2.1.1-3: 4-Channel Analog Output Module 750-559 g055901e

10 •750-559(/xxx-xxx) [4 AO DC 0-10 V]

Technical Data

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.6 Technical Data

Module Specific Data

Number of outputs 4

Voltage supply via system voltage DC/DC

Current consumption typ. (internal) 125 mA

Signal voltage 0V ... 10 V

Load impedance > 5 kΩ

Resolution 12 Bit

Conversion time typ. 10 ms

Output filter settle time typ. 100 ms

Measuring error 25°C <±0.1 % of the full scale value

Temperature coefficient <±0.01 % /K of the full scale value

Isolation 500 V (Field/System)

Bit width 4 x 16 bits data

4 x 8 bits control/status (option)

Dimensions W x H* x L

* from upper edge of 35 DIN rail

12 mm x 64 mm x 100 mm

Weight ca. 55 g

Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)

EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)

EMC-Emission of interference (CE) acc. to EN 50081-1 (93)

EMC-Immunity to interference

(Ship building)

acc. to Germanischer Lloyd (01)

EMC-Emission of interference

(Ship building)

acc. to Germanischer Lloyd (01)

Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)

CULUS (UL508)

ABS (American Bureau of Shipping)

BV (Bureau Veritas) (applied for)

DNV (Det Norske Veritas) Cl. B

GL (Germanischer Lloyd) Cat. A, B, C, D

KR (Korean Register of Shipping)

LR (Lloyd's Register) (applied for) Env. 1, 2, 3, 4

NKK (Nippon Kaiji Kyokai)

CULUS (UL1604) Class I Div2 ABCD T4A

Conformity Marking

Indice

Altri manuali WAGO Elettricità industriale

WAGO

WAGO 750-337 Manuale utente

WAGO

WAGO 750-502 Manuale utente

Manuali Elettricità industriale popolari di altre marche

Rexroth Indramat

Rexroth Indramat DURADRIVE SYSTEM200 Manuale tecnico

Abtech

Abtech HVJB Series Guida

Murata

Murata GRM0335C1H8R1DA01 Series Manuale utente

SAF-HOLLAND

SAF-HOLLAND CBX 5415.5 Manuale utente

Eaton

Eaton Ulusoy HMH24-04 Manuale utente

Newlong

Newlong NP-7H Manuale utente

Murata

Murata GJM0335C1E4R4BB01 Series Manuale utente

Stahl

Stahl 8575/12 Manuale utente

SI Pegasus Manuale utente

Murata

Murata GRM1555C1H2R7CA01 Seies Manuale utente

Murata

Murata GRM0225C1E6R4BA03 Series Manuale utente

Cooper Power Systems

Cooper Power Systems VXE15 Manuale utente

S&C

S&C Vista SD Manuale utente

Murata

Murata GRM0335C2A7R3CA01 Series Manuale utente

Siemens

Siemens 3VA9988-0BM10 Manuale utente

Siemens

Siemens SITRANS LVS100 Manuale utente

Murata

Murata GRM32ER60G227ME05 Series Manuale utente

Siemens

Siemens SENTRON SUPERSWITCH 3KL82 Series Manuale utente
