Walker T23 Manuale utente
Operator’s Manual
Safety, Assembly, Operating, and Maintenance Instructions
Please Read and Save These Instructions
For Safety, Read All Safety and Operation
Instructions Prior to Operating Machine
Beginning S/N: 170586
P/N 8000-51
Foreword
Thank you. . .for purchasing a Walker mower. Every eort has been made to provide you with
the most reliable mower on the market, and we are sure you will be among our many satised
customers. If for any reason this product does not perform to your expectations, please contact
your local dealer. Every customer is important to us. Your satisfaction is our goal.
Please. . .read this manual thoroughly! This manual is to be used in conjunction with the engine
manufacturer’s manual for the specic engine on the mower model you have purchased. Before
you operate your new mower, please read this entire manual. Some of the information is crucial
for proper operation and maintenance of this mower - it will help protect your investment and
ensure that the mower performs to your satisfaction. Some of the information is important to your
safety and must be read and understood to help prevent possible injury to the operator or others.
If anything in this manual is confusing or hard to understand, please contact your local authorized
dealer or call our service department, at (970) 221-5614, for clarication before operating or
servicing this mower.
This manual covers Model T23 with the Kohler Command Pro CH680 (23 HP) gasoline engine.
All shields and guards must be in place for the proper and safe operation of this machine.
Where they are shown removed in this manual, it is for illustration purposes only. Do not operate
this machine unless all shields and guards are in place.
Specications given are based on the latest information available at the time this manual was
produced for a tractor with standard equipment. Optional equipment is available and may aect
the standard specications listed.
Walker Mfg. Co. is continually striving to improve the design and performance of its products. We
reserve the right to make changes in specications and design without thereby incurring any
obligation relative to previously manufactured products.
Sincerely,
WALKER MANUFACTURING COMPANY
Bob Walker, Chairman
T23 Table of Contents
General Information 1
Highlighted Information......................................1
Glossary ...............................................................1

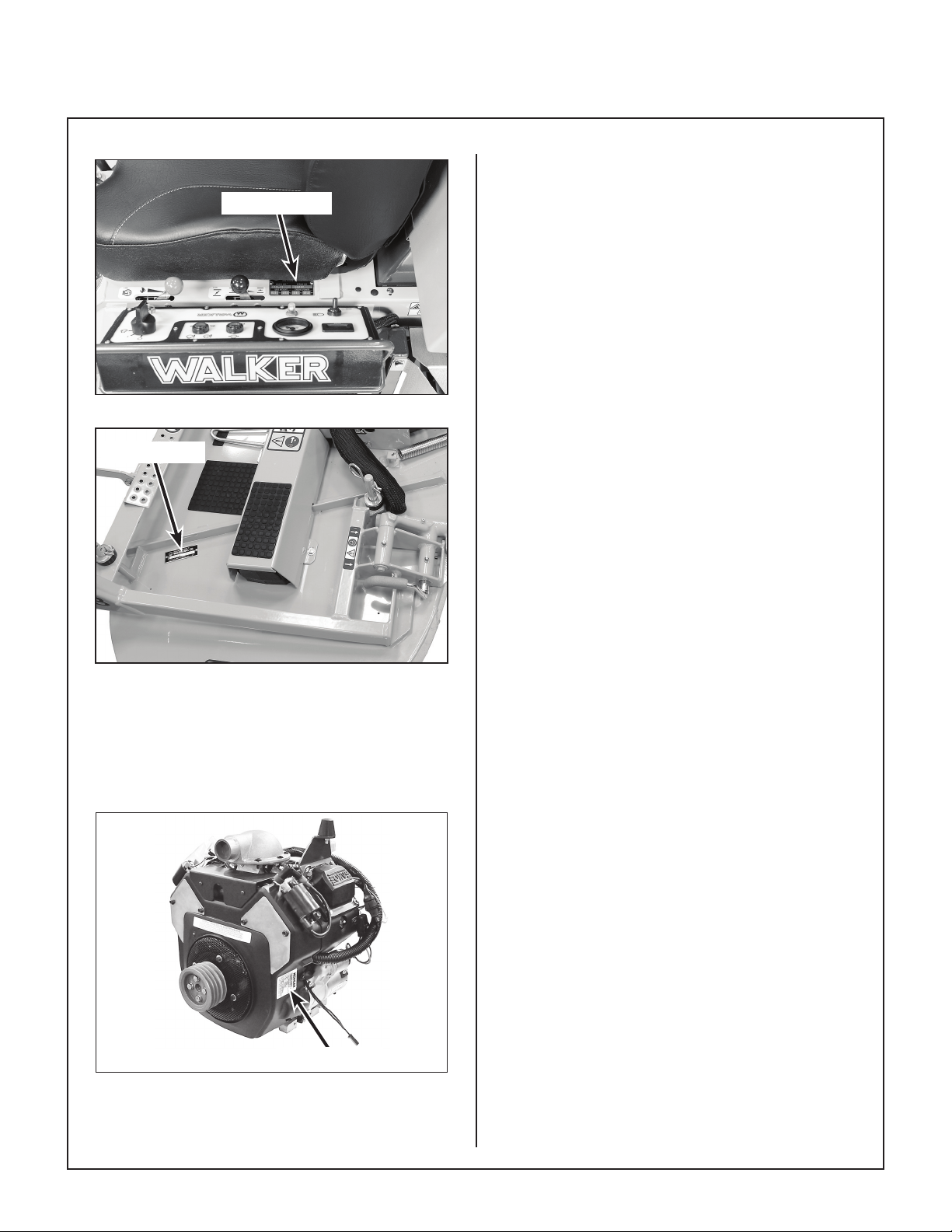

Identifying Number Locations............................1
Engine Serial Number Location .........................2
Servicing of Engine and Drivetrain Compo-
nents.....................................................................2
Specications ......................................................3
Component Identication ...................................7
Safety Instructions 10
Before Operating ...............................................10
Operating............................................................12
Maintenance.......................................................14
Safety, Control, and Instruction Decals...........15
Assembly Instructions 19
Setup Instructions.............................................19
Tire Installation (Tractor)...........................................19
Battery Service..........................................................19
Battery Charging ...................................................20
Battery Installation.................................................20
Mower Deck Assembly..............................................21
Deck Caster Wheels Installation ...........................21
Deck Discharge Chute Installation ........................21
Deck Discharge Deector Shield Installation ........21
PTO Shaft Guard Installation ................................22
Tilt-Up Roller Wheel Installation............................22
Mower Deck Installation on Tractor...........................22
Deck Installation....................................................22
Deck Leveling........................................................25
DS60-3 Deck Leveling...........................................26
Measuring Deck Levelness ...........................26
Deck Leveling Procedure..............................26
Preoperating Checklist .....................................27
Operating Instructions 30
Control Identication,
Location, and Function ....................................30
Operating Controls....................................................30
Engine Choke........................................................30
Engine Throttle......................................................31
Forward Speed Control (FSC)...............................31
Steering Levers .....................................................31
Blade Clutch (PTO) ...............................................31
Front Body Latch Release.....................................31
Parking Brake........................................................33
Transmission Lockout Levers................................33
Instrument Panel.......................................................34
Hourmeter .............................................................34
Voltmeter ..............................................................35
Oil Pressure Warning Light/Horn...........................35
Over Temperature Warning Light/Horn .................35
Ignition Switch .......................................................35
Light Switch (For Optional Lights) .........................35
Warning Horn ........................................................35
Circuit Breakers.....................................................36
Starting the Engine............................................36
Adjusting Ground Speed and Steering ...........37
Engaging the Blade Drive.................................39
Stopping the Machine .......................................39
Adjusting Cutting Height ..................................40
DS60-3 Cutting Height..............................................41
DS60-3 Transport Position........................................41
Transmission Lockout ......................................41
Recommendations for Mowing ........................42
Recommendations for Towing .........................44
Recommendations for Tilt-Up Deck
Operation/Transport..........................................44
Grass Handling System (GHS).........................45
General Information ..................................................46
Clogging Checklist ....................................................47
Using the Tilt-Up Deck ..............................................48
Using the GHS Catcher ............................................48
Powerl ®...............................................................48
“Full” Signal Horn ..................................................48
Cleaning the GHS Exhaust Screen...........................49
Dumping the Catcher................................................49
Tailgate Dumping ..................................................49
Using the Dump Bag .............................................50
Power Dump Option..............................................51
Hi-Dump®Option ...................................................51
Table of Contents T23
Maintenance Instructions 55
Maintenance Schedule Chart ...........................55
Important Tips for Care of the
Kohler Engine ....................................................56
Fuel System..............................................................56
Starting/Stopping ......................................................56
Cooling System ........................................................56
Air Cleaner System...................................................56
Oil..............................................................................56
Lubrication.........................................................57
Engine Oil .................................................................57
Engine Break-In Oil ...............................................57
Checking Engine Crankcase Oil Level..................57
Changing Engine Crankcase Oil/Oil Filter.............58
Mower Deck Gearbox Lubrication.............................59
DS52 Mower Deck Lubrication .................................59
Mower Deck Spindle Lubrication ..............................60
Tractor PTO Gearbox Lubrication.............................60
Checking Gearbox Oil Level..................................60
Changing Gearbox Oil...........................................60
Gear Axle Lubrication................................................61
Grease Fitting and Oil Point Lubrication ..................61
Hydrostatic Transmission Oil ....................................64
Extending the Warranty.........................................64
Checking Hydrostatic Transmission Oil Level .......64
Changing Hydrostatic
Transmission Oil and Filter....................................64
Cleaning .............................................................66
Engine Air Cleaner System.......................................66
Turbine Precleaner ................................................66
Donaldson Radialseal™ Air Cleaner.....................67
Engine Cooling System.............................................69
Cooling Air Intake Screen......................................69
Cylinder Head Cooling Fins...................................69
Grass Buildup in Mower Deck Housing ....................70
GHS Blower ..............................................................70
GHS Exhaust Screen................................................71
Hydrostatic Transmission Cooling Fins.....................71
Checking/Servicing ...........................................72
Security of Air Filtration Components........................72
Battery.......................................................................72
Cleaning the Terminals..........................................72
Charging the Battery .............................................73
Tire Pressure ............................................................73
Wheel Bolt Torque.....................................................73
Sharpen Mower Blades.............................................73
Drive Belts.................................................................74
Mower Deck Gearbox Oil Seals................................75
Spark Plugs...............................................................75
Ignition Wires ............................................................75
Fuel Lines and Clamps .............................................75
Engine Starter...........................................................75
Transmission Control Setting....................................75
Neutral-Park ..........................................................75
Straight Ground Tracking ......................................75
Blade Brake Action....................................................75
PTO U-Joints ...........................................................76
Safety Switch System ...............................................76
Forward Speed Control Friction Lock .......................76
Replacing/Repairing..........................................77
Drive Belts.................................................................77
Engine PTO Drive Belt ..........................................78
Jackshaft Drive Belt...............................................79
GHS Blower Drive Belt..........................................80
Hydrostatic Ground Drive Belt...............................81
Deck Drive Belt (Optional DS60-3 Deck)..................82
Fuel Filter .................................................................83
Blade Overload Shear Bolts......................................83
Mower Blades ...........................................................84
Adjustments.......................................................85
Transmission Control ................................................85
Steering Lever Position Adjustment ......................85
Set FSC Travel Limits (Stop).................................85
Set Maximum Forward Travel Speed (Stop) .........86
Neutral Function Adjustment .................................86
Straight Ground Travel Adjustment .......................87
Blade Clutch (PTO)...................................................88
Clutch Engagement/Belt Tension ..........................88
Clutch Disengagement/Brake Action.....................89
Stop Block Eccentric Adjustment ..........................90
Clutch Idler Pulley Travel Adjustment ...................90
Blade Brake Band Adjustment ..............................91
Forward Speed Control Friction Lock .......................92
Steering Handles ......................................................93
Tilt-Up Deck Adjustable Stop ....................................93
GHS “Full” Signal Horn Adjustment ..........................94
T23 General Information
1
General Information
HIGHLIGHTED INFORMATION
Walker Manufacturing recommends that any ser-
vice requiring special training or tools be performed
by an authorized Walker Mower dealer. There are
several general practices to be aware of in the
area of safety. Most accidents associated with the
operation or maintenance of a Walker Mower are
caused by disregarding basic safety precautions or
specic warnings. Such accidents, in most cases,
can be prevented by being aware of the dangers
present.
Information of special importance has been high-
lighted in bold type in this manual. Refer to Safety
Instructions on page 10 for the meanings of
DANGER, WARNING, CAUTION, IMPORTANT,
and NOTE.
GLOSSARY
There are many terms that are either unique to this
equipment or that are used as acronyms. The
following terms and their denitions will help while
using this manual:
●DECK is the mowing attachment mounted on
the front of the tractor which includes the
carrier frame, deck housing, belt or gear drive
components, and cutter blades.
●FORWARD SPEED CONTROL (FSC) controls
the maximum forward speed of the tractor;
functioning as a cruise control.
●GRASS HANDLING SYSTEM (GHS®) collects
mowed material and deposits it in the catcher.
●GRASS-PAK®SWITCH is mounted on the
grass delivery spout (in the catcher) and
activates the “full” signal horn when the grass
catcher is full.
●GROUND DRIVE refers to the dual hydrostatic
transmissions which drive the main wheels.
●HYDROSTATIC TRANSMISSION transmits
and controls power from the ground drive belt
to the main drive wheel.
●LEFT HAND (LH) refers to the left-hand side
of the tractor when the operator is seated
facing forward in the tractor seat.
●POWER TAKE-OFF (PTO) transmits engine
power to run the cutter blades and GHS
blower.
●POWERFIL® spreads the mowed material
throughout the interior of the grass catcher by
an oscillating delivery spout.
●RIGHT HAND (RH) refers to the right-hand
side of the tractor when the operator is seated
facing forward in the tractor seat.
●SIDE DISCHARGE (SD) discharges mowed
material from the right side of the mower deck.
●STEERING LEVERS steer the tractor by
controlling the dual hydrostatic transmissions.
●TRACTOR is the prime mover, including the
engine, drivetrain, operator seat, and controls
to operate the mower.
●TRANSMISSION LOCKOUT releases the
hydrostatic transmissions to permit freewheel-
ing the tractor.
IDENTIFYING NUMBER LOCATIONS
The tractor serial number plate is axed to the
tractor body just below the left rear corner of the
seat. The mower deck serial number plate is
axed alongside the angle iron framing on the LH
side of the LH mower blade drive. Model and
serial numbers are helpful when obtaining replace-
ment parts and maintenance assistance. For
ready reference, please record these numbers in
the space provided.
Tractor Model No. ______________________
Tractor Serial No. ______________________
Deck Serial No. ______________________
Engine Model No. ______________________
Engine Serial No. ______________________
Date of Purchase ______________________
Fill In By Purchaser
General Information T23
2
Serial Number
Tractor Serial Number Location
Serial Number
Mower Deck Serial Number Location
ENGINE SERIAL NUMBER LOCATION
Refer to the engine manual that accompanies this
manual or photo below for the location of the
engine serial number.
Serial Number
Engine Serial Number Location
SERVICING OF ENGINE AND DRIVE-
TRAIN COMPONENTS
The detailed servicing and repair of the engine,
hydrostatic transmission, and gearboxes are not
covered in this manual. Only routine maintenance
and general service instructions are provided. For
the service of these components during the limited
warranty period, it is important to nd a local,
authorized servicing agent of the component man-
ufacturer. Any unauthorized work done on these
components during the warranty period may void
the warranty. If you have any diculty nding an
authorized outlet or obtaining warranty service,
please contact our Service Department for assis-
tance:
Walker Manufacturing Company
5925 E. Harmony Road
Fort Collins, CO 80528
1-970-221-5614
www.walker.com
Service manuals are available for each of these
components from their respective manufacturers
as follows:
Kohler Engines Kohler Company
Kohler, WI 53044
800-544-2444
www.kohlerengines.com
Hydrostatic
Transmissions
Danfoss Power Solutions
14615 Lone Oak Road
Eden Prairie, MN 55344 USA
952-937-9800
www.danfoss.com
Gearboxes (Deck) Peerless Gear
1555 South Jackson St.
Salem, IN 47167 USA
866-536-8310
www.peerlessgear.com
T23 Specications
3
SPECIFICATIONS
ENGINE
Manufacturer/Model Kohler Command Pro® CH680, 2 Cyl., Gasoline (Air-Cooled)
Displacement cu. in. (cc) 41.1 (674)
Max. Power HP (kW) 23 (17.2) @ 3600 RPM
Governed RPM 3600
Max. Torque lb·ft (N·m) 36.8 (49.9)
Idle RPM 1200
Spark Plug Type Champion® RC12YC
Spark Plug Gap in. (mm) .030 (0.76)
Crankcase Capacity qt (L) 1.8 (1.7)
Crankcase Lubricant
(From Factory)
300 Hour, Kohler PRO® Synthetic 10W-50 Kohler P/N 25 357 72-S
Oil Filter (From Factory) 300 Hour, Kohler PRO® Filter P/N 25 050 53-S
Conventional Crankcase Lubricant
(Alternative Option)
100 Hour, API SJ or Higher Grade Oil Only with 10W-30 Viscosity
Above 0° F (-18° C), or 5W-20 or 5W-30 Viscosity Below 32° F (0° C)
Oil Filter (Alternative Option) 200 Hour, Kohler Filter P/N 12-050-01-S
Cooling System Air-Cooled
Fuel Tank Capacity gal (L) 4.7 (17.8)
Fuel Regular Grade Unleaded Gasoline
(87 Octane Minimum, 10% Ethanol Maximum)
Air Cleaner Remote Mounted Donaldson RadialsealTM
(Walker P/N 5090-1 Primary/5090-3 Safety Filter)
ELECTRICAL SYSTEM
Battery 12 Volt, 300 CCA (Interstate SP-35)
Charging System Flywheel Alternator
Charging Output 15 Amp DC (Regulated)
System Polarity Negative Ground
Ignition Electronic Capacitive Discharge
Starter 12 Volt Electric Ring-Gear Type, Solenoid Shift
Interlock Switches Ignition Lockout by Seat Switch, Transmission Neutral,
Blade Clutch, and Parking Brake
Circuit Breaker Auto Reset (30A)
Manual Reset (7A) - Instrument Panel
TRANSMISSION
Manufacturer/Model Dual Hydrostatic, Danfoss Model 7, Each Wheel Independently
Driven
Steering Hand Lever Control / Individual Wheel
Forward Speed Control Precision Friction Lock Lever, Cruise Control, with
Neutral-Park Position
Specications T23
4
TRANSMISSION (Continued)
Service Brake Dynamic Braking through Hydrostatic Transmission(s)
Parking Brake Mechanical Pin Lock in Transmission Gear
Neutral Transmission Release by Manual Dump Valve
Hydrostatic Transmission Oil
Transmission Oil Filtration Walker Transmission Oil Performance System (TOPSTM)
Factory Service Mobil SHCTM 630, Walker P/N 6450-20
Transmission Filter Walker P/N 5024-13
Transmission Oil Capacity oz (L) 80 (2.4)
Transmission Cooling Cooling Fan Mounted on Drive Pulley
Final Drive Oil (Gear Axle)
Final Drive Gear Drive Axle
Factory Service SAE E.P. 80W-90 (API GL-5) Gear Lube
Final Drive Oil Capacity oz (L) 24 (0.71)
Ground Travel Speed
Forward MPH (km/h)
Reverse MPH (km/h)
0-7 (0-11) Innitely Variable
0-5 (0-8) Innitely Variable
BLADE DRIVE
PTO Shaft Quick Disconnect Sliding Spline Shaft with Two (2) High-Speed
U-Joints
Blade Drive Clutch and Brake Manual Belt Tightener Clutch and Band Brake
[Stops Blades within Five (5) Seconds of Disengagement]
TIRE SIZE
Deck Caster Wheel 8 x 3.00-4 Semi-Pneumatic (Standard)
8 x 3.00-4 Pneumatic 4-Ply (Optional)
11 x 4.00-5 (Pneumatic 6-Ply, DS52, DS60, DS74 Only)
Drive 18 x 9.50-8 (Pneumatic 4-Ply, Standard)
18 x 10.50-10 (Pneumatic 4-Ply, Optional Low-Prole)
Tailwheel 13 x 4.50-6 (Pneumatic 6-Ply, Standard Dual)
13 x 8.00-6 (Pneumatic 4-Ply, Optional Single)
TIRE PRESSURE PSI (KPA)
Deck Caster Wheel* 20 (137)
Drive 15 (103)
Tailwheel 20 (137)
* If equipped with optional pneumatic tires
T23 Specications
5
DRIVE BELTS
Engine PTO Walker P/N 8230
Jackshaft Drive Walker P/N 6250-1
Ground Drive, Micro-V Walker P/N 7248
Blower (GHS Model) Walker P/N 7234-2
SEAT Built-up Seat with Steel Frame, Extra Thick Foam Cushions and
Bolsters, and Removable/Replaceable Nylon Backed Vinyl Covers
FRAME/BODY CONSTRUCTION
Frame All Welded Unitized Steel Chassis
Body 14 Gauge Steel
Deck 11 Gauge Steel
GHS Catcher and Chutes Molded Cross-Linked Polyethylene (High Impact Material,
UV Stabilized) for Chutes and Linear Low-Density Polyethylene For
Catcher
GHS SYSTEM (Optional)
Blower 10.5 in. Diameter, Three-Blade Paddle Wheel
Blower Brake Band Brake [Works in Combination with PTO Clutch, Stops
Blower within Five (5) Seconds of PTO Disengagement]
Max. Blower RPM 4000
Hi-Dump Option
Max. Lift Capacity lb (kg)
200 (91)
Grass Catcher Capacity
gal / bu / L
93 / 10 / 352
Full Signal (Grass-Pak® Switch) Oscillating Vane Switch Mounted on Grass Delivery Spout Triggers
Horn Signal
Powerl®Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor
Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
MOWER DECK
Recommended Cut Width
Collection 42 to 52 in. (107 to 132 cm)
Side Discharge 42 to 74 in. (107 to 188 cm)
Mulch 42 to 52 in. (107 to 132 cm)
Cutting Height 1.5 to 4 in. (4 to 10 cm) or
1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS60 Belt-Driven Decks Only)
Deck Suspension Independent Torsion-Flex Frame with Caster Wheels and
Counterweight Springs
TOWING
Towing Capacity lb (kg) 250 (113) if equipped with a factory installed or factory authorized
tow hitch
Specications T23
6
DIMENSIONS (Tractor and Mower)
Length in. (cm)
Tractor Only 64.25 (164)
Tractor Wheel Base 41 (104)
Tractor with Tilted Deck
(Approximate)
77 (196)
Tractor with 48" Collection Deck
(DC48-1)
93 (236)
Width in. (cm)
Tractor Only (Outside Tire) 39 (99)
Tractor with 48" Collection Deck
(DC48-1)
49.25 (125)
Tread Width 30 (77)
Height in. (cm)
Tractor 50 (127)
Weight lb (kg)
Tractor Only 790 (358)
Tractor with 48" Collection Deck
(DC48-1)
1009 (458)
NOTE: The manufacturer reserves the right to make changes in specications shown herein at any time
without notice or obligation. The specications listed are for a standard conguration tractor, and may
change with the addition of optional equipment.
