Warnock Hersey Northfire dvr36h Manuale utente

MODEL NORTHFIRE

DVR36H/DVT36H

DIRECT VENTED BUILT-IN

GAS FIREPLACE HEATER

FOR USE WITH NATURAL GAS AND PROPANE

INSTALLATION AND OPERATING INSTRUCTIONS

FOR YOUR SAFETY

DO NOT store or use gasoline or any other flammable vapors or liquids in the vicinity

of this or any other appliance

IF YOU SMELL GAS:

- Do not try to light any appliance.

- Open windows.

- Do not touch electrical switches.

- Extinguish any open flame.

- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier’s

instructions.

- If you cannot reach the gas supplier, call the fire department.

PLEASE READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND

OPERATING THE APPLIANCE

WARNING: Improper installation, adjustment, alteration, service or maintenance voids

all the manufacturer’s warranties and may cause property damage, personal injury or

loss of life.

Installation and service must be performed by a qualified installer, service agency or the

gas supplier.

Installer, please leave this manual with the appliance owner for future reference.

WARNOCK HERSEY

CERTIFIED FOR CANADA AND USA

NOT FOR USE WITH SOLID FUEL

200-0052 24JAN01

fire-parts.com

CONTENTS

Introduction 2

General Information 3

Appliance Description and Dimensions 4

Installation Instructions 5 - 13

Operation Instructions 14 - 15

Maintenance 16

Trouble Shooting Instructions 17 - 18

Servicing 19 - 20

Important Information Form 21

Warranty 22

Parts and Accessories 23

Allowed Termination Location 24

Page

Manufactured by Archgard Industries Ltd, British Columbia, Canada.

Patents Pending

fire-parts.com

INTRODUCTION

Thank you for purchasing the NorthFire-DVR36H/DVT36H Direct Vent Built-in Gas Fireplace

Heater.

The NorthFire-DV36H is one of the most advanced gas fireplace heaters on the market. It is

designed using the latest technology and manufactured to the highest quality.

Some of the many features are:

∗ Small Size The NorthFire-DV36H is compact enough to fit into almost any size

room.

∗ Heater Classification The NorthFire-DV36H is classified as a heating appliance. Therefore,

it can be operated continuously for zone heating.

∗ High Efficiency The NorthFire-DV36H has high efficiency, which means that it is

less expensive to operate.

∗ Adjustable Flame The flame aesthetics and heat output can be adjusted to suit the

owner’s moods and heating needs.

∗ Solid Construction The NorthFire-DV36H is constructed mainly of satin coated and

galvanized steel for long life and durability.

Please read the manual carefully prior to installation and operation of the appliance.

Proper installation, operation and maintenance of the appliance will provide you with

many years of enjoyment.

CAUTION

Due to high temperatures, the appliance should be located out of traffic and away from

furniture and draperies.

Children and adults should be alerted to the hazards of high surface temperature and

stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the same room as the

appliance.

Clothing or other flammable material should not be placed on or near the appliance.

Any parts removed or opened for servicing of the appliance must be properly replaced

prior to operating the appliance.

The appliance must be inspected before use and at least annually by a qualified service

person. More frequent cleaning maybe required due to excessive lint from carpeting,

bedding material, etc. It is imperative that the control compartments, burners and

circulating air passageways for the appliance be kept clean.

fire-parts.com

GENERAL INFORMATION

This appliance is listed by Warnock Hersey for use in both the United States and Canada. It is

tested and certified to the following US and Canadian gas appliance standards.

- ANSI Z 21.44-1995 / CAN 1-2.19-M81 Direct Vent Wall Furnaces,

- ANSI Z21.50-1996 / CGA 2.22-M96, Vented Gas Fireplace and

- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes.

Please contact Warnock Hersey or Archgard Industries Ltd., if you have any questions

regarding the certification of this appliance.

APPLIANCE CERTIFICATION

INSTALLATION CODES

This appliance must be installed by a qualified gas appliance installer.

The installation must conform with the local codes or, in the absence of local codes, with the

current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code,

CAN/CGA-B149, in Canada.

Electrical connections and grounding must conform with local code, or current National

Electrical code, ANSI/NFPA No. 70-1987, in the US and in Canada, the current Canadian

Electrical Code, CSA C22.1.

HIGH ALTITUDE INSTALLATION

When installing this appliance beyond 4500 ft. (1372 m) above sea level. The appliance must be

properly de-rated and installed according to local codes, in the absence of local codes, with the

current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code,

CAN/CGA-B149, in Canada.

Natural Gas (NG) Propane (LP)

Manifold Pressure 1.6 - 3.5 in. w.c. (0.4 - 0.9 kPa) 6.0 - 10.0 in. w.c. (1.5 - 2.5 kPa)

Min. Supply Pressure for Purpose

of Input Adjustment

4.5 in. w.c. (1.2 kPa) 11.0 in. w.c. (2.8 kPa)

Orifice Size #44 DMS ( 2.18 mm dia.) #55 DMS ( 1.32 mm dia.)

Nominal Input Rating 13,000 - 20,000 BTU/hr (3.8 -5.8 kW) 14,000 -20,000 BTU/hr (4.1 - 5.8 kW)

Output (Fan On) @ Max. Rating 15,400 BTU/hr ( 4.5 kW) 15,400 BTU/hr ( 4.5 kW)

Output (Fan Off) @ Max. Rating 15,000 BTU/hr ( 4.4 kW) 15,000 BTU/hr ( 4.4 kW)

Altitude 0 - 4,500 ft. (0 - 1372 m) 0 - 4,500 ft. (0 - 1372 m)

Primary Air Opening 1/4 in. (6.4 mm) 1/2 in. (12.7 mm)

SPECIFICATIONS

fire-parts.com

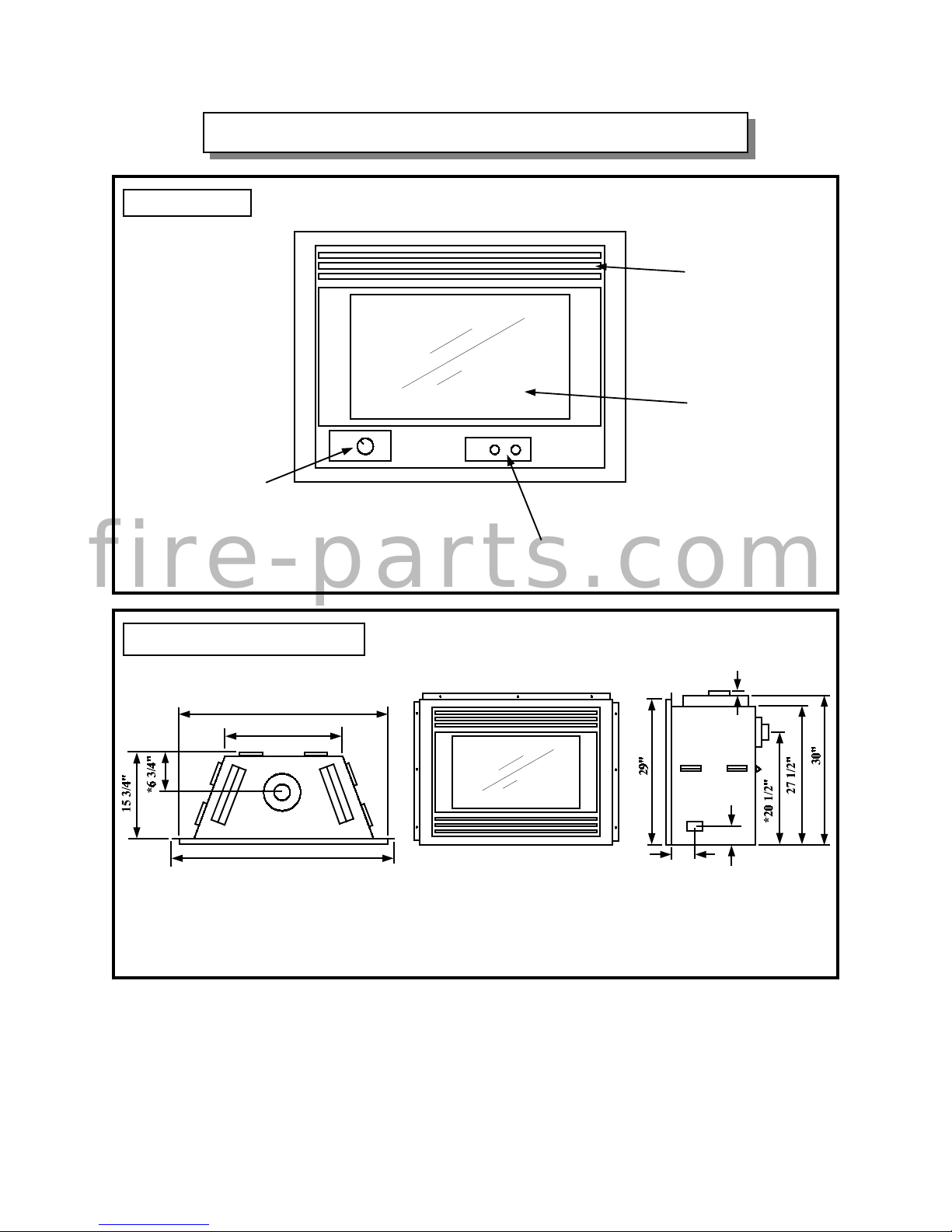

APPLIANCE DESCRIPTION & DIMENSIONS

GAS VALVE

CONVECTION FAN

SPEED CONTROL

TOP LOUVERS

GLASS DOOR

APPLIANCE DIMENSIONS

FRONT VIEW

36 1/4”

23 1/2”

37 3/4”

TOP VIEW SIDE VIEW

FRONT VIEW

3 1/2”

* Except for the vent connector locations, the rear vented DVR36H and top vented DVT36H, have

the same physical dimensions.

5 1/4”

3/4”

fire-parts.com

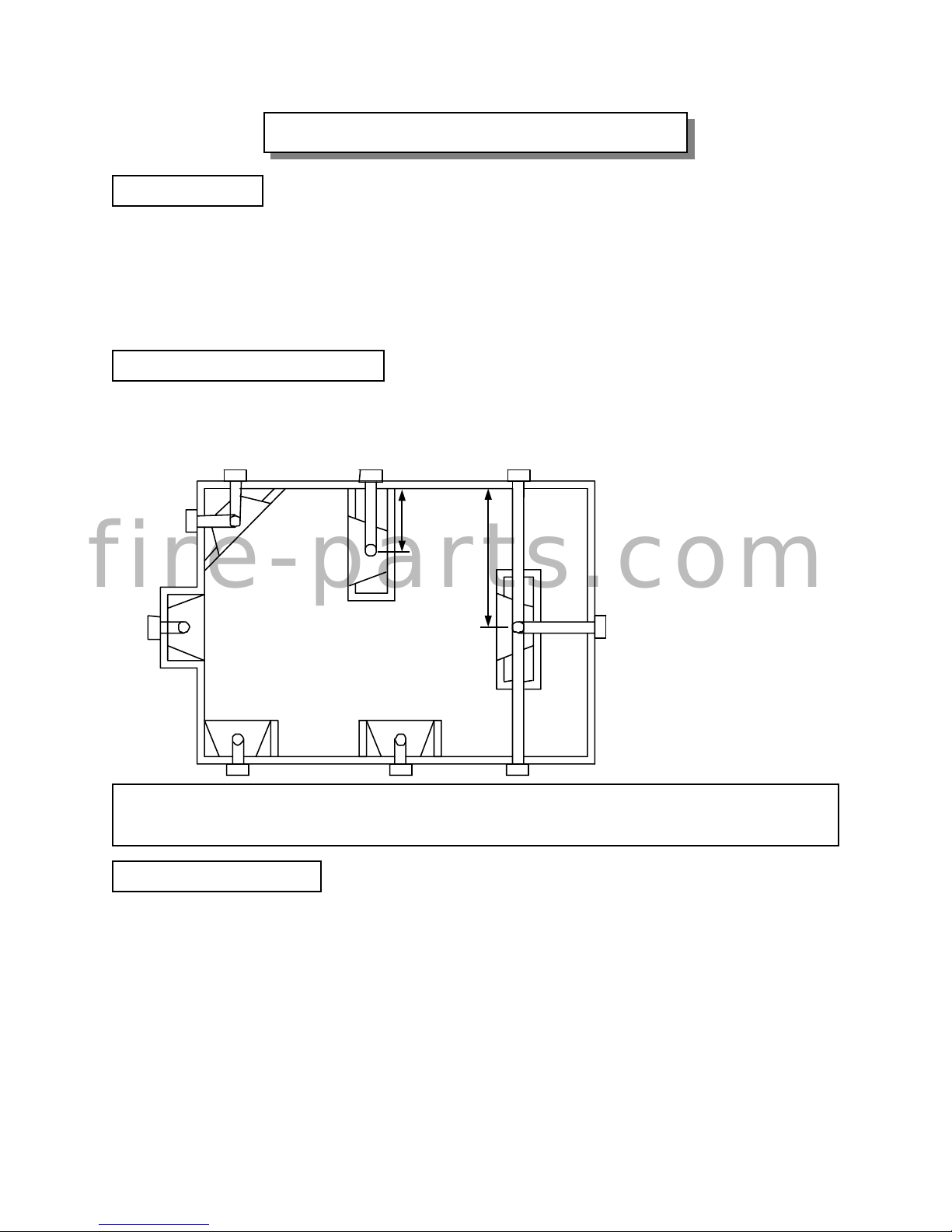

ACross Corner

BFlush with Wall

CFlat on Wall Corner

DFlat on Wall

EIsland

FRoom Divider

15 ft Max.

INSTALLATION INSTRUCTIONS

PRECAUTIONS

•This appliance must be installed by a qualified gas installer and the installation conform to the

installation codes.

•Provide adequate clearance around air openings of the appliance. Never obstruct front openings.

•Provide adequate clearances for proper operation and servicing of the appliance.

•This appliance must be properly connected to a venting system.

LOCATING GAS FIREPLACE

This appliance must be installed in any location that is free of plumbing, electrical wiring and heating or

air conditioning ducts. Select a location that is accessible for venting. See APPENDIX A.

ALLOWABLE TERMINATION LOCATIONS.

VENT TERMINATION

1. See “ALLOWABLE TERMINATION LOCATIONS” diagram (page 24) to establish a suitable vent

termination location.

2. In heavy snowfall areas make sure vent termination is located where it can not be blocked by snow or

snow from snow removal equipment.

3. Locate vent termination away from plants, bushes or any other object on or near the vent termination

that will interfere or obstruct the air flow around it.

4. DO NOT recess vent termination into walls, sidings or planters.

5. Vent terminations located below 7ft from grade level or anywhere it can be a burn hazard to the public,

such as patios and balconies, must be protected with an Archgard approved termination cage.

6. Always ensure bottom of Vent Terminal is a minimum of 12” above grade.

*NOTE: Rear vented gas fireplace DVR36H can only be located in positions

A, B, C and D.

fire-parts.com

INSTALLATION INSTRUCTIONS Cont...

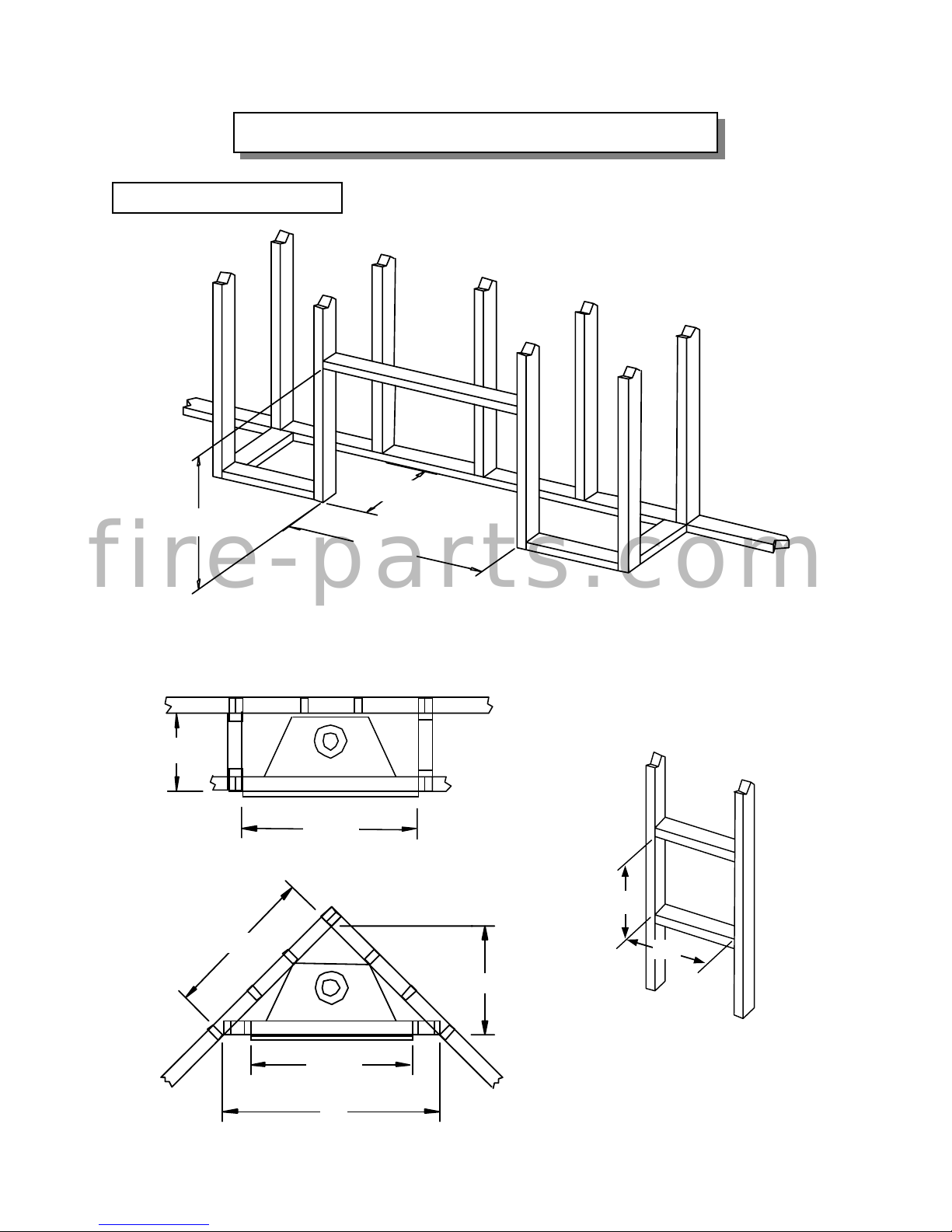

FRAMING DIMENSIONS

36 1/4”

16”

39 1/2”

28”

36 1/4”

56”

36 1/4”

*31”

16”

* If more rigidity is required. A stud may be added to the back of the top nailing flange

after the fireplace is installed.

TERMINATION

FRAMING

11”

10”

fire-parts.com

INSTALLATION INSTRUCTIONS Cont...

VENTING

The appliance will not function without being connected to a proper venting system.

This appliance may use 4” and 7” gas flex vents with NorthFire-DV36H listed vent components, or Simpson

Duravent 4 x 6 5/8 direct vent systems with Simpson Duravent Adaptor (SDA-1). 7” dia. rigid vent may

directly replace 7” dia. flex vent in all applications.

For best venting performance using gas flex vent, here are some general venting rules that we recommend:

1. Use only 4”and 7” diameter 2-ply certified gas flex vent in a co-axial configuration.

2. Maintain a minimum clearance of 1” to the sides and bottom and 2” to the top outside surface of the vent

pipe and combustible material.

3. Observe any local code restrictions, if any, regarding the installation of this type of gas appliance.

4. Observe the venting chart given in this manual.

5. Use a vent spacer between the inside and outside flex vents at every 3 ft intervals.

6. Never slope horizontal running vents downwards.

7. Maintain at least an upward slope of 1” for every 1 ft of horizontal run on the rear vented models.

8. Terminate the vent with a vent termination supplied by Archgard Industries Ltd.

9. Support horizontal running vents every 3 ft to prevent it from sagging.

10.Wall terminal must be installed a minimum of 12” above grade measured from bottom of

terminal.

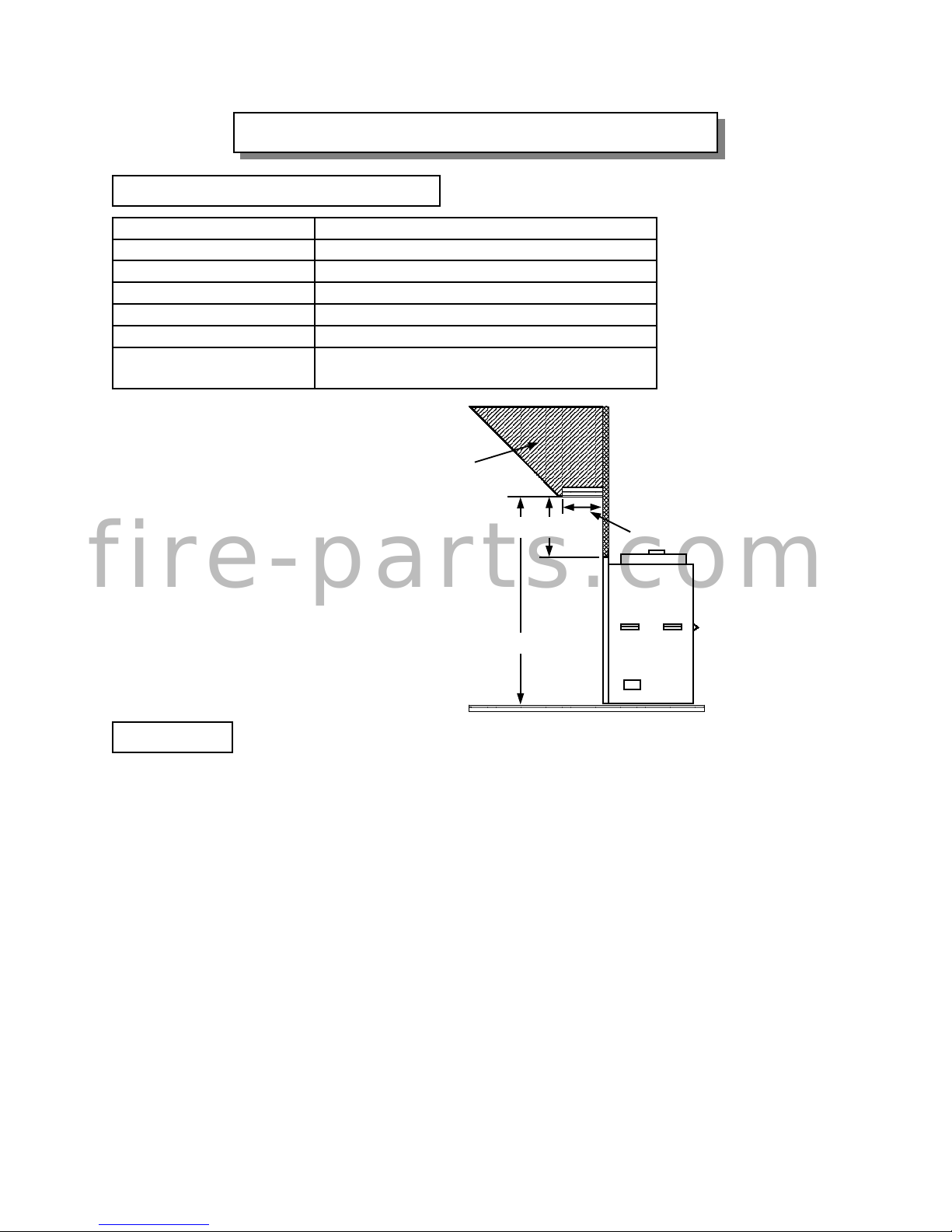

CLEARANCES TO COMBUSTIBLES

Combustible mantle allowed in shaded area. Mantle

extension maybe increased 1” (25mm) for each

additional 1” (25mm) increase in clearance height.

6” (152 mm)

Minimum Height From Top Surround: 6”

Minimum Height From Bottom of Applinace: 35”

BACK 0” to stand-offs

SIDES 0” to stand-offs

TOP 0” to stand-offs

BOTTOM 0”

ADJACENT SIDE WALL 1” to side of faceplate

MANTLE see diagram

VENT 1” to outside side and bottom surface,

2” to outside top surface.

fire-parts.com

INSTALLATION INSTRUCTIONS Cont...

VENTING Cont...

•Chart is for one 90° bend, with 1/4” vertical raise minimum per foot of horizontal length.

•For each additional 90° or two 45°, add 1ft of vertical height.

•Maximum two 90º bends, or equivalent.

•Minimum 2 ft straight length between bends.

Maintain a minimum of 1” clearance to combustibles on sides and bottom and 2” from top surface

of the vent.

The gas fireplace is designed and optimized for majority of the installations with short vents. With

taller vents the efficiency and flame characteristics will change. Therefore, an exhaust restrictor

plate is provided by the manufacturer to preserve as much of the original short vent performances as

possible on taller vent configurations.

NOTE: Maximum vent lengths subject to local codes.

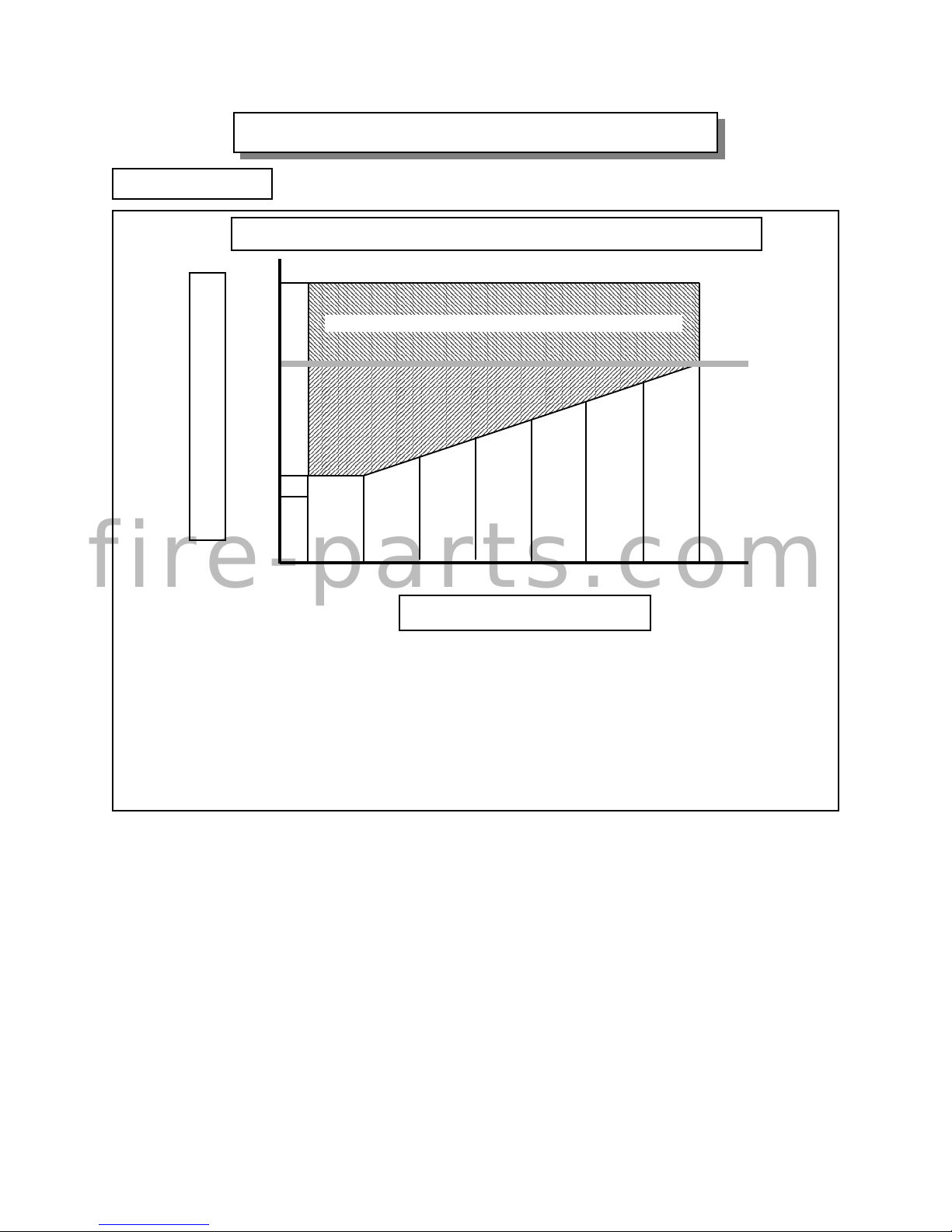

VENTING CHART (FOR TOP VENTED APPLIANCES ONLY)

10 ft

36”

3 ft1 ft 15 ft

HORIZONTAL LENGTH

(from center of flue outlet to base of termination)

VERTICAL HEIGHT

(from bottom of applinance to center of termination)

7 ft

Venting in this area may require a vent restrictor plate #1.

5 ft 7 ft 9 ft 11 ft 13 ft

30”

Heater

fire-parts.com

INSTALLATION INSTRUCTIONS Cont...

RESTRICTOR PLACEMENT “FOR ABOVE 7 FOOT VERTICAL RISE VENTED

APPLICATIONS ONLY”

Vertical Venting between Seven Feet (7’) and Ten Feet (10’)

requires Restrictor Number 1 as per the Venting Chart on

page 8.

Simpson Duravent Archgard System

Archgard System

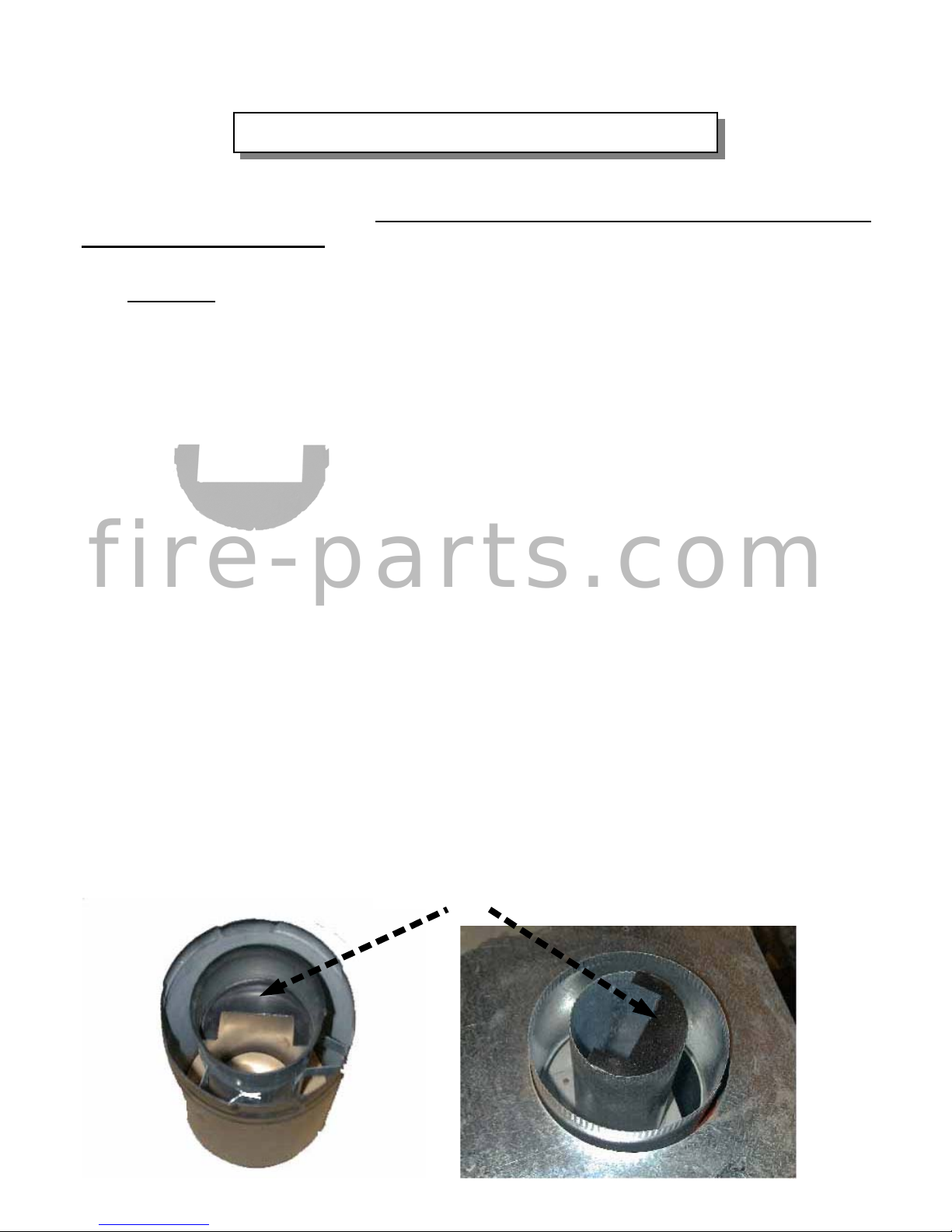

In the Archgard system the restrictors are placed on the exhaust outlet on the appliance.

Simpson Duravent

With Simpson Duravent locate the restrictor in the exhaust section fitting into the formed lip.

Restrictor Placement

WARNING: These restrictors are only to be installed in the vent system if the vent exceeds 7’

in vertical height, *Restrictor Number 1 below is required. Installing them

under any other circumstances may cause hazardous venting conditions

and may result in personal injury, property damage or death.

NOTE: Vent restrictors are designed to reduce vertical stack action for above 7 feet (7’),

which will reduce the velocity of incoming combustion air and not adversely affect the standing

pilot or the flame of the appliance.

fire-parts.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Warnock Hersey Camino da interno

Warnock Hersey

Warnock Hersey MANDALAY Series Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo

Warnock Hersey northfire dvr36h Manuale utente

Manuali Camino da interno popolari di altre marche
