Wasserstein BlinkDBSolarCharBlkUSN Manuale utente
In the Box
Important Tips
To maximize the energy output of the solar charger, remember to
do the following:
• Before installing your doorbell, charge the solar charger for at
least 8 hours under direct sunlight.
• Install your solar charger in an area that receives maximum
sunlight.
• Clean the surface of the solar charger regularly to remove any
dust or dirt that could affect its energy conversion.
This solar charger continuously powers the Blink Video Doorbell.
It contains a 2000 mAh battery.
Page 1
1 x solar charger 3 x screws 3 x wall anchors
Installation with Blink Video Doorbell
1. Use the 2 screws and 2 wall anchors provided to install the solar
charger onto the wall.
Important:
Make sure your solar charger has been charged in direct sunlight for
at least 8 hours and is installed in an area that receives maximum
sunlight.
Remove any existing doorbell, mount, solar charger, or backplate.
Page 2
2. Use the key that comes with your Blink Video Doorbell to remove
the backplate.
3. Remove any existing batteries from Blink Video Doorbell.
Page 3

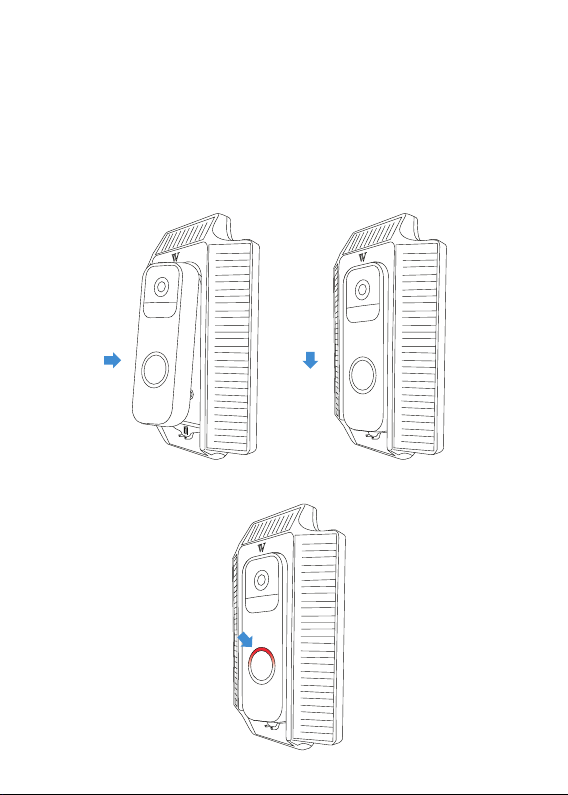

4. Place the top of the Blink Video Doorbell with the top of the solar
charger cutout, so that the hooks line up. Press the doorbell firmly
against the solar charger then pull down until it clicks into place.
Note: A red LED will begin flashing for a few seconds to indicate
it is seeking a connection. If there is no LED flashing, detach and
reinstall (solar panel must be charged for at least 8 hours before
use).
Page 4
Page 5
Detaching Doorbell from Solar Charger
1. Use the key that comes with Blink Video Doorbell.
2. Put the key into the opening at the base of the Blink
Video Doorbell.
Page 6
Specifications
7.36 x 4.33 x 1.18 in
2000 mAh
3V DC
0.6 W
ABS + PC
3. Lift, or pull the key towards you while you move the doorbell up to
undo the hooks and seperate from the backplate.
Dimensions:
Battery capacity:
Output voltage:
Power:
Materials:
Get More Support
Blink Video Doorbell is not included.
Wasserstein is a trademark of Dropcases Ltd.
@2022 Amazon.com, Inc. or its affiliates. Amazon,
Alexa, Blink, and all its related marks are trademarks
of Amazon.com, Inc. or its affiliates. Made in China
www.wasserstein-home.com
Benutzerhandbuch
Solarladegerät kompatibel mit
Blink Video Doorbell
In der Box
Wichtige Tipps
Um die Energieleistung des Solarladegeräts zu maximieren, sollten
Sie Folgendes beachten:
• Laden Sie das Solarladegerät vor der Installation Ihrer Türklingel
mindestens mindestens 8 Stunden unter direkter
Sonneneinstrahlung auf.
• Installieren Sie Ihr Solarladegerät an einem Ort mit maximaler
Sonneneinstrahlung.
• Reinigen Sie die Oberfläche des Solarladegeräts regelmäßig, um
Staub und Schmutz zu entfernen, die die Energieumwandlung
beeinträchtigen könnten.
Dieses Solarladegerät versorgt die Blink Video Doorbell
kontinuierlich mit Strom. Es enthält eine 2000-mAh-Batterie.
Seite 1
1 x Solarladegerät 3 x Schrauben 3 x Dübel
