WatchGuard

XCS

Hardware Guide

XCS 1180

ML11AE4

ii WatchGuard® XCS

ADDRESS

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

SUPPORT

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

SALES

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

ABOUT WATCHGUARD

WatchGuard offers affordable, all-in-one network and content security solutions that

provide defense-in-depth and help meet regulatory compliance requirements. The

WatchGuard XTM line combines firewall, VPN, GAV, IPS, spam blocking and URL

filtering to protect your network from spam, viruses, malware, and intrusions. The new

XCS line offers email and web content security combined with data loss prevention.

WatchGuard extensible solutions scale to offer right-sized security ranging from small

businesses to enterprises with 10,000+ employees. WatchGuard builds simple, reliable,

and robust security appliances featuring fast implementation and comprehensive

management and reporting tools. Enterprises throughout the world rely on our

signature red boxes to maximize security without sacrificing efficiency and

productivity.

For more information, please call 206.613.6600 or visit www.watchguard.com.

WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of

the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies,

Inc. and/or its subsidiaries in the United States and/or other countries. All other trademarks are the property of their

respective owners.

Part Number: 275-4545-001 Rev D

Revised: November 19, 2013

Notice to Users

Information in this guide is subject to change without notice. Updates to this document are posted on the WatchGuard

web site, at http://www.watchguard.com/help/documentation. Companies, names, and data used in examples herein are

fictitious unless otherwise noted. No part of this guide may be reproduced or transmitted in any form or by any means,

electronic or mechanical, for any purpose, without the express written permission of WatchGuard Technologies, Inc.

Complete copyright, trademark, patent, and licensing information can be found in

the WatchGuard product documentation. You can find this document online at:

http://www.watchguard.com/help/documentation/

Hardware Guide 1

Hardware Specifications

The WatchGuard® XCS appliance is an easy-to-use, all-inclusive email and web appliance that provides

security and privacy of inbound and outbound traffic. It is the first product that provides correlated content

security and threat prevention with consolidated administration and reporting across multiple protocols.

The WatchGuard XCS provides content security that enables data loss prevention, encryption and content

filtering with integrated threat prevention for viruses, spam, spyware, phishing, and malware attacks, all in a

secured appliance.

Secure Operating System

The WatchGuard XCS delivers the most complete security available for messaging systems. The appliance runs

on a customized secure operating system that does not allow uncontrolled access to the system. There is no

command line access and the WatchGuard XCS runs as a closed system, preventing accidental or deliberate

misconfiguration by administrators, which is a common cause of security vulnerabilities.

Package Contents

XCS device

Quick Start Guide

Hardware warranty card and LiveSecurity® Service activation card

Power cords

Rail mounting kit

Hardware Specifications

About Your Hardware

Hardware Specifications

Caution

The RAID controller backup battery may be discharged during product storage.

We recommend you allow 4 hours to charge the XCS 1180 RAID backup battery after the

system is connected to a power source. During this time the system is functional, but disk

performance is decreased while the battery is charging.

XCS 1180

Processor Intel E3-1275v2 (4 core)

Memory 8GB (2 x 4GB)

ECC DDR3 1600 Dual Channel

Hard Drives 4 x 300GB SAS 15k RPM Hard Drives (RAID 10)

RAID controller with battery backup

Power supply 350W Dual Redundant Power Supply

100-240 VAC, 8.0A MAX, 50/60 Hz, Autosensing

Network

Interfaces

4 port Intel E1G44HT network card

USB Ports 2 x USB ports

I/O Interfaces 1 x VGA DB15

1 x Serial DB9

Dimensions Depth =23” (58.42 cm)

Width (Without rack mount ears) = 17” (43.18 cm)

Width (With rack mount ears) = 19” (48.2 cm)

Height = 3.5” (8.9 cm)

Weight 37 lbs (16.8 kg)

Hardware Guide 3

Hardware Specifications

Environmental Requirements

To safely install your XCS device, we recommend that you:

Install it in a network rack.

Put it in a secure area, such as a locked room, to keep the device from people who do not have

permission to use it.

Connect it to a conditioned power supply to prevent damage from sudden power changes.

Other environmental requirements for the WatchGuard XCS device:

Operating temperature 0 to 40°C (32 to 104°F)

Non-operating temperature –40 to 70°C (–40 to 158°F)

Operating relative humidity 10% to 85% non-condensing

Non-operating relative humidity 5% to 90%

Hardware Specifications

Hardware Description

Front View

The front of the XCS device.

This is a close-up of the LED panel.

Power Button

Press the power button to power on and off the device. Before you power off your device, make sure

your operating system is correctly shut down. Hold the power button for at least five seconds to force

a power off.

Power Indicator

The power indicator lights when power is supplied to the device and the device is operational.

Storage Activity

The storage activity indicator flashes when the hard disk drive is active.

On the XCS 1180 device, the individual status lights on each hard drive in the RAID array supersedes

the main storage activity indicator.

Hardware Guide 5

Hardware Specifications

Hard Drive Carriers

Each hard drive carrier has two indicators:

Status: The upper status indicator is green during normal operation. When the status flashes red, this

indicates the drive is rebuilding. When the status is solid red, it indicates a drive failure.

Activity: The lower activity indicator flashes amber to indicate drive activity.

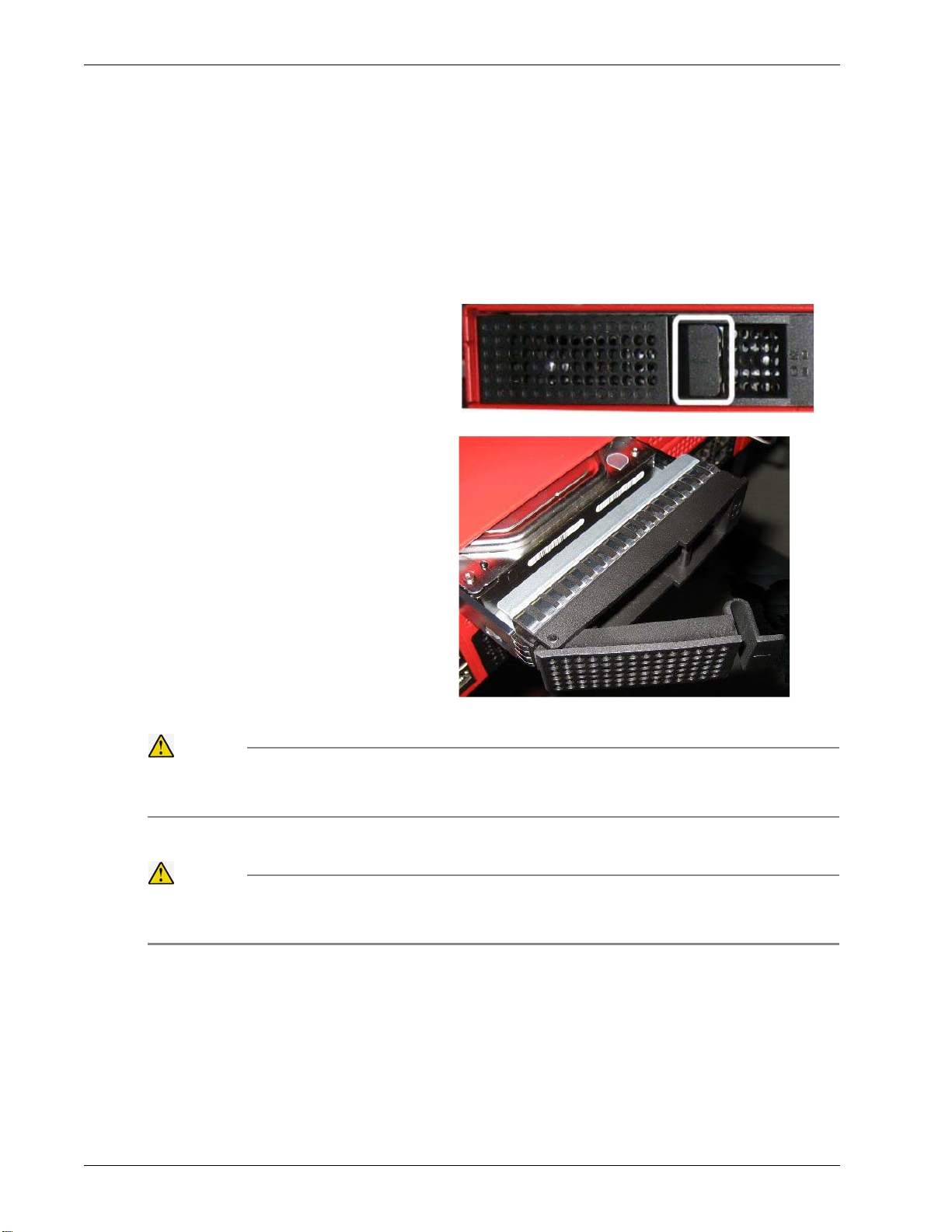

To replace a hard drive carrier:

1. On the front of the device, find the

release tab located on the right side of

the hard drive you want to replace. The

failed drive status indicator will be solid

red.

2. Pull the tab outward to release the

hinged arm on the hard drive.

3. Pull the hard drive out of the slot.

4. On the replacement hard drive, open the

hinged arm.

5. Slide the replacement hard drive into the

slot.

6. Push until the hard drive is flush with the

front of the XCS device. Then close the

hinged arm to lock the drive into place.

Caution

Failure to power off the XCS device, disconnect the power cords from the back of the device

and from the power source, and wait two minutes for power dissipation before performing

the installation of the hard drive, can result in personal injury or death.

Caution

Electro-Static Discharge (ESD) can cause damage to the hard drive. Attach an ESD strap to

your wrist and to a grounded source before you open the device or remove any module.

Wear the ESD strap during the full procedure.

Hardware Specifications

Rear View

This is a close-up of the rear of the device.

USB Interfaces

There are two USB interfaces that support additional peripherals, for example. a USB keyboard for use

with the XCS device console.

Serial Port

You can use a DB9 connector for the serial port (COM1) to connect a UPS (Uninterruptible Power

Supply). The serial port can also be used to connect to the serial console if you do not have a monitor

and a keyboard.

VGA Video Interface (Console)

You can use the VGA video connector to connect a monitor and view the XCS device console screen.

AC Receptacles

Accepts a detachable AC power cord supplied with the device.

Power Supply Fans

The fans decrease the internal temperature of the device.

Caution

You must disconnect the power supply before you remove the cover of the XCS device.

If you open the cover without prior authorization from WatchGuard, the Hardware Warranty

is voided.

Hardware Guide 7

Hardware Specifications

Power Supplies

Your XCS device is equipped with dual power supplies. If one of the power supplies fails, the XCS device will

continue normal operation with the remaining power supply.

To replace a power supply:

1. Remove the power cable from the power supply you want to replace.

2. With a cross-head screwdriver, loosen the screws and remove the power supply holding bracket.

Caution

The power supply can be extremely hot when removed. The top of each power supply is a

heat sink and can reach temperatures of 50 - 60 degrees Celsius (122-140 Fahrenheit). Avoid

any contact until the metal has cooled. Do not put the power supply directly on a heat

sensitive surface.

3. Find the power supply release tab located at the top of the power supply. Pull the top metal tab down

and use the bottom tab to pull the power supply out.

4. Slide the replacement power supply into the open slot.

5. Press firmly on the face of the power supply until it clicks into place and is flush with the back of the

XCS device.

6. Replace the holding bracket and tighten the screws.

7. Plug in the power cord. If the replacement is successful, the power indicator light for the new power

supply is green.

Holding bracket screws

Release tab

Hardware Specifications

Network Interfaces

This is a close-up of the network interfaces on the rear of the device.

Onboard Network Interfaces

The XCS device has four network interfaces. The network interfaces have standard RJ45 connectors.

Network Interface Indicators

Each network interface has a pair of indicators. The left indicator is the activity indicator for the

interface. The right indicator shows the connection speed for the interface.

Indicator Indicator Color Interface Status

Activity (Left) Not lit No connection

Amber Connection established

Blinks Network activity, data sent and

received

Connection Speed

(Right)

Not lit Operates at 10 Mbps or no link

Green Operates at 100 Mbps

Amber Operates at 1000 Mbps
