WiFi Thermostat 562
User Manual
The WiFi Thermostat 562 provides precise temperature control of a heating and
cooling system. When connected to the Internet, the mobile app and website allow
you to control the thermostat remotely. The thermostat and mobile app include an
away feature that overrides the schedule to lower the temperature and increase
energy savings. The thermostat is designed to support radiant floor heating and
optional floor sensors can be installed to enhance comfort and protect floor coverings.
Introduction
2 of 8
© 2016 tekmar 562
_
U - 10/16

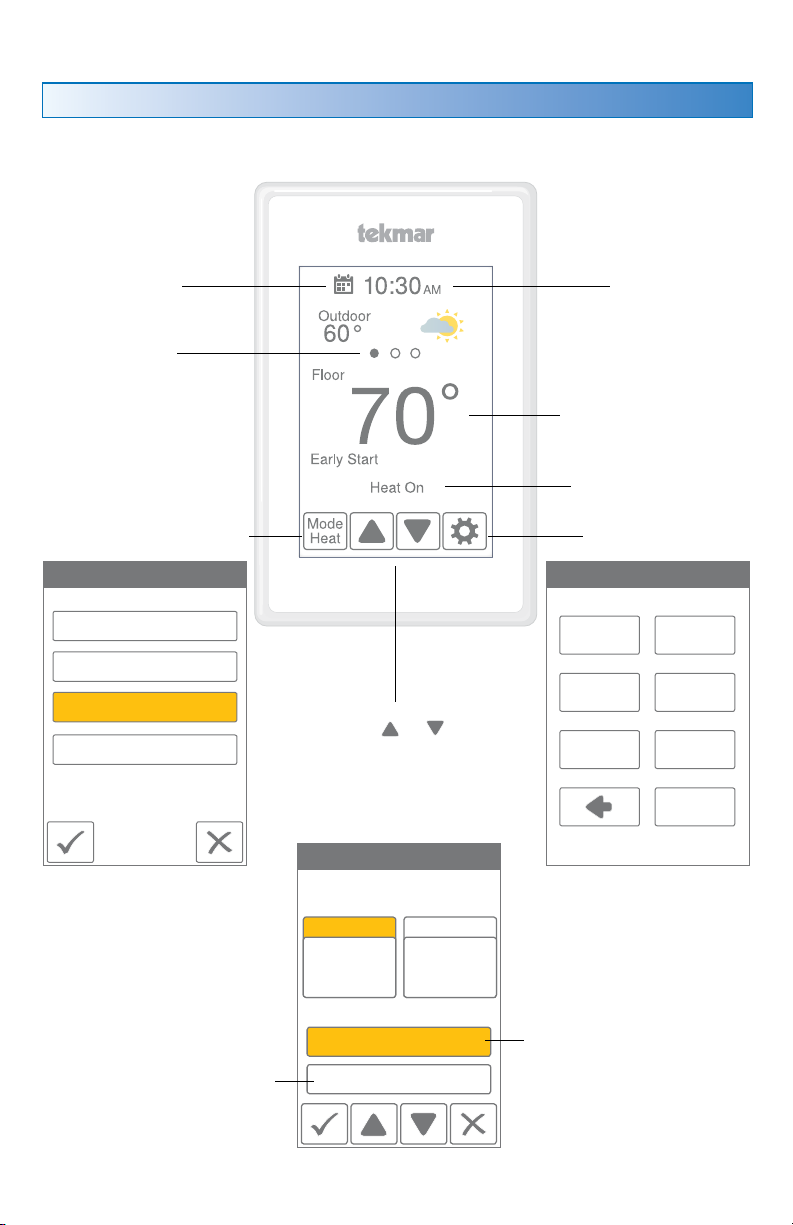

Home Screen
User Interface
Current time
Current temperature
Equipment operation
(Heat or Cool On)
Change operating mode
Touch or to
adjust temperatures
Select either
Heat To or Cool To
Hold overrides the
programmed schedule
until the time shown
'Save to schedule' applies
the new temperature to the
current schedule event.
Go to settings
Swipe to view:
• Weather
• Outdoor temperature
• Floor temperature
• Heat To setting
• Cool To setting
Go to schedule
After 60 seconds of inactivity, the thermostat home screen displays only the time and
the temperature.
Save
Cancel
Mode
Heat
Cool
Auto Heat-Cool
Off
Temperature Adjustment
Hold Until 5:00 PM
Save to Schedule
70
Heat To
75
Cool To
MENU SELECTION
AWAY SCHEDULE
DISPLAY TIME
WIFI SETUP
FAN
WIFI: Connected
© 2016 tekmar 562
_
U - 10/16
3 of 8

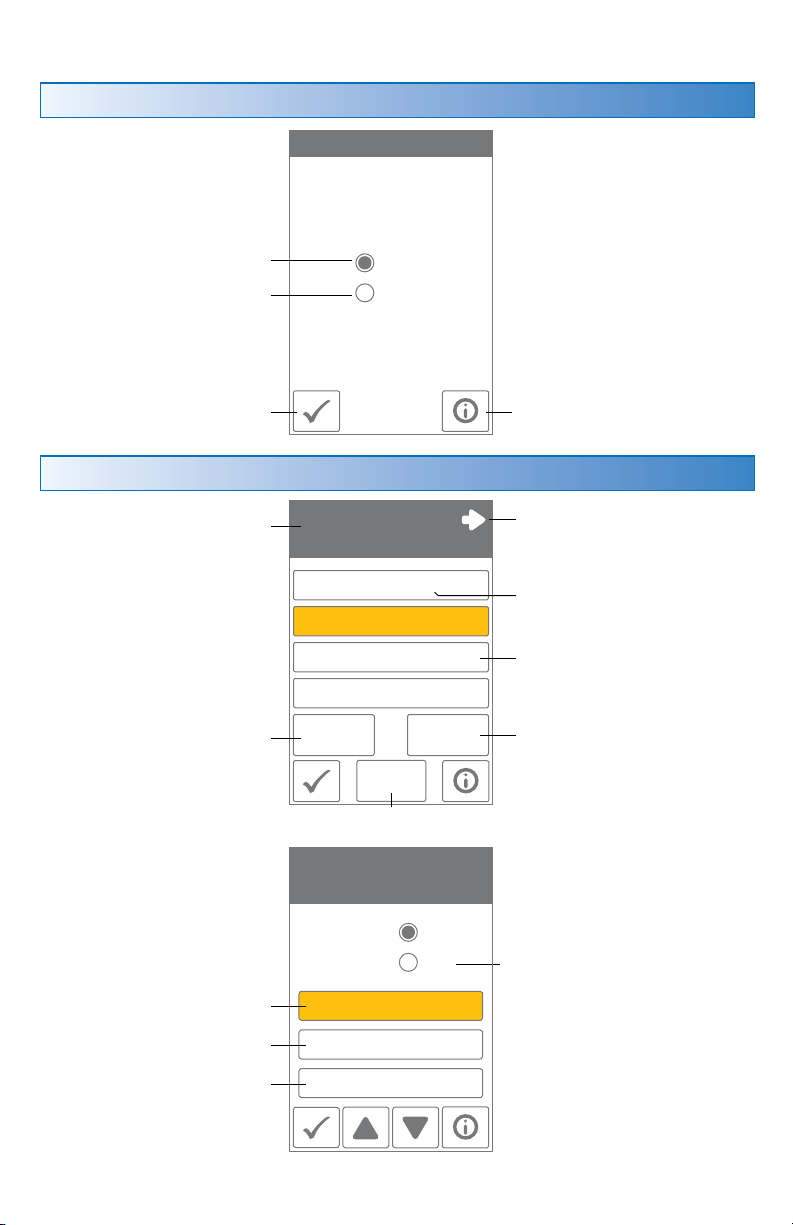

Away
Schedule
User Settings
Set heating temperature
Set cooling temperature
Select skip if you don't want
a temperature change.
Set schedule start time
Operates normally
Operates using the Away
temperature selected in
the Setup menu
Use the Away setting to save
energy when the building is
unoccupied
•
The Away temperature can
be adjusted in the Setup /
Temps menu.
• Selecting the Away
setting on a thermostat or
the mobile app will affect
all devices linked to that
location through the app.
Save Info
Home / Away
At Home
Away
Heating temperature
Go to the next group
of program days.
Current group of
program days.
Early Start anticipates the
time required to heat or cool
a room and starts early.
Set to On to follow the
schedule. Set to Off to use
the same temperature all
of the time.
Creates a new schedule.
Cooling temperature
New
Schedule
Early Start
On
Schedule
On
Wake 6:00 AM 70° 75°
Leave 8:00 AM 65° 78°
Return 6:00 PM 70° 75°
Sleep 10:00 PM 65° 78°
Schedule
Mon Tue Wed Thu Fri
On
Skip
Wake
Schedule Setup
Mon Tue Wed Thu Fri
6:00 AM
Cool to 75°
Heat to 70°
4 of 8
© 2016 tekmar 562
_
U - 10/16
Display
Daily Usage
Monthly
Usage
Today 0 hrs 0 hrs
Yesterday 0 hrs 0 hrs
Tue 0 hrs 0 hrs
Mon 0 hrs 0 hrs
Sun 0 hrs 0 hrs
Sat 0 hrs 0 hrs
Fri 0 hrs 0 hrs
View each day's run
time for both heating
and cooling.
Toggle between Daily
and Monthly Usage.
Energy Use
Select °F or °C
Brightness when
touching the display
Choose the
background color
Select English, French
or Spanish
10 second count down
to allow the screen
to be cleaned with a
moist cloth.
Brightness after 60 second
timeout of no use
Energy use. See below.
DISPLAY OPTIONS 2/2
Clean Screen: OFF
DISPLAY 1/2
Temperature Units: °F
Brightness - Active: 80%
Theme: Light
Energy Use: Monthly
Brightness - Inactive: 50%
Language: English
© 2016 tekmar 562
_
U - 10/16
5 of 8
Time
When connected to the Internet, the time can be set
automatically.
The time and date can be manually set by highlighting
a field and then using the or buttons.
Incorrectly setting the time and date manually may prevent the thermostat from
communicating to the mobile app. Automatic time source is recommended when using
an Internet connection.
Fan
The fan is normally off when
set to auto but turns on when
needed for the heating or
cooling equipment.
When a programmable schedule
is used, there is a fan setting for
each time period.
Fan
On
Auto
TIME & DATE
1 30 PM
Aug 25 2016
OPTIONS
Fan
Leave Auto
Wake On
Return On
Sleep Auto
Time options are:
• 12 hour or 24 hour time format
• Automatic or manual time setting
• Time zone
• Daylight savings time
6 of 8
© 2016 tekmar 562
_
U - 10/16
WiFi
The thermostat includes a step by step tutorial to setup the WiFi connection.
Step 1
Agree to Terms of Use
Step 2
Turn on WiFi
Step 3
Enter wireless network
name. It must support
WPA2 security encryption.
Step 4
Enter WiFi password.
Step 6
Select if the time is set
automatically from the
Internet or manually.
Step 5
Enter ZIP or postal code.
This determines your location
for weather information.
Before using the WiFi features of this product, you must accept the Terms of Use, as
amended from time to time and available at tekmarConnect.com/terms. If you do not
accept these terms, this product can still be used without WiFi features.
Tutorial
DISAGREE AGREE
Before first using wi-fi features
of this product, you must accept
the Terms of Use available at
http://tekmarConnect.com/terms
by pressing AGREE below.
If you do not accept these terms.
this product can still be used
without wi-fi features.
WIFI
NEXT
Off
On
Time Source
NEXT
Automatic
Manual
NETWORK SSID
CONNECT
Select a network
from the list:
Your House
A C EB D F
M O QN P R
Y A/1ZShft Del
G I KH J L
S U WT V X
Enter Password
CONNECT
135246
: ( $; ) &
' A/1\Shft Del
7 9 -8 0 /
@ . ?" , !
ZIP/Postal
OK
© 2016 tekmar 562
_
U - 10/16
7 of 8
tekmar Connect Web and Mobile App
To view and adjust the WiFi Thermostat using a mobile phone or tablet, download the
tekmar Connect mobile app from the Apple® iTunes® Store or from the Google Play® Store.
Alternatively, go to tekmarConnect.com for web browser access.
Step 1
Create a new account. Then
login using your username and
password.
Step 2
Add a Device Step 3
On the thermostat, go
to WiFi menu and press
Register Device.
Step 4
Enter the 8 digit number
from the thermostat into the
mobile app. Then enter the
thermostat's room name. The
app supports multiple site
locations. Enter the location
for the thermostat.
Step 5
Edit your account and save.
The thermostat is
now listed on the My
Devices page.
Add Thermostat to App
----------------------------------------------
Email
Password
SIGN IN
SIGN UP AND GET STARTED
Forgot Password
Terms and conditions
Don't have an account?
My Devices Account
ADD A DEVICE
You don't have any devices associated with this location.
HOME
Home
REGISTRATION
To finish registering
your thermostat,
enter the code
displayed below at
tekmarConnect.com
12345678
My Devices Account
12345678
WiFi Thermostat 562
ADD DEVICE
Activation Number
Device Name
Location
Add a Device
Home
My Devices Account
SAVE
First & Last Name
Username
Email Address
Edit Your Account
(###)###-####
Phone
F
Logout
Change Password
Units
My Devices Account
WiFi Thermostat 562 78 °F
Auto
HOME
Home
562
_
U - 10/16 8 of 8 © 2016 tekmar
Tel: (250) 545-7749 • Fax: (250) 984-0815
tekmarControls.com
All specications are subject to change without notice
Using the App
-------------------------------------------------------
Set to AWAY to save
energy when you are
away for a day or more.
Choose a location.
Edit location info
Edit account info
Edit device info
View energy usage
Change from Heat,
Cool, Auto or Off mode
Change heating and
cooling setting
Save temperature
change to the schedule
Return to home view
Temperature change hold
until schedule change
View and edit schedule
View and change
thermostat
Add a device
My Devices Account
WiFi Thermostat 562
WiFi Thermostat 561
WiFi Thermostat 562
Off
75 °F
Heat
78 °F
Heat
HOME
Home
SAVE TO
PROGRAM CANCEL
HOLD
My Devices Account
WiFi Thermostat 562
Auto
HEAT TO
70°
TEMP
72°
40° 100°
76°
COOL TO
