Waversasystems WMiniAMP MK2 Manuale utente
WMiniAMP MK2
Owner’s Manual
Important Notice
1. Read these instructionmanual
2. Keep the manual
3. Keep remind allwarnings
4. Followall instructions
5. Do not usethis equipments near waterormoisture
6. Cleanonly withdry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions
8. Do not usenearany heatsources such asradiators,stovesor heat registers
9. Use grounding-typeplug
10. Use onlyattachments/accessoriesspecifiedbythe manufacturers
11. Unplugthis equipment duringlightningstorms orwhen unusedfor long periodsof time
12. Referall servicing to qualifiedservicepersonnel.Servicing isrequiredwhenthe
equipmenthas beendamagedin any way,such aspower-supplycordor plug is
damaged,liguidhas beenspilledor objects have falleninto the equipment,the equipment
has beenexposed to rain or moisture,does not operatenormally,or has beendropped.
Manufacturerdoes not take any responsibility forrepairing dueto misusedoperation
13. Do not put any liquidmaterialonto theequipment
14. Remove plug after checkingthe equipment poweris off. Otherwise,it may causeequipment
failure.
WARNING: Unqualified personnel are not able to repair this equipments.
To reduce the risk of electric shock, do not openbottom coveron purpose.
WMiniAMPMK2 Owner’s Manual 01
About Waversa Systems
Thanks for choosing
Waversa Systems’ WMiniAMP MK2.
Recent development of innovative IT/ Digital technology brings
vast changes in concept and environment of old Analog based
High-end Audio market.
Waversa Systems is leading
New High-end Audio paradigm combining world top class IT with
digital technology under the goal of developing sophisticated
sound and design.
Waversa Systems is
Happy with your purchasing equipments and promises to become
best partners for your audiolife.
CEO Junho Shin
WMiniAMP MK2 Owner’s Manual 02

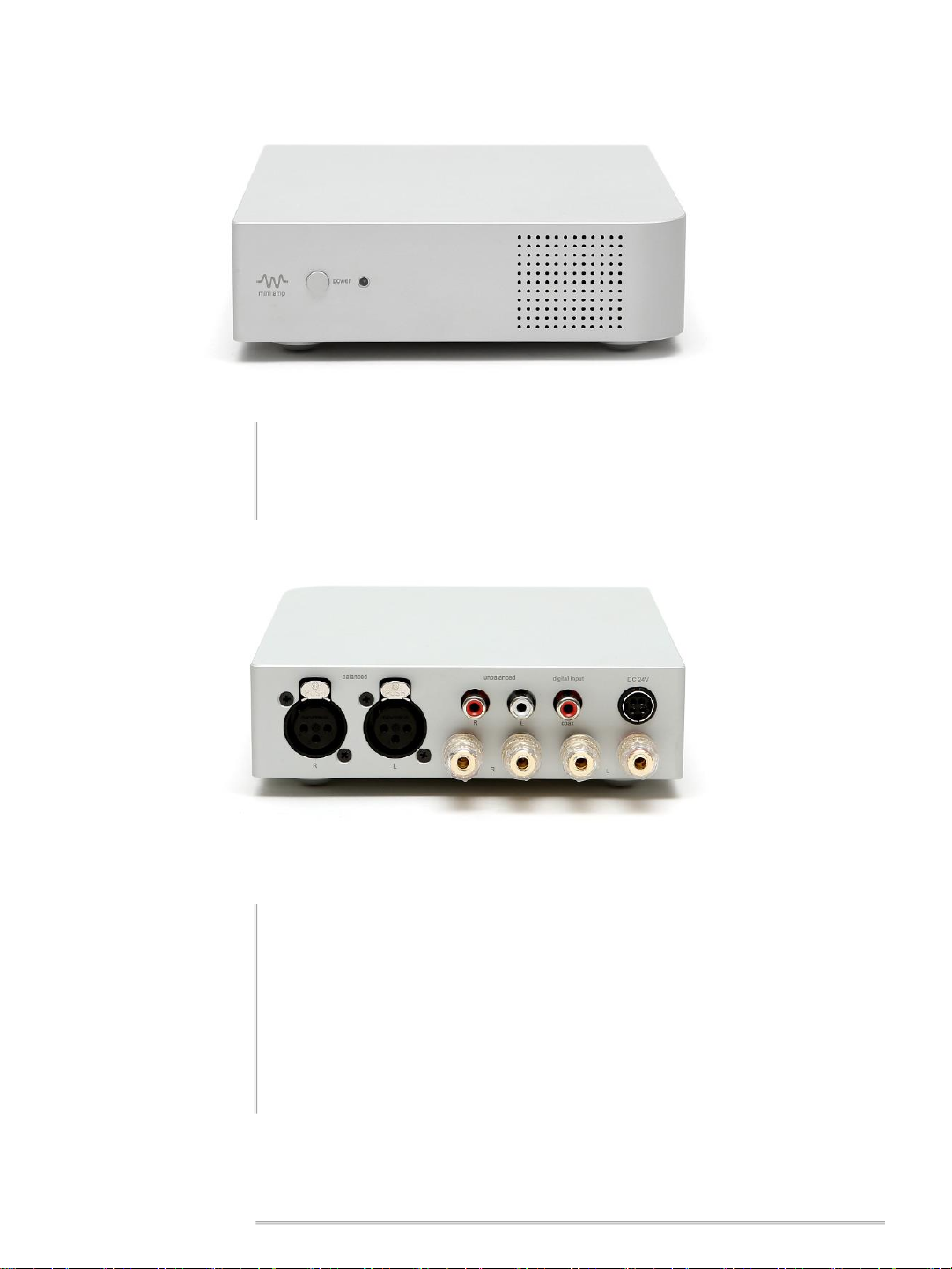

Front Panel
①Power button / Mono mode select
②IR remote sensor
③LED Menu Panel
Rear Panel
①Balanced Input : XLR
Mono mode : L : communication,R : input
②Unbalanced Input : RCA
③DigitalInput : CoaxialType
④Speaker Output
⑤DC Input : 24V DC
WMiniAMP MK2 Owner’s Manual 03
W mini AMP
④
⑤
③
①
②
①
③
②
WMiniAMP MK2 Owner’s Manual 04
1. InputSelect
: Inputchanges inaccordancewithLEDindicationin right
•B : BalancedInput(XLR)
•U : Unbalance Input(RCA)
•D : Digital Input(Coaxial)

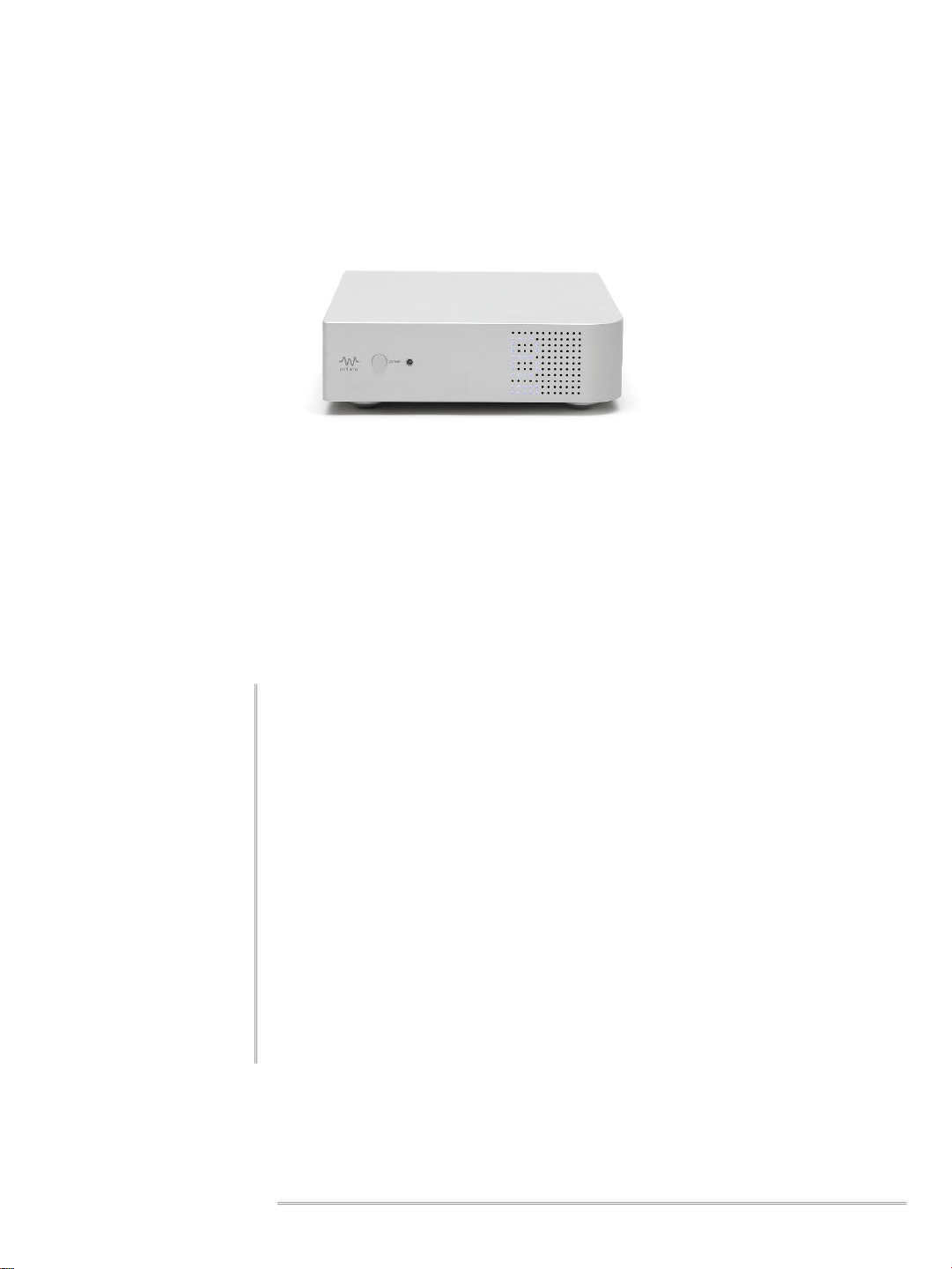

Front Panel User Guide
- Select
2. Bottom volumelevel
3. MonoMode
: Keeppress power buttonuntilboot as monomode
WMiniAMP MK2 Owner’s Manual 05
* Changeto stereomode: Keep press powerbutton whilemonomode
standby.
Mono Mode Guide
②① ③
①Left channelstandbystatus
②Right channelstandbystatus
③Linkstatus
1. Standby both amplifier
2. Keep press powerbutton for both amplifier.
3. Changesourceas above
4. Turn off(unplugpower)both amplifierand on again
5. Turn left block to turn on
* Bridgeoutput: usingmonoblock kit.
Specification for the WMiniAMP MK2
WMiniAMP MK2 Owner’s Manual 06
Converter Type
Configuration
Input
Outputs
Power Outputs
Frequency Response
Power Requirements
Dimension
Weight
10Hz - 20kHz, +0.1/-0.5dB)
Fully balanced differential, stereo and mono
Waversa System Processor(WAP) Type 1 applied
•Digital Input (Coaxial) * 1
•XLR Input * 1
•RCA Input * 1
•Link Input/output ( XLR(L) when Mono mode)
Stereo : Speaker Output L/R, Mono : Bridged Output
•70W per channel into 8Ω, 100W per channel into 4Ω
•Mono mode : 200W per channel 2Ω
DC 24V Adapter 90~120 VAC / 180~240 VAC @ 50~60Hz
W 180 x L 150 x H 45 ( Foot Spike 7 mm) mm
3 Kg
NOTES: All specifications are accurate at the time of printing.
Waversa Systems reserves the right to adjust specifications without
notice.
403, 10-9, Hwangsaeul-ro258beon-gil,Bundang-gu,
Seongnam-si,Gyeonggi-do,Republicof Korea
http://www.waversa.com
Copyright 2018 Waversa Systems
