Eclipse Shutters
Installation Manual
2 | P a g e
INSTALLATION
INSTALLATION TOOLS REQUIRED
•Rechargeable, variable speed 10mm drill
•Hinge shims (available if requested for no-frame applications only 38mm x No.)
•Slot screw driver
•Non-marking hammer with 25mm head for tapping frames into position
•10mm diameter drill bit
•Loctite 454 Instant Adhesive or contact cement required
•Caulking for mitred corners and gaps between the frames and window jambs for
corner keys
•Robertson screwdriver bits, 100mm x No1, 38mm x No2.
•Jig saw, hack saw, Dremel tool or Stanley knife if cut-outs are required
25mm or 30mm course threaded bugle headed needle point Gyprock screws
3 | P a g e
GENERAL INFORMATION
SHUTTER PANEL PARTS DIAGRAM
4 | P a g e

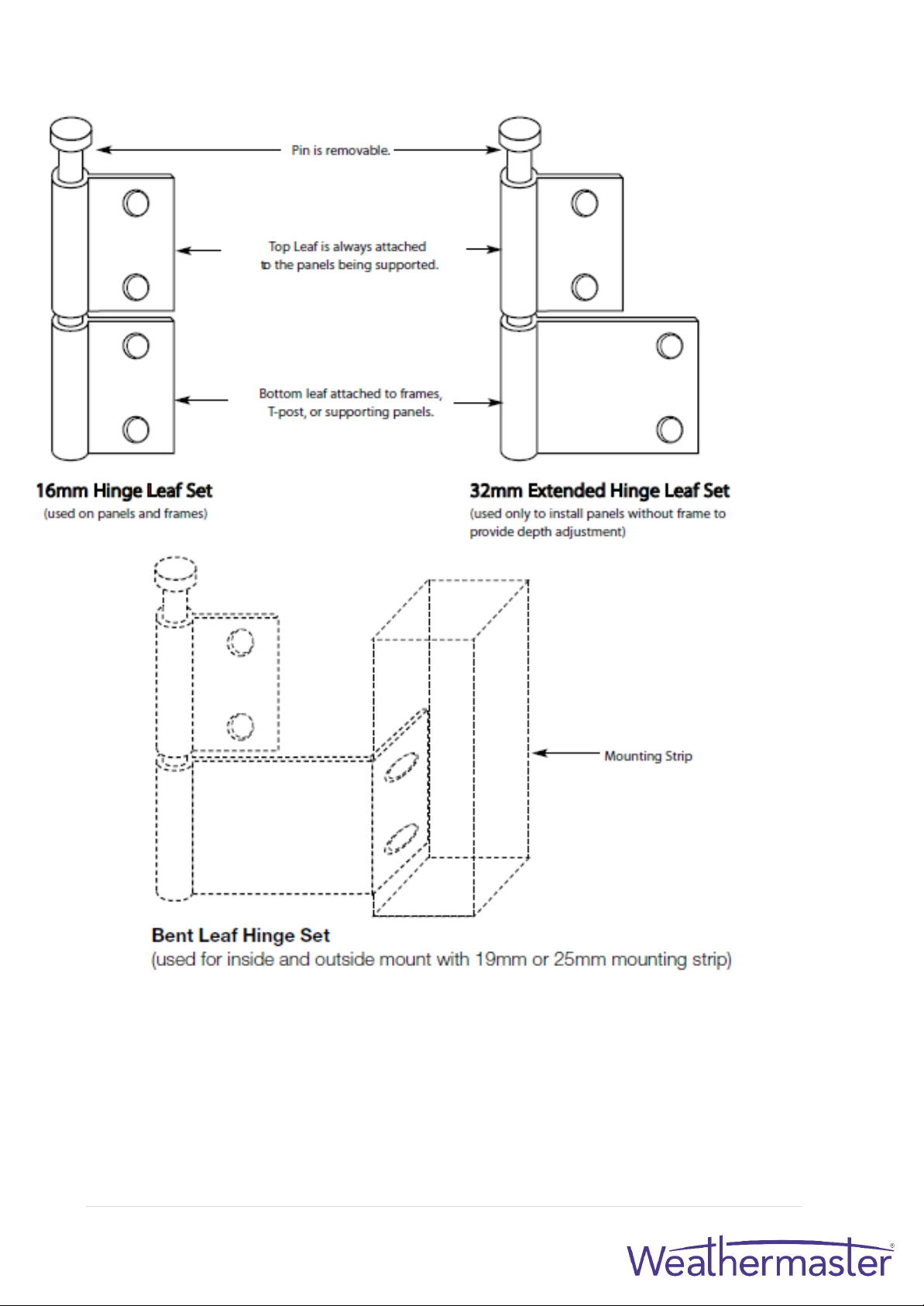

TWO PART HINGES
Available colours: White, Vanilla and Stainless Steel.
Note: All panels, frames and T-Posts are pre-hinged
(Except for mounts using Mounting Strips)
5 | P a g e

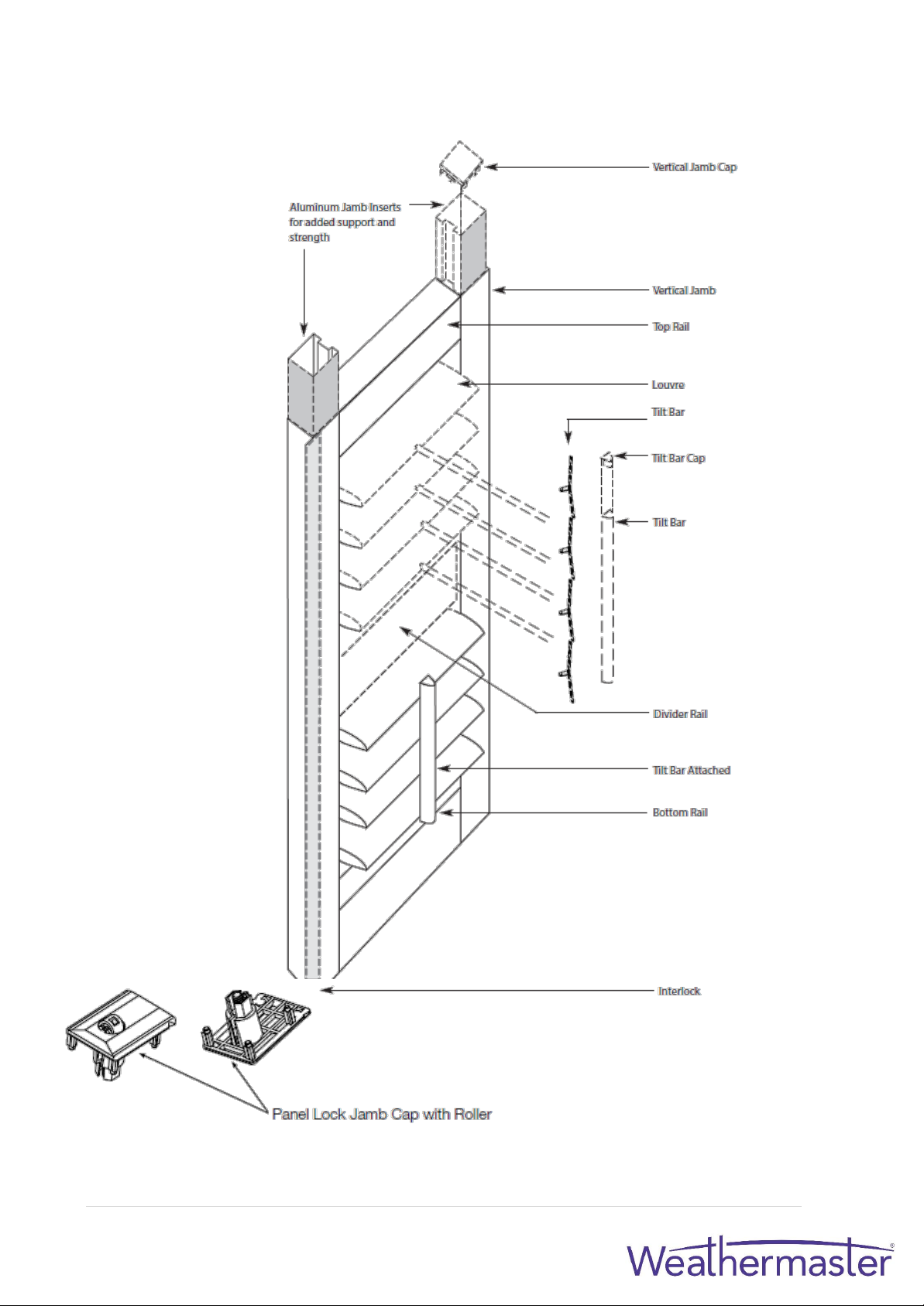

SHUTTER PANEL PARTS
6 | P a g e

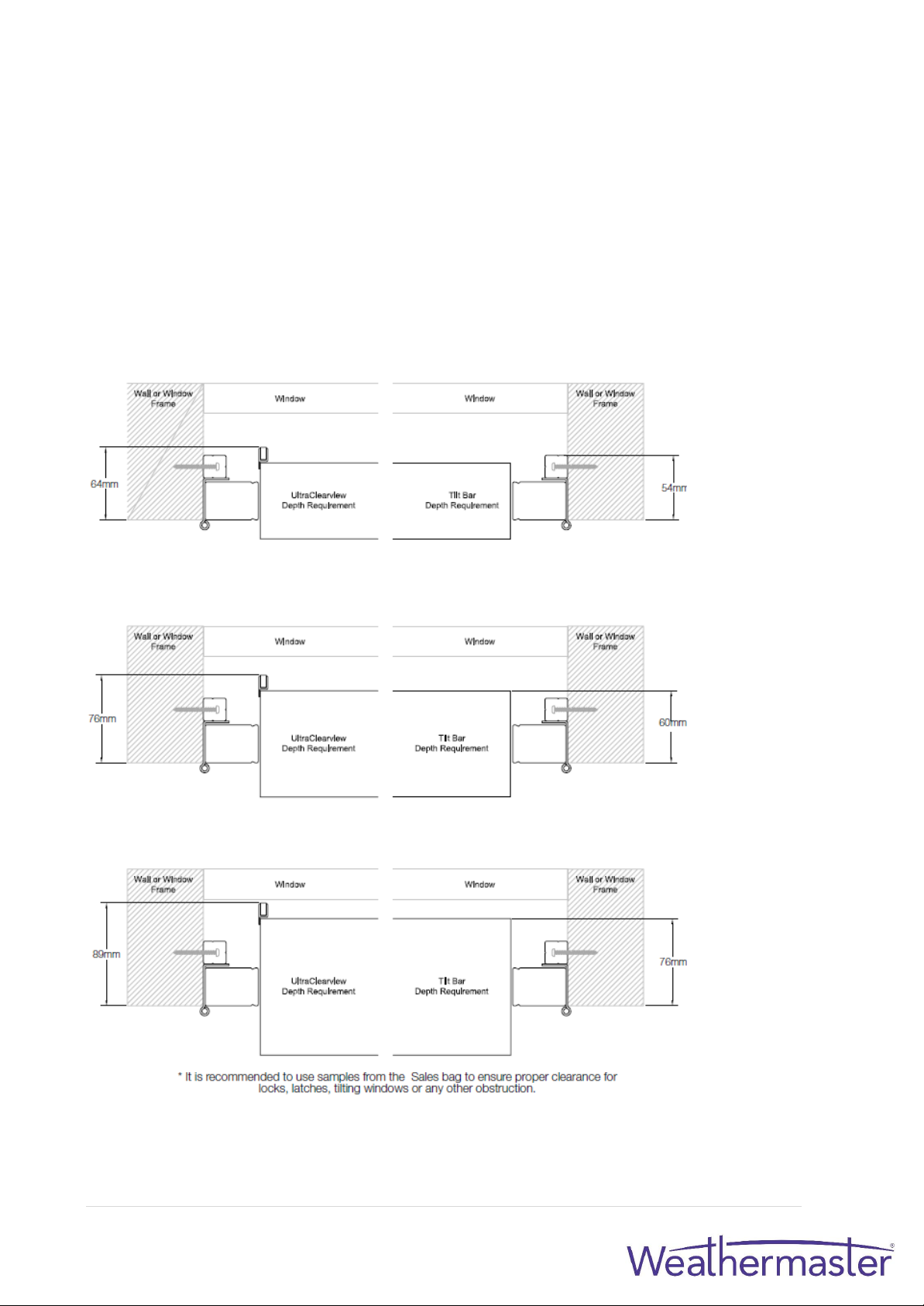

OPERATING AND DEPTH CLEARANCE
REVEAL MOUNT WITH NO FRAME (DIRECT MOUNT)
Depth Clearance
NOTE: With optional 32mm
extended leaf hinges, the
depth clearance for shutters
can be reduced by up to
16mm. However, the hinges
will protrude into the room.
With Tilt Bar/SmartView
With Clearview/Hidden
Tilt
64mm Louvre = 48mm
64mm Louvre = 64mm
89mm Louvre = 60mm
89mm Louvre = 76mm
114mm Louvre = 73mm
114mm Louvre = 89mm
7 | P a g e
REVEAL MOUNT WITH 19MM X 19MM MOUNTING STRIP AND BENT-
LEAF HINGE
Depth Clearance
NOTE: Depth clearance
can be reduced by 25mm if
mounting strip is installed
closer to the edge of the
opening.
However, panels will project
into the room by 25mm.
With Tilt Bar/SmartView
With Clearview/Hidden
Tilt
64mm Louvre = 54mm
64mm Louvre = 64mm
89mm Louvre = 60mm
89mm Louvre = 76mm
114mm Louvre = 76mm
114mm Louvre = 89mm
8 | P a g e
REVEAL MOUNT WITH L-FRAME
Depth Clearance
NOTE: For recessed/Inside
Fit mounts the depth
clearance is measured from
the front of the L-frame.
Other frame options are the
"Sill Z" and the "Sill Trim".
With Tilt Bar/SmartView
With Clearview/Hidden
Tilt
64mm Louvre = 54mm
64mm Louvre = 64mm
89mm Louvre = 60mm
89mm Louvre = 76mm
114mm Louvre = 76mm
114mm Louvre = 89mm
9 | P a g e
REVEAL MOUNT WITH Z-FRAME
Depth Clearance
NOTE: Depth clearance is
the minimum window
opening
required for louvres to
operate without
interference.
With Tilt Bar/SmartView
With Clearview/Hidden
Tilt
64mm Louvre = 32mm
64mm Louvre = 41mm
89mm Louvre = 41mm
89mm Louvre = 54mm
114mm Louvre = 54mm
114mm Louvre = 67mm
10 | P a g e
REVEAL MOUNT WITH BULLNOSE Z-FRAME WITH FLEX
Depth Clearance
NOTE: Depth clearance is
the minimum window
opening
required for louvres to
operate without
interference.
With Tilt Bar/SmartView
With Clearview/Hidden
Tilt
64mm Louvre = 35mm
64mm Louvre = 45mm
89mm Louvre = 41mm
89mm Louvre = 57mm
114mm Louvre = 54mm
114mm Louvre = 70mm
