Webdyn WiFi On Board Manuale utente

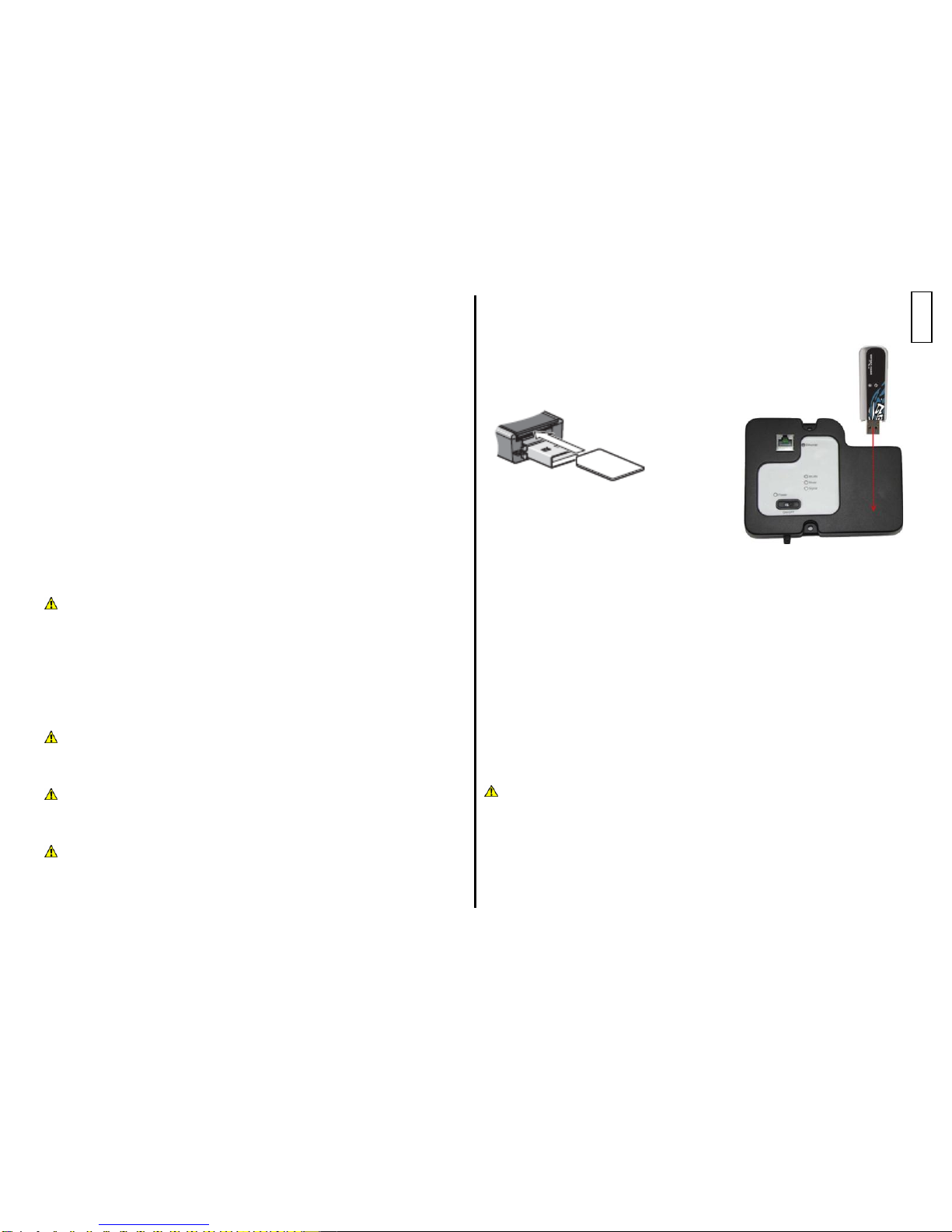

1. Insert the SIM card in the USB stick and then insert the USB

stick into the WiFi Router.

2. Switch on the WiFi Router (ON/OFF button). The indicator

lights Illuminate continuously for 20 seconds and then flash for

1 minute.

3. Wait for the WLAN indicator light to stay on after the

flashing.

CONNECTING TO WEB PAGES

4. Start up your computer and connect it to the WiFi Router

using the Ethernet cable provided.

When the Ethernet cable is connected the WiFi is

disabled (the WLAN turns off after several seconds)

5. Open up a web browser on your computer (Internet

Explorer 7, Mozilla FireFox 3, Safari 3 or other version).

WiFi ROUTER

PRESENTATION

Your WiFi Router provides you with high speed internet

access inside your vehicle.

It is compatible with the mobile phone networks GPRS,

EDGE, 3G and 3G+. It automatically selects the fastest

mobile network speed, up to 7.2 Mbps.

From inside your vehicle you can connect all your devices to

WiFi (802.11 b/g) to provide Internet access.

GETTING STARTED

Before installing your WiFi Router you must have the

following information relating to your SIM card:

- The PIN code: ………………

- The APN name: ………………

- Remote access login (or username): ……….

- Remote access password (or password): ……...

The WiFi router is compatible with "3G/3G+ internet

packages" with authorised modem use.

Roaming is disabled by default. To activate it, refer to the

section on "Advanced Configuration".

Only the 3G USB stick provided is compatible with the

WiFi router.

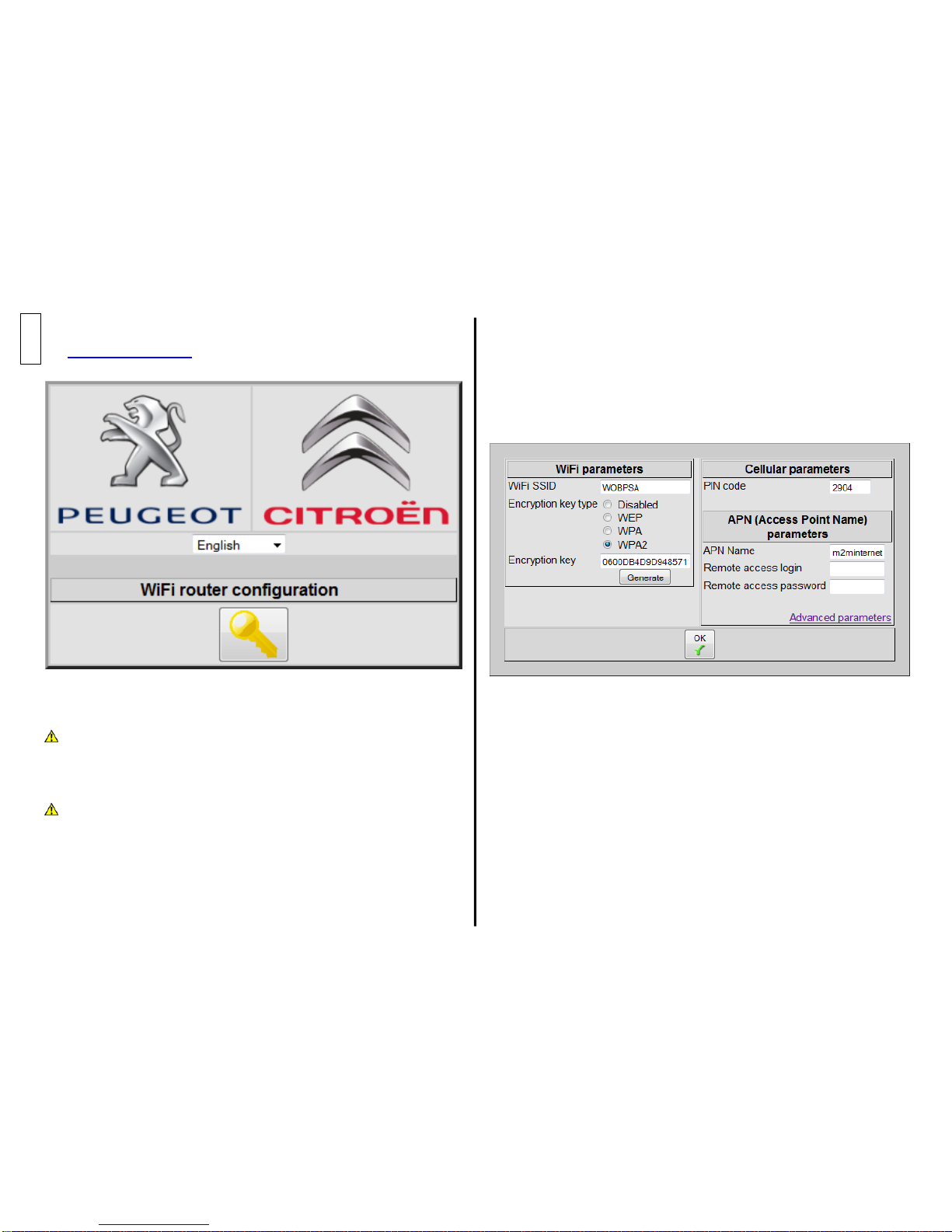

6. In the address line, enter the address of the Wifi router:

http://192.168.2.12

The home page is displayed:

If the page does not display:

Check that your computer is correctly configured to

automatically obtain an IP address (DHCP) (refer to your

computer user manual for more details).

If the problem persists, reset your network interface (refer

to your computer user manual for more details).

7. Select your language.

8. Click on the key symbol.

CONFIGURATION PARAMETERS

9. Click on Configuration in the left-hand menu:

WiFi Parameters:

Enter the following information:

oWiFi SSID: Re-enter the name of the required WiFi network

(for example: WOBPSA).

oType of encryption key: Select a type of encryption key

(WEP minimum is recommended).

oEnter a key or click on Generate to automatically

generate a key.

Cellular Parameters:

Enter the following information:

oPIN code: Re-enter the PIN code for your SIM card

If the PIN code for your card is disabled, the field is

disabled.

After three unsuccessful attempts, the SIM card is

locked. Contact your mobile phone operator to unlock

the card.

APN Parameters:

Enter the following information:

oAPN name: Provided by your mobile phone operator.

oRemote access login: Provided by your mobile phone

operator (leave blank if there is no login).

o: Provided by your mobile phone operator (leave blank if

there is no password).

Once these parameters have been entered, click on OK.

OPERATING CHECK

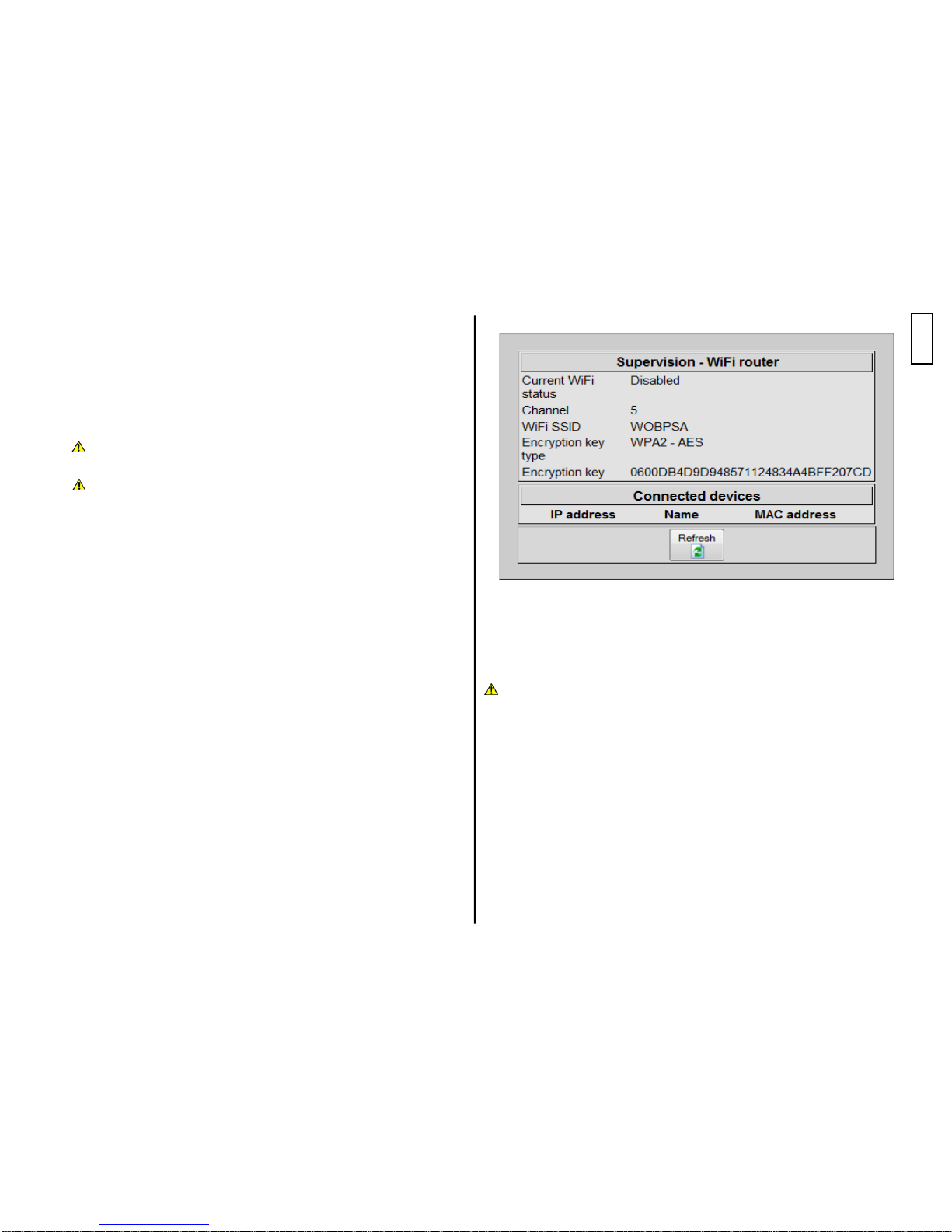

10.Check that the WiFi router parameter configuration is correct:

Click on Supervision in the left-hand menu and then on WiFi

router:

Check and note down the WiFi SSID and the type and value

of the encryption key and store this information away in a safe

place.

This information will be essential for connecting your

equipment.

oWiFi SSID: …………………..

oType of encryption key: …………………..

oEncryption key: …………………..

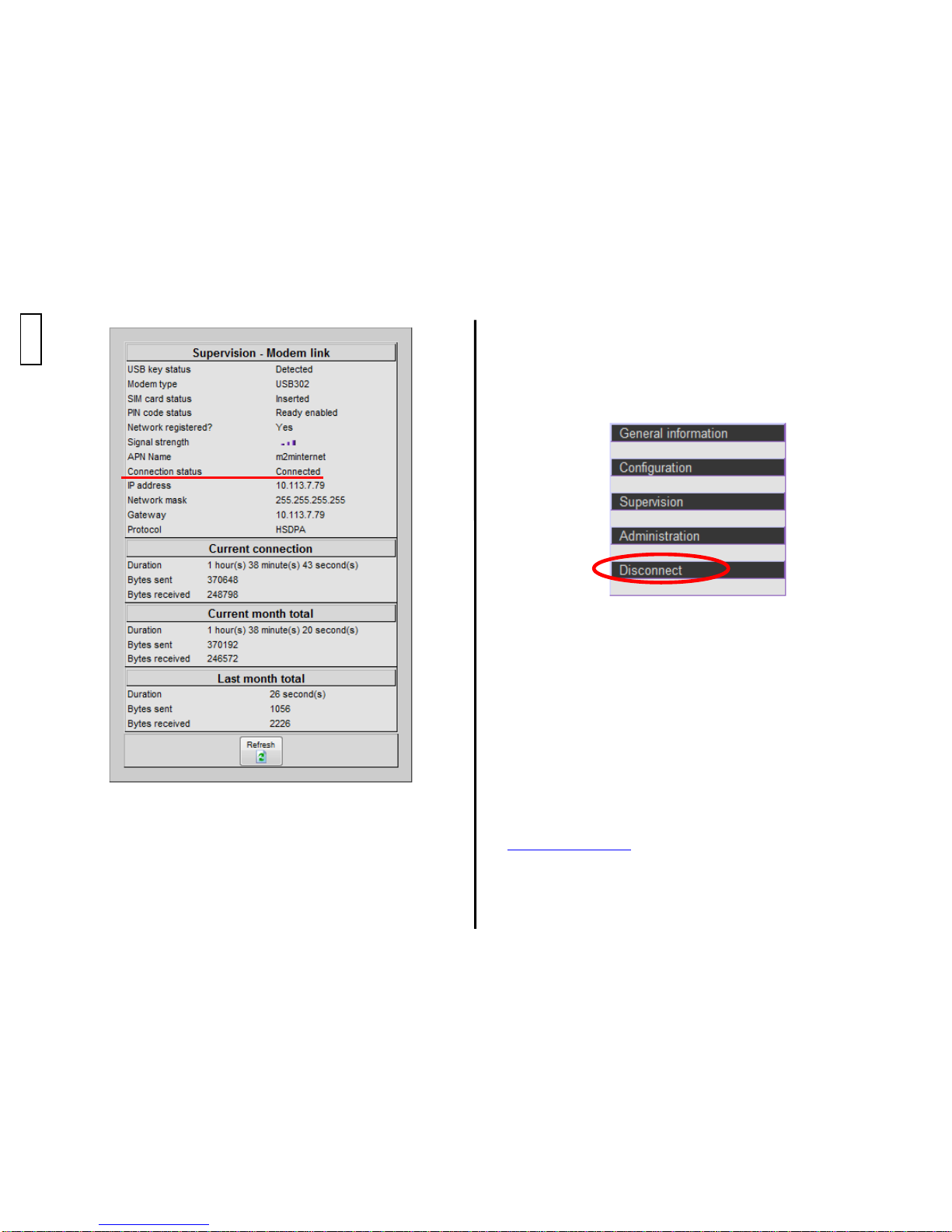

11.Check the correct configuration of the Modem link:

Click on Supervision in the left-hand menu and then on

Modem link:

If after 2 minutes, Connection Status = Disconnected:

Check the accuracy of the modem configuration.

12.Click on Disconnect in the left-hand menu.

13.Disconnect the Ethernet lead.

14.The WiFi is activated automatically (the WLAN indicator

light illuminates after several seconds)

15.Connect your computer to the WiFi Router network

using the configuration (SSID, encryption key).

16.Open up a web browser on your computer.

17. In the address line, enter the address of the WiFi router:

http://192.168.2.12

oCheck the Connection Status=Connected:

If Connection Status=Disconnected click on Refresh until

the Connection Status = Connected.

WHAT THE INDICATOR LIGHTS MEAN

When starting up the WiFi Router, the indicator lights flash quickly

during initialisation.

Indicator

lights

Status

Meaning

Power

Off

The product is switched off

The ON/OFF button is ON

Ethernet

Off

Computer not connected to the Ethernet

Computer connected to the Ethernet

WLAN

Off

WiFi interface disabled

WiFi interface activated

Mode

Off

Modem interface disabled or 3G USB stick

not inserted

Flashing

Product connected to the mobile network.

The type of network is indicated by the

number of flashes:

1: connected to the GSM network

2: connected to the GPRS network

3: connected to the EDGE network

4: connected to the 3G network

5: connected to the 3G+ network

Signal

Flashing

Indicates the quality of the mobile network

signal received (number of flashes =

number of bars - 1 to 5 bars)

18.On the home page check that all of the indicator lights are

green.

19.You can now surf the internet.

You can connect several pieces of equipment to the WiFi

router at the same time (a maximum of four pieces of

equipment is recommended for performance reasons).

ADVANCE CONFIGURATION

For details of WiFi Router advance configuration you can

download the complete user guide from the website

www.webdyn.com section Peugeot Citroën - WiFi Router.

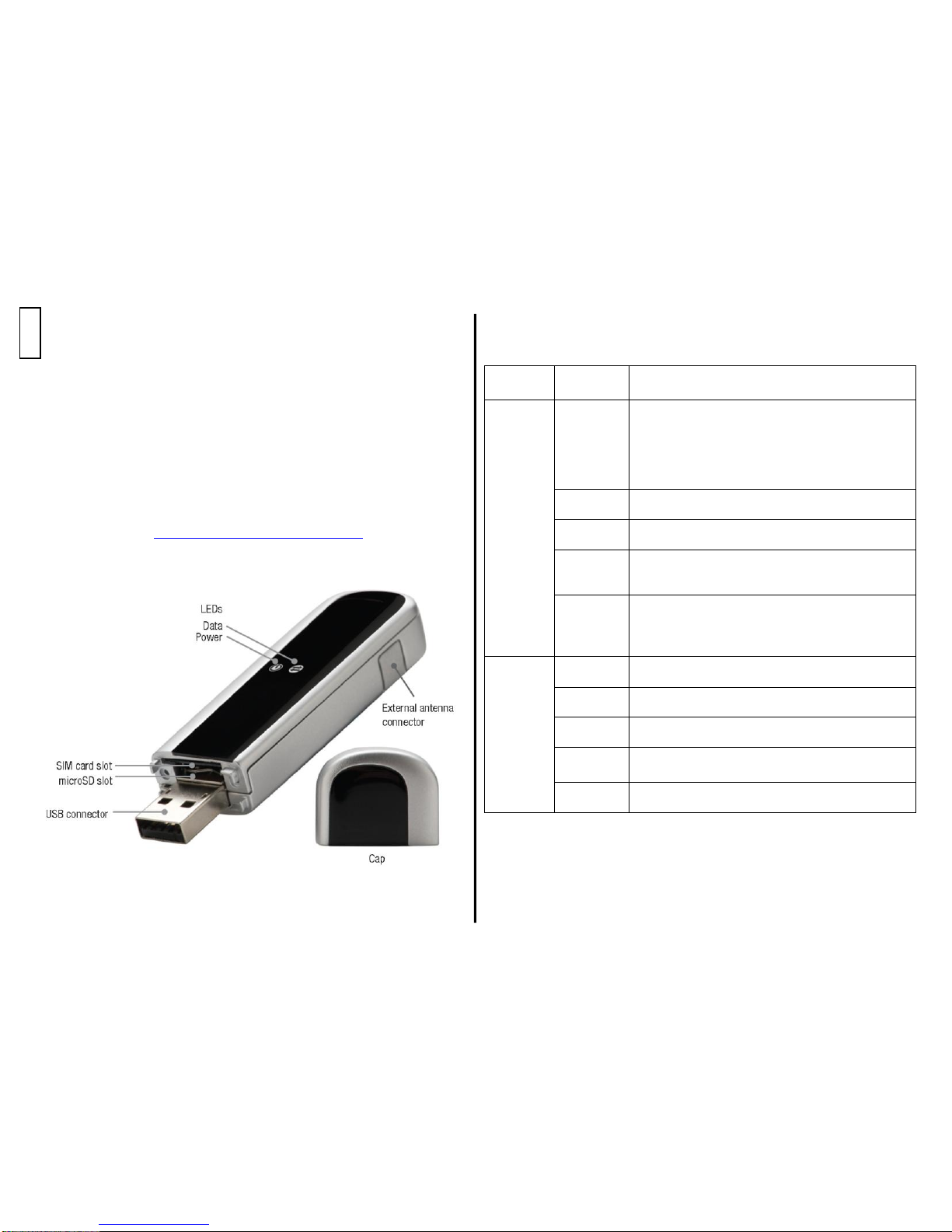

3G USB STICK

PRESENTATION

You can use the 3G USB stick inserted in your computer to

connect to the Internet.

You can purchase the following accessories for your modem:

External aerial: improves performance in areas where

the signal strength is weak (available from the following

address: www.sierrawireless.com/eStore).

MicroSD™ card: external data storage card (available

from general electronic stores).

WHAT THE INDICATOR LIGHTS MEAN

Indicato

r lights

Status

Meaning

Power

Off

Indicates one of the following statuses:

• The modem is not inserted in the computer.

• The computer is switched off or in standby

mode.

• The modem radio has been disabled via

Watcher® or another connection client.

Blue and

The modem is switched on and is operating

normally.

Blue and

flashing

A micro-programme update is in progress.

Do not remove the modem from the computer.

Orange

and

flashing

The modem is searching for a service

(initialisation in progress).

Orange

and on

Modem error: modem has an initialisation

problem (searching for a service) or is not

connected due to a fault.

Contact your mobile phone operator.

Data

Off

The modem is unable to detect the 2G or 3G

service.

Orange

flashing

The modem has detected a 2G network

(EDGE, GPRS, GSM). It is ready to connect.

Orange

and on

The modem is connected to a 2G network. It

can send and receive data.

Blue and

flashing

The modem has detected a 3G network

(UMTS, HSPA). It is ready to connect.

Blue and

The modem is connected to a 3G network and

can send and receive data.

You can use your modem with any of these operating systems:

Windows® 7, Windows Vista®, Windows® XP, Mac OS® X

10.4.11 or a new version.

INSTALLING ON PC/MAC

1. Start up your computer.

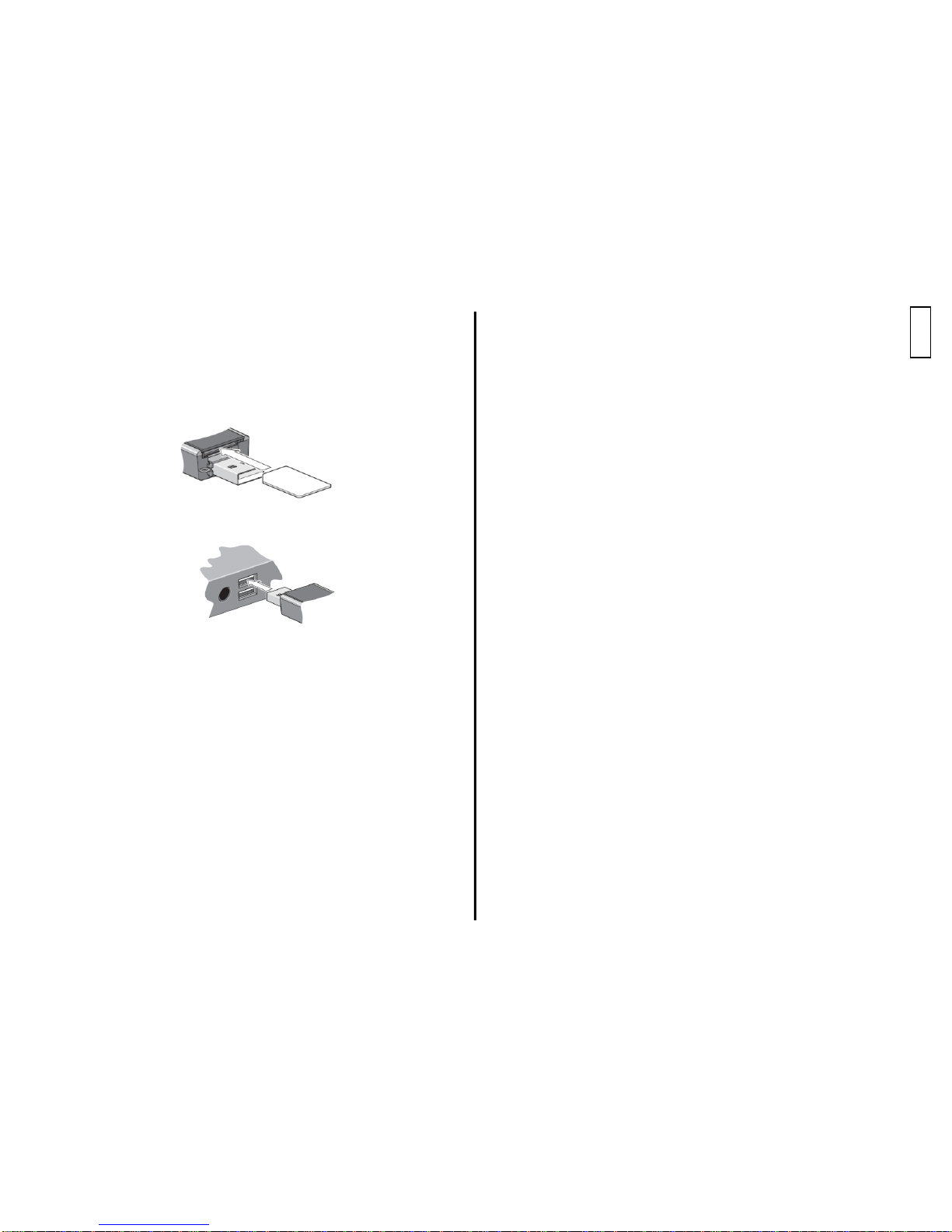

2. Insert the SIM card:

3. Insert the modem in the USB port. :

Windows

Software installation begins automatically. Follow the

instructions displayed on the screen to install the Sierra

Wireless Watcher® software.

Mac OS X

When the 3G Sierra Wireless Watcher® window appears,

double-click on the installation programme.

4. Once the software is installed, the modem searches for a

network. If the modem finds a network the "connect" button

becomes available in Sierra Wireless Watcher®.

Click on "Connect" to connect to the network.

5. If you are asked to configure a profile, click on Yes. The

Profile window opens. Select your mobile phone operator from

the list of default profiles. If your mobile phone operator is not

in the list, contact your operator to obtain the APN name,

remote login and remote access password.

6. Click on OK. The modem is ready to use.

What should I do if the software installation does not begin

automatically?

If TRU-Install does not begin automatically, you can start the

installation procedure manually.

Windows

1. Double-click on My Computer (Windows XP) or Computer

(Windows Vista or Windows 7) on your desktop.

2. Click on the TRU-Install reader.

3. In the TRU-Install reader, open the folder Win, then double-

click on the file Setup.exe. Follow the instructions displayed

on the screen to install the software.

Mac OS X

If the 3G Watcher® window is not displayed:

1. Open Finder.

2. In Devices, double-click on 3G Watcher®.

3. Double-click on the installation programme.

TECHNICAL SPECIFICATIONS

Supported mobile networks

GSM - GRPS - EDGE - 3G - 3G+

Maximum theoretical

connection speeds

Download: 7.2Mbps (HSDPA)

Upload: 5.76Mbps (HSUPA)

3G/3G+ frequency bands

900, 2100 MHz

GSM/GPRS/EDGE GSM

frequency bands

800/850, 900, 1800, 1900 MHz

WiFi compatibility

Standards 802.11 b/g

Encryption: WEP, WPA (TKIP

and AES), WPA2 (TKIP and

AES)

Approval

DAS Rate*

0.226W/kg@10g

* The DAS (expressed in W/kg) is an index that measures the

maximum radio-frequency level emitted by the 3G USB stick to

the user. This is used to verify compliance of the devices to

French and European regulations requiring it to be less than 2

W/kg.

PRECAUTIONS

Do not use your WiFi Router when driving.

Do not place magnetic storage media near your WiFi Router.

The radiation can erase stored information.

Keep your 3G stick out of reach of children. Do not allow it to

be used by children unsupervised.

It is recommended to keep your 3G USB stick away from the

stomach of pregnant women or the lower abdomen of young

adolescents.

It is prohibited to use your 3G USB stick in certain places:

aeroplanes, hospitals and fuel service-stations. It is essential

to strictly comply with the safety instructions and to disconnect

your 3G USB stick when required.

To avoid any risk of interference, people fitted with electronic

implants (pacemakers, insulin pumps, neurostimulators, etc.)

should maintain a distance of at least 15 centimetres between

the 3G USB stick and the implant.

Comply with the rules and regulations governing the use of

your WiFi Router and 3G USB stick. Respect the private lives

of others during use.

Du krieg

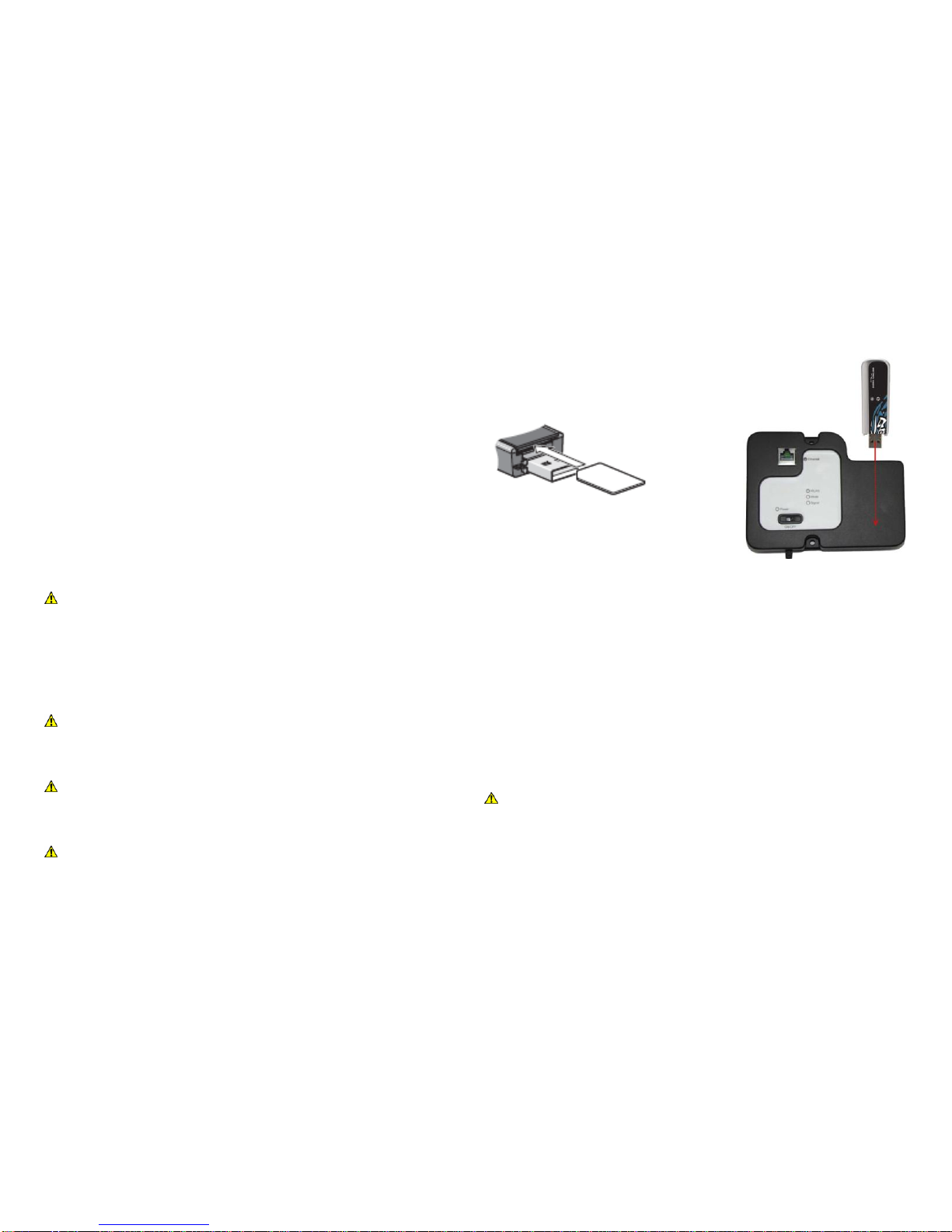

1. Legen Sie die SIM-Karte in den USB-Stick ein. Stecken Sie

dann den USB-Stick in die WLAN-Box.

2. Schalten Sie die WLAN-Box ein (Schalter EIN / AUS). Die

Kontrollleuchten leuchten zunächst 20 Sekunden lang ohne

Unterbrechung und blinken dann während einer Minute.

3. Achten Sie darauf, dass auch danach die Kontrollleuchte

WLAN leuchtet.

VERBINDUNG MIT WEBSEITEN

4. Schalten Sie Ihren PC ein und verbinden Sie ihn über das

mitgelieferte Ethernet-Kabel mit der WLAN-Box.

Durch den Anschluss des Ethernet-Kabels wird WLAN

deaktiviert (die WLAN-Kontrollleuchte erlischt nach

einigen Sekunden).

5. Starten Sie auf Ihrem PC einen Web-Browser (Internet

Explorer 7, Mozilla Firefox, Safari 3 oder höhere Versionen).

WLAN-Box

PRÄSENTATION

Ihre WLAN-Box bietet Ihnen eine Breitband-Internet-

verbindung in Ihrem Fahrzeug.

Sie ist kompatibel mit den Mobilfunknetzen GPRS, EDGE 3G

und 3G+ und wählt automatisch das schnellste Mobilfunk-

netz –bis 7,2 Mbit/s.

Sie können in Ihrem Fahrzeug alle Endgeräte per WLAN

verbinden (802.11 b/g) und sie damit mit einem Internet-

zugang ausrüsten.

VORBEREITUNG

Für die Installation Ihrer WLAN-Box benötigen Sie

folgende Daten Ihrer SIM-Karte:

- PIN-Code: ………………

- APN-Name: ………………

- WLAN-Login (oder Login): ............................

- WLAN-Passwort (oder Passwort): ............................

Die WLAN-Box kann mit den „Internet-Flatrates 3G und

3G+“ kombiniert werden, die Verwendung eines Modems

ist möglich.

Die Roaming-Funktion ist standardmäßig deaktiviert. Die

Aktivierung wird im Abschnitt „Erweiterte Einstellungen“

beschrieben.

Lediglich der mitgelieferte USB-3G-Stick ist mit der

WLAN-Box kompatibel.

Indice

Altri manuali Webdyn Router di rete

Webdyn

Webdyn Titan MTX-StarEnergy-M Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
