Package Contents

Preparation

STEP 1-A & B: Connect Inside Antenna To Booster

STEP 2-A: Point Outside Antenna Toward Nearest Cell Tower

STEP 2-B: Mount Bracket To Outside Antenna

STEP 3: Route & Connect Cable To System

STEP 4: Power Up The Booster

Measuring Booster Performance

Light Patterns

Troubleshooting

Safety Guidelines

Speciﬁcations

Warranty

______

Index

HOME 4G CELL PHONE SIGNAL BOOSTER

______

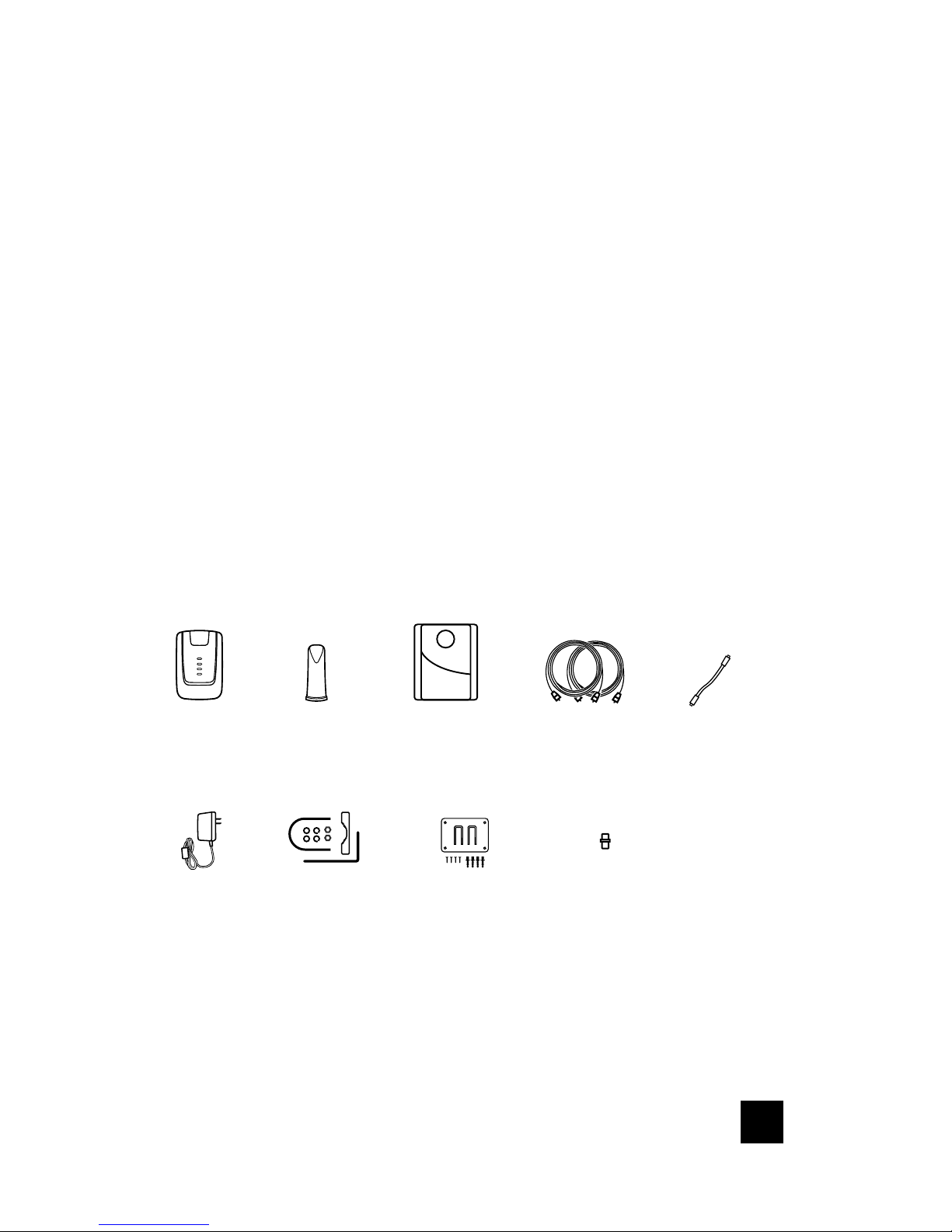

Package

Contents

Home 4G Inside

Antenna

Outside

Antenna

Cable

Connector

Window

Entry Cable

Roof/Pole

Mount

Bracket

Wall Mount

Bracket

Power

Supply

30' Cables

Qty. 2

2CELL PHONE SIGNAL BOOSTER HOME 4G

______

Preparation

NOTE: These instructions will walk you through a “soft” install process to ﬁnd

the optimal locations for the inside and outside antennas, then through the

process of the permanent installation.

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your

installation.

Ladder

Phillips-head screwdriver

10mm open-end wrench or adjustable wrench

Drill (if routing cable through wall)

1.25”-2” diameter pole existing pole (or order #901117)

Recommended: Power Strip with surge protection

1 to 2 hours

2 people (a person to help with antenna calibration)

HOME 4G CELL PHONE SIGNAL BOOSTER

NOTE: Do not connect booster to power until the system is fully installed.

______

Step 1-A & B: Connect Inside

Antenna To Booster

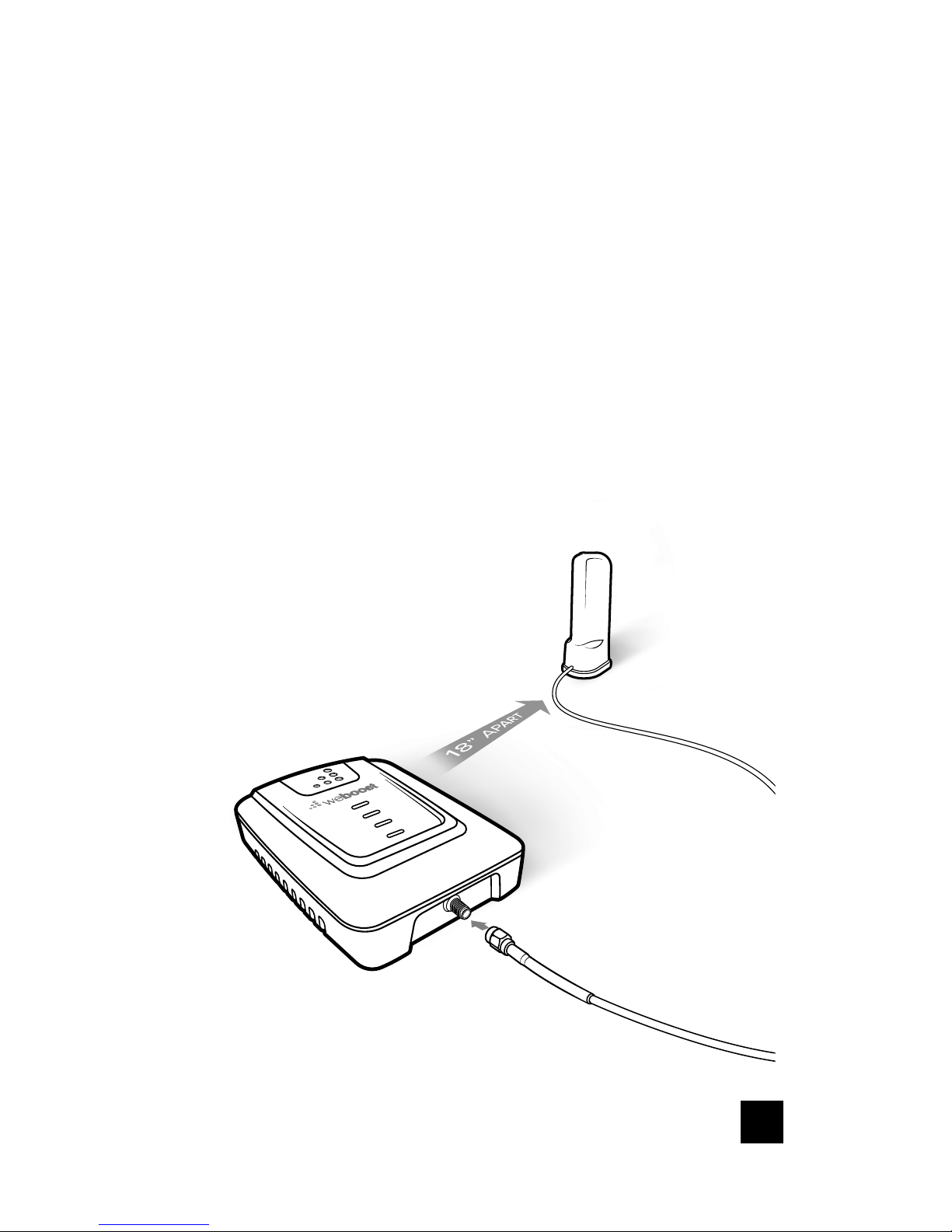

Connect Inside Antenna cable to the bottom port on Home 4G booster

labeled ‘INSIDE’ and place Inside Antenna in weak signal area at least 18

inches away from booster.

Inside

Antenna

Booster

4CELL PHONE SIGNAL BOOSTER HOME 4G

______

Step 2-A: Point Outside

Antenna Toward Nearest

Cell Tower

Point the Outside Antenna toward the nearest cell phone tower. To ﬁnd the

nearest tower, use an app such as ‘Open Signal’. This is the most critical step

of the installation process because it will determine the overall performance

of the booster system.

Cell Tower

Outside Antenna

NOTE: The Outside Antenna must be at least

20 feet horizontal or 50 feet vertical from the Inside

Antenna for best performance. Make sure the Inside

Antenna and Outside Antennas are setup so they are

facing away from each other.

HOME 4G CELL PHONE SIGNAL BOOSTER

______

Step 2-B: Mount Bracket To

Outside Antenna

Pole Mounting and Wall Mounting Options are included. The pole mounting

option is preferred because it would be easier to adjust to the direction

of the cell tower.

Attach the L-Bracket to the Outside Antenna and use the U-Bolts/Pole Bracket

to attach the L-Bracket to a pole.

NOTE: Mounting on existing roof exhaust pipe would

be a good time-saver option.

Cell Tower

Outside Antenna

Pole

(1.25”-2.0”dia.)

U-bolt &

Pole Bracket

L-Bracket

Pole Mounting Option

6CELL PHONE SIGNAL BOOSTER HOME 4G

______

(STEP 2-B cont.)

Drill holes using

3/16 inch bit

Tap anchors in

Fasten bracket to back

of Outside Antenna Secure bracket to wall

mounting

Outside Antenna

on wall bracket

sideview

Wall Mounting Option

HOME 4G CELL PHONE SIGNAL BOOSTER

______

Step 3: Route & Connect

Cable To System

Connect the white RG-6 Cable to Outside Antenna and route cable

into the home. All connections should be hand tightened only.

A Window Entry Cable is provided to help make cable entry easier. Route

cable to the Home 4G booster and connect to top port labeled ‘OUTSIDE’.

Outside

Antenna

Inside

Antenna

Outside

Antenna

Cell

Tower

Inside

Antenna

RG-6 Cable RG-6 Cable

Window

Entry Cable

Booster

Window Entry Cable

Booster

8CELL PHONE SIGNAL BOOSTER HOME 4G

______

Step 4: Power Up The

Booster

Plug the Power Supply into wall outlet then connect to Home 4G

Booster and enjoy your boosted cell signal!

Outside

Antenna

Outside

Antenna

Cell

Tower

Inside

Antenna

RG-6 Cable RG-6 Cable

Window

Entry Cable

Booster

to power

Inside

Antenna

Power Supply

Window Entry Cable

50 FEET HORIZONTAL OR 20 FEET

VERTICAL DISTANCE

Booster
