WeBoost Home MultiRoom Manuale utente

NEED HELP? support.weboost.com 866.294.1660

Installation Guide

Cell Signal Booster

Home MultiRoom

A WILSON ELECTRONICS BRAND

BU-GDE000144-003-012120.indd 1BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:10 PM1/21/2020 3:34:10 PM

Package Contents

Preparation

STEP 1-A & B: Inside Antenna & Booster Placement

STEP 2: Mount & Point Outside Antenna Toward Nearest Cell

Tower

STEP 3-A: Route & Connect Outside Antenna To Booster

STEP 3-B: Route & Connect Inside Antenna To Booster

STEP 4: Power Up The Booster & Optimize The System

Measuring Booster Performance

Light Patterns

Troubleshooting

Safety Guidelines

Speciﬁcations

Warranty

______

Index

BU-GDE000144-003-012120.indd 2BU-GDE000144-003-012120.indd 2 1/21/2020 3:34:10 PM1/21/2020 3:34:10 PM

HOME MULTIROOM CELL PHONE SIGNAL BOOSTER

______

Package

Contents

Home

MultiRoom

Outside Antenna

Mounting Bracket

Window Entry

Cable

(951177)

Wall Mount Brackets

w/Command Strips

Cable Mounting

Clips Qty. 15

Inside

Antenna

(314440)

Outside

Antenna

(314445)

30’ & 2-15’

Cables (950630),

(YX030-15W w/971129

Barrel Connector)

Power

Supply

(850018)

BU-GDE000144-003-012120.indd 1BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM

CELL PHONE SIGNAL BOOSTER HOME MULTIROOM

______

Preparation

NOTE: These instructions will walk you through a “soft” install process to ﬁnd

the optimal locations for the inside and outside antennas, then through the

process of the permanent installation.

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your

installation.

o Ladder

o Drill (if routing cable through wall)

o 1”-3” diameter existing pole for mounting

Outside Antenna (#901117 Pole Mount can be

purchased separately if needed)

o Recommended: Power Strip with surge protection

1 to 2 hours

1 Person (2 people to make antenna calibration easier)

BU-GDE000144-003-012120.indd 2BU-GDE000144-003-012120.indd 2 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM

HOME MULTIROOM CELL PHONE SIGNAL BOOSTER

NOTE: Do not connect booster to power until the system is fully installed.

______

Step 1-A & B: Inside Antenna

& Booster Placement

Place the Inside Antenna where you need the greatest signal boost

and place Booster in your desired location at least 24” away from

Inside Antenna.

TIP: The cable from the Inside Antenna can be

routed into the ceiling and connected to the

coax cable out-of-sight for a better look.

BU-GDE000144-003-012120.indd 3BU-GDE000144-003-012120.indd 3 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM

CELL PHONE SIGNAL BOOSTER HOME MULTIROOM

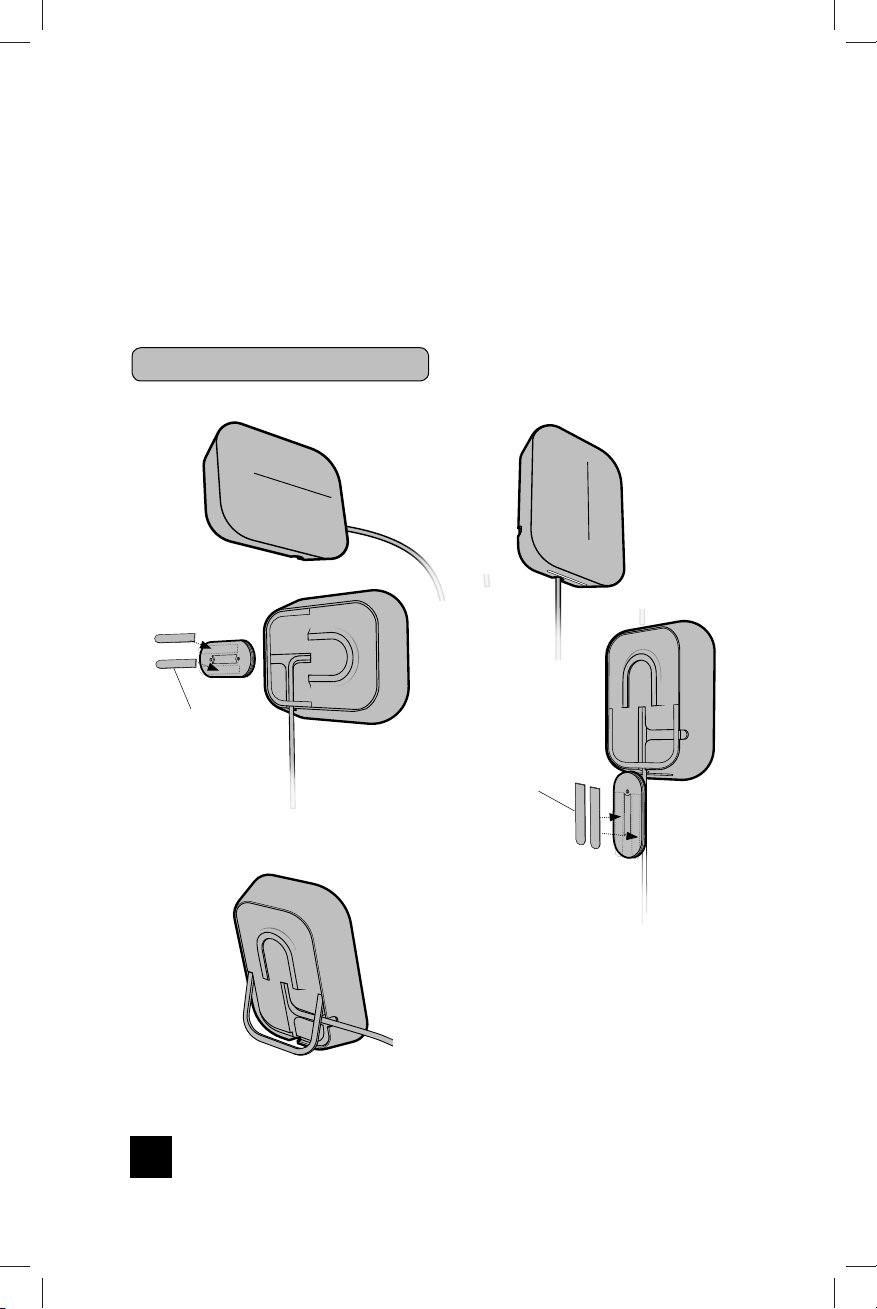

Inside Antenna Mounting Options

Mounted

Vertical

Command

Strips

Command Strips

Mounted

Horizontal

Or use the

kickstand and

set on desktop

______

(STEP 1-A & B cont.)

The Inside Antenna can be mounted horizontal, vertical or on a

desktop. Command strips can be used to secure mounting bracket.

BU-GDE000144-003-012120.indd 4BU-GDE000144-003-012120.indd 4 1/21/2020 3:34:12 PM1/21/2020 3:34:12 PM

HOME MULTIROOM CELL PHONE SIGNAL BOOSTER

______

Step 2: Mount & Point

Outside Antenna Toward

Nearest Cell Tower

NOTE: Mounting on existing roof exhaust pipe

would be a good time-saver option. Watch out for

power lines.

Outside Antenna

Mount

Bracket

Clamps

Pole mounting and wall mounting options are included. The pole mounting

option is preferred because it will be easier to adjust to the direction of

the cell tower.

Attach the Mount to the Outside Antenna and use the Bracket Clamps to

attach the Antenna to a pole or exhaust pipe.

Pole

(1.0”-3.0”dia.)

BU-GDE000144-003-012120.indd 5BU-GDE000144-003-012120.indd 5 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM

CELL PHONE SIGNAL BOOSTER HOME MULTIROOM

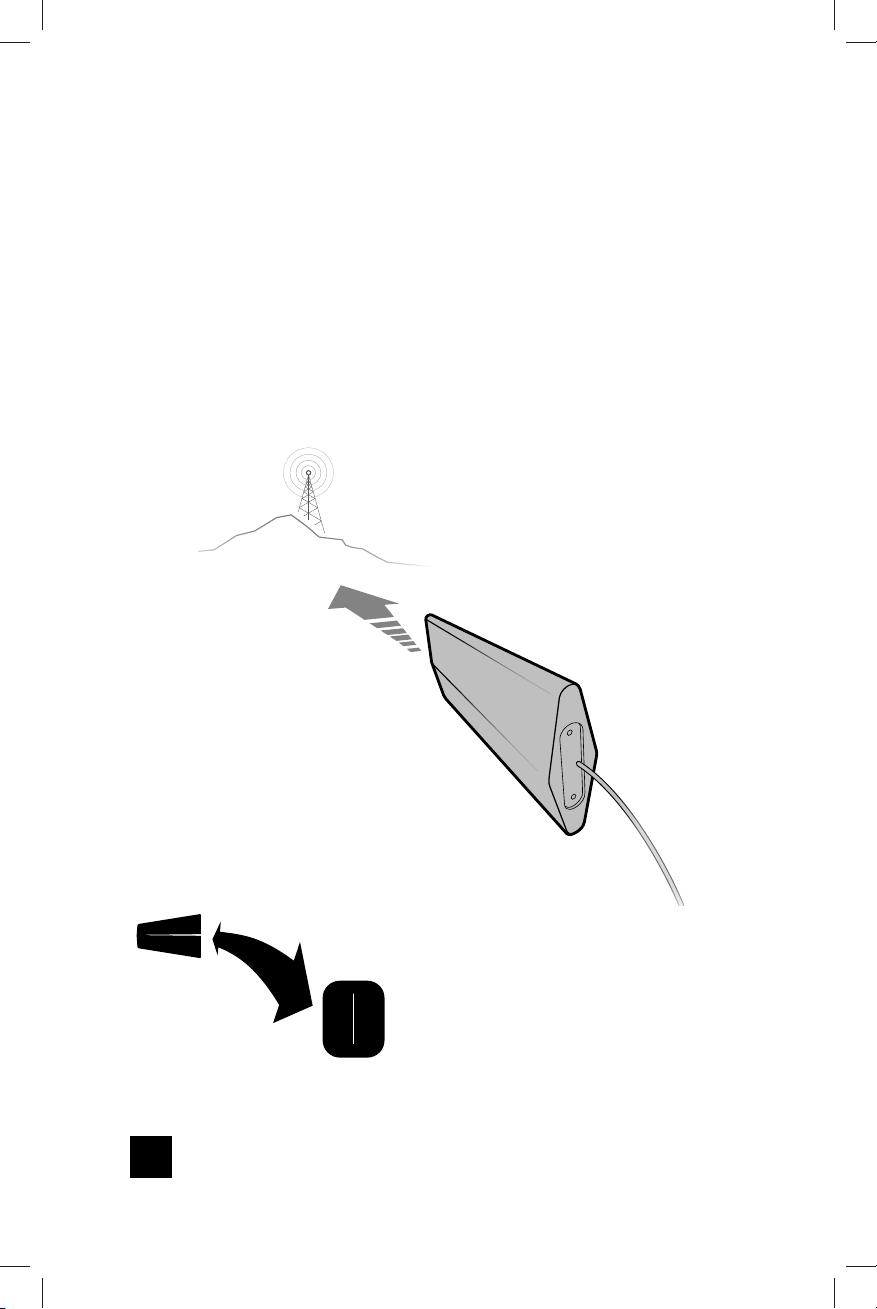

Point the Outside Antenna toward the nearest cell phone tower. To ﬁnd the

nearest tower, use an app such as ‘Open Signal’. This is the most critical

step of the installation process because it will determine the overall

performance of the booster system.

The greater the separation between the Inside and Outside Antennas, the

better performance you will get from the booster.

Outside Antenna

NOTE: The Outside Antenna must be at least

50 feet horizontal or 20 feet vertical from

the Inside Antenna for best performance.

Make sure the Inside Antenna and Outside

Antennas are setup so they are facing away

from each other.

Cell Tower

______

(STEP 2 cont.)

BU-GDE000144-003-012120.indd 6BU-GDE000144-003-012120.indd 6 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM

HOME MULTIROOM CELL PHONE SIGNAL BOOSTER

If there’s not a pole to easily mount the Outside Antenna, this may be

mounted on the fascia by fastening the bracket as shown below.

______

(STEP 2 cont.)

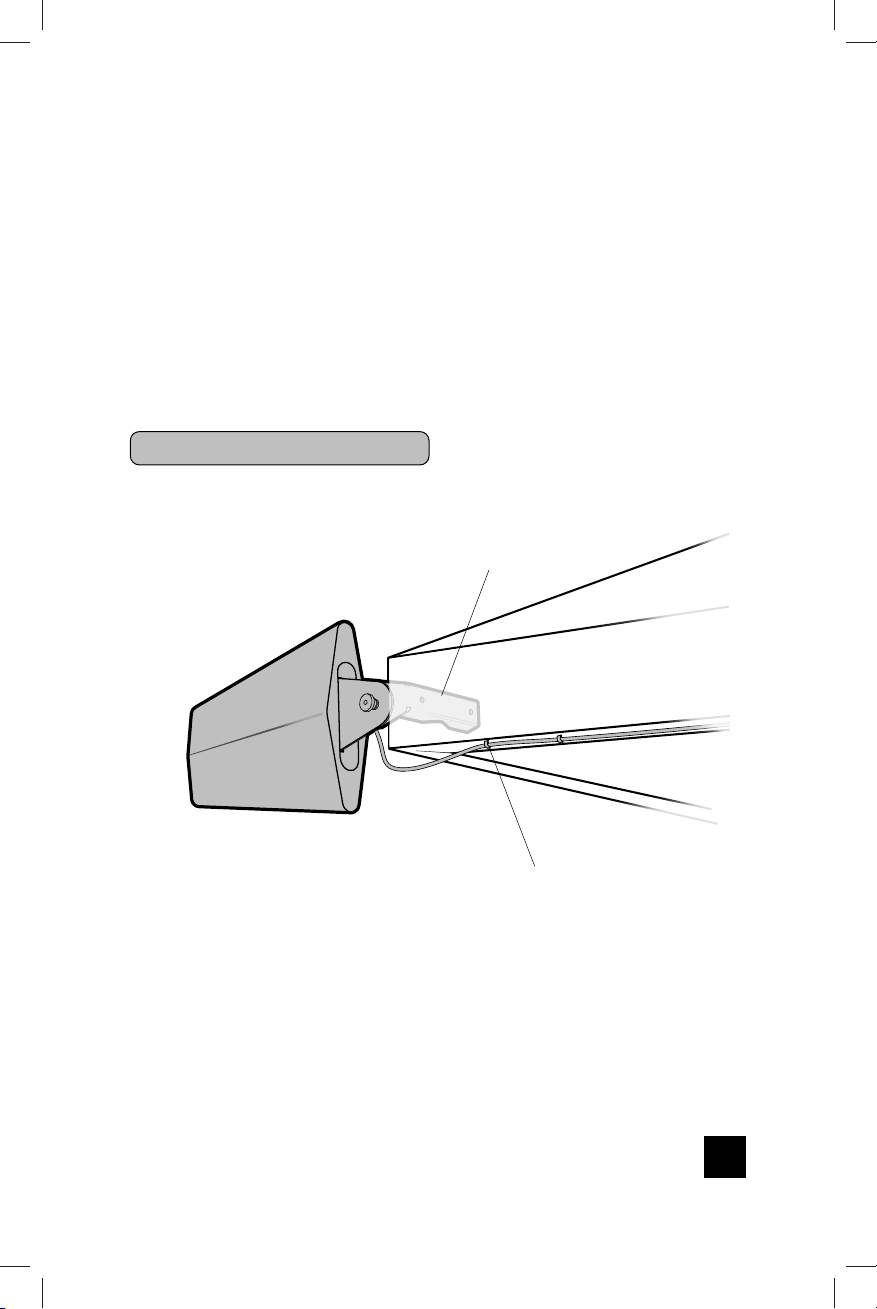

Mounting On Side Of Roof (Fascia)

Cable Mounting Clips provided

Using only the back Bracket Clamp

for mounting

TIP: Make sure to do the optimization test on Step 4 to ﬁnd the best side of

your house before you mount this on the fascia.

BU-GDE000144-003-012120.indd 7BU-GDE000144-003-012120.indd 7 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM

CELL PHONE SIGNAL BOOSTER HOME MULTIROOM

______

Step 3-A: Route & Connect

Outside Antenna To Booster

The greater the separation, the better

the Booster performance

Connect the white RG-6 Cable to Outside Antenna and route cable

into the home. A Window Entry Cable is provided to help make cable

entry easier. All connections should be ﬁnger tightened only.

Route cable to the Home MultiRoom Booster and connect to the port

labeled ‘OUTSIDE ANTENNA’.

Outside

Antenna

connection

Window Entry

Cable

15’ RG-6 Cable15’ RG-6 Cable

Outside

Antenna

Cell

Tower

Booster

Cable Mounting Clips

provided

BU-GDE000144-003-012120.indd 8BU-GDE000144-003-012120.indd 8 1/21/2020 3:34:14 PM1/21/2020 3:34:14 PM
