WebPort 2001
Installation Guide
page 1
ver 2.02
1 Product description
1.1 Introduction
The WebPort2001 is a compact version of a complete range ofEthernet/Internet gateways also knownas
“Programmable Industrial Routers” (PIR). See our web site http://www.spectrumcontrols.com to get further
information about the WebPort family. WebPort is a terminal that enables access to technical data, whatever their
format is. WebPort is configurable by means of web pages. It is secure because it meets the toughest industrial
standards, and it provides restricted access features (required in open networks). The hardware platform of the
WebPort 2001 includes a modem (PSTN or GSM/GPRS).
The WebPort family supports the TCP/IP and PPP protocols. This brings you all the benefits of an universally
recognized standard network. It also allows you to use popular software tools like Internet Explorer, FTP client,
SNMP Manager, Mail Recipient … and thus to reduce significantly your costs (implementation and ownership).
1.2 General specification of the hardware platform
• Processor ARM clocked @ 75Mhz, 8Mb SDRAM, 8 Mb Flash
• Backed up real time clock (RTC) with 24 Hours autonomy
(option battery for 10 years autonomy is available)
• External power supply 12-24 VDC +/- 20%
• 1 Ethernet port 10/100Mb BaseTx
• 1 configurable serial port (RS232/RS422/RS485)
• 1 digital input (DI)
• 1 digital output (DO)
• DIN rail mounting compliant with EN50022 (latch)
•
• Environmental conditions (operating):
• Ambient T°: from 0°C to +50°C
• Humidity: from 0 to 80% non condensing
1.3 Ethernet Gateway
• Compatibility with MODBUS, UNITELWAY, NETMPI and DF1 protocols
• Data acquisition
• Web server – fully customizable web pages
• Programmable by BASIC scripts
• Alarm management
• Report generation
1.4 RAS Modem & PIR
1.4.1 Remote Access Server functions
• Remote Access Server (RAS) and TCP/IP Server
• PAP/CHAP Authentication
• Login/password
• Remote network access
• User access control
• Security: Integrated firewall (NAT, IP filtering, …)
• Conventional and internet callback
WebPort 2001
Installation Guide
page 2
ver 2.02
1.4.2 Programmable Industrial Router functions
• Automatic routing of protocols
• Pre-configured routing tables
• Programmable routing from I/O and Tag names (BASIC)
1.5 Typical applications
• Alarm management
• Sending alarms by network, phone, Email and/or SMS
• Remote measurements, loop back, control and monitoring
• Local or remote Human Machine Interface (SCADA)
• Predictive and operational maintenance
• Diagnosis and machinery status control
• Stock and vessel level monitoring
• Process and machinery activity logs
• Commissioning support
• Remote programming
• Interface for Application Service Providers (ASP)
1.6 Part Numbers and internal options
Part Number structure of the WebPort product range:
WPaabcc/xy
Where (examples):
• aa = Type of hardware platform:
• 05 = WebPort 500
• 21 = WebPort 2001
• 41 = WebPort 4001
• b = Power supply:
• 1 = Universal 110-230VAC
• 2 = Low voltage DC power supply
• cc= Communication:
• 01 = NO modem (Ethernet only)
• 02 = PSTN modem
• 05 = GSM/GPRS modem
• /xy = Options:
The available options depend on the type of platform
WebPort 2001
Installation Guide
page 3
ver 2.02
Available PartNumbers for the WebPort 2001platform:
*The option « isolated serial port » is recommended for serial cable lengths above 3m.
1.7 External accessories
External accessories available for the WebPort 2001 platform:
Type/Description Part Number
WebPort 2001/PSTN33 (PSTN modem) WP21202
WebPort 2001/GSM/GPRS (GSM/GPRS modem) WP21205
WebPort 2001/EXT (external modem) WP21206
Option isolated serial port (*) WPxxxxx/1x
Option battery for long RTC backup WPxxxxx/x1
Description Part Number
Starter Kit (Eth cables: 1 straight, 1 crossed + CDROM) WP40901
Antenna GSM/GPRS (dual band fixing by screw) WP40902
Antenna adapter SMA-M/FME-M WP40908
Serial cable 2m for Schneider SUBD9-MiniDIN WP40906
WebPort 2001
Installation Guide
page 4
ver 2.02
2 Structure of the WebPort technical documentation
The WebPort technical documentation is structured in 4 different levels as shown in the table below:
All those manuals are available for download in pdf format on the Spectrum Controls website:
www.spectrumcontrols.com/WebPort_powered_by_Ewon.
Level Title Contents
1
Hardware Installation
Guide (the present
document)
(~40pp)
Detailed description of the hardware platform, of its interfaces, available
options and accessories. Hardware specifications, conformity to
standards. Installation recommendations and pinout of the connectors.
Step-by-step tutorial to establish first communications and make the IP
configuration.
Exists for the following platforms:
• WebPort 500
• WebPort 2001
• WebPort 4001
2
Software Getting
Started
(~30pp)
Manual to start using the basic functions of the WebPort software. Covers
most usual applications.
3Software User Manuals
(~250pp)
Exhaustive manual to use all advanced functions of the WebPort. Contains
BASIC and HTML syntax.
(Exists for all platforms)
4Application Notes
Technical Notes
• Unitelway topology Gateway XIP
• Unitelway for Schneider PLC
• Gateway MPI for Siemens PLC and Gateway for IP devices
• Etc, etc.
WebPort 2001
Installation Guide
page 5
ver 2.02
3 Housing and markings
3.1 Housing
Figure 1: Housing, front view
Figure 2: Housing, bottom view
WebPort 2001
Installation Guide
page 6
ver 2.02
3.2 Markings
The identification label of the WebPort stands on the left hand side of the housing. The label is composed of the
following fields:

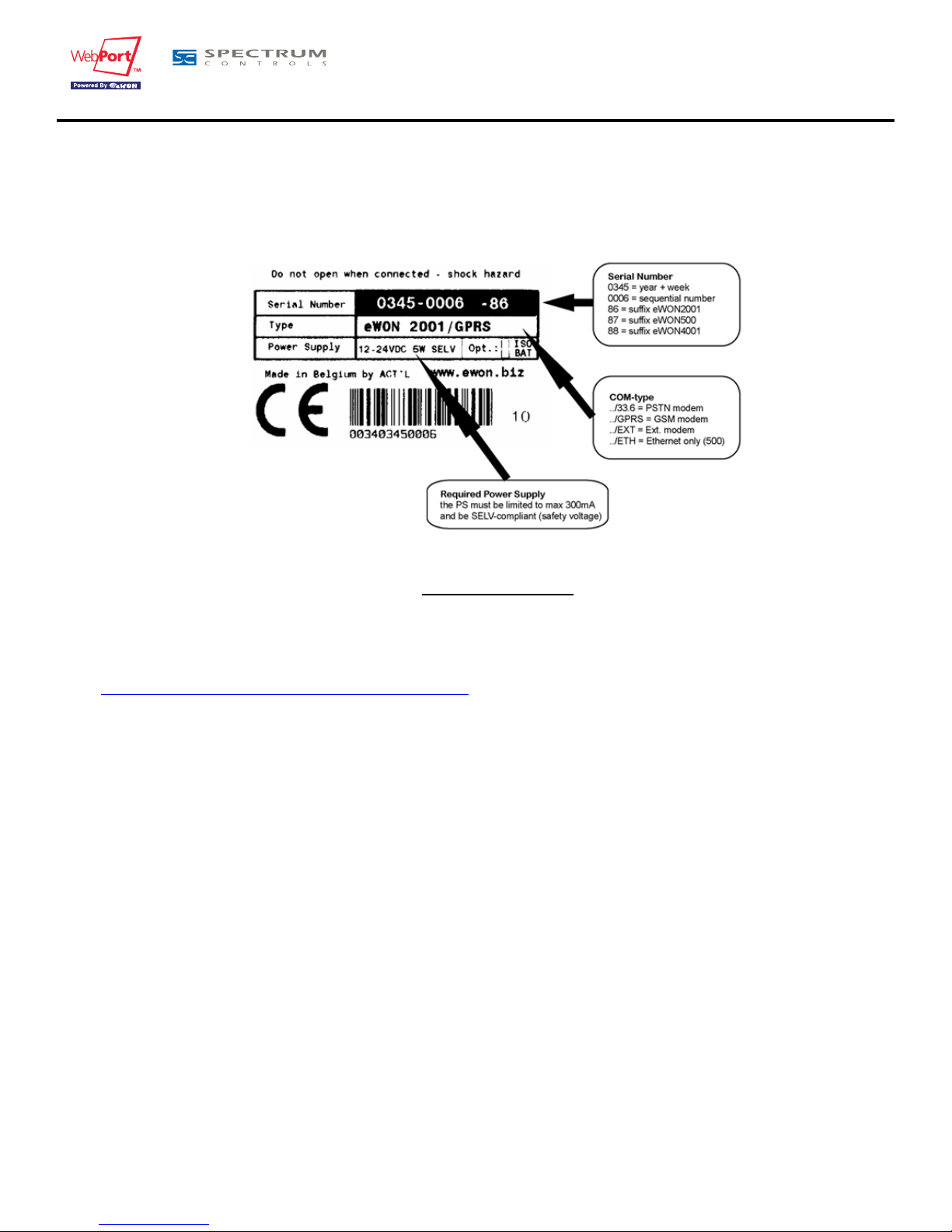

Figure 3: WebPort Label
The WebPort Serial Number (SN) is an important traceability tool for both the user and the manufacturer. Therefore,
next to the product label, each WebPort has its serial number stored in the flash memory. This SN is also used in
order to scan the network for WebPorts and to assign its IP address, subnet mask and gateway. For more details,
See “Equipment information and versions” on page 7.
3.3 Applicable directives, standards and compliance
• 93/68/EEC European directive for CE-mark
• 73/23/EEC European directive for the safety of low voltage equipment (LVD) – Applicable standard is EN60950
A1+A4+A11
• 89/336/EEC amended by 92/31/EEC European directives for the electromagnetic compatibility (EMC) – Applicable
standards EN55022:94 A1, A2 (emissions) and EN55024:98 (immunity)
• UL/CSA certification in progess (UL60950)
