Weinmann ACCUVAC Basic Guida all'installazione

ACCUVAC

Basic

Aspirator

10700

Service and Repair Instructions

Contents

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . .

Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Description

. . . . . . . . . . . . . . . . . . . . . . . . . .

2.1

Purpose

. . . . . . . . . . . . . . . . . . . . . .

2.2

Function

. . . . . . . . . . . . . . . . . . . . . .

Operation

. . . . . . . . . . . . . . . . . . . . . . . . . .

Operating and Display Elements

. . . . . . . . . .

Maintenance

. . . . . . . . . . . . . . . . . . . . . . . . .

5.1

Disposal

. . . . . . . . . . . . . . . . . . . . .

Functional checks

. . . . . . . . . . . . . . . . . . . . .

6.1

Intervals

. . . . . . . . . . . . . . . . . . . . . .

6.2

Performing the functional check

. . . . . . .

Troubleshooting

. . . . . . . . . . . . . . . . . . . . .

Repairs: Information and Instructions

. . . . . .

8.1

General

. . . . . . . . . . . . . . . . . . . . .

8.2

Opening the device

. . . . . . . . . . . . .

8.3

Closing the device

. . . . . . . . . . . . . .

8.4

Replacing release catch

. . . . . . . . . .

8.5

Replacing membrane keyboard

. . . . .

8.6

Changing power pack

. . . . . . . . . . .

8.7

Changing fuse F1 or F2

. . . . . . . . . .

8.8

Check connector between circuit board

and

power

pack

. . . . . . . . . . . . . . .

8.9

Fitting new circuit board WM 10780

8.10

Fitting new pressure gage

. . . . . . . . .

8.11

Fitting new vacuum regulator

. . . . . . .

8.12

Fitting new pump

. . . . . . . . . . . . . . .

8.13

Changing fuse in vehicle plug

. . . . . .

8.14

Changing the muffler

. . . . . . . . . . . .

8.15

Electrical circuit diagram

. . . . . . . . . .

Spare Parts

. . . . . . . . . . . . . . . . . . . . . . . . .

9.1

Spare parts list

. . . . . . . . . . . . . . . .

10.

Tools and Test Equipment

. . . . . . . . . . . . . .

11.

Technical Changes

. . . . . . . . . . . . . . . . . . .

12.

Technical Data

. . . . . . . . . . . . . . . . . . . . . .

12.1

Safe distances

. . . . . . . . . . . . . . . . .

13.

Repair and Test Report

. . . . . . . . . . . . . . . .

WEINMANN GmbH & Co. KG.

The content and presentation are copyright protected and may only be used by authorised

WEINMANN Service Partners in

the course of their service operations. The content must not be reproduced or passed on to third parties. The complete documents

must be returned on termination of the cooperation with

WEINMANN.

Introduction

For decades

WEINMANN has been developing,

manufacturing and marketing appliances for emer

gency medical treatment,

oxygen therapy and

inhalation

therapy.

In 1986

WEINMANN launched the first

ACCUVAC

aspirator on the market.

The improved

ACCUVAC

Basic

aspirator pro

vides users with an appliance that is an indispen

sable aid in many emergency health care situa

tions. The

ACCUVAC

Basic

is primarily intended

for oral or transtracheal aspiration of secretion.

Aspiration is indicated in particular for tracheoto

my patients undergoing respiration.

The indications include:

•

Neuromuscular disorders, e.g. paraplegia,

amyotrophic lateral sclerosis (ALS)

•

Late symptoms of polio

• Muscular dystrophies

• Cystic fibrosis

• Kyphoskoliosis and posttubercular syndrome

•Chronic obstructive lung diseases, e.g. severe

chronic bronchitis

• Pulmonary fibrosis, e.g. silicosis

•Other forms of alveolar hypoventilation

Using the ACCUVAC Basic aspirator gives the

user more time to look after the patient and perform

other measures.

The purpose of these Service and Repair Instruc-

tions is to make sure you as an expert specialist are

familiar with the ACCUVAC Basic aspirator: its

functionality and technology and how to repair it.

Combined with training you have already re-

ceived from WEINMANN, this makes you a mem-

ber of the “authorized expert personnel” category,

which means you can give your customers proper

instruction, remedy faults independently, perform

the final checks specified in the Operating Instruc-

tions, and carry out any repairs in accordance with

these Service and Repair Instructions.

In the event of a warranty claim the ACCUVAC Basic

aspirator is to be sent to WEINMANN.

So that we can process warranty claims or re-

quests for generous treatment of complaints,

please send the purchase receipt (invoice) with the

appliance.

Repairs may only be carried out by WEINMANN

or by expert personnel.

You are responsible for any repairs you make and for

the relevant warranty!

Only original WEINMANN spare parts must be used

for repairs.

Please remember:

Your customer trusts you and relies on your quality,

just as you rely on WEINMANN.

Note:

For the following information, please consult the

ACCUVAC Basic Operating Instructions:

•Safety information

•Fitting accessories

• Operation

• Hygienic preparation

• Warranty

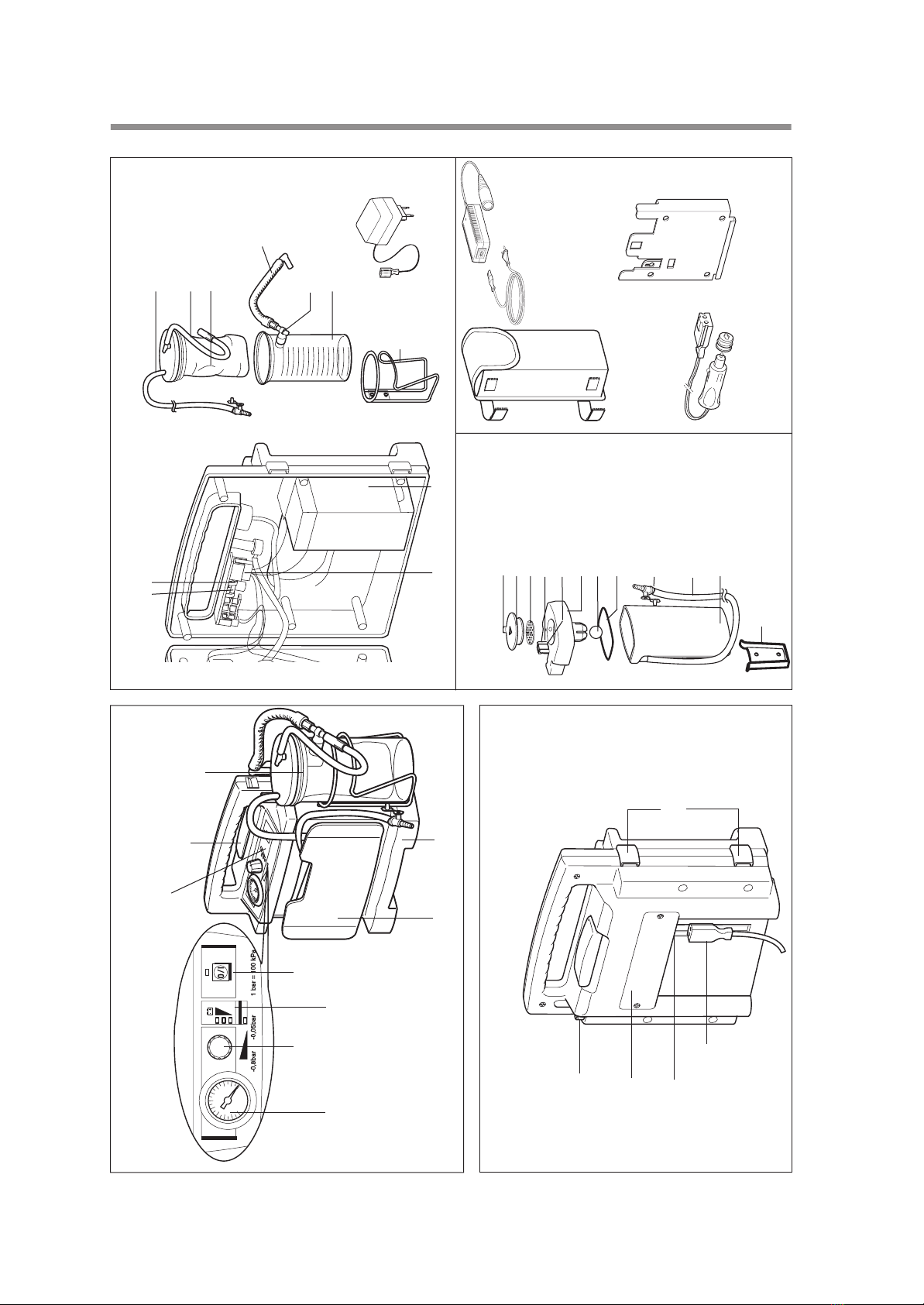

1. Overview

-1,0

-0,8

-0,6 -0,4

-0,2

ACCUVAC Basic from front with disposable collection canister

7Disposable

canister

2Vacuum control

3Voltage indicator

8Motor unit

6Release catch

4On/Off

switch

9Tube holder plate

1Pressure gauge

5Membrane keyboard

ACCUVAC Basic from rear without collection canister

13 Muffler

(hidden)

11 Adapter/charger

plug

14 Suction port

12 Power socket

(hidden) 10 Loops for

accessory bag

Accessories

ACCUVAC Basic interior

18 Plug X100 17 Power pack

15 Fuse F100 16 Fuse F101 (hidden)

27 Vent tab

28 Filter cover

29 Bacteria filter

30 Locking tab

32 Secretion cover

33 Ball (overfill guard)

37 Collection canister

36 Aspiration tube

35 Fingertip

26 Re-usable collection canister WM 15269

34 Sealing ring

31 Bracing

38 Holder set WM 15271

Connection cable

WM 10650

Accessory bag

WM 10655

Wall bracket

WM 15208

Disposable collection canister

24 Collection canister

21 Disposable bag

19 Aspiration tube with

Fingertip

22 Vacuum

tube

20 Intermediate tube

25 Holder

11 Adapter/charger plug

23 T-piece

Mains / charger unit

FW7405M/14,

complete WM 2610

Description 5

2. Description

2.1 Purpose

ACCUVAC Basic is a mobile and portable electri-

cally powered aspirator (suction pump).

It is used for:

•aspirating accumulations of blood, secretions

and food from the oral cavity, the nose and

throat region and the bronchial system;

• deflating vacuum mattresses and inflatable

splints.

ACCUVAC Basic:

•can when used by a skilled operator eliminate

obstruction of the respiratory tract and hence

the risk of respiratory failure;

• cuts energy consumption by reducing power

output on reaching the necessary vacuum;

•can optionally be powered by a rechargeable

internal power pack;

•or by an external DC source supplying 12.0 -

13.8 V;

• is also suitable for use in wards.

ACCUVAC Basic must not be used:

•in medical rooms where potential equalization

is necessary (e.g. heart surgery);

• in explosion-risk areas.

2.2 Function

An electrically operated diaphragm pump generates

the vacuum necessary for aspiration.

Use the vacuum control 2to set the desired vacuum,

which is continuously variable between –0.05 bar

and –0.8 bar. You can read off the set value on the

pressure gage 1.

The aspirated material passes via the aspiration tube

36 into the disposable collection canister 7.

Disposable collection canister

The disposable collection canister 7consists of the

collection canister 24 itself, the disposable collection

bag 21 with intermediate tube 20, the aspiration tube

with fingertip 19, the T-piece 23 and the vacuum tube

22.

The disposable collection canister 7is inserted in the

holder 25 screwed on the side of the motor unit 8.

The vacuum tube 22 of the disposable canister 24 is

pushed onto the suction port 14 of the motor unit 8.

-1,0

-0,8

-0,6 -0,4

-0,2

6Description

The aspirated material passes through the aspira-

tion tube 19 into the disposable collection bag 21.

The disposable collection bag is intended for

once-only use. When it is full, you can remove it

from the collection canister 24 and dispose of it

complete with contents.

An overflow valve filter is integrated in the

disposable collection bag 21. This prevents secre-

tions and liquid from finding their way into the motor

unit 8and passing into the environment via the

muffler 13.

Power supply

Power for operating the appliance and charging

the power pack can be drawn from:

• the built-in power pack 17.

• a 12-volt electrical cable system, using the

connecting cable WM 10650 which is

available as an accessory.

•the mains and charger unit WM 2645 which

is available as an accessory.

Important!

The AC adapter/charger plug 11 supplied with the

appliance is only designed for charging the power

pack with the appliance switched off. It must not be

used to operate the appliance itself, as this will over-

load it and cause it to overheat.

The voltage indicator 3shows the charge status of

the power pack.

Charging of the power pack starts automatically

as soon as the appliance is switched off and con-

nected to an external power supply (see ”12.

Technical Data“ on page 27).

Operation 7

3. Operation

ACCUVAC Basic may only be used by trained staff in-

structed in aspiration techniques. Incorrect use can

cause serious bodily harm.

Operation is described in the operating

instructions.

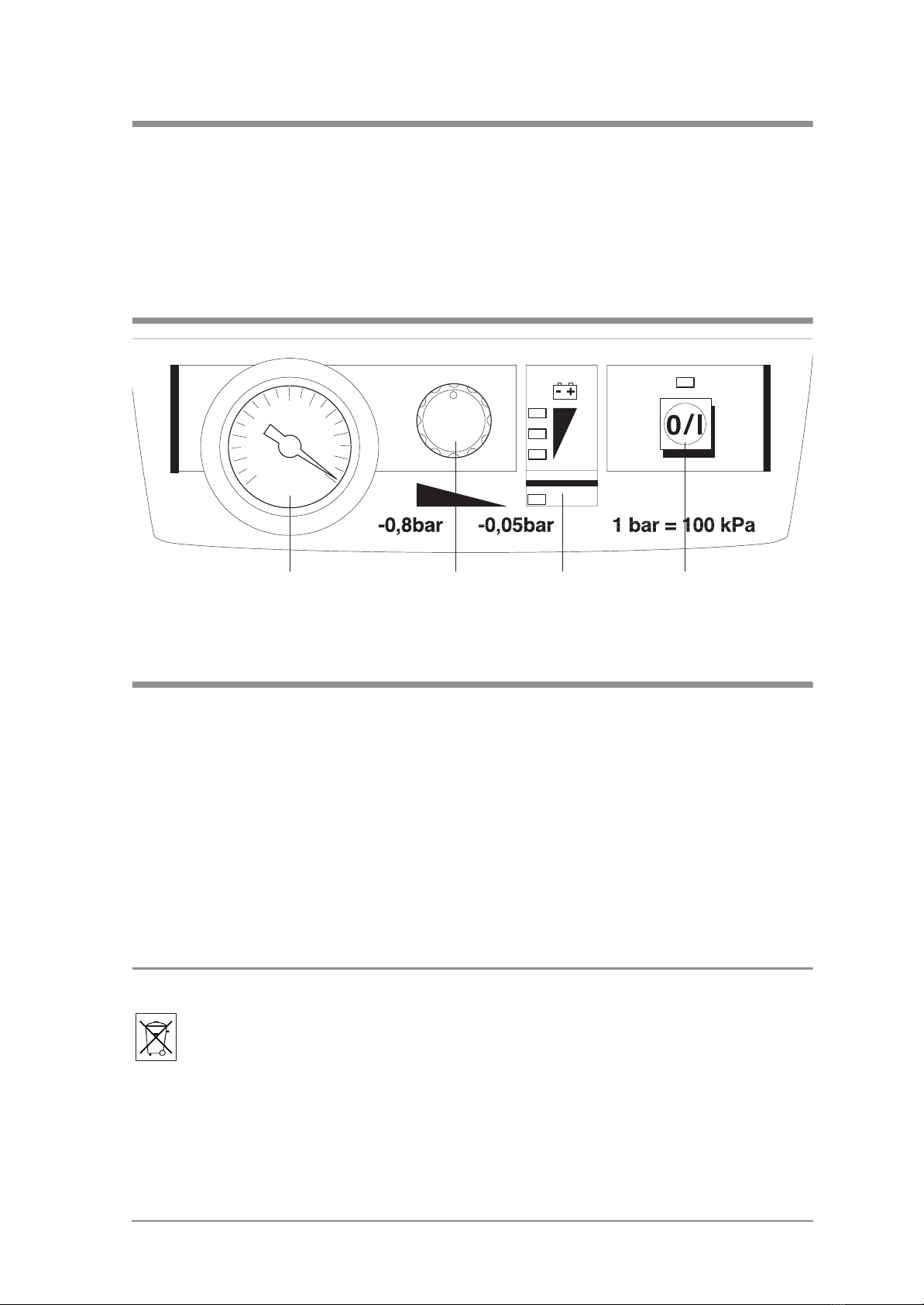

4. Operating and Display Elements

5. Maintenance

The ACCUVAC Basic needs no maintenance, but

please be sure to observe the intervals specified for

regular final checks (see ”6.1 Intervals“ on

page 8).

In the interests of maintaining power pack opera-

tion and life, we recommend you to calibrate the

power pack every 8 weeks as described in

Section 8.1.2 of the instructions for use. This in-

cludes the required discharging and recharging of

the power pack.

We recommend that you have any servicing, such

as inspections and repair work, carried out by the

manufacturer – WEINMANN – or by expert per-

sonnel.

5.1 Disposal

Do not dispose of the unit with domestic waste. For proper waste disposal of the equipment, please

contact an approved and certified waste disposal site for electronic goods. Ask your Environmental

Officer or town council for the address.

-1,0

-0,8

-0,6 -0,4

-0,2

2 Vacuum control 3 Voltage indicator 4 On/Off switch1 Pressure gauge

8Functional checks

6. Functional checks

If the final check reveals defects or deviations from

the specified values, ACCUVAC Basic must not be

used again until the faults have been rectified.

We therefore recommend that you always keep a

stock of the following:

• Disposable collection bag 21 WM 10732

• Aspiration tube with

fingertip 19 WM 10733

6.1 Intervals

To ensure that a properly functioning ACCUVAC Basic is always available, it is essential to observe the fol-

lowing intervals.

Before every use

• Perform a functional check (see ”6.2 Perform-

ing the functional check“ on page 8).

After every use

• Clean, disinfect and/or sterilize the unit and

its parts (see operating instructions ”5.

Cleaning and disinfecting“);

• Perform a functional check (see ”6.2 Perform-

ing the functional check“ on page 8).

Every 3 months

•Check the charge level of the power pack 17

by switching on ACCUVAC Basic and read-

ing the voltage indicator 3. If the top LED of the

voltage indicator does not light up, the power

pack should be recharged (see operating in-

structions ”4.4 Charging ACCUVAC Basic“).

At least every 6 months

• Perform a functional check (see ”6.2 Perform-

ing the functional check“ on page 8).

• Make a visual inspection of the muffler for

clogging. If it is clogged, fit a new muffler (see

”8.14 Changing the muffler“ on page 22).

After all repairs

• Clean, disinfect and/or sterilize the unit and

its parts (see operating instructions ”5.

Cleaning and disinfecting“);

• Perform a functional check (see ”6.2 Perform-

ing the functional check“ on page 8).

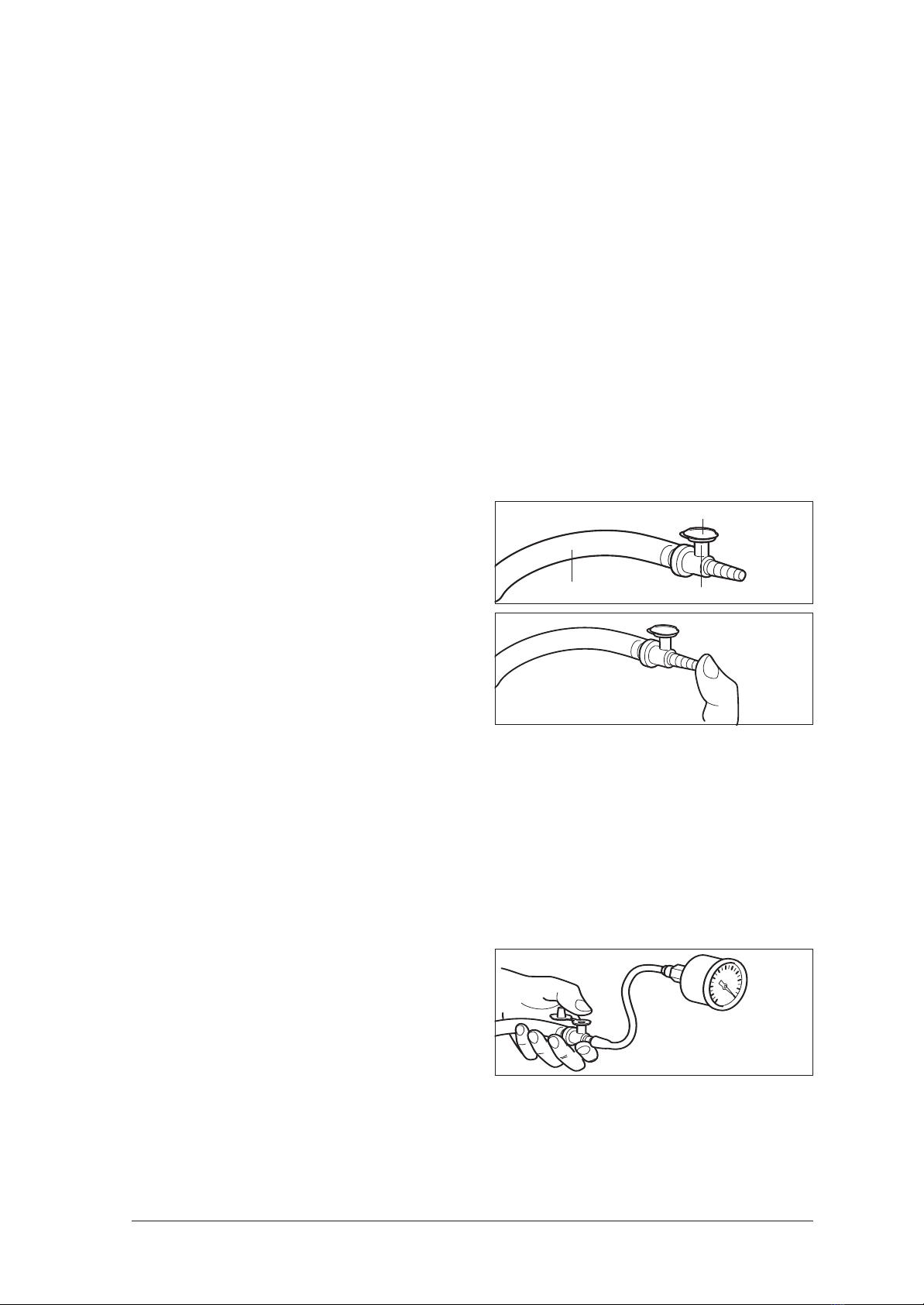

6.2 Performing the functional check

1. Assemble ACCUVAC Basic ready for use.

2. Check that all tubes and the individual parts of

the disposable collection canister 7are in per-

fect condition. Any damaged or worn parts

must be replaced.

3. Check that all tubes are securely connected

and the disposable collection bag 21 is firmly

installed.

4. Switch on ACCUVAC Basic.

5. Check the charge level on the voltage indica-

tor 3. Always recharge the power pack with-

out delay if the yellow LED on the voltage

indicator lights up (see operating instructions

”4.4 Charging ACCUVAC Basic“).

Functional checks 9

6. Battery test

A battery test should always be performed

when there are doubts about the performance

of the rechargeable battery, however at the

latest two years after the battery was last

changed.

Procedure

Charge the ACCUVAC Basic for 8 hours us-

ing the WM 2610 mains / charger unit

FW7405M/14, complete or for 14 hours us-

ing the WM 10750 plug-in power supply

unit. Set a short interval timer to 20 minutes

and start the ACCUVAC. After an operating

time of 20 minutes the red LED should not be

lit up and the ACCUVAC should be in opera-

tion.

If the red LED lights up after 20 minutes, or the

ACCUVAC is no longer working, the battery

is spent and must be replaced. In this case

please replace the battery as described in sec-

tion 8.6.

7. Insert the stopper in the fingertip 19.

8. Use your thumb to hold the suction nozzle

closed.

9. Switch on the aspirator and select the maxi-

mum vacuum of –0.8 bar by turning vacuum

control 2fully to the right. ACCUVAC Basic

must reach this vacuum in not more than

20 seconds.

If the aspirator takes longer than 20 seconds

to reach this vacuum, this means its suction

capacity is reduced. Check for possible faults

(see ”7. Troubleshooting“ on page 10).

10. Attach the test pressure gauge 0 to –1 bar

WM 15294 to the fingertip.

11. Check the maximum vacuum for accuracy with

test pressure gauge 0 to –1 bar. The vacuum

must be –0.8 bar, tolerance +/– 0.04 bar.

12. Remove the test pressure gauge from the

fingertip.

13. Switch ACCUVAC Basic off again.

Fingertip

Stopper

Suction tube

bar

-1,0

-0,8

-0,6 -0,4

-0,2

7. Troubleshooting

Fault Cause Localize fault Remedy

Appliance does not start, O/I indicator and

voltage indicator show ready for operation

Faulty pump Connect pump to functioning circuit board and

switch on. If pump does not run, … … ﬁt new pump (8.12, page 21)

Circuit board defective Connect circuit board to functioning pump and

switch on. If pump does not run, … … ﬁt new circuit board (8.9, page 18)

Appliance does not start, O/I indicator does

not show ready for operation

Fuse F100 or F101 in appliance defective Fit new fuse (8.7, page 17)

Fuse in vehicle plug defective Fit new fuse (8.13, page 22)

Power pack fully discharged

Perform several charge/discharge cycles. If

unsuccessful, ﬁt new power pack (8.6,

page 16)

Incorrect polarity of vehicle power socket Correct polarity and if necessary replace fuse

F1 (8.7, page 17)

Snap-in connection between circuit board and

power pack not properly engaged Make sure connection snaps in

Appliance does not reach maximum vacuum of

–0.8 bar in 20 seconds, but voltage indicator

shows ready for operation

Leak in suction side of appliance

Disconnect secretion container from pump unit.

Switch on pump and run at a setting of 0.8 bar.

Hold thumb over suction port. The maximum

vacuum is reached within 5 sec. and the pump

stops. If the pumps starts up again within 10 to

20 sec., the leak is in the pump unit.

Check that all tubes are ﬁrmly connected and

disposable bag is securely installed

Power pack not sufﬁciently charged

Connect mains / charger unit FW7405M/14,

complete WM 2610. If the pump now runs

much more “powerfully” than with the power

pack, you must …

… charge power pack (operating instructions

4.4, page 16)

Fault in pump Connect pump to functioning circuit board and

switch on. If pump does not run, … … ﬁt new pump (8.12, page 21)

Mufﬂer clogged Fit new mufﬂer (8.14, page 22)

No vacuum is generated Vacuum regulator defective Fit new vacuum regulator (8.11, page 20)

No reading on pressure gage

Altri manuali per ACCUVAC Basic

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Weinmann Attrezzature mediche

Weinmann

Weinmann ULM CASE Circulation Documento tecnico

Weinmann

Weinmann prismaPSG WM 100 MP Manuale utente

Weinmann

Weinmann WM 24148 Istruzioni per l'uso e l'installazione

Weinmann

Weinmann MEDUMAT Standard2 Manuale utente

Weinmann

Weinmann MEDUMAT Standard2 Manuale utente

Weinmann

Weinmann JOYCE Full Face vented 40 hPa Manuale utente

Weinmann

Weinmann VENTImotion Series Istruzioni operative

Weinmann

Weinmann MEDUCORE Standard2 Manuale utente

Weinmann

Weinmann homecare SOMNOcomfort 2 Guida all'installazione

Weinmann

Weinmann BiLevel-ST VENTImotion WM 24800 Guida all'installazione

Weinmann

Weinmann ACCUVAC Basic Manuale

Weinmann

Weinmann WM 13011 Manuale

Weinmann

Weinmann MEDUVENT Standard Manuale utente

Weinmann

Weinmann ULM CASE I Manuale utente

Weinmann

Weinmann WM 24042 Manuale

Weinmann

Weinmann SOMNOvent CR Manuale utente

Weinmann

Weinmann JOYCEeasy Manuale utente

Weinmann

Weinmann MEDUMAT Standard2 Manuale utente

Weinmann

Weinmann Prisma2Cloud WM 100 MW Manuale utente

Weinmann

Weinmann Oxygen MODULE Guida all'installazione

Weinmann

Weinmann homecare SOMNOvent ST Documento tecnico

Weinmann

Weinmann OXYWAY Series Manuale utente

Weinmann

Weinmann MEDUMAT Standard2 Manuale utente

Weinmann

Weinmann ULM CASE II Manuale utente

Manuali Attrezzature mediche popolari di altre marche

TekTone

TekTone Tek-CARE160 Manuale utente

NeuroMetrix

NeuroMetrix Quell 2.0 Manuale utente

AMT

AMT XLR8 Manuale utente

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Manuale utente

EDAN

EDAN SONOTRAX Pro Manuale utente

Restorative Therapies

Restorative Therapies RT300 Manuale utente

Gendex

Gendex Expert DC Manuale utente

Dexcowin

Dexcowin ADX4000W Manuale utente

Libelium

Libelium MySignals Manuale utente

Acelity

Acelity V.A.C.ULTA 4 Manuale utente

Caputron

Caputron ActivaDose II tDCS Manuale utente

FujiFilm

FujiFilm Sonart Manuale del proprietario

Plinth 2000

Plinth 2000 93CDT Manuale utente

GE SENOGRAPHE 800T Manuale utente

GE Definium 5000 Manuale utente

Kanmed

Kanmed GE-1380 Manuale utente

Huntleigh

Huntleigh FD1 Manuale utente

Stryker

Stryker SPR Plus Manuale utente
