weintek M02 Guida utente
User
Manual
M02 Startup Guide
Table of Contents
Chapter 1 Overview............................................................................................................................................. 1
1.1 Specification....................................................................................................................................... 1
1.2 Dimensions......................................................................................................................................... 2
1.3 Installation ......................................................................................................................................... 3
Chapter 2 Wi-Fi Settings...................................................................................................................................... 4
2.1 Set in internet browser ...................................................................................................................... 4
2.2 Set on HMI.......................................................................................................................................... 6
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
1

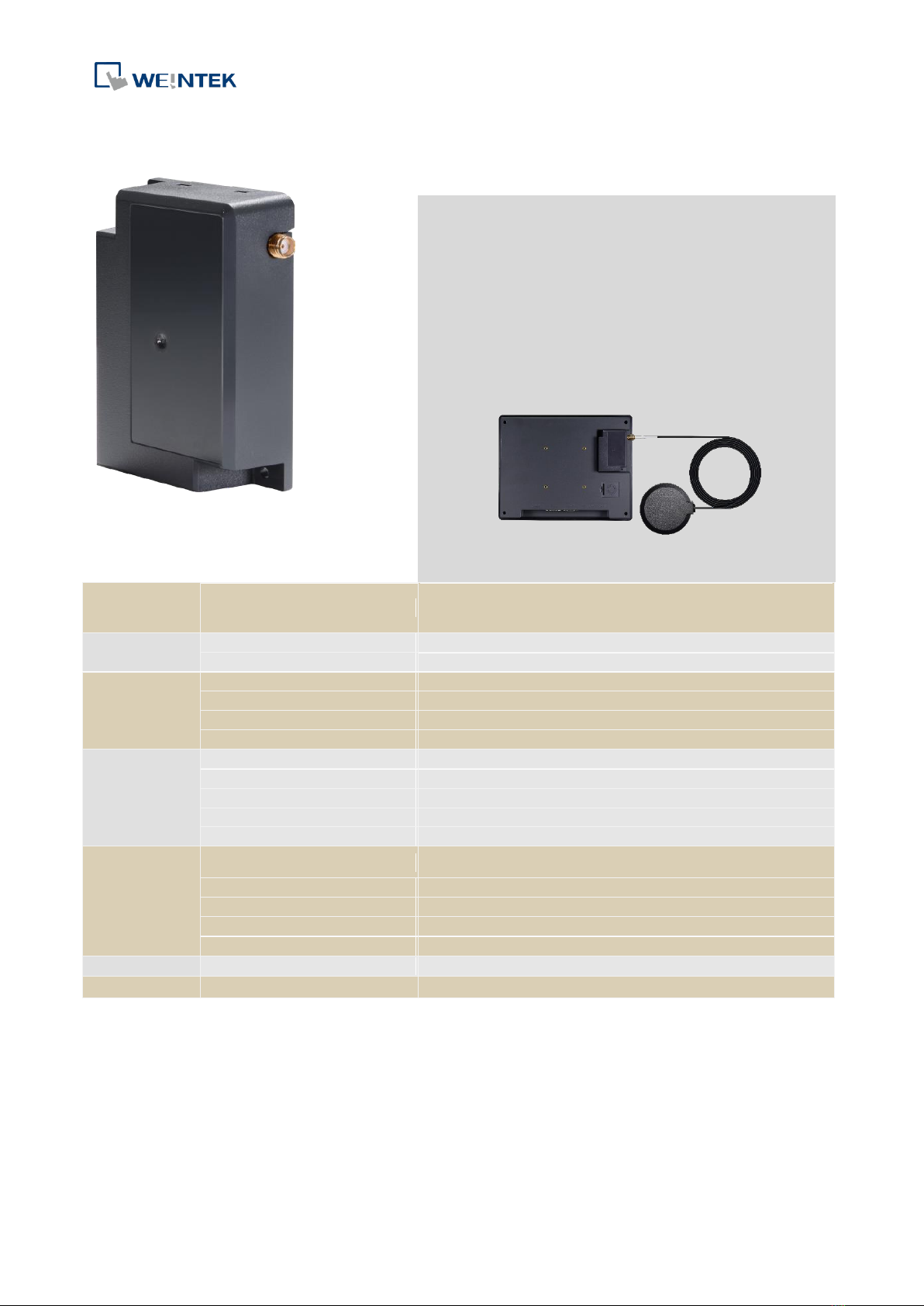

Chapter 1 Overview
1.1 Specification
Network
WiFi
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
I/O Port
SMA Female Connector
1
Male Connector to HMI
1
Power
Input Power
5VDC
Power Consumption
900mA@5VDC (powered by HMI)
Voltage Resistance
500VAC (1min.)
Isolation Resistance
Exceed 50Mat 500VDC
Specification
PCB Coating
N/A
Enclosure
Plastic
Dimensions WxHxD
54.5 x 80 x 24.1 mm
Weight
Approx. 80 g
Mount
HMI connector + diagonal screw fastening
Environment
Protection Structure
M02: IP20 Compliant
Antenna: IP66 Compliant
Storage Temperature
-20°~ 60°C (-4°~ 140°F)
Operating Temperature
0°~ 50°C (32°~ 122°F)
Relative Humidity
10% ~ 90% (non-condensing)
Vibration Endurance
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate
CE
CE marked
Software
EasyBuilder Pro
WiFi Expansion Module
Feature
Modular design, adds wireless connectivity to HMI.
WiFi standards supported include: IEEE 802.11b/g/n.
Compact design and little protrusion when installed
on HMI, which avoid space issue in control cabinet
installation.
The magnetic mount antenna included in the
package can be installed at an optimal location to
maximize signal strength.
Demo for use with HMI
(HMI needs to be purchased separately)
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
2

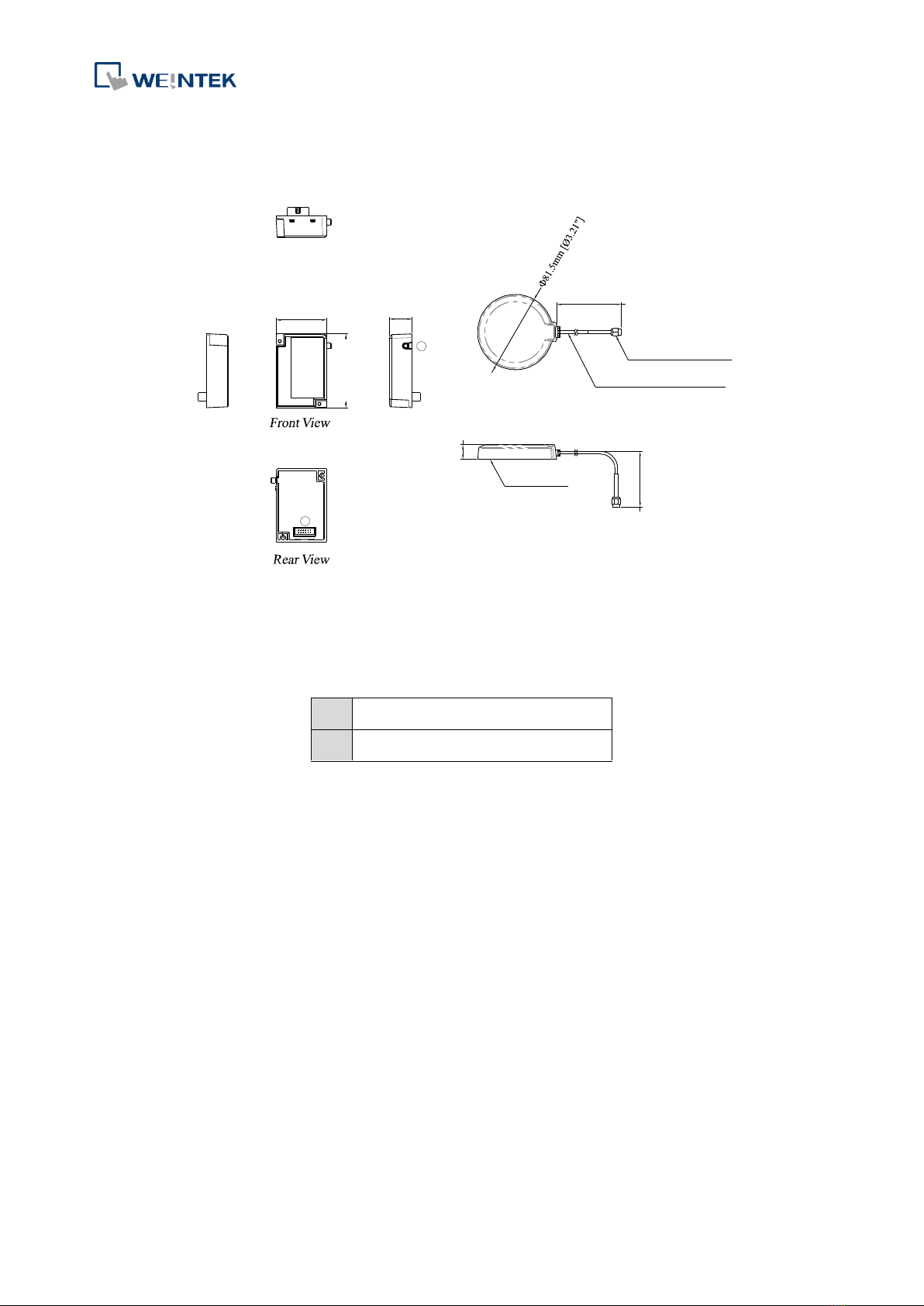

1.2 Dimensions
a
SMA Female Connector
b
Male Connector to HMI
Side View
Top View
Side View
54.5mm [2.15"]
80mm [3.15"]
24.1mm [0.95"]
a
54.5mm [2.15"]
80mm [3.15"]
24.1mm [0.95"]
a
54.5mm [2.15"]
80mm [3.15"]
24.1mm [0.95"]
a
b
英文版 簡中版 日文版
上视图
正视图 侧视图侧视图
底视图
上面図
正面図 側面図
背面図
側面図
Antenna 天线
b
b
2000mm [78.74"]
16mm [0.63"]
Foam Sticker
RG174 Black Coaxial Cable
SM A Male Connector
60mm [2.36"]
Wire bending dimension (Min.)
2000mm [78.74"]
16mm [0.63"]
磁性板
RG174 Black Coaxial Cable
SM A Male Connector
60mm [2.36"]
线材绕曲尺寸 (最小)
2000mm [78.74"]
16mm [0.63"]
Foam Sticker
RG174 Black Coaxial Cable
SM A Male Connector
60mm [2.36"]
Wire bending dimension (Min.)
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
3
1.3 Installation
M02 does not support hot swapping by design. Please connect it to HMI before powering up HMI.
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
4
Chapter 2 Wi-Fi Settings
Connect M02 to HMI and then start up HMI. Log in system settings in one of the following two ways
and configure Wi-Fi parameters.
2.1 Set in internet browser
Connect HMI with PC using an Ethernet cable, open internet browser (IE, Chrome, or Firefox), and
enter HMI’s IP address (e.g.: 192.168.2.177) to configure HMI settings.
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
5
Network » Wi-Fi: Select Wi-Fi AP and define the encryption type.
Network » Hotspot: Make the HMI a wireless hotspot to share internet connection if needed.
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
6
2.2 Set on HMI
Tap the round start button on HMI to open the Setting window.
Tap the lock icon , enter the password to log in, and then open the Wi-Fi tab to set Wi-Fi
Connection and Wi-Fi Hotspot.
M02 Startup Guide
UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
7
Wi-Fi Connection: Select Wi-Fi AP and define the encryption type.
Wi-Fi Hotspot: Make the HMI a wireless hotspot to share internet connection if needed.
Other company names, product names, or trademarks in this document are the trademarks or registered trademarks of their respective companies.
This document is subject to change without prior notice.
