Weiser Kevo convert 66102/01 Manuale utente

Interior cover Interior assembly Battery pack AA batteries

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

66102 / 01

ENGLISH Installation and

User Guide

Parts in the boxRequired tools

Ruler

Phillips screwdriver

Existing key

Adapters

Mounting plate

screws

Interior assembly

screws

Interior assembly

screws

Interior assembly

screws

Interior cover

screws

Interior cover

screws

Interior cover

screws

Mounting plate

screws

Mounting plate

screws

Kit “A” Kit “B” Kit “C”

Mounting plate Adapter Mounting plate Mounting plate Adapters

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

35 mm or 44 mm

13/8"or 13/4"

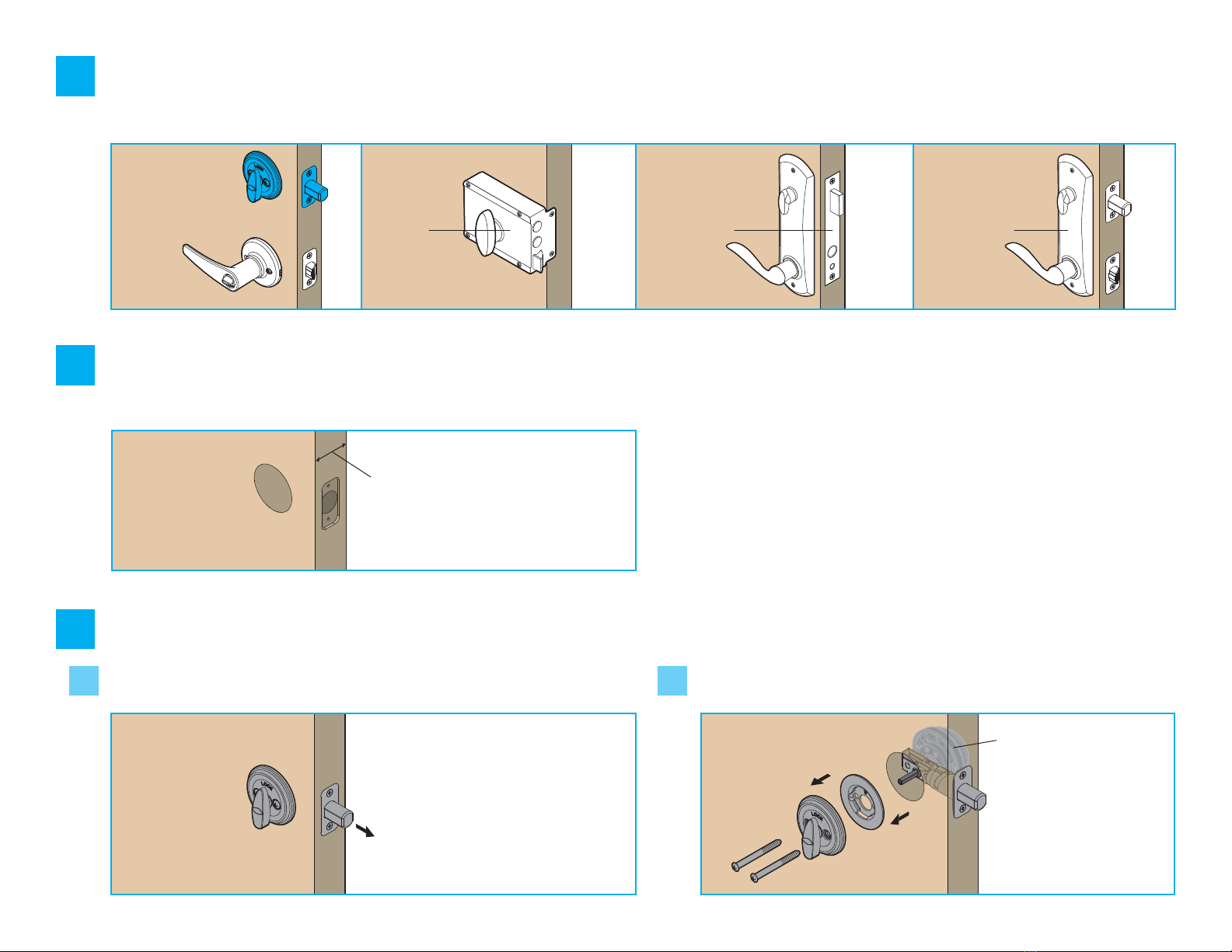

Measure to conirm that your door is either

35 mm or 44 mm (13/8" or 13/4") thick.

If you have a standard deadbolt mounted separately from the

handle below it, it is compatible with Kevo Convert.

Make sure your door is open and extend your latch bolt.

extended

Remove all existing deadbolt hardware from the interior side

of your door. Keep your deadbolt exterior in place.

deadbolt

exterior

A B

Not Compatible

Rim

Lock

Mortise

Lock

Integrated

Interior

Not Compatible Not CompatibleCompatible

Make sure your existing deadbolt is compatible.

Measure the thickness of your door.

Disassemble your existing deadbolt.

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

D-shape

Weiser and Kwikset deadbolts:

Use kit “A” for your door.

Baldwin Reserve and

Baldwin Prestige deadbolts:

Use kit “B” for your door.

You will need the black adapter

and the thicker gold screws.

thicker

screws

Vertical rectangle

Baldwin Estate deadbolts:

Use kit “B” for your door.

You will need the gold adapter

and the thinner gold screws.

thinner

screws

Slanted rectangle

Schlage deadbolts:

Use kit “C” for your door.

You will need the silver adapter.

Horizontal rectangle

Schlage deadbolts:

Use kit “C” for your door.

You will need the gold adapter.

Look at the hole in your door.

What shape is your torque blade (the part sticking out through the latch)?

For a list of compatible deadbolt models, see page 11.

4Determine the parts needed for your door.

torque blade

Note: A D-shaped torque blade is shown, but installation is the same for all models.

C D

Insert your key and test the latch for smooth operation. Remove your key and make sure the bolt is fully extended.

If the latch does not

extend or retract

smoothly, adjust the

mounting screws.

fully

extended

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

APlace the mounting plate on the door so that the torque

blade inserts through the center hole.

Black Components Only: To

determine which mounting

screws to use, test one of

the thicker screws irst.

If the thicker screw its, continue

installing the thicker screws.

If the thicker screw doesn't it,

install the thinner screws.

5Install the mounting plate and test your latch.

Keep parallel to the

edge of the door.

Tighten

screws evenly.

Secure the mounting plate with the mounting screws.

align tabs

Gold adapter:

Keep slot vertical.

Press adapter irmly onto

the interior assembly.

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

Install the adapter on the interior assembly.

Black adapter

abcd

Prepare the interior assembly.

Make sure the

turnpiece is in the

vertical position.

vertical

Remove the

interior cover.

Make sure shaft is oriented

as shown. If needed, rotate

the shaft to this position.

Stripe should

be vertical.

Remove the battery pack.

Do not

install

batteries

yet.

6Install the interior assembly.

Silver adapter:

Tab is on bottom.

Black adapter:

Curve is on top.

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

RightLeft

SCHLAGE DEADBOLTS ONLY:

Switch #2

On your interior assembly, lip switch #2

to the top position.

Look at your mounting plate.

Is your latch bolt to the left or right of your mounting plate?

No adjustment is required.

Proceed to the next page.

6Install the interior assembly (continued).

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

CInstall the interior assembly onto the mounting plate.

Align the adapter with

the torque blade.

Secure with

two (2) interior

assembly screws.

bottom hole

6Install the interior assembly (continued).

Schlage deadbolts only:

You may need to rotate

the adapter to align

with the torque blade.

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

7Perform the door handing process.

A B

C D

status

LED

Install 4 AA batteries in the battery pack. IMPORTANT: Make sure the door is open. Insert the battery pack

while PRESSING AND HOLDING the Program button. Release the

button when the battery pack is all the way inside the lock interior.

IMPORTANT: The Status LED will lash red and green, and the

lock will beep. Press and release the Program button again.

The latch bolt will retract and extend on its own to learn the orientation of the door.

Red Status LED

OTHER DEADBOLTS:

If the Status LED is solid red after

door handing, make sure the

batteries are installed correctly

and the lock interior is correctly

installed. Perform steps BD again.

The Status LED will turn green or red.

Green: Door handing successful.

Continue to step 8.

Red: See “Red Status LED” below.

If the bolt does not move, make sure the batteries are

installed correctly, and perform steps BD again.

This step will teach the lock the orientation of your door and is crucial for lock operation.

Ensure correct polarity. For best

results, use new, non-rechargeable

Alkaline batteries only.

Right

BALDWIN ESTATE DEADBOLTS ONLY:

If your latch bolt is to the RIGHT of your

interior assembly, and the Status LED is

solid red after door handing, press and

release the Program button again. The

door handing process will restart.

If you are unsure if your lock is

Baldwin Estate, see chart on page 3 or

compatible deadbolt list on page 11.

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

Download the Kevo app and set up your smartphone.

Download the Kevo app at weiserlock.com/kevo/app or scan the QR code below. Follow the instructions inside the app to create an account, enroll

your irst smartphone and send eKeys to family and friends.

A B

Kevo Support: www.weiserlock.com/kevo/support

USA: 1-800-677-5625 • Canada : 1-800-501-9471

9Install the interior cover.

Remove

the

security

screw.

Install the

cover.

Install the

cover.

Secure the cover

with three (3)

interior cover

screws.

Secure the

cover with

three (3)

interior

cover

screws.

bb c

Important information about the interior cover:

If you want to keep the window locked: If you want to unlock the window:

If the window is unlocked,

it can slide up for more

convenient access to

programming buttons

while the cover is installed.

Note: The interior

cover and screws

must be removed for

battery pack access.

The interior cover will be

secured by three screws

to prevent someone

from removing the

battery or tampering with

your lock's settings.

The window on the interior

cover is locked by default.

window
