Wenger Roll-A-Deck Kit Manuale utente
Make sure anyone assembling or
installing StageTek components has
read and understands the instructions.
Always comply with Warnings
or Cautions in the instructions
or posted on the equipment.
Basic Instructions only!
For more detailed product information, refer to the
StageTek Staging System Owner's Manual 280A099.
!CAUTION
!CAUTION
Assembly Instructions
Roll-A-Deck Kit
®
for
StageTek
®
Staging System
©Wenger Corporation 2023 Printed in USA 2023-09 Part #280A553-03
Wenger Corporation, 555 Park Drive, PO Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
Note: Please read and understand these instructions before assembling or setting up.
Note: If you need additional information, contact Wenger Corporation using the information below.
Visit the StageTek Staging System web page at wengercorp.com for more information.

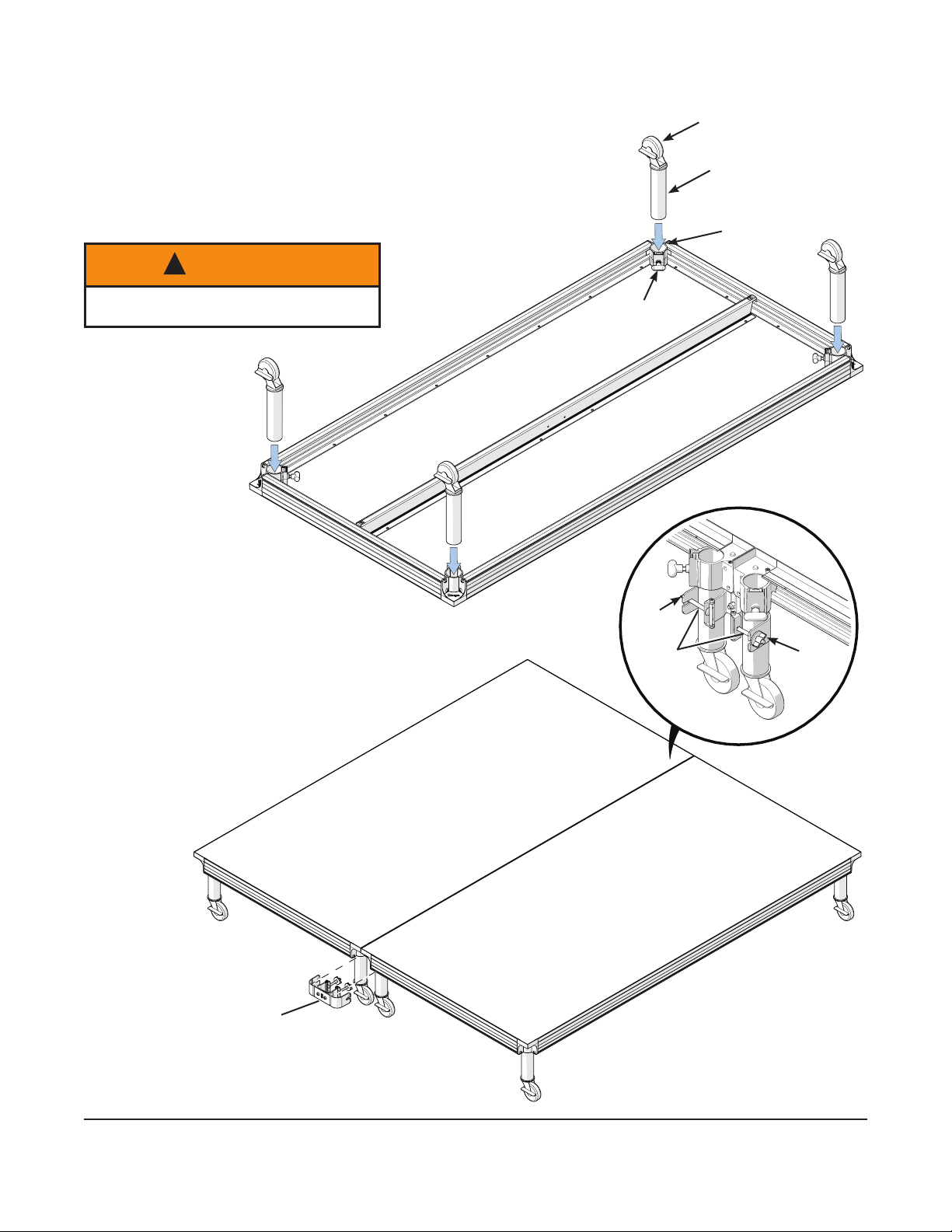

Assembly
1. Lay the StageTek deck upside down on a clean surface.
2. Attach the leg assemblies.
a. Insert the leg tube all of the way into each of the pocket assemblies.
b. Secure each leg tube by hand tightening the knob on every
pocket assembly. No tools are required.
c. Turn the deck over onto the casters.
Multiple Roll-A-Decks can be connected together.
1. For best stability, attach connectors as high up
on the leg tube as possible.
2. Withtheatsidefacingout,ttheconnector
over the adjacent leg tubes.
3. Attach the connector to each leg tube
by closing the bolt and securing
with a wing nut.
2
Caster
Knob
Pocket
Assembly
Fit connector
over the
leg tubes
(at side out)
Close
bolt Wing
Nut
Wing
Nut
Leg
Tube
The deck can be unstable if the leg
assemblies are not properly attached.
!WARNING
