4. Technical Data
Order number ZAC50CN01 ZAC50CN02
Supply voltage 18...32 V DC 18...32 V DC
Max. Current Consumption Device * 0.3 A 0.25 A
Max. Current Consumption System ** 2.2 A 2 A
max. PoE Capacity 30 W 25 W
Temperature range –25...60 °C –25...60 °C
Voltage drop junctioning outputs < 2.5 V < 2.5 V
Max. junctioning current junctioning outputs 0.6 A 0.6 A
Max. total current of the
digital I/O ports 1A 1A
Digital I/O ports short-circuit protected Yes Yes
Digital I/O ports overload protected Yes Yes
Digital I/O ports reverse polarity protected Yes Yes
Number of digital I/O ports 2 2
Housing material Aluminum Aluminum
Protection class IP67 IP67
Type of connection power 7/8", 5-pin 7/8", 5-pin

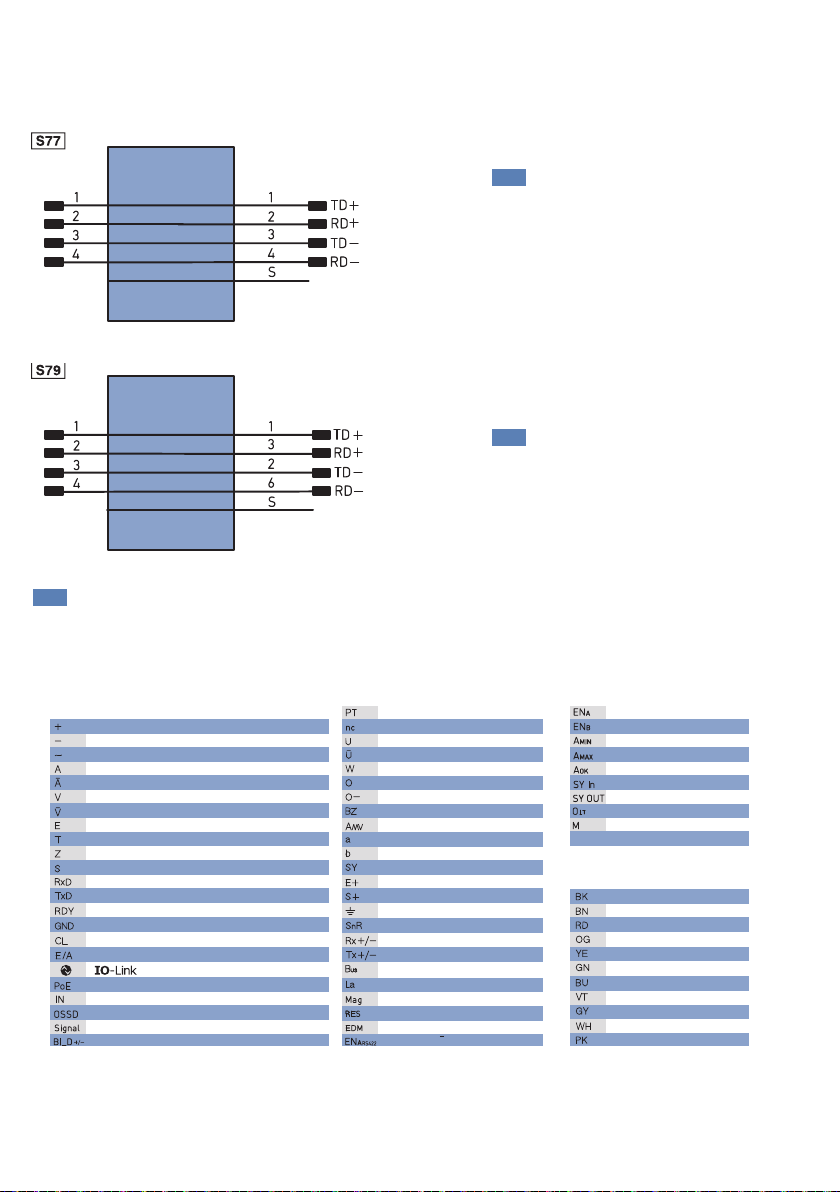

Type of Connection Industrial
Ethernet Ports
M12×1, 4-pin,
D-coding
M12×1, 4-pin,
D-coding
Type of Connection PoE Ports M12×1, 8-pin, type x M12×1, 8-pin, type x
Type of Connection Digital I/O ports M12×1, 4-pin,
A-coding
M12×1, 4-pin,
A-coding
Number of PoE ports 5 2
Number of Industrial Ethernet Ports 2 2
Number of Digital I/O ports 2 2
PoE Standard IEEE802.3af IEEE802.3af
PoE Classes Class 0, 1, 2, 3 Class 0, 1, 2, 3
Baud Rate 100 Mbit/s 100 Mbit/s
Transmission Mode Full Duplex Full Duplex
EoE Ethernet over EtherCAT Yes Yes
Website Yes Yes
Junction Mode Store & Forward Store & Forward
VLAN Prioritization Yes Yes
Auto-Crossover Yes Yes
Auto-Negotiating Yes Yes
Auto-Polarity Yes Yes
* Maximum own power consumption of the product without additional loads
** Maximum own power consumption of the product with additional loads
Full assignment of all PoE ports (if available) without digital I/O ports
