Wensar MAB 201 Manuale utente

ANALYTICAL BALANCE

MAB 201 - 220g / 0.1mg

MAB 301 - 320g / 0.1mg

Contents

1 Technical data ................................................................................................................................... 4

2 Introduction ...................................................................................................................................... 4

2.1 Proper Use ................................................................................................................................. 5

2.2 Improper Use............................................................................................................................. 5

2.3 Control of inspection, measuring and test equipment .............................................................

3 Precautions .......................................................................................................................................

4 Transportation and Storage..............................................................................................................

4.1 Acceptance check ......................................................................................................................

4.2 Packing ......................................................................................................................................

5 Unpacking, Setup and Commissioning ............................................................................................. 7

5.1 Installation Site, Location of Use ............................................................................................... 7

5.2 Unpacking / Installation ............................................................................................................ 7

5.3 Mains connection ...................................................................................................................... 8

5.4 Connection of peripheral devices ............................................................................................. 8

5.5 Initial Commissioning ................................................................................................................ 8

5. Adjustment ................................................................................................................................ 8

5.7 Calibration ................................................................................................................................. 8

5.7.1 Internal calibration: ........................................................................................................... 8

5.7.2 Internal calibration: ........................................................................................................... 8

Basic Operation................................................................................................................................. 9

.1 [Power On/OFF] ........................................................................................................................ 9

.2 TARE ........................................................................................................................................ 10

.3 CAL - [calibration with external weight] ................................................................................. 10

.4 UNIT- [multifunctional key] ..................................................................................................... 10

.4.1 Weighing unit selection [weighing mode] ....................................................................... 10

.5 Print function [print mode] ..................................................................................................... 10

. Pieces counting function [counting mode] ............................................................................. 10

.7 Underfloor weighing ............................................................................................................... 11

7 Density determination (Hydrostatic weighing) .............................................................................. 11

7.1 Density determination of solids .............................................................................................. 12

7.2 Determining density of liquids ................................................................................................ 12

7.3 Influencing magnitudes and error sources ............................................................................. 12

8 Display Information / Error messages ............................................................................................ 12

9 Interface RS 232C............................................................................................................................ 13

9.1 Technical Data ......................................................................................................................... 13

9.2 Description of the data transfer .............................................................................................. 13

9.3 Remote control instructions ................................................................................................... 13

9.4 RS232 Pinout (9-pin D-Sub) ..................................................................................................... 14

10 Configuration &Explain of the function setting .............................................................................. 14

11 Maintenance and Servicing ............................................................................................................ 1

11.1 Cleaning ................................................................................................................................... 1

11.2 Maintenance and repair .......................................................................................................... 1

12 Trouble Shooting ............................................................................................................................ 1

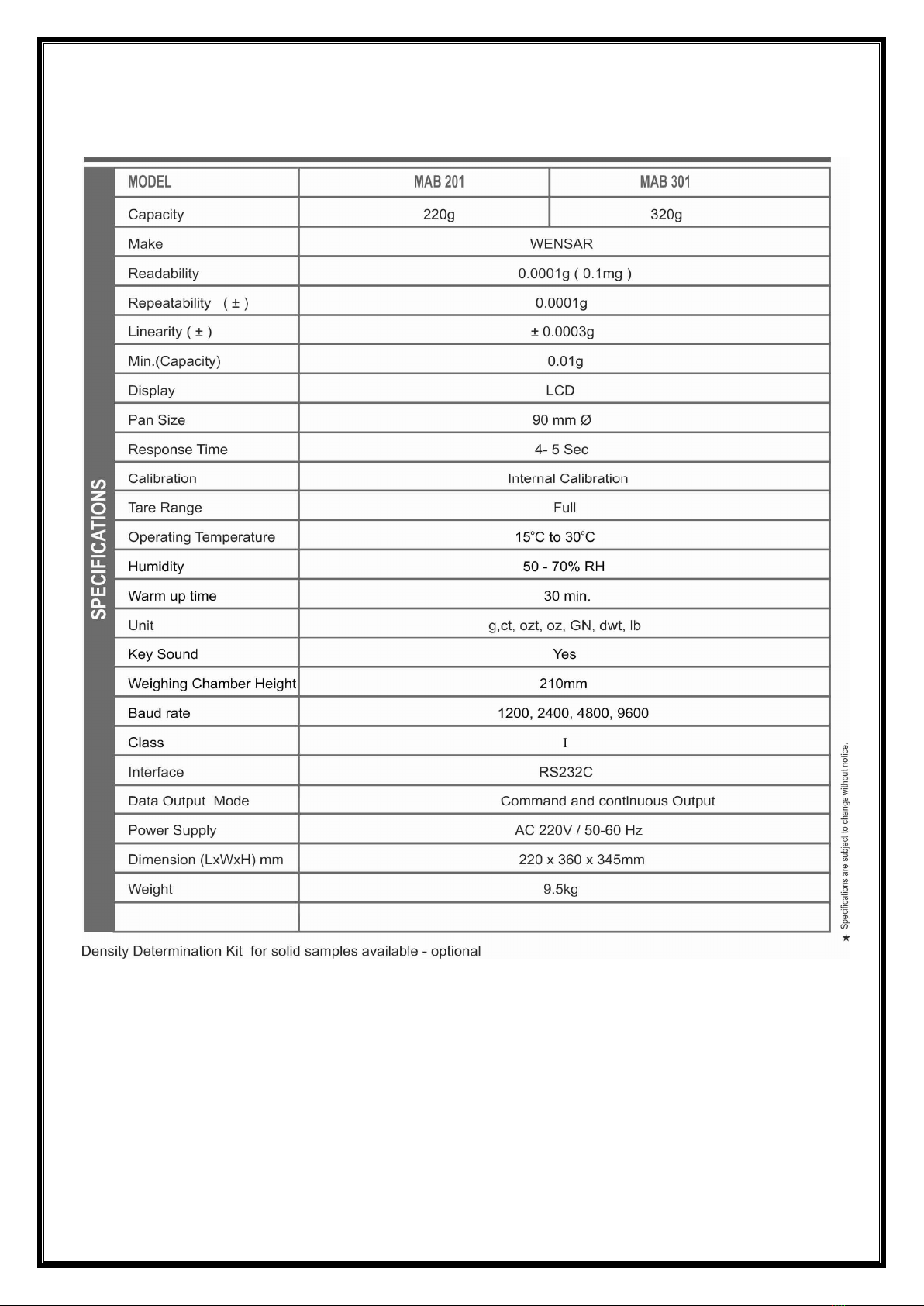

1 Technical data

2 Introduction

The laboratory analytical balance MAB 201 is designed to meet the needs of laboratories,

industry and commercial users and it offers very wide range of functions: weighing, parts

counting or density determination. Its a built-in standard weight and a precision automatic

loading device, our computer controlled mechanism with precise motors complete the loading

and unloading operation of the test weight. The result is an easy, fast and automatically working

mechanism to always get the best results.

Balance is equipped with precision temperature measurement circuit, the perception of

temperature changes to 0.01 degrees. If the environment temperature change more than 1.5

degrees, the balance will automatically start the calibration function, to keep the balance of the

degree of accuracy of measurement. In addition, if the last calibration is 3 hours ago, the balance

will start an automatic calibration to always keep good results.

Electromagnetic force compensation technology.

• High precision, sensitivity and rapid response time.

• High quality materials and an optimized power supply.

• High reliability and long service life.

• A robust base made of powder coated aluminum cast.

• An easy-cleaning, durable and stable metal shell with glass wind protection.

• A removable stainless steel pan can be cleaned easily.

• A Level Indicator, four adjustable feet.

• External calibration, zeroing searches, parts counting function, tare function, density

determination

• 7 Weighing units (g, ct, ozt, oz, GN, dwt, lb).

• Large LCD display with backlight, digit height 15 mm.

• An integrated RS-232-interface enables you to automatically send the weighing data to PC

• Powered by the external 3 pin power cord.

2.1 Proper Use

The balance you purchased is intended to determine the weighing value of material to be

weighed. It is intended to be used as a “non-automatic” balance, i.e. the material to be weighed

is manually and carefully placed in the center of the weighing plate. As soon as a stable weighing

value is reached the weighing value can be read.

2.2 Improper Use

• Do not use the balance for dynamic weighing. In the event that small quantities are removed or

added to the material to be weighed, incorrect weighing results can be displayed due to the

“stability compensation” in the balance. (Example: Slowly draining fluids from a container on

the balance.)

• Do not leave permanent load on the weighing plate. This may damage the measuring system.

• Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a

possibly existing tare load, must be strictly avoided. Balance may be damage by this.

• Never operate the balance in explosive environment. The balance is not explosion protected.

• The structure of the balance may not be modified. This may lead to incorrect weighing results,

safety-related faults and destruction of the balance.

2.3 Control of inspection, measuring and test equipment

As part of quality assurance the measuring-related properties of the balance and the available

adjusting weight must be checked regularly. The responsible user must define a suitable interval

as well as the nature and scope of this test.

3 Precautions

• Environmental conditions: only use indoor, check the detailed environment conditions for

temperature and humidity in the technical details above.

• Do not use the scale in any high temperature fluctuations and avoid strong airflows, vibrations

and dust. The balance could never get wet and make sure that the balance is not used in an

environment with extreme temperature and humidity.

• Do not use the balance in explosive conditions.

• Only use the extender cable, which with ground wire.

• If the power line cable is damaged, the appliance must be unplugged immediately and the

power line cable be replaced.

• Place the balance on a stable surface and set it horizontally with the help of the adjustable feet

and the spirit level.

• The electronic balance is a precision measuring instrument and must be handled with great care.

Violation of limit of weighing range or impact can cause permanent damage to the balance.

• The balance needs a warm up time for about 1 hour before using.

• Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened

with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft

cloth.

• Do not overload the balance more than 20% of maximum load (Max). Do not press the pan with

a hand!

• By maintenance please notice the information in Chapter “Maintenance and Servicing”.

• If the balance seems not to operate properly, unplug it from the mains and do not use until

checked by authorized service.

• All repairs and necessary regulations can be made by authorized personnel only.

4 Transportation and Storage

4.1 cceptance check

When receiving the appliance, please check packaging immediately, and the appliance itself

when unpacking for possible visible damage.

4.2 Packing

• Keep all parts of the original packaging for a possibly required return

• Only use original packaging for returning.

• Prior to dispatch disconnect all cables and remove loose/mobile parts.

• Reattach possibly supplied transport securing devices.

• Secure all parts such as the glass wind screen, the weighing platform, power

unit etc. against shifting and damage.

5 Unpacking, Setup and Commissioning

5.1 Installation Site, Location of Use

The balances are designed in a way that reliable weighing results are achieved in common

conditions of use. You will work accurately and fast, if you select the right location for your

balance.

Therefore, observe the following for the installation site:

 Major weighing deviations (incorrect weighing results) may be experienced should electro-

magnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations

or instable power supply occur. Change location or remove source of interference.

• Place the balance on a firm, level surface;

• Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or

in the direct sunlight;

• Protect the balance against direct draughts due to open windows and doors;

• Avoid jarring during weighing;

• Protect the balance against high humidity, vapors and dust;

• Do not expose the device to extreme dampness for longer periods of time.

• Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold

appliance is taken to a considerably warmer environment. In this case, acclimatize the

disconnected appliance for ca. 4 hours at room temperature.

• Avoid static charge of goods to be weighed or weighing container.

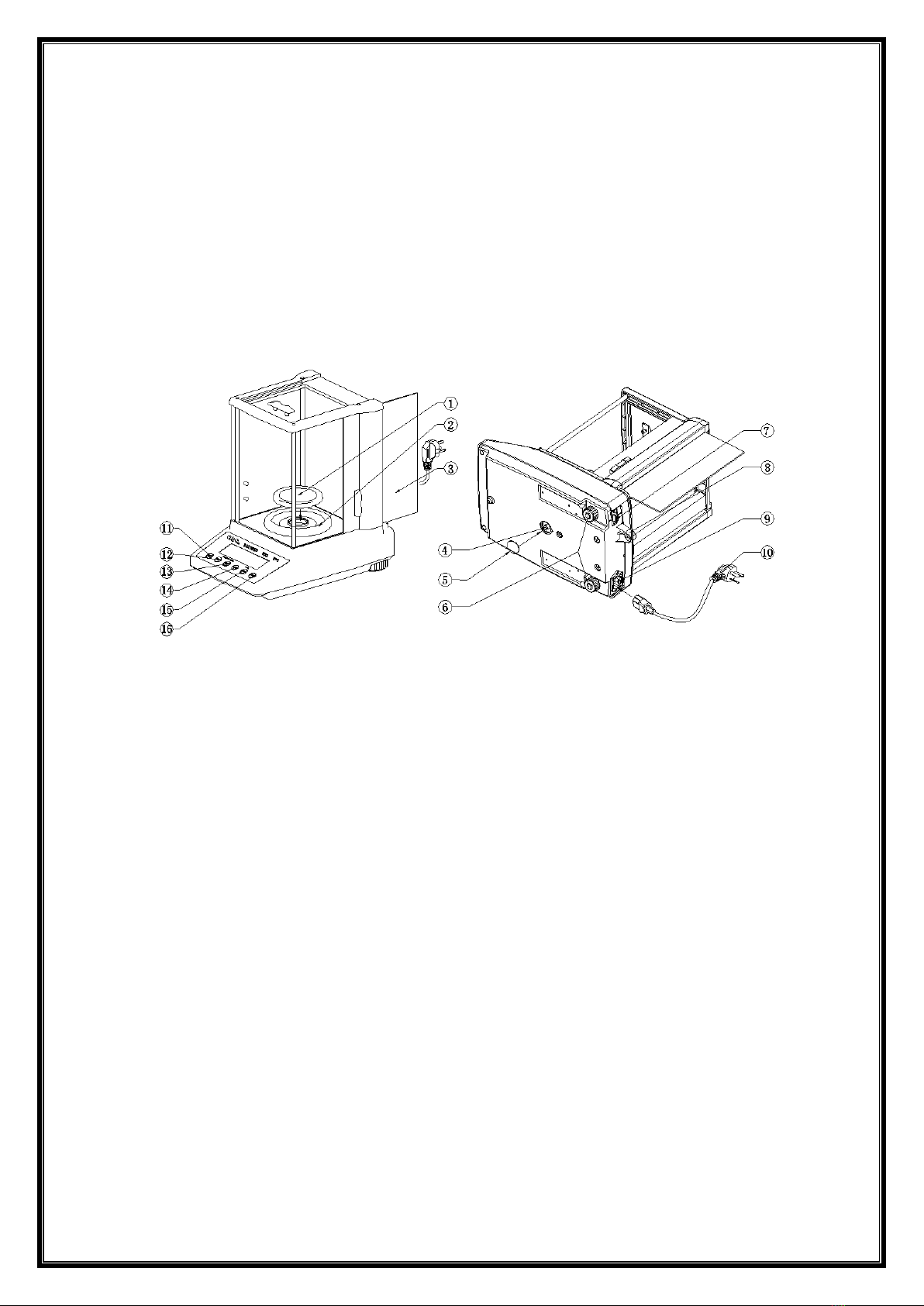

5.2 Unpacking / Installation

Carefully remove the balance from the packaging, remove plastic cover and setup balance at the

intended workstation.

1. Take the balance and supplied accessories (a feeder, pan elements) out of the box.

2. Place the balance on a stable ground not affected by mechanical vibrations and airflows.

3. Level the balance with foot screws so that the air bubble in water-level is in the middle.

4. Plug the Powercord to the power socket at the back of the balance.

5. Connect the power cord to an AC220V ± 10% 50Hz ± 1Hz outlet.

Packing

• Balance

• Glass Wind protection

• Weighing pan

• AC adapter

• Operating Instructions

5.3 Mains connection

Before connecting the mains power cord check if the printed voltage value is the same as the

local supply voltage.

Only use the original supplied mains power cord. Otherwise there is a risk that the Scale be

impaired.

5.4 Connection of peripheral devices

The balance may send data to a computer or a printer through RS232C port.

When cooperating with the balance, a computer should be equipped with a program which

enables processing data from the balance.

Before connecting or disconnecting of additional devices (printer, PC) to the data interface,

always disconnect the balance from the power supply.

5.5 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached

the operating temperature (warming up time 1 hour). During this warming up time the balance

must be connected to the power supply

The accuracy of the balance depends on the local acceleration of gravity.

Please read the information carefully in chap. “Adjustment”.

5.6 djustment

As the acceleration value due to gravity is not the same at every location on earth, each balance

must be coordinated - in compliance with the underlying physical weighing principle - to the

existing acceleration due to gravity at its place of location (only if the balance has not already

been adjusted to the location in the factory). This adjustment process must be carried out for

the first commissioning, after each change of location as well as in case of fluctuating

environment temperature. To receive accurate measuring values it is also recommended to

adjust the balance periodically in weighing operation.

5.7 Calibration

5.7.1 Internal calibration:

When the balance display is “0” then press the “CAL” key.

The balance turns into the automatic internal calibration status and displays “CAL”, now the

internal weight loading and unloading device for automatic calibration will start their work.

After 30 seconds the display “0”, that means the calibration is finished. In the normal use, the

internal calibration should be used to calibrate the balance.

When there was no calibration within the last 3 hours the scale will calibrate itself.

5.7.2 Internal calibration:

External Calibration:

First you should get ready the standard weight for external calibration in the required OIML-

Tolerance (E2 for example). When the balance display is “0” press and hold the “CAL” key until

the display changes from "CAL-INT" to "CAL-E".

When you now release the "CAL" key the scale will display "C XXX" (XXX is the weight of the

standard weight. Example: display "C 200" should be put on the standard weight of 200g), put

on the calibration weights, after the weight of the calibration weight displayed and the stable

weight symbol "g" shows that means the calibration is complete. If press the "CAL" key shows

"C----F", the zero point is unstable, and the "TARE" key can be re pressed to show the return to

zero. Now press the "CAL" key again.

Adjustment with recommended adjustment weight (default setting) Weight value of the

required adjustment weight seeschap. 1 “Technical data”. Weights of different nominal values

may be used for adjustment but are not optimal for technical measuring.

Operating elements

1. Weighing pan 2. Pan support ring 3. Wind protection 4. Underfloor weighing widget

5. Sealing cap . Adjustable feet 7. RS232 Interface 8. Level Indicator

9. Power socket 10. Power Cord 11. ON/OFF key 12.Calibration key

13.Unit change key 14.Counting key 15.Print key 1 .Tare key

6 Basic Operation

After new purchase of the balance or after a long storage, you have to calibrate the balance

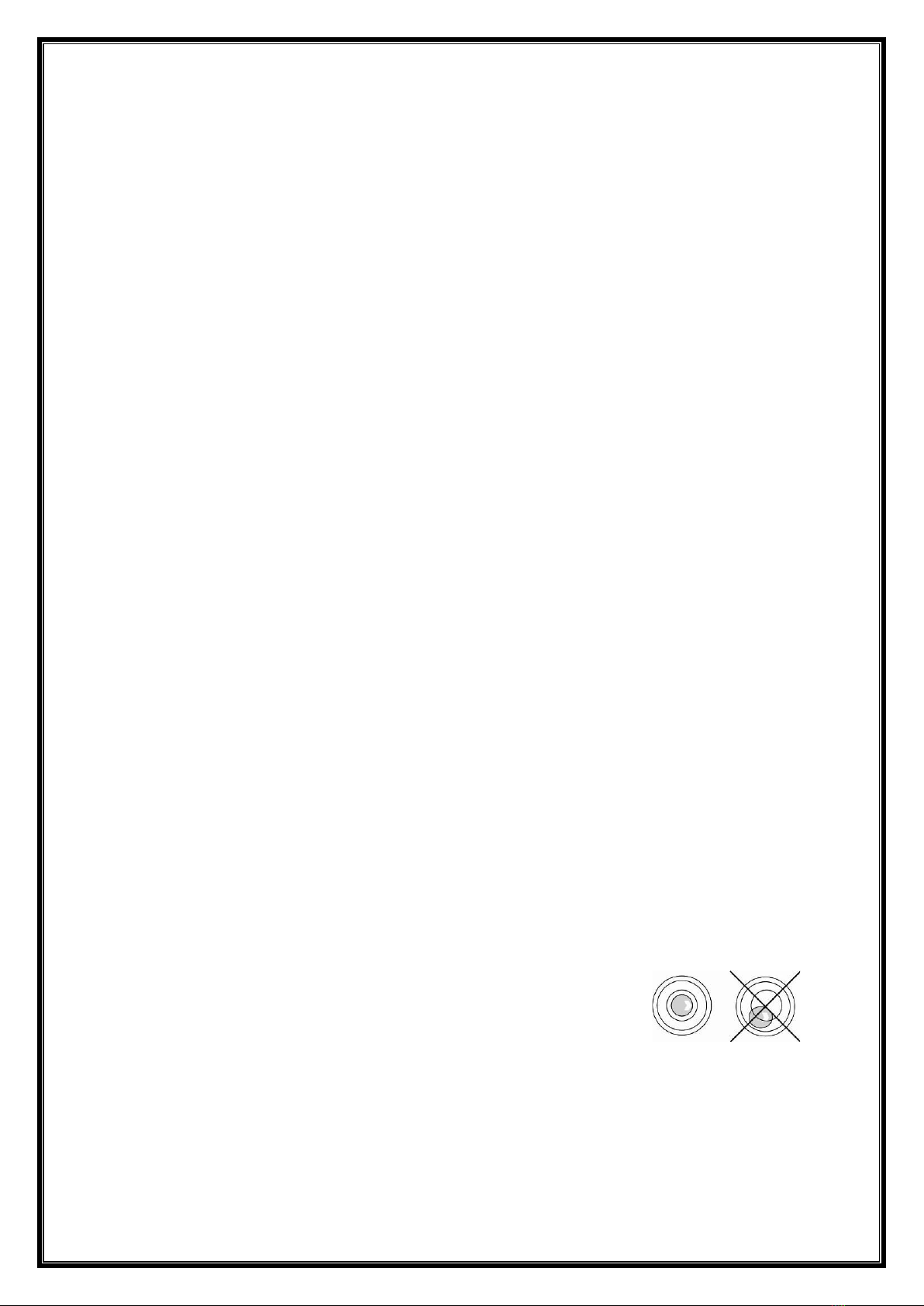

before the first commissioning. Level the balance with the adjustable feet horizontal until the air

bubble in the level is in the center of the Level Indicator. Give the balance after changing the

location a warm-up time min. 1 hour before using. This time is necessary for the balance to

adapt to the eventual temperature.

6.1 [Power On/OFF]

Press the[On/OFF]button to turn on the balance. The display shows the message "ON". Then the

max. weighing range is displayed. The balance will carry out a self-test (F----1 to F----9). When

the "0.0000 g" in display appears, the balance is ready for operation.

Press the [On/OFF]button and keep it pressed, until the display shows the message “OFF”. The

balance will switch off then.

6.2 T RE

When the pan is empty and indication is different than zero press [TA E] key.

Weighing with tare: Place the weighing box and press the[TA E] button. After standstill control

the zero display appears. The weight of the container is now internally saved. Weigh the

material, the net weight will be indicated. The weight of the weighing container will be displayed

as a minus number after removing the weighing container. The tare weight is saved until it is

deleted. Remove the load from the balance and press the [TA E] button. The tare procedure can

be repeated as many times as necessary, for example with initial weighing of several

components for a mix (add-on weighing). The limit is reached when the total weighing range

capacity is full.

6.3 21C L - [calibration with external weight]

The balance has an external calibration function.

The adjustment procedures see chap. "External calibration”.

6.4 UNIT- [multifunctional key]

The [UNIT] - button is a multi-function button.

6.4.1 Weighing unit selection [weighing mode]

Under the weighing mode, use the UNIT key to choose weighing units: g (gram), ct (carat), ozt

(troy ounce), oz (ounce), GN (gran), dwt (pennyweight) and lb (pound).

1 g = 5 ct

= 0.032150747 ozt

= 0.035273962 oz

= 15.43235835 GN

= 0.643014931 dwt

= 0.0022046226 lb

6.5 Print function [print mode]

The balance can be connected via the RS232C interface directly to a printer or PC.

Press the “PRINT” key to send the weight to the output device.

6.6 Pieces counting function [counting mode]

Before the balance can count parts, it must know the average part weight (i.e. reference).

Proceed by putting on a certain number of the parts to be counted. The balance determines the

total weight and divides it by the number of parts, the so-called reference quantity (1, 10, 20, 50,

or 100). Counting is then carried out on the basis of the calculated average piece weight.

As a rule: The higher the reference quantity the higher the counting exactness.

Follow these steps:

a) Place as many pieces to add-up as required by the reference quantity. Press the “COUNT” key,

display “1” that means into the counting mode, Press the [UNIT] button to enter the setting

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Wensar Scala

Wensar

Wensar HPB201 Manuale utente

Manuali Scala popolari di altre marche

AWS

AWS ZEO-50 Manuale utente

Gima

Gima Glass Body Fat Analyzer Manuale elenco delle parti

Seca

Seca 374 Manuale utente

TEC

TEC TEC SL59 SERIES Manuale utente

Axis

Axis B/E Series Manuale utente

Alecto

Alecto ACW-40 Manuale utente

Rice Lake

Rice Lake MSI-4260 IS Manuale utente

IKA

IKA RCT basic safety control Manuale utente

ADE

ADE M20011 Manuale utente

Duronic

Duronic KS3000 Manuale utente

Digi

Digi SM-720 Manuale utente

Cardinal

Cardinal CS Series Manuale utente

Korona

Korona Kastella Manuale utente

A&D

A&D FC-50Ki Manuale utente

BDA

BDA CAMARGUE Manuale utente

Tanita

Tanita HD-357 Manuale utente

Leifheit

Leifheit 03173 Manuale utente

Lumme

Lumme LU-1340 Manuale utente
