Weslo 8.25 Elliptical Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Model No. WLCCEL2309.0

Serial No.

Write the serial number in the

space above for future reference.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 8:00 until 17:00 ET

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

USER'S MANUAL

www.weslo.com

TABLE OF CONTENTS

WARNINGDECALPLACE ENT ..............................................................2

IPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSE BLY ...............................................................................5

HOWTOUSETHEELLIPTICALEXERCISER ..................................................10

AINTENANCEANDTROUBLESHOOTING ...................................................15

EXERCISEGUIDELINES ...................................................................16

PARTLIST ..............................................................................17

EXPLODEDDRAWING ....................................................................18

ORDERINGREPLACE ENTPARTS ..................................................BackCover

LI ITEDWARRANTY ..............................................................BackCover

WESLO is a registered trademark of ICON IP, Inc.

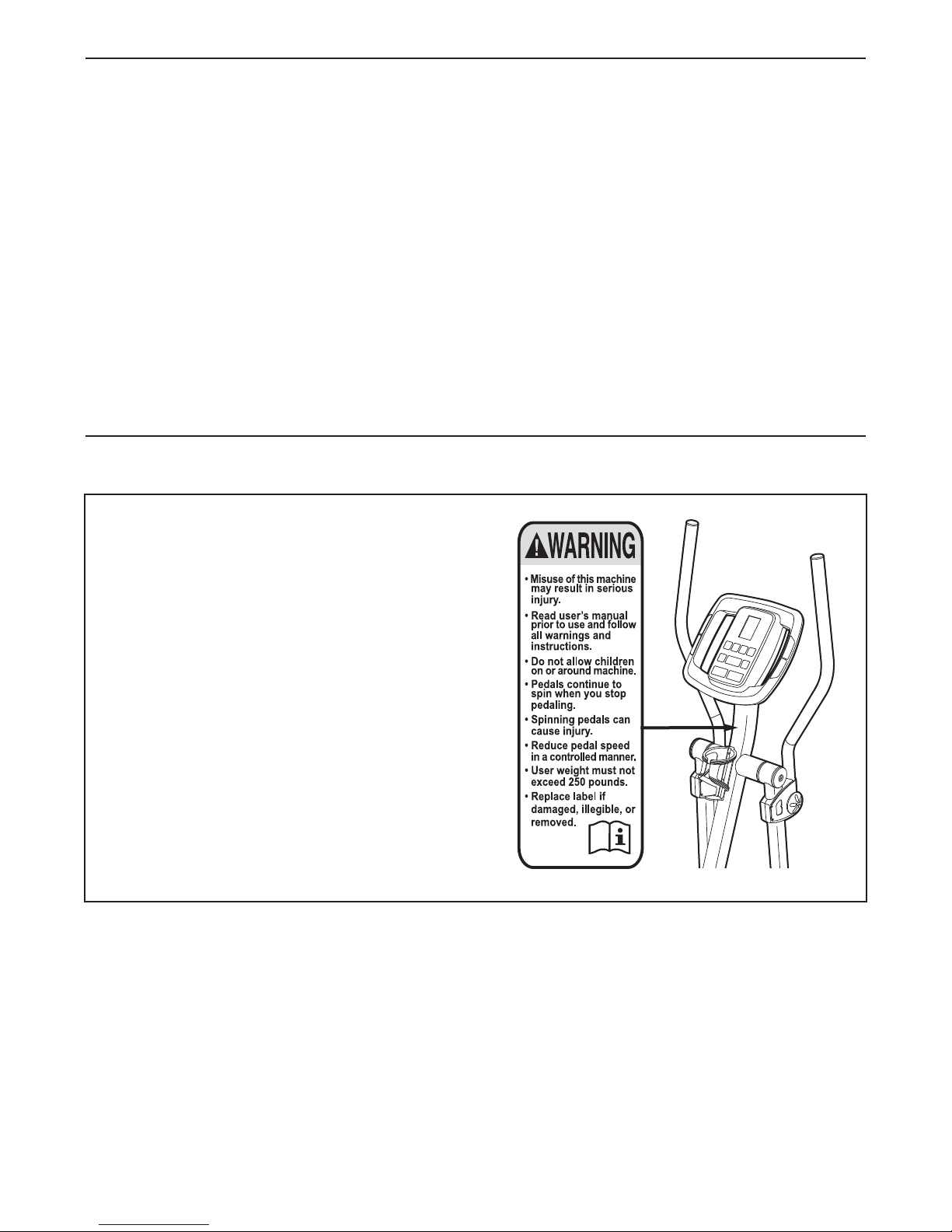

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for home

use only. Do not use the elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is at least 3 ft. (1 m) of

clearance in the front and rear of your ellipti-

cal exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

8. Wear appropriate exercise clothes while

using the elliptical exerciser; do not wear

loose clothes that could become caught on

the elliptical exerciser. Always wear athletic

shoes for foot protection while exercising.

9. Hold the upper body arms when mounting,

dismounting, or using the elliptical exerciser.

10. eep your back straight while using the ellip-

tical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

14. Use the elliptical exerciser only as described

in this manual.

BEFORE YOU BEGIN

Thank you for selecting the new WESLO®8.25 ellipti-

cal exerciser. The WESLO 8.25 elliptical exerciser

provides an impressive selection of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pedal Disc

Shield

Pedal

Leveling Foot

Upright

Water Bottle Holder*

*Water bottle is not included

Console

Upper Body Arm

Pulse Sensor

Arm Knob

Wheel

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own Phillips screwdriver , adjustable

wrench , and rubber mallet .

See the drawings below to identify the small parts needed for assembly. The number in parentheses below

each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-

lowing the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to

see if it has been preassembled.

M8 Split

Washer (79)–4

M8 Washer

(64)–4

M10 Split

Washer (78)–4

M4 x 16mm

Screw (60)–4

Large Wave

Washer (20)–4

M8 x 25mm Patch

Screw (70)–2

M8 x 19mm Patch

Screw (73)–4

M8 Locknut

(59)–2

M10 Locknut

(84)–4

M8 x 23mm Button

Screw (65)–4

Wave Washer

(27)–2

M4 x 19mm

Screw (68)–6

M8 Large

Washer (81)–2

M4 x 32mm

Screw (67)–8

M4 x 12mm Flat

Head Screw (88)–8

Star Washer

(85)–6

M10 x 76mm Button Bolt (74)–2M10 x 60mm Button Screw (89)–2

M10 x 50mm Carriage Bolt (75)–2 M10 x 75mm Carriage Bolt (58)–2

M4 x 22mm

Screw (66)–2

ASSEMBLY

Attach the Rear Stabilizer (35) to the Frame (1) with

two 10 x 75mm Carriage Bolts (58) and two 10

Locknuts (84).

Press the Stabilizer Caps (36) onto the Rear

Stabilizer (35) as shown.

2. Attach the Front Stabilizer (3) to the Frame (1) with

two 10 x 76mm Button Bolts (74), two 10 Split

Washers (78), two Concave Spacers (90), and two

10 Locknuts (84). Do not tighten the Locknuts

yet.

Finger-tighten two 10 x 60mm Button Screws (89)

with two 10 Split Washers (78) and two Concave

Spacers (90) into the bottom of the Front Stabilizer (3)

and the Frame (1). Tighten the two M10 Locknuts

(84), and then tighten the Button Screws.

Orient a Wheel (28) so that the four posts (see the

inset drawing) are facing away from the Front

Stabilizer (3). Attach the Wheel to the Front Stabilizer

with an 8 Locknut (59). Then, press a Wheel Cover

(29) onto the posts on the Wheel. Attach the other

Wheel (not shown) in the same way.

78 89

3. While another person holds the Upright (2) near the

Frame (1), connect the Upper Wire Harness (18) to

the Lower Wire Harness (38).

Tip: Avoid pinching the Wire Harnesses (18, 38).

Carefully slide the Upright (2) onto the Frame (1).

Attach the Upright with four 8 x 19mm Patch

Screws (73) and four 8 Split Washers (79). Do not

tighten the Patch Screws yet.

To make assembly easier, read the assembly

tips on page 5 before you begin assembling

the elliptical exerciser.

Posts

4. Identify the Left Pedal Arm (21), which is marked with

asticker. Attach a Pedal (19) to the Left Pedal Arm

with three 4 x 19mm Screws (68) and three Star

Washers (85).

Attach the other Pedal (not shown) to the Right

Pedal Arm (not shown) in the same way.

5. Apply a generous amount of grease to the Pivot Axle

(16). Then, apply a small amount of grease to two

Wave Washers (27).

While another person aligns the Upper Body Legs (6)

with the Upright (2) as shown, insert the Pivot Axle

(16) into the Upper Body Legs and the Upright. Be

careful not to damage the Upper Wire Harness

(18) with the Pivot Axle.

Place a Wave Washer (27) on each end of the Pivot

Axle (16). Then, tighten an 8 x 23mm Button

Screw (65), an 8 Washer (64), and a Pivot Cover

(14) into each end of the Pivot Axle.

Grease

7. Attach the Left Pedal Arm (21) to the left Upper

Body Leg (6) with an 8 x 23mm Button Screw

(65), an 8 Washer (64), and a Pedal Leg Cover

(23).

Apply grease to a Large Wave Washer (20) and

slide it onto the Left Crank Arm (42). Then, attach

the Left Pedal Arm (21) to the Left Crank Arm with

an 8 x 25mm Patch Screw (70) and an 8 Large

Washer (81).

Repeat this step for the other side of the elliptical

exerciser.

See step 3. Tighten the four 8 x 19mm Patch

Screws (73).

Grease

65 42

6. Apply a generous amount of grease to the axle on

the left Upper Body Leg (6). Then, apply grease to a

Large Wave Washer (20) and slide it onto the axle.

Apply a generous amount of grease to the Left

Crank Arm (42). Then, slide a Crank Arm Spacer

(45) onto the Left Crank Arm. Make sure the flat

side of the Crank Arm Spacer is facing away from

the Left Crank Arm.

Slide the Left Pedal Arm (21) onto the left Upper

Body Leg (6) and onto the Left Crank Arm (42).

Repeat this step for the other side of the elliptical

exerciser.

Grease

8. The Console (10) requires four “AA” batteries (not

included); alkaline batteries are recommended.

Remove the battery cover from the Console. Insert

four batteries into the Console; make sure that the

batteries are oriented as shown by the markings

inside the battery compartment. Then, reattach

the battery cover. 10

Batteries

Battery

Cover

10. Orient a Left Upper Body Insert (12) and a Right Upper

Body Insert (13) as shown, and press them together

around the left Upper Body Leg (6). Next, slide the Left

Upper Body Arm (4) onto the Upper Body Inserts.

While another person holds the Left Upper Body Arm

(4) and the Upper Body Inserts (12, 13), insert an

10 x 50mm Carriage Bolt (75) through all three parts

from the inside as shown. Next, tighten four 4 x

32mm Screws (67) and four 4 x 12mm Flat Head

Screws (88) through the Left Upper Body Arm and into

the Upper Body Inserts. Then, tighten an Arm Knob

(11) onto the Carriage Bolt.

Attach the Right Upper Body Arm (not shown) to

the right Upper Body Leg (6) in the same way. 6

60 17

9. While another person holds the Console (10) near the

Upright (2), connect the Upper Wire Harness (18) to

the wire harness on the Console.

Tip: Be careful not to pinch the wire harnesses.

Attach the Console (10) to the Upright (2) with four

4 x 16mm Screws (60).

Attach the Water Bottle Holder (17) to the Upright (2)

with two 4 x 22mm Screws (66).

11. Make sure that all parts of the elliptical exerciser are properly tightened. Place a mat under the elliptical

exerciser to protect the floor or carpet from damage.

HOW TO USE THE ELLIPTICAL EXERCISER

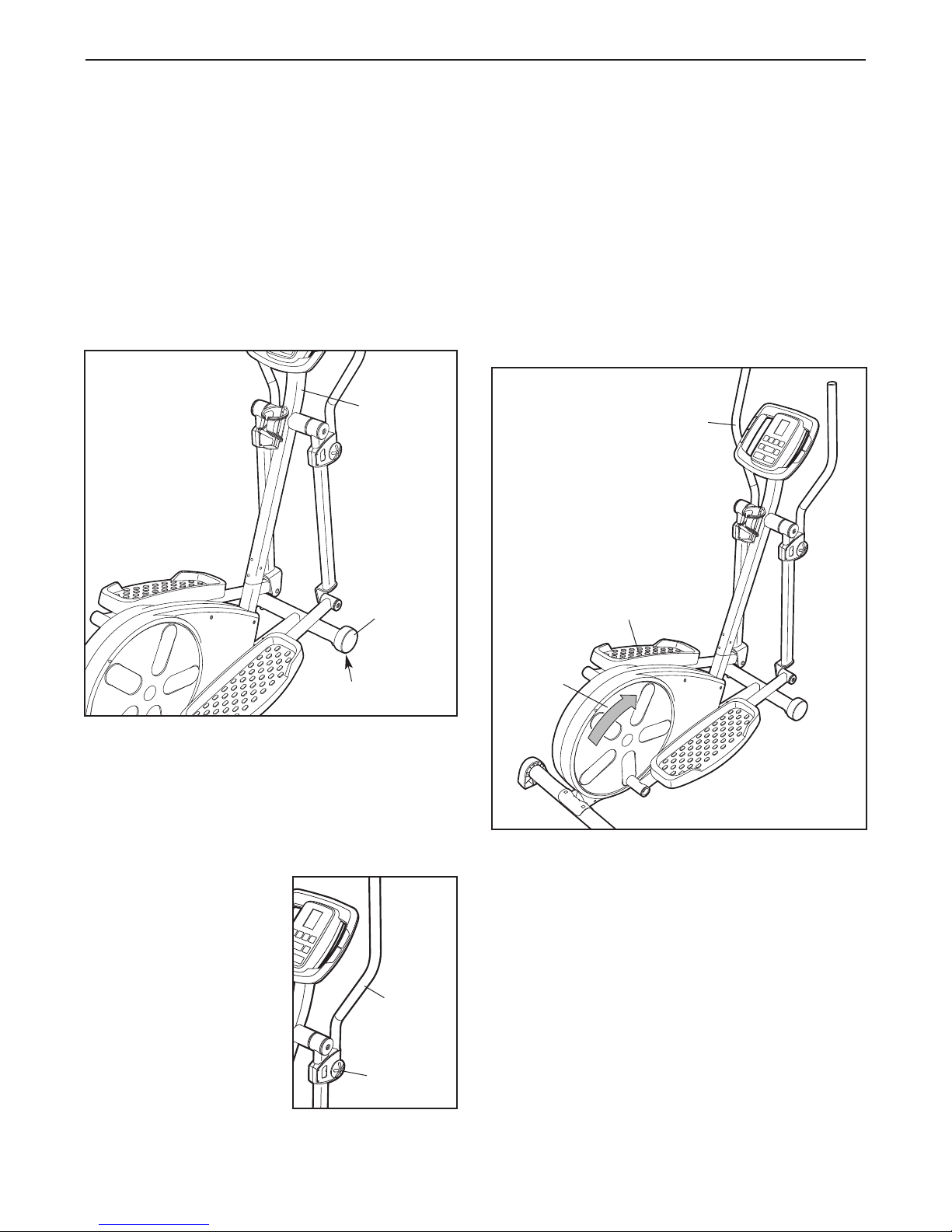

HOW TO MOVE AND LEVEL THE ELLIPTICAL

EXERCISER

To move the elliptical exerciser, stand in front of it,

place one foot against one of the wheels, and firmly

hold the upper end of the upright. Pull the upright until

you can move the elliptical exerciser on the wheels.

Carefully move the elliptical exerciser to the desired

location and then lower it. CAUTION: To decrease

the risk of injury, do not attempt to move the ellip-

tical exerciser over an uneven surface.

If the elliptical exerciser rocks slightly on your floor,

turn one or both of the levelling feet under the front

stabilizer until the rocking motion is eliminated.

HOW TO ADJUST THE HEIGHT OF THE UPPER

BODY ARMS

The upper body arms

can be adjusted to the

height that is the most

comfortable for you.

Simply loosen the arm

knobs, slide the upper

body arms to the desired

height, and then firmly

tighten the arm knobs.

ake sure that both

upper body arms are at

the same height.

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, firmly hold the upper

body arms and carefully step onto the pedal that is in

the lowest position. Next, step onto the other pedal.

Push the pedals until they begin to move with a con-

tinuous motion. Note: The pedal discs can turn in

either direction. It is recommended that you turn

the pedal discs in the direction shown below;

however, for variety, you can turn the pedal discs

in the opposite direction.

To dismount the elliptical exerciser, allow the pedals

to come to a complete stop. CAUTION: The elliptical

exerciser does not have a freewheel; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

Pedal

Disc

Upper

Body Arm

Upper

Body

Arm

Arm Knob

Wheel

Upright

Leveling Foot

Altri manuali per 8.25 Elliptical

Questo manuale è adatto per i seguenti modelli

Altri manuali Weslo Ellittica

Weslo

Weslo WLEL31808.0 Manuale utente

Weslo

Weslo Momentum 605 Elliptical Manuale del sistema

Weslo

Weslo Body Shop 2 Manuale utente

Weslo

Weslo Momentum 800 Elliptical Guida utente

Weslo

Weslo Momentum 850 Elliptical Manuale utente

Weslo

Weslo Momentum5.9 Elliptical Manuale utente

Weslo

Weslo PURSUIT E25 Manuale utente

Weslo

Weslo Momentum 4.8 Elliptical Guida utente

Weslo

Weslo Elliptical Glider 2.0 Guida utente

Weslo

Weslo Momentum 620 Elliptical Manuale utente

Weslo

Weslo Momentum 605 Elliptical Manuale operativo e di manutenzione

Weslo

Weslo Momentum R 4.2 Elliptical Guida utente

Weslo

Weslo EasyFit WLIVEL86172.0 Manuale utente

Weslo

Weslo Momentum 710 Elliptical Manuale utente

Weslo

Weslo WLTL49907.0 Manuale utente

Weslo

Weslo Momentum 800 Elliptical Manuale utente

Weslo

Weslo Momentum G 3.2 Elliptical Manuale utente

Weslo

Weslo WLEX31212.0 Manuale utente

Weslo

Weslo Momentum 800 Elliptical Manuale operativo e di manutenzione

Weslo

Weslo Momentum G 3.8 Elliptical Manuale utente

Weslo

Weslo Momentum5.9 Elliptical Manuale utente

Weslo

Weslo Momentum 850 Elliptical Guida rapida

Weslo

Weslo Skier Plus WLUVSK10160 Manuale utente

Weslo

Weslo Momentum Ct5.8 Elliptical Manuale utente

Manuali Ellittica popolari di altre marche

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente

Reebok

Reebok 1000 Zx Elliptical Manuale utente
