USER’S

MANUAL

CAUTION

Read all precautions and

instructions in this manual

before using this equipment.

Keep this manual for future

reference.

Model No. WLEL09910

Serial No.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are

committed to providing com-

plete customer satisfaction. If

you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Patent Pending

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL GLIDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

1. Read all instructions in this manual before

using the elliptical glider.

2. Use the elliptical glider only as described in

this manual.

3. It is the responsibility of the owner to

ensure that all users of the elliptical glider

are adequately informed of all precautions.

4. Place the elliptical glider on a level surface,

with a mat beneath it to protect the floor or

carpet. Keep the elliptical glider indoors,

away from moisture and dust.

5. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the elliptical glider at all times.

7. The elliptical glider should not be used by

persons weighing more than 250 pounds.

8. Wear appropriate clothing when using the

elliptical glider. Always wear athletic shoes

for foot protection.

9. When mounting and dismounting the ellipti-

cal glider, always hold the handlebars and

step onto and off the pedal that is in the

lowest position.

10. Each time you stop exercising on the

elliptical glider, allow the pedals to come to

a complete stop before dismounting.

11. Always keep your back straight when using

the elliptical glider. Do not arch your back.

12. If you feel pain or dizziness at any time

while exercising, stop immediately and

begin cooling down.

13. The elliptical glider is intended for in-home

use only. Do not use the elliptical glider in a

commercial, rental, or institutional setting.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the WESLO®2.0 elliptical glider.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health

problems. Read all instructions before using. ICON assumes no responsibility for personal injury

or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the WESLO®2.0 elliptical

glider. The 2.0 is an incredibly smooth exerciser that

moves your feet in a natural elliptical path, minimizing

the impact on your knees and ankles. And the unique

2.0 features adjustable resistance, upper-body handle-

bars, and a multi-mode exercise monitor to help you

get the most from your exercise. Welcome to a whole

new world of natural, elliptical-motion exercise from

WESLO.

For your benefit, read this manual carefully before

you use the elliptical glider. If you have questions

after reading the manual, call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is WLEL09910. The

serial number can be found on a decal attached to the

elliptical glider (see the front cover of this manual for

the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Resistance Knob

FRONT

BACK

LEFT SIDE

Pedal Arm

Side Shield

Pedal

Remote Holder

Upright

Water Bottle Holder

(Bottle not included)

Handlebar

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in

assembly. The number in parenthesis below each part

refers to the key number of the part, from the PART

LIST on page 14. The number after the dash indicates

the quantity needed for assembly. Note: Some parts

may have been pre-attached for shipping. If a part

is not in the parts bag, check to see if it has been

pre-attached.

M8 x 19mm

Button Screw (10)–2

M8 x 63mm Carriage Bolt (49)–4

M5 x 30mm

Button Bolt (51)–4

M8 x 38mm Button Bolt (53)–2

M4 x 12mm

Button Screw (57)–4

M5 Nylon

Locknut (52)–4 M8 Nylon

Locknut (50)–8 1/2” Nylon

Locknut (35)–2

M8 x 60mm Bolt (56)–2

Pivot Washer (54)–2 Pedal Washer (32)–2

M4 x 19mm Flange

Screw (55)–6

Note: Extra parts may be included.

ASSEMBLY

Assembly requires two people. Place all parts of the elliptical glider in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires that you have two adjustable wrenches , a rubber mallet , and

the included allen wrench .

1. Identify the Front Stabilizer (18), which is the nar-

rowest Stabilizer. If there are no Stabilizer Endcaps

(20) on the Front Stabilizer, push one onto each end.

Attach the Front Stabilizer (18) to the front of the

Frame (1) with two M8 x 63mm Carriage Bolts (49)

and two M8 Nylon Locknuts (50).

2. If there are no Stabilizer Endcaps (20) on the Rear

Stabilizer (19), push one onto each end.

Attach the Rear Stabilizer (19) to the Frame (1) with

two M8 x 63mm Carriage Bolts (49) and two M8

Nylon Locknuts (50).

3. While a second person holds the Upright (2) near

the Frame (1), connect the Extension Wire (47) to

the Reed Switch Wire (41).

Insert the Upright (2) into the Frame (1), being care-

ful to avoid damaging the wires. Make sure that the

Frame Bushings (3) are inserted fully into the

Frame. Adjust the Upright (2) so that a bolt can be

inserted through the center hole in each side.

Secure the Upright with two M8 x 38mm Button

Bolts (53) and two M8 Nylon Locknuts (50).

47 50

5. Identify the Left Pivot Arm (6), which is marked with a

sticker that has an “L” on it. Make sure that there are

two Pivot Bushings (9) in the Left Pivot Arm. Slide the

Left Pivot Arm onto the Pivot Axle, making sure that it

is oriented as shown. Put a Pivot Washer (54) onto

an M8 x 19mm Button Screw (10) and tighten the

Button Screw into the Pivot Axle.

6. Insert a Handlebar (12) into the Right Pivot Arm (7).

Slide the Foam Grip (13) up to expose the mounting

holes. Secure the Handlebar with two M5 x 30mm

Button Bolts (51) and two M5 Nylon Locknuts (52).

Slide the Foam Grip down over the Button Bolts and

Nylon Locknuts.

Attach the other Handlebar to the Left Pivot Arm (6) in

the same manner.

4. Make sure that the two Upright Bushings (8) are

inserted into the Upright (2). Apply a thin film of the

included grease to the length of the Pivot Axle (11).

Insert the Pivot Axle into the Upright Bushings and

the Upright.

Identify the Right Pivot Arm (7), which is marked with

a sticker that has an “R” on it. Make sure that there

are two Pivot Bushings (9) in the Right Pivot Arm.

Slide the Right Pivot Arm onto the Pivot Axle (11),

making sure that it is oriented as shown. Put a Pivot

Washer (54) onto an M8 x 19mm Button Screw (10)

and tighten the Button Screw into the Pivot Axle.

Grease

10. Make sure that all parts of the elliptical glider are properly tightened. Place a mat under the elliptical glider

to protect the floor or carpet from damage.

Console

Wire

9. The Console (5) requires two “AA” batteries (not

included). Alkaline batteries are recommended.

To install batteries, look under the Console (5) and

locate the battery compartment. Insert two batteries

into the battery compartment; make sure that the

batteries are turned so the negative ends (marked

“–”) are touching the springs in the battery com-

partment.

Connect the console wire to the Extension Wire (47).

Attach the Console (5) to the Upright (2) with four M4

x 12mm Button Screws (57).

Push the Resistance Knob (28) firmly onto the

Resistance Cable (29).

8. Identify the Left Pedal Arm (14), which is marked with

a sticker that has an “L” on it. Make sure that there are

two Pedal Arm Bushings (33) in the Left Pedal Arm.

Apply a thin film of the included grease to a Pedal

Axle (34). Insert the Pedal Axle into the Left Pedal

Arm, and slide a Pedal Washer (32) onto the Pedal

Axle. Firmly tighten the Pedal Axle into the Crank (30).

Tighten a 1/2” Nylon Locknut (35) onto the end of the

Pedal Axle protruding from the Crank.

Make sure that there are two Small Pivot Bushings

(42) in the Left Pivot Arm (6). Apply a thin film of the

included grease to an M8 x 60mm Bolt (56). Attach

the Left Pivot Arm to the Left Pedal Arm (14) with the

Bolt and an M8 Nylon Locknut (50).

Attach the Right Pedal Arm (not shown) in the same

manner.

7. Identify the Left Pedal Arm (14), which is marked with

a sticker that has an “L” on it. Next, identify the Left

Pedal (16), which has an “L” molded into the bottom.

Attach the Left Pedal to the Left Pedal Arm with three

M4 x 19mm Flange Screws (55).

Attach the Right Pedal to the Right Pedal Arm (not

shown) in the same manner.

34 33

32 30

Batteries

Grease

HOW TO USE THE ELLIPTICAL GLIDER

HOW TO EXERCISE ON THE ELLIPTICAL GLIDER

To mount the elliptical glider, firmly hold the handle-

bars and carefully step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The pedals can turn in either direc-

tion. It is recommended that you turn the pedals

in the direction shown below; however, to give

variety to your exercise, you may choose to turn

the pedals in the opposite direction.

To dismount the elliptical glider, allow the pedals to

come to a complete stop. CAUTION: The elliptical

glider does not have a free wheel; the pedals will

continue to move until the flywheel stops. When

the pedals are stationary, step off the highest pedal

first. Then, step off the lowest pedal.

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

As you exercise,

you can adjust the

resistance of the

pedals with the

resistance knob.

To increase the

resistance, turn

the knob clock-

wise; to decrease

the resistance,

turn the knob

counterclockwise.

Pedal

Resistance

Knob

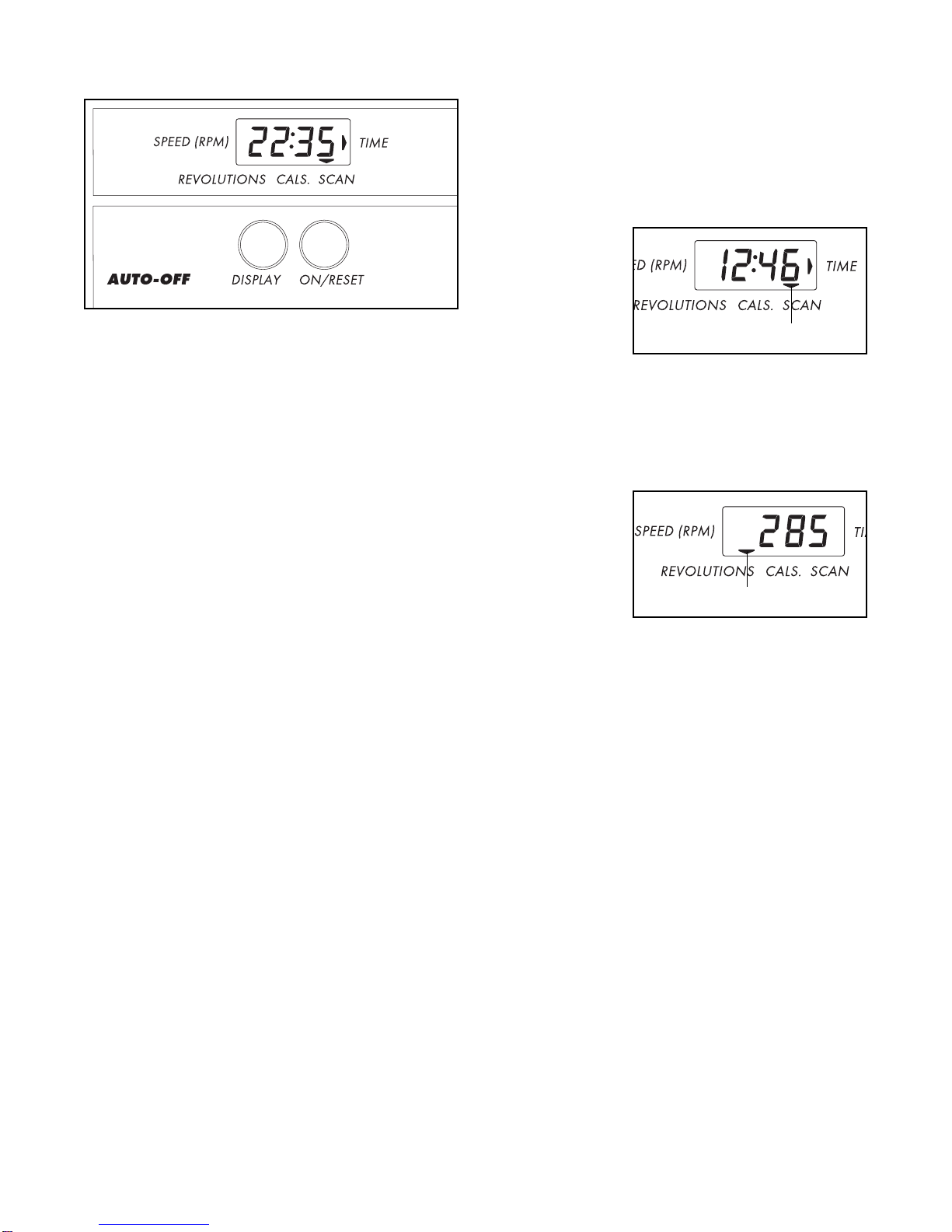

DESCRIPTION OF THE CONSOLE

The innovative console features five modes that dis-

play instant exercise feedback. The modes are

described below:

Speed—This mode shows your exercise pace, in rev-

olutions per minute.

Revolutions—This mode shows the total number of rev-

olutions you have pedaled.

Calories—This mode shows the approximate number

of calories you have burned.

Time—This mode will show the elapsed time. Note:

When you stop exercising, the time will flash when it

is displayed.

Scan—This mode displays the other four modes, for

five seconds each, in a repeating cycle.

BATTERY INSTALLATION

Before the console can be operated, two “AA” batter-

ies must be installed. If you have not installed batter-

ies, see assembly step 9 on page 8. Note: It will be

necessary to remove the console to install batteries.

HOW TO OPERATE THE CONSOLE

1. To turn on the power, press the on/reset button or

simply begin pedaling. When the power is turned

on, the entire display will appear for two seconds.

The console will then be ready for operation.

2. Select one of the five modes:

Scan mode—

When the

power is

turned on, the

scan mode will

automatically

be selected.

One mode

indicator will show that the scan mode is selected,

and a flashing mode indicator will show which

mode is currently displayed. Note: If a different

mode is selected, you can select the scan mode

again by repeatedly pressing the display button.

Speed, time,

revolutions, or

calories

mode—To

select one of

these modes

for continuous

display,

repeatedly press the display button. The mode indi-

cators will show which mode is selected. (Make

sure that the scan mode is not selected.)

3. To reset the display, press the on/reset button.

4. To turn off the power, simply wait for about four

minutes. Note: The console has an “auto-off”

feature. If the pedals are not moved and the

console buttons are not pressed for four min-

utes, the power will turn off automatically in

order to conserve the batteries.

Mode Indicators

Mode Indicator

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Weslo Ellittica

Weslo

Weslo Momentum 410 Elliptical Manuale del sistema

Weslo

Weslo Momentum Ct5.8 Elliptical Manuale utente

Weslo

Weslo 8.25 Elliptical Manuale utente

Weslo

Weslo Momentum R 5.2 Elliptical Guida utente

Weslo

Weslo Momentum 950 Elliptical Manuale utente

Weslo

Weslo Momentum 4.0 Elliptical Guida rapida

Weslo

Weslo Boomerang 850 Manuale utente

Weslo

Weslo Momentum G 3.2 Elliptical Manuale utente

Weslo

Weslo Momentum 850 Elliptical Guida rapida

Weslo

Weslo Momentum 850 Elliptical Manuale utente

Weslo

Weslo Momentum 620 Elliptical Manuale utente

Weslo

Weslo Momentum 410 Elliptical Guida rapida

Weslo

Weslo Momentum6.2 Elliptical Manuale utente

Weslo

Weslo Momentum 900 Fm Manuale utente

Weslo

Weslo Elliptical Glider 2.0 Manuale utente

Weslo

Weslo Momentum 4.0 Elliptical Guida all'installazione

Weslo

Weslo Momentum Ct5.8 Elliptical Manuale utente

Weslo

Weslo Elliptical Glider 2.0 Guida utente

Weslo

Weslo MOMENTUM CT 5.0 Manuale utente

Weslo

Weslo Eclipse 2 WLEL45071 Manuale utente

Weslo

Weslo Easy FitWLIVEL85012.0 Manuale utente

Weslo

Weslo Momentum 620 Elliptical Manuale utente

Weslo

Weslo WLEL32912.0 Manuale utente

Weslo

Weslo Momentum 220X WLEL2006.0 Manuale utente

Manuali Ellittica popolari di altre marche

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente

Reebok

Reebok 1000 Zx Elliptical Manuale utente
