Getting Started Guide

This guide provides you with details of how to use your Auto Code

and how to access Saved Screens through the

Auto Code Application

Contents

Updating your Auto Code Handset...........................................................................................................2

Features:..................................................................................................................................................3

Specifications:..........................................................................................................................................3

Kit Contents..............................................................................................................................................4

Auto Code Navigation...............................................................................................................................4

Menu & Icons ...........................................................................................................................................5

Main Menu............................................................................................................................................5

System Setup Menu..............................................................................................................................6

Additional Icons used............................................................................................................................7

First Time Use Procedure.........................................................................................................................8

Web Site Registration...............................................................................................................................9

Quick Start Guide...................................................................................................................................10

Saved Screens.......................................................................................................................................11

Overview of Saved Screens................................................................................................................11

Saving screens on the Auto Code handset.........................................................................................11

Accessing screens saved on the Auto Code handset..........................................................................12

Saving multiple screens......................................................................................................................15

Viewing a single screen......................................................................................................................16

Deleting a single screen......................................................................................................................16

Deleting multiple screens....................................................................................................................17

Printing screens..................................................................................................................................18

Print preview.......................................................................................................................................19

Page setup .........................................................................................................................................20

900001400199 –Auto Code - Towing coding solution

Please read this information carefully before using your new Auto Code Handset

Thank you for purchasing your Auto Code Towing coding solution. We at Westfalia believe that

you will have many years of successful business as a result of your investment and it is our aim

to ensure that you will remain as up-to-date as possible. Please refer to these instructions when

using the tool, if you experience any difficulty then please contact the technical help line on the

number below:

TECHNICAL HELP LINE NO. 0844 561 7861

Please register your product with Westfalia by completing the registration on-line by selecting

the following link: www.Westfalia-Autocode.co.uk which will also give you exclusive access to

the Westfalia Auto Code support area!

By registering your product you can take advantage of the following:

Westfalia product and technical updates via email

Westfalia will keep you up to date with new vehicle coverage and products, special

offers and technical information

Notification of application updates for your new Auto Code

Your new Auto Code tool is updateable. When updates are available notifications

will be sent to all registered users and a posting will be made on the Westfalia Auto

Code support website www.Westfalia-Autocode.co.uk

Updating your Auto Code Handset

When you receive notification of an update, you can launch your Westfalia Auto Code

Application and follow the instructions. Updates are easy to install and keep you up to date with

the very latest software available at all times.

We are always keen to hear back from customers regarding our products, and what you would

like to see included. If you have any specific thoughts, please feel free to contact our Technical

Support Help line on 0844 561 7861 and discuss them with the team. Also, don‟t forget to log in

to the Westfalia Auto Code Support Forum where you can share experiences and ask

questions to Westfalia technical staff and other Westfalia customers. Check the Westfalia Auto

Code Support website www.Westfalia-Autocode.co.uk for regular updates and product news.

Features:

Use of just one J1962 harness to cover all applications

Just 1 SD Card

Integrated Applications List

High Visibility Back Lit Display

Regular Internet updates

Soft touch case with improved ergonomic design

Easy to navigate keypad and menu systems

Full product support helpline backup

ZigBee wireless ready, enables communications with optional add-on modules

Future Proof design incorporates upgradeable communications protocol hardware allowing for cost

effective updates if and when required.

Fully updateable multiplexed vehicle communications eliminating the need for additional adaptors and

cables for 16Pin vehicles.

High performance processor and re-programmable hardware, via the internet or SD Card.

Upgradeable to additional software packages allowing the user additional areas to increase revenue

(Key Programming, Engine, ABS & Airbag Diagnostics)

Specifications:

J1850 VPW / PWM

ISO High & Low Speed

CAN

Single Wire CAN

LIN

Fault Tolerant CAN

5v Rosco Systems

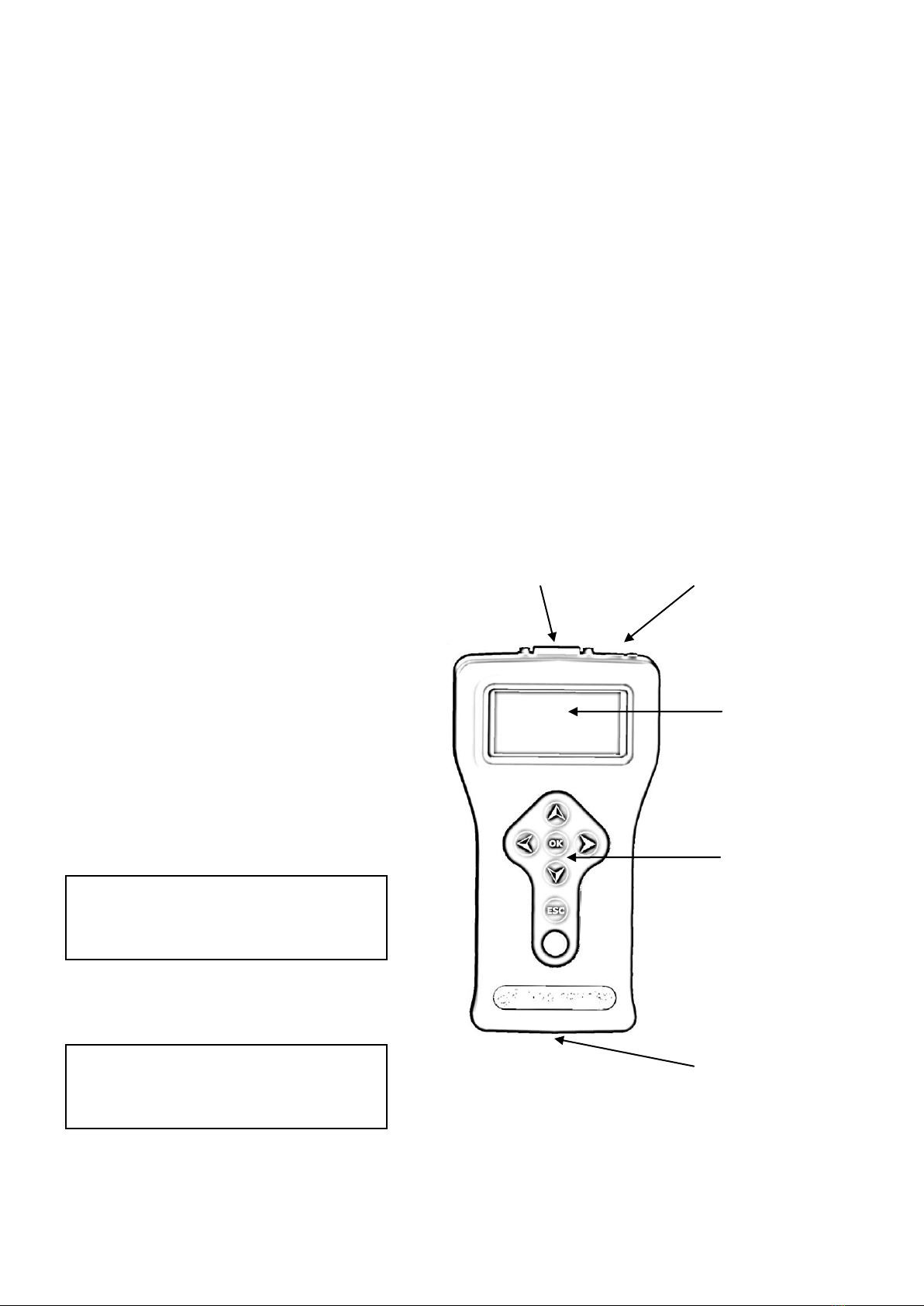

Subscription Number:

Serial Number & PIN:

Vehicle Harness

Connector

USB Connector

Status LED

LCD Display

Multi-Functional

Keypad

SD Card Slot

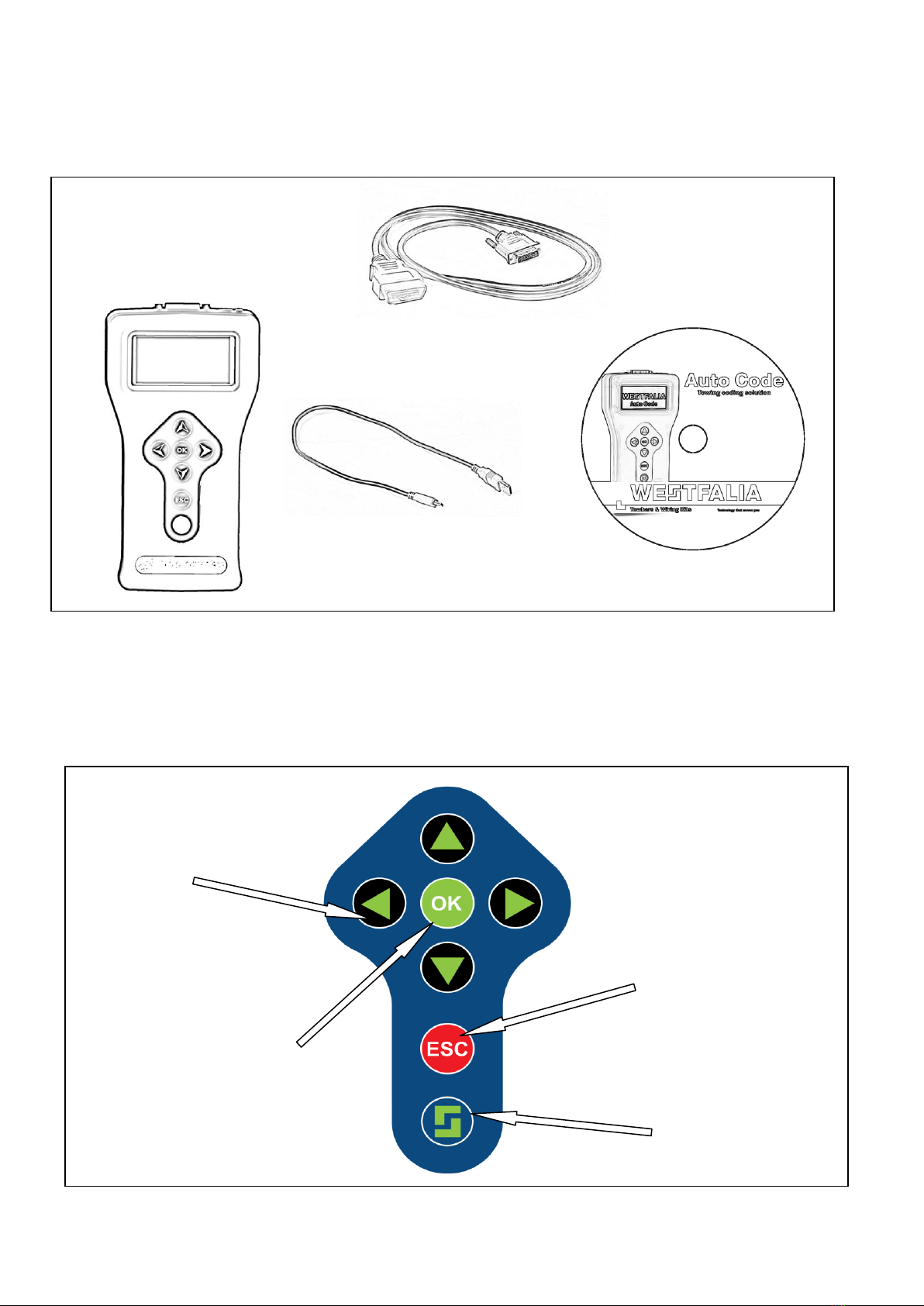

Kit Contents

1. Auto Code Handset (900001400199)

2. Auto Code 16Pin Diagnostic Cable

3. PC/Auto Code USB Data Cable

4. Auto Code Applications CD

Auto Code Navigation

2. 16Pin Diagnostic

Cable

1. Auto Code Handset

4. PC/Auto Code

USB Cable

Arrows control the

cursor around the

screen

OK Button confirms

the selected option

ESC Button cancels an

operation or returns

from a menu

Button used for special

functions

5. Auto Code

Applications CD

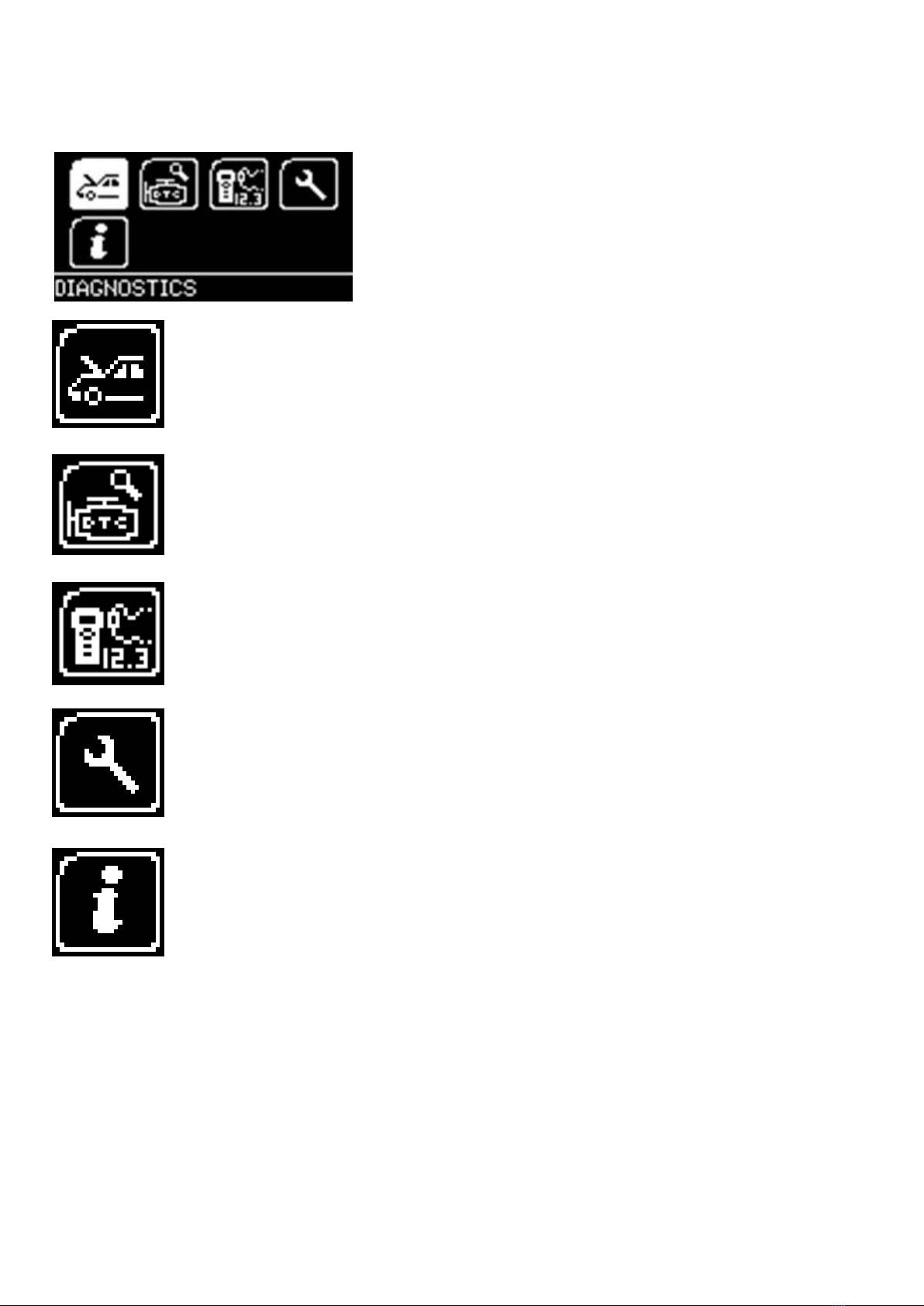

Menu & Icons

Main Menu

Manufacturer Icon –Select this to start Vehicle

Specific Serial Diagnostics

System Setup Icon –Select this to configure the

various settings of the Service Scan

Information Icon –Select this to display

software and hardware version information

D.T.C Lookup –Select this to search for error codes that potentially come up

as unknown within your system.

Wireless Devices –Select this to search and connect wireless

devices to the Service Scan

System Setup Menu

Contrast Icon –Select this to adjust the display

contrast. Use the up and down arrows to adjust

and press OK to save the settings

Clock Icon –Select this to change the date and

time of the Service Scan

Garage Information Icon –Select this to display

your user details. This is changed through the

PC Suite

Auto Code Test Icon –Select this to carry out

hardware tests on the Service if requested by

Westfalia Support

Volume Icon –Select this to adjust the sounder

volume using the left and right arrow keys and

press OK to save the setting

Application Unlock Icon –Select this to unlock

application packages available to you

depending on your subscription

„Back‟ Icon –Select this to return to the

previous menu

Additional Icons used

Live Data Icon –Select this to display Live Data (Components) for the

vehicle you are currently diagnosing.

Diagnostic Trouble Codes Icon –Select this to read the Diagnostic

Trouble codes on the vehicle you are currently diagnosing.

Erase Diagnostic Trouble Codes Icon –Select this to clear the

Diagnostic Trouble codes on the vehicle you are currently diagnosing.

Actuator Icon –Select this to run actuators for the vehicle you are

currently diagnosing.

Injector Programming Icon –Select this option to program injectors

to the vehicle that you are currently working on.

Program Keys Icon –Select this to program keys into the vehicle you

are currently on.

Erase Programmed Keys Icon –Select this to erase programmed

keys from the vehicle you are currently on.

Service Functions Icon –Select this to perform service related

functions on the vehicle you are currently working on.

First Time Use Procedure

Your Auto Code arrives to you in a locked state. This is for security and registration purposes.

To use your new Auto Code first you are required to unlock your unit. Please follow the

instructions below to obtain your “Registration Code”:

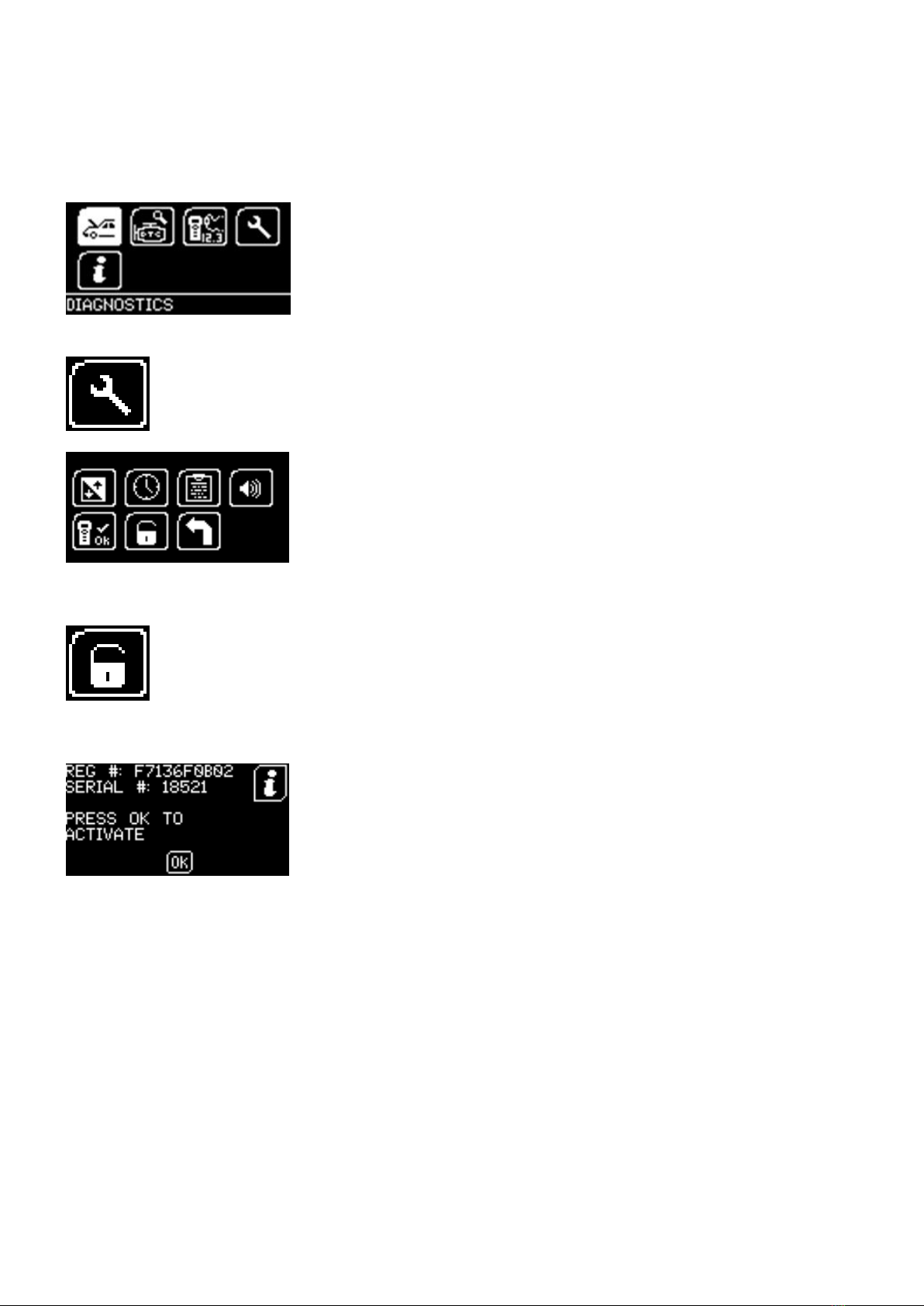

Plug the Auto Code in to the diagnostic socket on any available

car with a 16Pin socket, or if you have purchased a mains

power supply you can use this. The handset will now boot up

and you will be presented with the main menu.

Using the arrow keys, navigate to the “System Setup Icon” and

press OK to enter the “Setup” menu.

Using the arrow keys again, navigate to the “Application

Unlock” icon and press OK to enter the unlock screen.

Record the Serial Number and the Registration Code on the

screen and then call Technical Support on 0844 561 7861.

You will be asked to provide your customer details including

an up to date email address. This is important so we can keep

you informed of any software updates.

Technical Support will now use this information to generate an

“Unlock Code” and when asked please press the OK button to

proceed to the next step.
