Wharfedale Pro LX-E Series Guida all'installazione

Webcopy:

LX & LX- E Series Professional Loudspeaker System

NEW LOOK, NEW FEATURES, NEW STANDARD, MORE POWER AND MORE

CHOICES……

Designed to cater for those who want more power than the highly successful EVP

ranges can offer, the LX and LX-E use superior Wharfedale components to offer a range

of higher power, higher performance speakers that includes full range units, stage

monitors and subwoofers - making it easy to create a system from the models available.

So what’s different about the LX and LX-E Series?

Designed from the ground upwards the LX and LX-E range feature new custom components in

every cabinet. New woofers, larger format compression drivers and an elliptical wave guide

horn have all been developed from scratch to offer performance and features that are usually

only found on cabinets with a much higher price tag than the LX and LX-E.

In creating the LX Series, we set some basic parameters to design a range that delivers without

exception the performance, features and quality that our customers demand. We also kept it

simple; the LX-E range has a ‘systems’ approach, a range of models that can be used together

to provide solutions for nearly every audio challenge.

In LX series, the powerful LX-15B, LX-18B, LX-18MB and LX-218B sub bass systems have

been designed for use with large-scale LX-12, LX-15 and LX-215 systems to extend the total

LF output power.

In demanding professional applications, the LX-15B and LX-18B, which feature an internal

two-way network, allow the four-box system to be powered by one amplifier. Tough industrial

carpet covering provides durability and protection, and contributes to the overall safety in the

set-up and use of the LX systems.

The LX-E Series has the same model line up as the LX Series. The LX-E is finished in a

hardwearing, two-stage epoxy black paint finish and is constructed from premium grade

plywood for extra strength. Among the whole series, the LX-12E and LX-15E have multiple

mounting points for maximum flexibility when installing.

In comparison to the LX Series, the LX-E also has a greater power handling capability.

FEATURES

•High Performance, arrayable trapezoidal cabinets

•50 mm Titanium diaphragm true compression driver for brilliant, natural HF reproduction

•Large Elliptical Wave Guide provides superior control over HF coverage with reduced

distortion, greater output and smoother frequency response

•Cast frame, large voice coil woofers for sustained output capability and minimal power

compression under extended high power use.

•Heavily braced enclosure

•Dynamic, full range frequency response

•ProTech™ driver protection system

•Recessed metal jack plates with series Speakon™ type and ¼” inputs

•Cast aluminum, 35mm pole adaptor for stand mounting

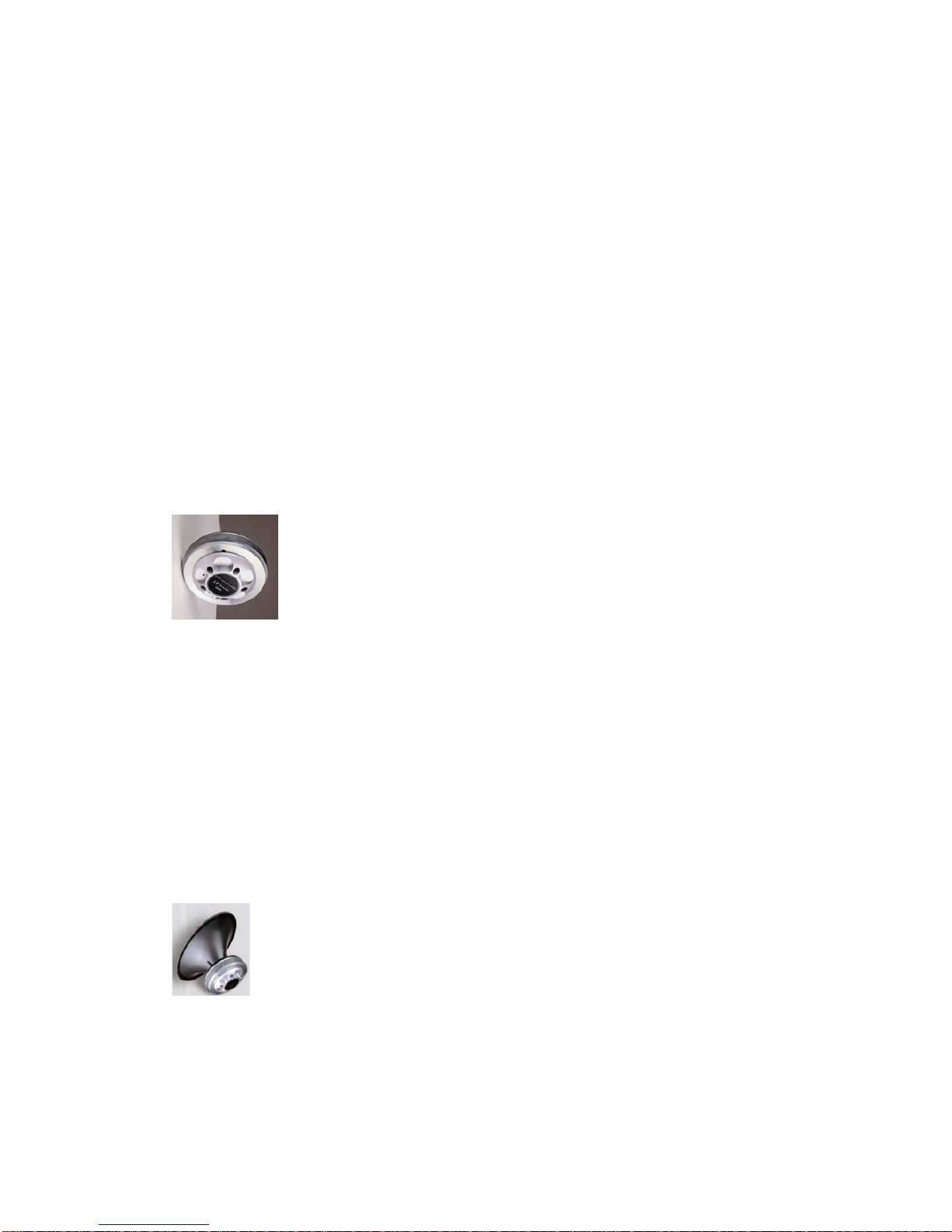

Titanium 50mm diaphragm, 1.4” exit compression driver

This unit features a larger magnet, increased power handling and a 1.4” (35mm) throat exit,

allowing a lower crossover frequency to be used, resulting in smoother, more controlled HF

and therefore better vocals.

Large magnet structures and tight construction tolerances give accuracy, high efficiency and

reliability.

Large wave guide elliptical horn:

The benefits of this elliptical Wave Guide, featured in all the LX & LX-E series full range

models, is that compared to conventional rectangular horns, the elliptical Wave Guide offers

superior control over HF coverage, with reduced distortion, greater output and smoother

frequency response.

The elliptical shape of the horn means that there are no corners or parallel surfaces to distort,

diffract or reflect the sound – therefore the output is smoother, cleaner and more consistent,

again resulting in a superior vocal sound.

Large Wave Guide elliptical horn provides superior control over HF coverage.

Custom cast frame woofers:

The woofers have been designed and built specifically for the LX & LX-E enclosures – they are

not old designs housed in new cabinets. The increased power handling and durability of the

LX & LX-E are due to the new drivers featuring larger voice coils with extended excursion

capability coupled with a new aluminium cast frame.

ProTech™ Driver Overload Protection System

Understanding that sound systems are often asked to perform beyond their original design

parameters, we have designed a smooth, progressive dynamic limiter/protection system that is

carefully tailored to each model. Overloads are limited and drivers are protected against long

term transient or peak conditions. The ProTech™ system progressively converts excess power

to heat and triggers a reduction in power to the HF drive. When the overload condition is

removed the system returns seamlessly to normal operation.

Sophisticated Crossovers Design

Each crossover in the LX and LX-E Series is built using the highest quality components and

designed specifically for that system, enabling smooth power and frequency response control

through crossover region. The LX-15B and LX-18B feature integral two-way networks that allow

a four-box system to be powered by one amplifier.

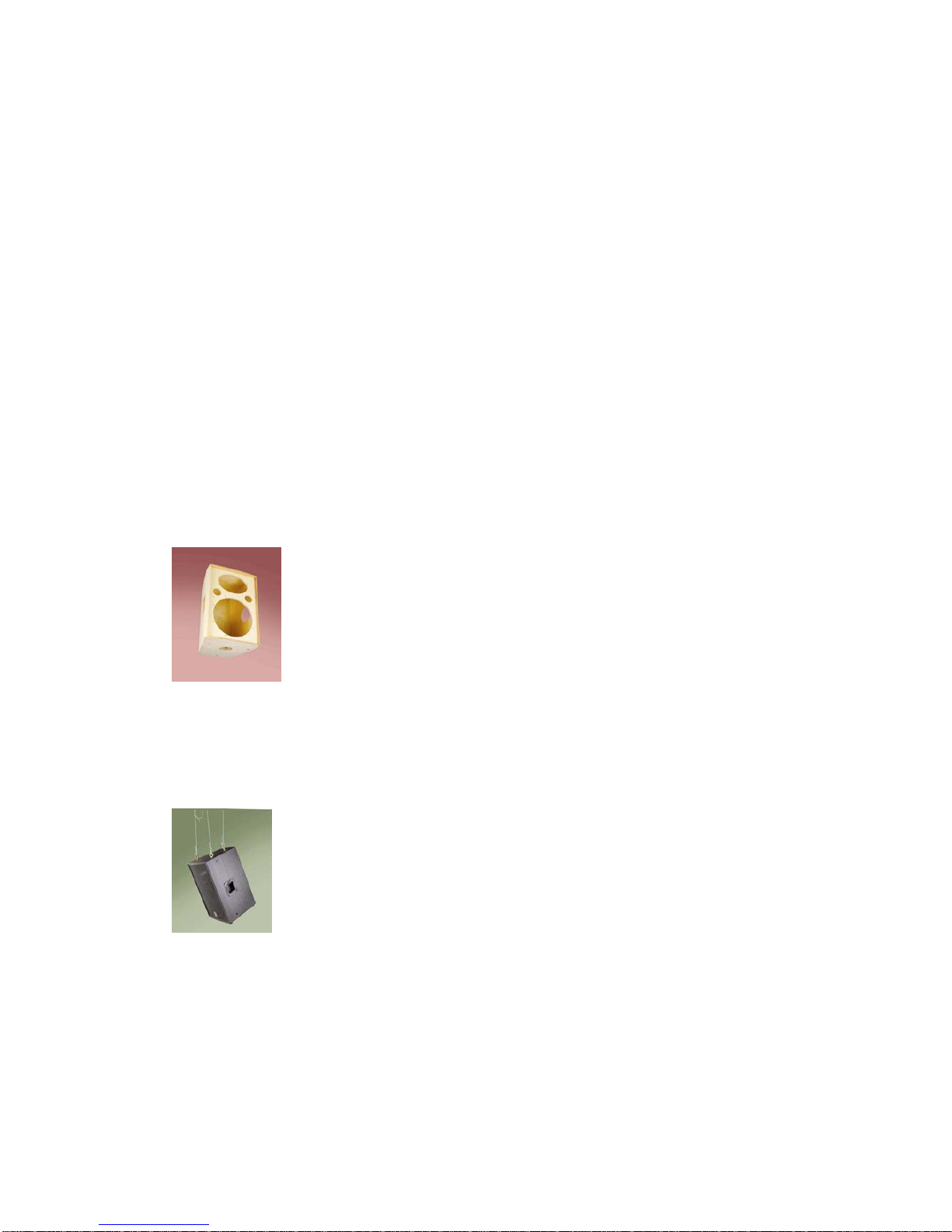

Trapezoidal, Plywood and Composite Construction

The LX-E’s cabinet is constructed from plywood on all critical surfaces (where durability is

important) and wood composite where resonances need to be kept to a minimum. The

trapezoidal shape further improves sonic accuracy by significantly reducing internal flutter

echoes and standing wave resonances that are often apparent in rectangular shape cabinets.

Trapezoidal designs allow more compact arrays and sonic accuracy.

Mounting points:

For maximum flexibility when installing, we have designed two specific models which feature 12

x M10 rigging points allowing the cabinets to be flown or arrayed. The LX-12E and LX-15E are

fitted with these flying inserts.

LX-15E fly wave rigging points

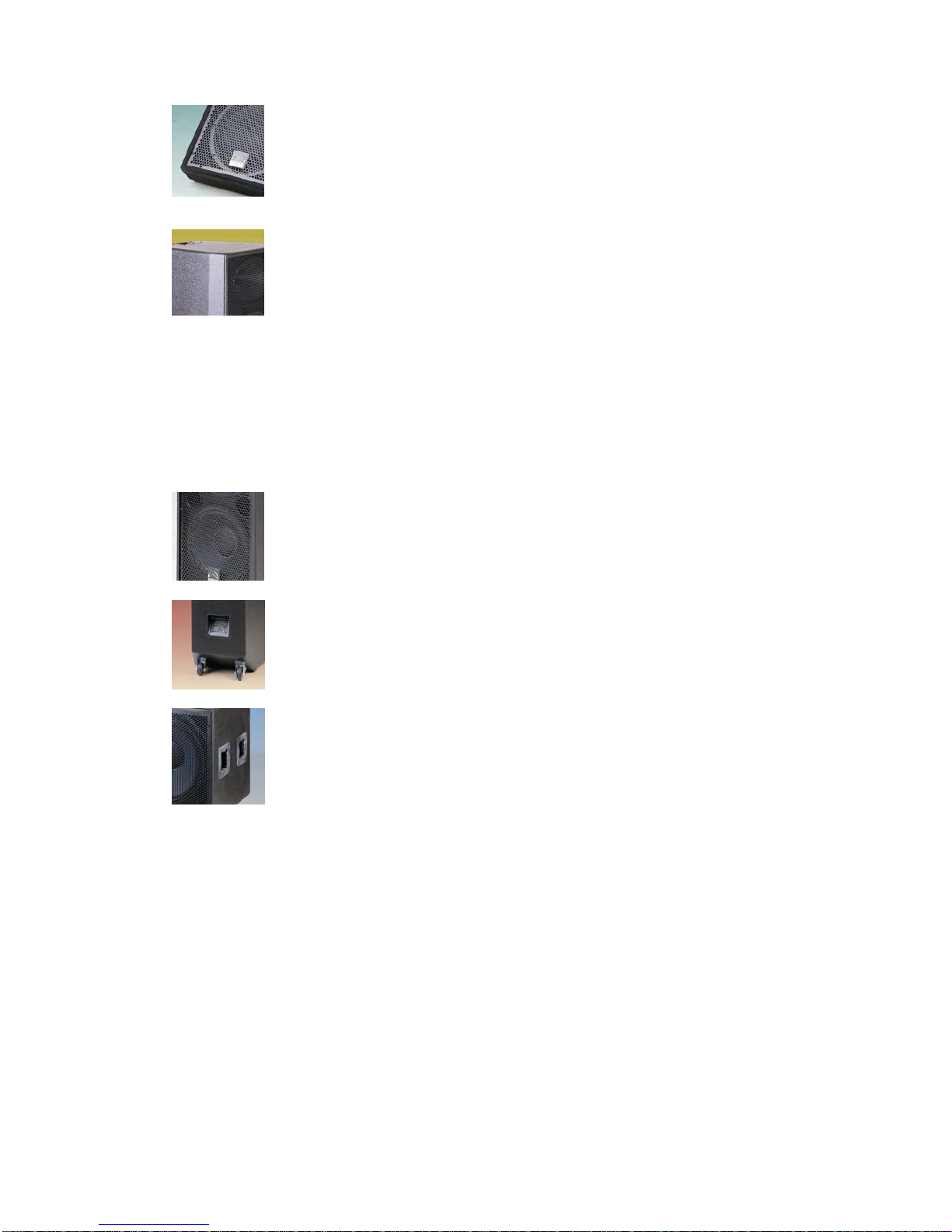

Protective Finish

The LX are all finished using a tough, black industrial carpet offering exceptional protection and

durability for life on the road. The LX-E is coated with Duraguard™, an abrasion resistant paint

that creates a protective ‘skin’around the cabinet. Both finishes contribute to the overall safety in

the set up and use.

Durable black carpet covering

High protective Duraguard™ coating

Strong Grille, Square Handles and Castors

In order to provide maximum protection to the internal components of the loudspeakers, the front

grilles are full steel with 1.5mm thick. The square handles design allows the cabinets to be

gripped securely and comfortably, therefore making them easy to move. Built-in castors are

available on some larger units for ease of transportation.

Heavy duty protective steel grille

Built-in castors for larger enclosures

Square handles

PRODUCT PAGES

The LX and LX-E series of loudspeakers each consist of nine models in total, comprising five full

ranges multipurpose systems (with FOH and monitor systems in both 12 inch and 15 inch

versions), and four sub bass cabinets (in both 15 inch and 18 inch versions).

MULTIPURPOSE LOUDSPEAKER SYSTEM

LX-12, LX-12E, LX-12EW

Two-way. 12”high power woofer,

50Hz-20kHz frequency response (+/-3dB)

4ohm or 8 ohm system impedance,

Elliptical wave guide horn with 2" (50mm) titanium diaphragm driver,

Trapezoidal enclosure,

12 X M10 rigging points for mounting (LX-12E, LX-12EW only),

LX-12EW is coated with white,

Continuous 400W / Music 800W / Peak 1600W power handling.

LX-12M, LX-12ME

Two-way monitor. 12”high power woofer,

60Hz-20kHz frequency response (+/-3dB)

8 ohm system impedance,

Elliptical wave guide horn with 2" (50mm) titanium diaphragm driver,

Continuous 350W / Music 700W / Peak 1400W power handling.

LX-15, LX-15E, LX-15EW

Two-way, 15" high power woofer,

40Hz-20kHz frequency response (+/-3dB)

4ohm or 8 ohm system impedance,

Elliptical wave guide horn with 2" (50mm) titanium diaphragm driver,

Trapezoidal enclosure,

12 X M10 rigging points for mounting (LX-15E, LX-15EW only),

LX-15EW is coated with white,

Continuous 400W / Music 800W / Peak 1600W power handling.

LX-15M, LX-15ME

Two-way monitor, 15" high power woofer,

55Hz-20kHz frequency response (+/-3dB)

8 ohm system impedance,

Elliptical wave guide horn with 2" (50mm) titanium diaphragm driver,

Continuous 350W / Music 700W / Peak 1400W power handling.

LX-153, LX-153E

Three-way, 15" high power woofer,

40Hz-20kHz frequency response (+/-3dB)

8 ohm system impedance,

Elliptica wave guide horn with 2" (50mm) titanium diaphragm driver,

Trapezoidal enclosure,

Continuous 450W / Music 900W / Peak 1800W power handling.

LX-215, LX-215E

Two-way, 15" high power woofer,

40Hz-20kHz frequency response (+/-3dB)

4 ohm system impedance,

Elliptical wave guide horn with 2" (50mm) titanium diaphragm driver,

Trapezoidal enclosure,

Built-in 2 castors,

Continuous 700W / Music 1400W / Peak 2800W power handling.

SUBWOOFERS RANGE

LX-15B, LX15BE

Super subwoofer, 15" driver,

42Hz-170Hz (LX-15B), 42-2kHz (LX-15BE) frequency response (+/-3dB)

4ohm or 8 ohm system impedance,

Two Speakon type connector,

Crossover with high pass output for mid/high (LX-15B only),

Trapezoidal enclosure,

Pole mount adaptor,

Continuous 700W / Music 1400W / Peak 2800W power handling.

LX-18B, LX-18BE

Super subwoofer, 18" driver,

38Hz-150Hz (LX-18B), 38-1.5kHz (LX-18BE) frequency response (+/-3dB)

4ohm or 8 ohm system impedance,

Two Speakon type connector,

Crossover with high pass output for mid/high (LX-18B only),

Trapezoidal enclosure,

Pole mount adaptor,

Continuous 800W / Music 1600W / Peak 3200W power handling.

LX-18MB. LX18MBE

18" (460mm) two way modular cluster element super subwoofer,

38Hz-150Hz frequency response (+/-3dB)

4ohm or 8 ohm system impedance,

Two Speakon type connector,

Compact frontal dimensions, Co-axial ports,

Pole mount adaptor,

Use in blocks of four to provide astounding sub bass output levels

Continuous 800W / Music 1600W / Peak 3200W power handling.

LX-218B/LX-218BE

Super subwoofer, 2 x18" (460mm) drivers with 4” (100mm) high temperature voice coils for

larger system set-ups,

30Hz-150Hz frequency response (+/-3dB)

4ohm system impedance,

Two Speakon type connector,

Rectangular enclosure,

The birch ply cabinet being fitted with substantial handles and 4x4” (100mm) castors (LX-218BE

only),

Continuous 1600W / Music 3200W / Peak 6400W power handling.
