UNIT PARTS

For Model: ACS102PP0

2−04 Litho In U.S.A. (mek) Part No. 8167722

AIR CONDITIONER

UNIT PARTS

For Model: ACS102PP0

8167722

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8199568

Use And Care Guide

2 8199556 Base

4 789778 Pan, Drain

(Evaporator)

5 8199640 Evaporator

8 789755 Grommet, Tube

9 8199509 Tube, Restrictor

.042 I.D. x 27.5"

(2)

10 789673 Strainer

12 8199531 Condenser

14 8199641 Compressor

15 8199617 Overload

16 789882 Gasket, Terminal

Cover

17 789883 Nut, Terminal

Cover

18 8199642 Cover, Terminal

19 789661 Nut

20 789784 Washer

21 789827 Grommet

22 789783 Sleeve

25 8199639 Clip, Thermistor

REFRIGERANT CHARGE

17.75 oz.

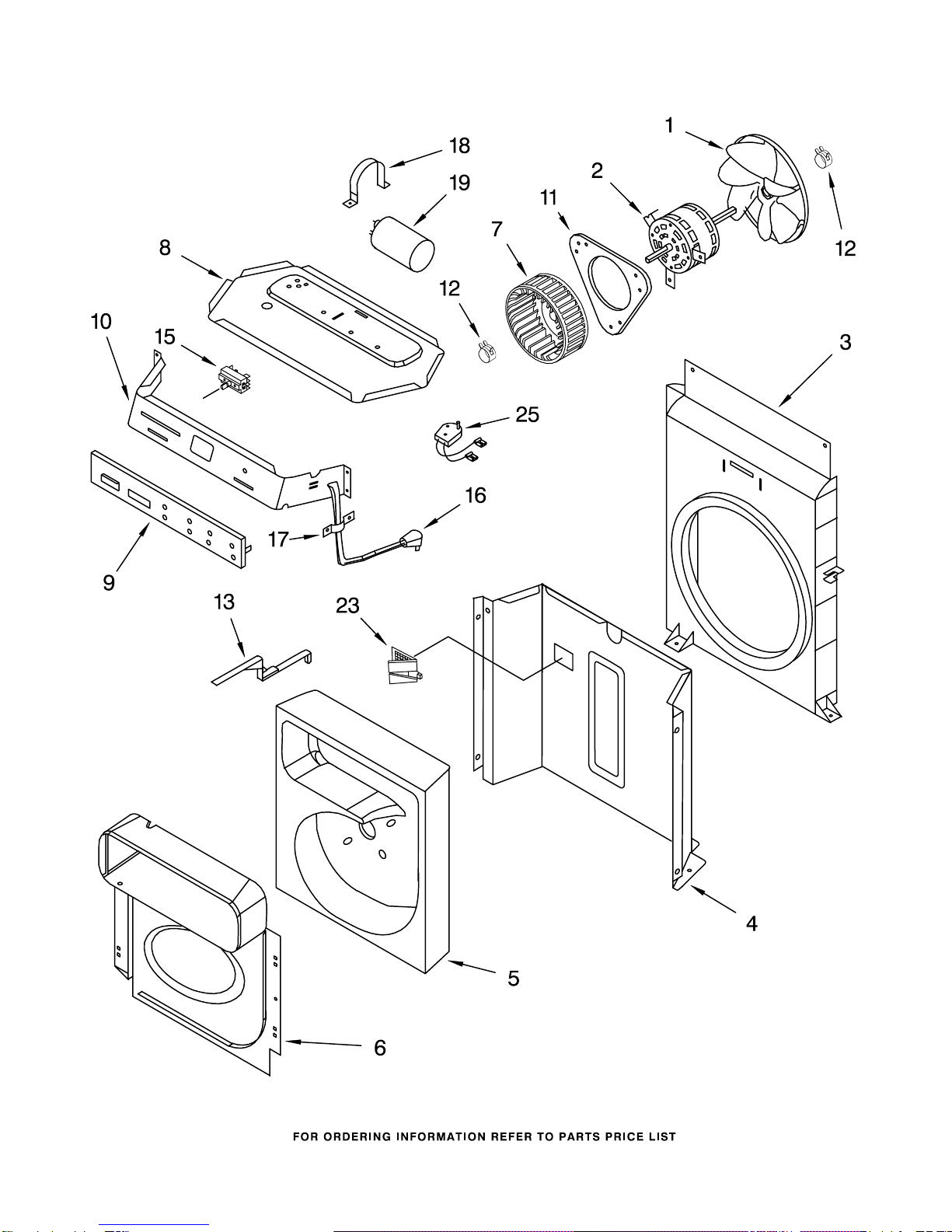

AIRFLOW AND CONTROL PARTS

For Model: ACS102PP0

8167722

AIR FLOW AND CONTROL PARTS

For Model: ACS102PP0

8167722

Illus. Part

No. No. DESCRIPTION

1 789834 Blade, Fan

2 789837 Motor, Fan

3 789836 Shroud, Condenser

4 789794 Wall, Dividing

5 8199633 Housing, Blower

6 789796 Shroud, Evaporator

(Includes Insul.)

7 789838 Wheel, Blower

8 8199636 Panel, Control

(Bottom)

9 8199634 Touch Pad Assembly

10 8199572 Panel, Control

11 789772 Plate, Motor

Mounting

12 789835 Clamp

13 789917 Actuator, Exhaust

Door

15 8199574 Transformer

16 8199638 Cord, Power

17 789806 Relief, Strain

18 789749 Strap, Capacitor

19 8199635 Capacitor

23 789907 Door, Exhaust

25 789801 Assist, Start

CABINET PARTS

For Model: ACS102PP0

8167722

CABINET PARTS

For Model: ACS102PP0

8167722

Illus. Part

No. No. DESCRIPTION

1 8199566 Cabinet Assembly

(Includes

Insulation and

Nos. 2 and 5)

2 8199567 Panel, Rear

4 789961 Retainer, Side

(Cabinet)(2)

5 789962 Retainer, Top

(Cabinet)

6 789963 Retainer, Panel

(Side)(2)

7 789817 Panel, Filler

8 8199564 Front Assembly

9 789925 Nameplate

10 789809 Filter, Air

12 3148443 Screw #8 x 1/4 Hex

13 4389654 Screw #8 x 3/8 Hex

14 Insulation, Cab.

789747 (Top)

789746 (Side)(2 Required)

17 789964 Retainer, Filler

Board (Top)

18 8199565 Insert, Front

INSTALLATION PARTS

For Model: ACS102PP0

8167722

Illus. Part

No. No. DESCRIPTION

1 789687 Kit, Installation

2 789692 Seal, Meeting Rail

3 789745 Seal, Strip

4 789688 Retainer, Filler

Panel (Top)

(Not Serviced

Separately)

5 789744 Seal, Strip

6 Plate, Sill (Not

Serviced Separate)

7 Hardware (Not

Serviced Separate)

8 Bolt, Leveling

3/8−16 x 2.5"

9 Angle, Support

(Not Serviced

Separately)

10 Platform, Support

(Not Serviced

Separately)
