Whirlpool GLT3057RB03 Manuale utente

COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3057RB03, GLT3057RQ03

(Black) (Designer White)

4−08 Litho in U.S.A. (amd)(bay) Part No. W10203830 Rev. A

30" SEALED GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3057RB03, GLT3057RQ03

(Black) (Designer White)

W10203830

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

8286304 Installation

Instructions

8304571 Undercounter,

Installation

Instructions

W10162190

Use & Care Guide

Safe Cooking Tips

9762761 English

W10065852

French

8286620 L.P. Conversion

Instructions

2 Bowl, Burner

6K (RR)

3191307 Black

3191308 White

9K,12K (LR,RF,LF)

3191302 Black

3191303 White

3 Grommet, Glass

3180079 Black

3180081 White

4 Cap, Burner

6K (RR)

8286153CB

Coal Matte Black

8286153CG

Cumberland Gray

9.5K (LR)

8286154CB

Coal Matte Black

8286154CG

Cumberland Gray

12.5K (LF,RF)

8286155CB

Coal Matte Black

8286155CG

Cumberland Gray

5 Grate

Left

8285892CB

Coal Matte Black

8285892CG

Cumberland Gray

Right

8285894CB

Coal Matte Black

8285894CG

Cumberland Gray

6 Cooktop

8286102 Black

8286103 White

7 Knob, Control (4)

8286058BL

Black

8286058WH

White

8 Grate, Center

8285893CB

Coal Matte Black

8285893CG

Cumberland Gray

9 3191932 Seal, Foam

10 Holder, Orifice

W10128448

6K (RR)

W10128451

12K (LF,RF)

W10128450

9K (LR)

11 Head, Burner

8286181 RF

8286182 LF, RF

8286184 LR

12 8273062 Screw

13 3368921 Screw

14 9782116 Electrode

15 Orifice

3192529 RR

3192523 LR

8286551 LF, RF

Following Parts Not Illustrated

Harness, Wire

Ignitor

4456626 15"

4456627 28"

4449809 Screw (4)

3400806 Screw (2)

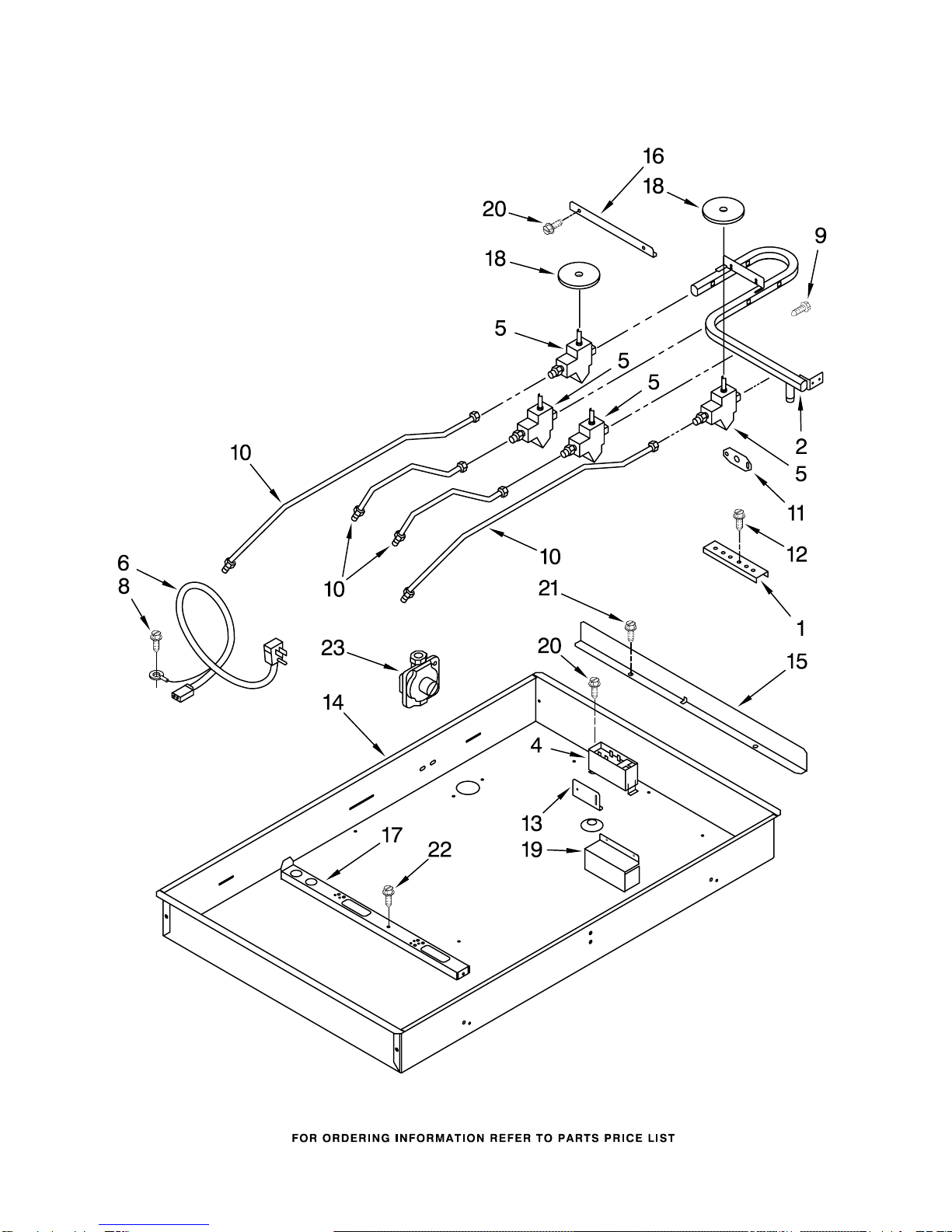

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLT3057RB03, GLT3057RQ03

(Black) (Designer White)

W10203830

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLT3057RB03, GLT3057RQ03

(Black) (Designer White)

W10203830

Illus. Part

No. No. DESCRIPTION

1 4455917 Bracket, (2)

Cooktop Mounting

2 8286069 Pipe, Manifold

3196160 Screw (2)

4 8522423 Spark Module

5 Valve, Burner

8286559 Auxi (White)

8286560 Rapid (Purple)

4456817 Large (2)

6 9763116 Power Cord

8 3177991 Screw, Ground

9 8523704 Bolt, Gas Valve

10 Tubing, Burner

W10071400

3191325 RR

3191324 RF

W10071390

11 3192491 Bracket, Manifold

12 3400093 Screw

13 4455837 Bracket, Spark

Module

14 8286098 Box, Burner

15 3191462 Shield, Heat

16 9759145 Bracket, Support

17 Rail

8286099 Burner

8285791 Center

18 3191387 Seal, (4)

Switch Cover

19 8285788 Shield, Heat

20 3400843 Screw

21 3177991 Screw

22 4449809 Screw

23 4454571 Regulator,

Pressure

Following Parts Not Illustrated

and Optional Parts Not Included

8286320 Spud Kit

4456905 Harness, Switch
