Whirlpool DP940PWSQ0 Manuale utente

FRAME AND CONSOLE PARTS

For Model: DP940PWSQ0

(White)

9−06 Litho In U.S.A. (ebk) Part No. 8194529

PORTABLE

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8535418 Instructions,

Installation

W10073400

Guide, Use & Care

Tech Sheet

8535431 English/French

W10073390

Guide, Energy

W10039780

Control,

Electronic

4 3376359 Fuse, Thermal

6 Console

(Includes Insert

& Active Overlay)

W10101940

White

8 Door Frame

3374712 White

9 3380854 Bolt, Latch

10 Lever, Latch

3372231 White

11 3369325 Switch, (2)

12 3368955 Pin, Switch (2)

13 8571335 Harness and

Protector

14 3376405 Elbow, Harness

15 3400892 Screw

16 8051304 Cover, Timer

17 3374501 Motor, Dual

18 3374777 Absorber, Sound

19 Panel, Front

3369769 White

20 3374011 Retainer, Panel

22 3379358 Spring, Door Catch

23 3379357 Catch, Door

26 3373234 Bearing,

Spring (2)

27 3374716 Channel, Retainer

(Also Order

Item 20)

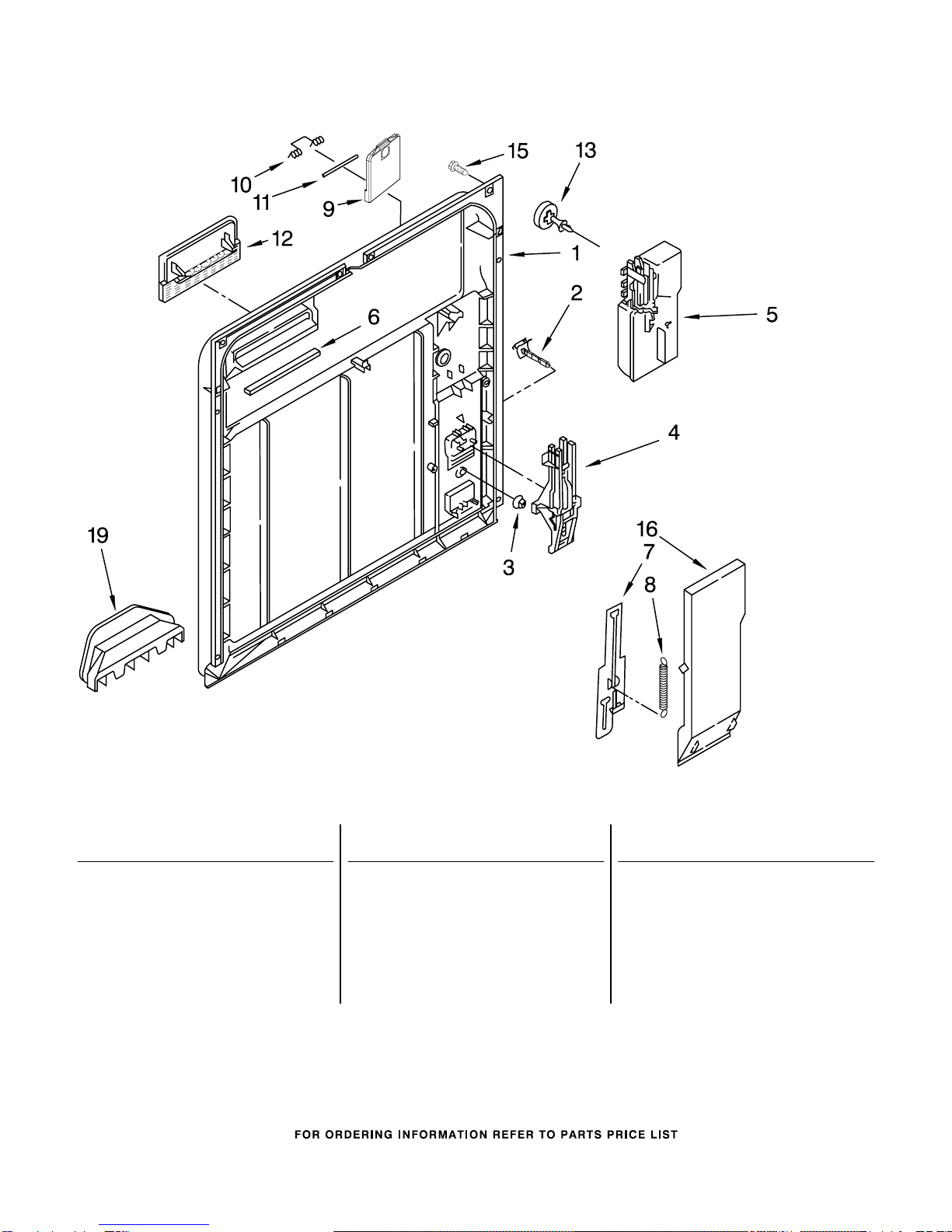

INNER DOOR PARTS

For Model: DP940PWSQ0

(White)

8194529

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8051463 Door, Inner

2 3376066 Latch, Detergent

Dispenser

(Includes Item 3)

3 3369061 Snap, Detergent

Dispenser

(Includes Item 2)

4 3369505 Actuator Assembly

5 8052028 Wet Agent,

Dispenser

6 3379673 Seal, Door Vent

7 3369448 Draw Bar,

Electronic

8 3368999 Spring (Draw

Bar)

9 3378138 Lid Assembly

10 8066018 Spring, Lid

11 3372028 Pin (Lid Hinge)

12 3371710 Screen, Vent

13 3378134 Cap, Wet Agent

15 3400815 Screw (8)

16 3371569 Cover, Drip

19 3379674 Vent Assembly

(Includes Item 6)

TUB ASSEMBLY PARTS

For Model: DP940PWSQ0

(White)

8194529

TUB ASSEMBLY PARTS

For Model: DP940PWSQ0

(White)

8194529

Illus. Part

No. No. DESCRIPTION

1 3378160 Tub Assembly

2 8528831 Tub, Wheel

Assembly (8)

3 3368933 Runner (2)

4 3374849 Leveler (2)

5 3370389 Screw,

Shoulder (2)

6 302819 Wheel (2)

7 343641 Screw,

10−16 x 1/2 (4)

8 3378149 Plate, Latch

9 3374720 Screw

10 3376927 Gasket

12 8528862 Deflector (2)

13 8519830 Heater

(Includes Item 14)

14 717273 Washer, Rubber (2)

15 8268548 Nut (2)

(Heater Terminal)

16 8274220 Water Valve

17 304392 Screw

18 661566 Thermostat,

Hi−Limit

21 301958 Clamp

23 3400935 Clip

25 304231 Screw, 8−18 x 1/2

28 3374343 Spring, Door

29 8318218 Housing, Float

Switch

30 3369067 Switch, Float

31 8318219 Cover, Switch

Housing

32 8519587 Float & Washer

Assembly

33 717488 Nut

37 3371030 Hose, Inlet

40 8573243 Sound Shield, Tub

50 3378595 Bracket,

Thermostat

53 3379740 Support, Heater

61 8052018 Friction Pad

PUMP AND MOTOR PARTS

Note: The Pump Gasket

Must Be Replaced Anytime

The Pump Assembly Is

Removed And Reinstalled

In The Dishwasher.

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

For Model: DP940PWSQ0

(White)

8194529

PUMP AND MOTOR PARTS

For Model: DP940PWSQ0

(White)

8194529

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9740982 Plate, Perforated

(Includes Item 5)

(Also Order

Item 30)

See Note A.

2 3367173 Base, Inlet

(Includes Items

1 & 5)

(Also Order

Item 30)

See Note A.

3 9741232 Screw, 8−18 x 5/8

4 302710 Seal, Inlet Base

5 302709 Ball, Check

6 95080 "O" Ring

7 719929 Ball, Check

9 3384593 Filter Assembly

(Includes Items

12, 13 & 22)

See Note A.

10 3400001 Screw

11 3378176 Impeller, Wash

(Includes Items

12 & 13)

12 3371152 Screw & Seal

10−32 x 3/4

13 302711 Seal, Pump Outlet

14 9742973 Outlet, Pump

(Includes Item 13)

15 3369482 Check Valve

(Includes Item 6)

16 661633 Gasket, Pump

17 8283502 Pump & Motor

Assembly

(Includes Item 16)

19 3378175 Chopper Kit

(Also Order

Item 30)

See Note A.

22 302704 Seal, Drain Cover

23 3376845 Cover, Drain

(Also Order

Item 30)

See Note A.

24 8274950 Impeller,

Drain Kit

(Also Order

Item 30)

See Note A.

25 3376157 Base, Pump

(Also Order

ITEM 30)

See Note A.

26 3367197 Support, Pump

Mounting (4)

27 3368270 Slinger

(See Note A.

28 8534971 Motor & Fan

Assembly

(Includes Item 27)

(Also Order

Item 30)

See Note A.

29 8281183 Screw (4)

30 675505 Pump Seal Kit

(Includes Items

4, 12, 13 & 22)

31 303918 Tool, Pump

Centering

37 3378083 Thermostat

38 3376723 Seal, O−Ring

39 3376358 Retainer,

Thermostat

40 9740674 Gasket, Drain

Cover

NOTE A:

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

UPPER DISHRACK AND WATER FEED PARTS

For Model: DP940PWSQ0

(White)

8194529

UPPER DISHRACK AND WATER FEED PARTS

For Model: DP940PWSQ0

(White)

8194529

Illus. Part

No. No. DESCRIPTION

1 9742953 Seal, Tube

2 661651 Tube, Water

5 3400919 Plug

8 3385160 Hanger, Water

Inlet

9 8539126 Wheel Assembly

11 8268845 Manifold, Sprayarm

12 3376846 Seal, Sprayarm

13 8519604 Sprayarm, Upper

14 3385159 Mount

16 8533889 Screw

17 8565920 Stop, Track

18 3385089 Track, Dishrack

20 8539222 Dishrack, Upper

24 9743958 Tube, Feed

25 3379369 Wash Assembly

w/ Slinger

26 3400850 Screw

CABINET PARTS

For Model: DP940PWSQ0

(White)

8194529

CABINET PARTS

For Model: DP940PWSQ0

(White)

8194529

Illus. Part

No. No. DESCRIPTION

1 3378111 Shell Assembly

(White)

2 3378117 Coupler Assembly

3 302868 Screw

4 3378109 Saddle, Hose

5 309330 Clip, Strap

6 3367052 Clamp, Hose

7 16123 Washer

8 3371343 Housing, Hose

9 8566201 Cord, Power

10 3378125 Protector−Edge,

Divider

11 3373329 Screw

12 3372381 Shroud, Caster

13 3370544 Screw

14 3373199 Panel, Top

15 304428 Screw (2)

17 8559932 Caster

18 3374592 Adapter, Faucet

19 3372525 Screw

21 3370826 Screw (2)

22 3378126 Protector−Edge,

Divider

24 8559928 Frame Assembly

25 3371635 Screw, 8−18 x 1/2

26 3371644 Screw, 8−18 x 5/8

27 302251 Screw
