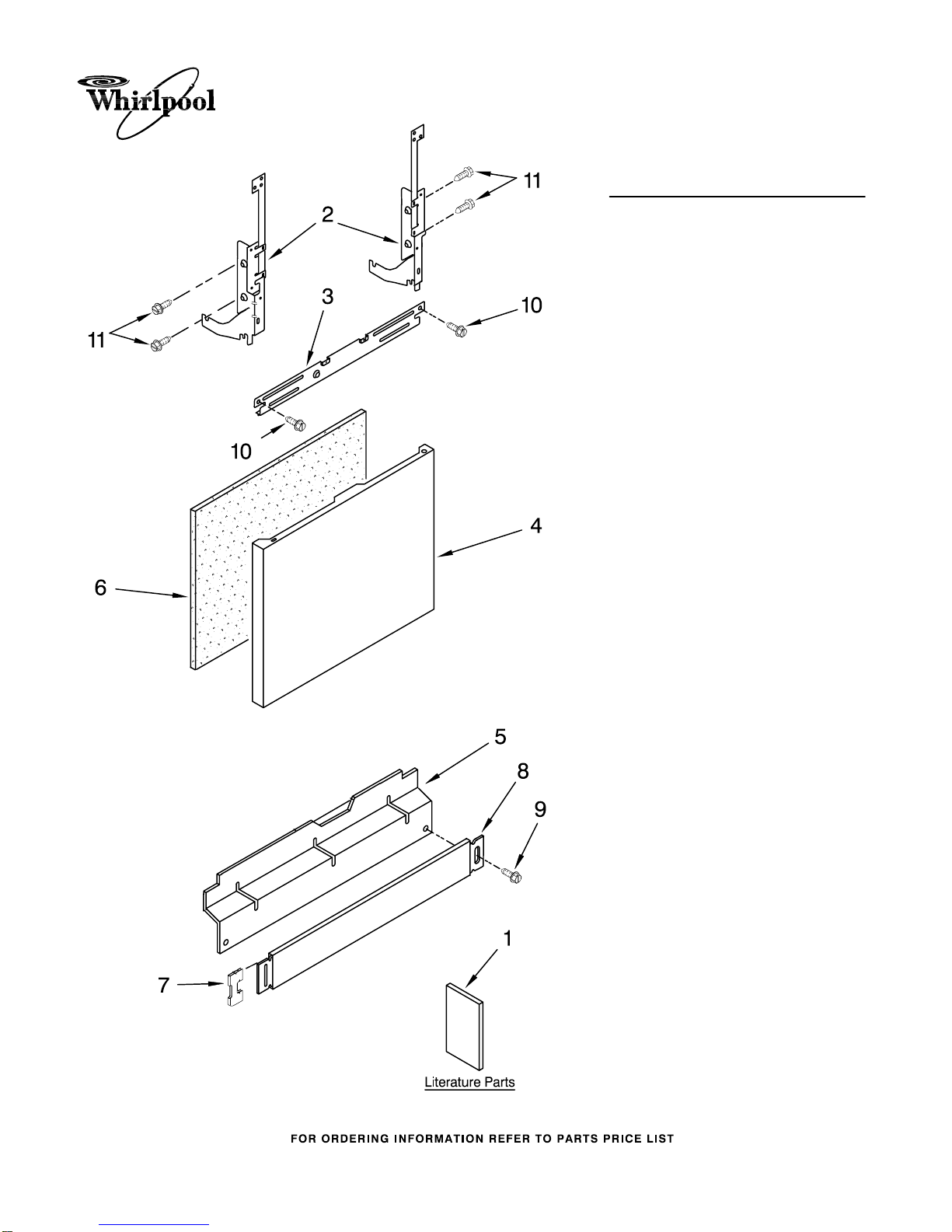

DOOR AND PANEL PARTS
1
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
06−08 Litho in U.S.A. (els)(mek) Part No. W10162993 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142914
Instructions,
Installation
W10179462
Energy Guide
Guide, Use & Care
W10130986
English/French
W10133161
Spanish
W10130990
Tech Sheet
2 Arm, Hinge
W10143374
Left
W10143373
Right
3 8268983 Stiffener,
Door
4 Panel Front
(Includes #7)
8269841 Black
8269842 White
8269844 Biscuit
W10137625
Stainless
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6
W10073520
Insulation, Door
7 8269016 Clip, Ground
8 Toe Panel
(Includes Clip)
8573286 Black
8573287 White
8573288 Biscuit
9 Screw
302868 Black
3400836 White
3400865 Biscuit
10 343641 Screw
11 489470 Screw
CONTROL PANEL PARTS
2
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10102850
Black
W10102851
White
W10102852
Biscuit
3 8546546 Clip, BI−Metal
4
W10158350
Cover Control
Shield Assembly
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 3400412 Screw
8 3369051 Screw (6)
9 Handle, Latch
8534984 Black
8534985 White
8534986 Biscuit
10 8524476 Bolt, Latch
11
W10084142
Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8269311 Inner Door
(Also Order
Item 4)
3 8558980 Vent Assembly
(Also Order
Item 4)
4 8269259 Gasket, Vent
5 8542566 Deflector, Vent
(Also Order
Item 4)
6 8565814 Dispenser,
Assembly
7 8573175 Wiring Harness
Main
8 8281154 Screw
9 8269296 Seal,
Console/door
10 8535637 Bracket, Dispenser
11 8531865 Shield, Dispenser
12 8558307 Cap, Rinse Aid

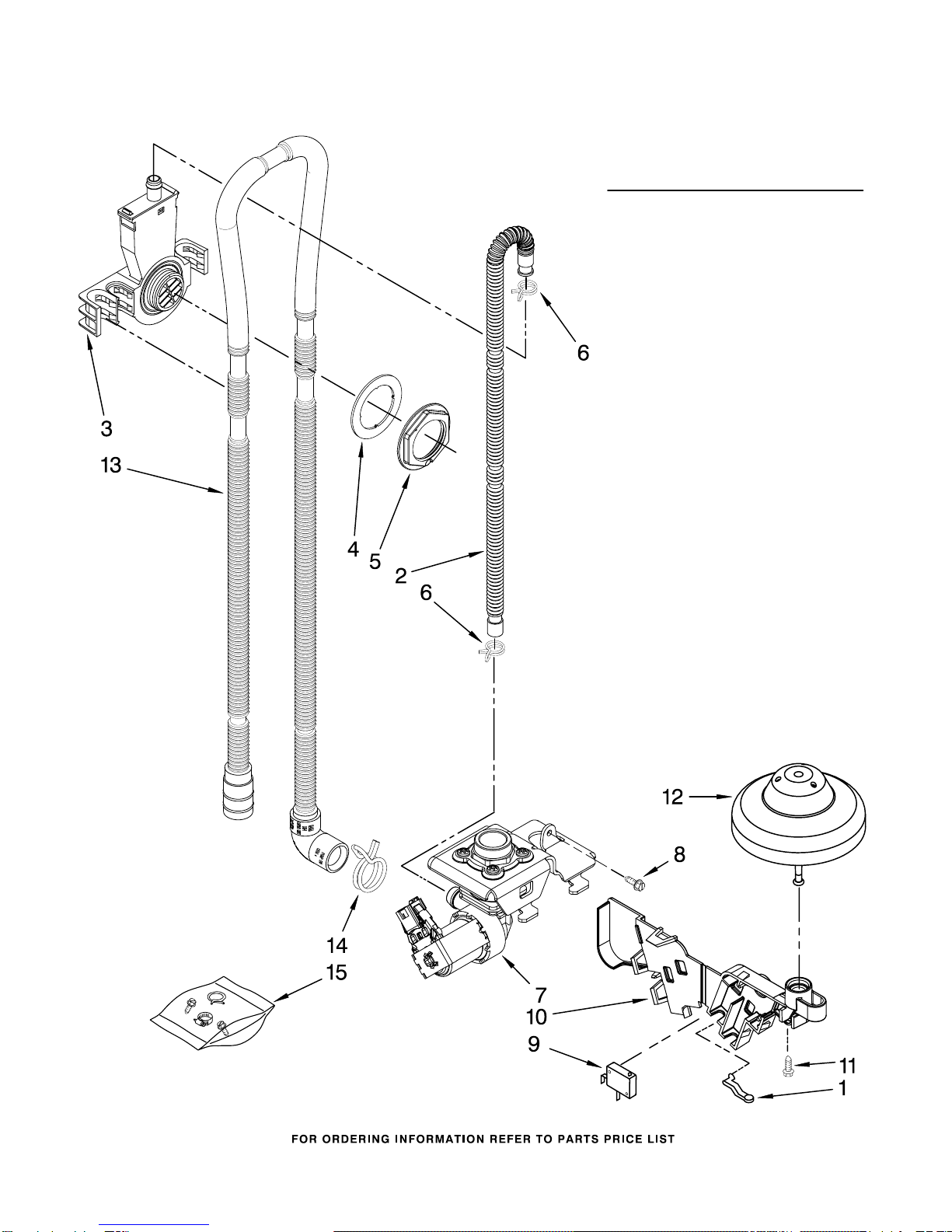

FILL, DRAIN AND OVERFILL PARTS
4
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531326 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545881 Standpipe,
Overfill
11 304231 Screw
12 8268913 Float & Retainer
Assembly
13
W10137608
Drain Loop
with Check Valve
14 356138 Clamp, Hose
15 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
TUB AND FRAME PARTS
5
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
TUB AND FRAME PARTS
6
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1 8575976 Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
4 3400014 Screw
5 8533836 Screw
6 3367670 Screw
7 8269145 Bracket,
Undercounter
8 8269831 Wheel Leg
9 8524584 Leveler, Leg
10 8524473 Spring, Door
Balance
11 8270016 Wheel & Mount
Assembly
12 3400892 Screw
13 8268991 Cover, Terminal
Box
14 8268961 Pad, Friction
15 304231 Screw
16 3378128 Washer
17 8573240 Shield, Sound
Tub
18 3378595 Bracket,
Thermostat
19 661566 Thermostat
20 8580309 Strike, Plate
21 8268990 Bushing, Door
Spring
PUMP AND MOTOR PARTS
7
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
PUMP AND MOTOR PARTS
8
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9 8534942 Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12 8572615 Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 26)
17 8269144 Hose, Drain
18 8534941 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
(Also Order
Item 26)
21 8268403 Face Seal Assembly
(Also Order
Item 26)
22 356138 Clamp, Hose
23
W10134016
Optical Water
Indicator
24 8269507 Capacitor
25 8534946 Shield,
Capacitor
26 8531018 Washer

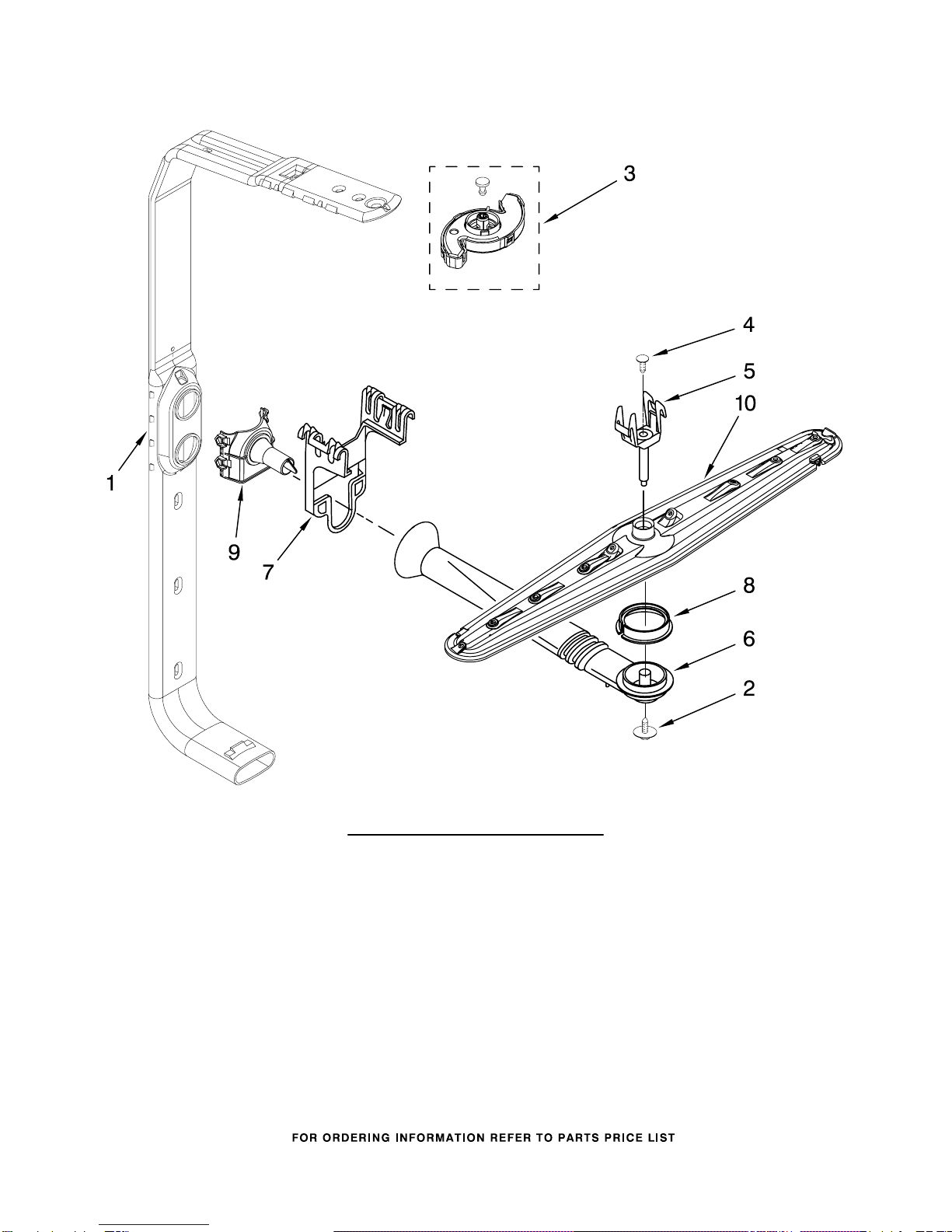

UPPER WASH AND RINSE PARTS
9
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1 8579224 Feed Tube
Assembly
(Also Includes
Items 3 & 9)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level Wash
4 3400919 Cover, Screw
5 3385159 Mount
6 8268845 Manifold
7 3385160 Holder, Feed Tube
8 8268433 Seal, Sprayarm
9 8562095 Nozzle
10 8535083 Sprayarm
HEATER PARTS
10
For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB
(Black) (White) (Biscuit) (Stainless)
W10162993
Illus. Part
No. No. DESCRIPTION
1
W10134009
Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
NOTE:
If heater element is
removed, it must be replaced.
