DOOR AND PANEL PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

2−07 Litho in U.S.A. (ebk) Part No. W10128193 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8575348 Instructions,

Installation

W10102750

Energy Guide

W10073760

Guide, Use & Care

W10082651

Tech Sheet

2 Arm, Hinge

8534858 Left

8534857 Right

3 8268983 Stiffener,

Door

4 Panel Front

(Includes #7)

W10073200

Black

W10073210

White

W10073220

Biscuit

8269845 Stainless

5 Access Panel

8573255 Black

8573256 White

8573257 Biscuit

6 8268580 Insulation, Door

7 8269016 Clip, Ground

8 Toe Panel

(Includes Clip)

8573286 Black

8573287 White

8573288 Biscuit

9 8269740 Clip, Grounding

12 Screw

302868 Black

3400836 White

3400865 Biscuit

13 343641 Screw

15 489470 Screw

CONTROL PANEL PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 Console Asm.

(Includes Active

Overlay & Insert)

W10102775

Black

W10102776

White

W10102777

Biscuit

3 8546546 Clip, BI−Metal

W10056090

Cover Control

Shield Assembly

5 8524471 Actuator, Latch

6 661663 BI−Metal

7 3400412 Screw

8 3369051 Screw (6)

9 Handle, Latch

8534984 Black

8534985 White

8534986 Biscuit

10 8524476 Bolt, Latch

11 8575276 Control,

Electronic

12 8269209 Switch, Door

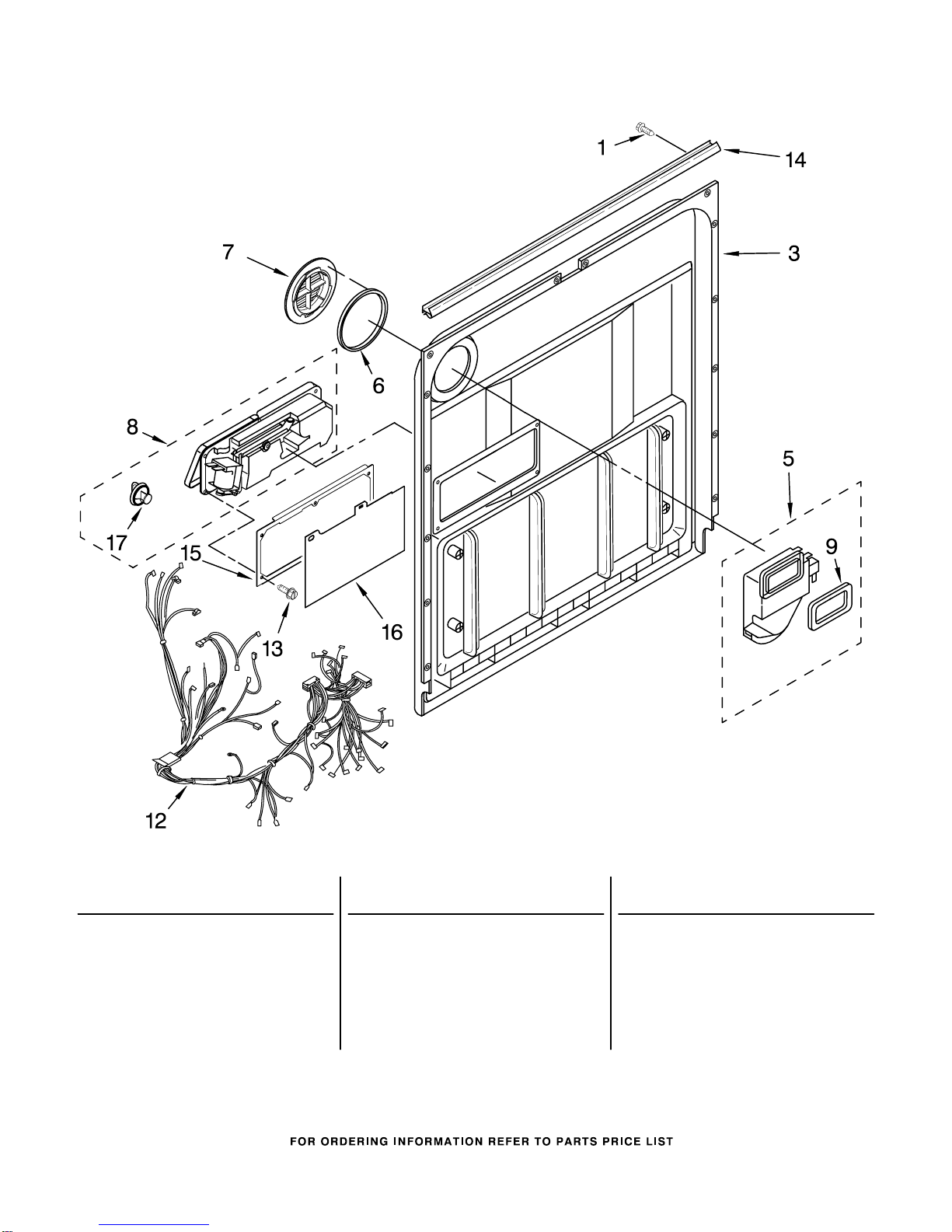

DOOR AND LATCH PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

3 8575895 Inner Door

(Also Order

Item 6)

5 8542603 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

7 8575892 Deflector, Vent

(Also Order

Item 6)

8 8565815 Dispenser,

Assembly

9 8269258 Seal, Front

W10082586

Wiring Harness

Main

13 8281154 Screw

14 8269296 Seal,

Console/door

15 8535637 Bracket, Dispenser

16 8531865 Shield, Dispenser

17 8558307 Cap, Rinse Aid

LOWER WASHARM PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 8268333 Wash Arm Assembly

2 8268343 Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

4 8268342 Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 8563007 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 8269262 Bracket,

Heater Support

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overflow

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545881 Standpipe,

Overfill

11 304231 Screw

12 8268895 Float & Retainer

Assembly

TUB AND FRAME PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

TUB AND FRAME PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 8575978 Tub Assembly

2 8573061 Strain Relief

3 8268888 Door Seal

5 8531022 Drain Loop

With Check Valve

8 8533836 Screw (8)

10 3367670 Screw

11 8269145 Bracket,

Undercounter

15 8269831 Wheel Leg

16 8524584 Leveler, Leg

18 8524473 Spring, Door

Balance

19 8575897 Wheel & Mount

Assembly

20 3400892 Screw

21 8268991 Cover, Terminal

Box

23 8268961 Pad, Friction

26 304231 Screw

27 8269016 Clip, Grounding

28 8573240 Shield, Sound

Tub

29 3378595 Bracket,

Thermostat

30 661566 Thermostat

31 8580309 Strike, Plate

33 8268990 Bushing, Door

Spring

34 3378128 Washer

35 3400014 Screw

36 8575616 Actuator Assembly

37 8559844 Motor Wax

38 356138 Clamp, Hose (1)

39 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

PUMP AND MOTOR PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

PUMP AND MOTOR PARTS

For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0

(Black) (White) (Biscuit) (Stainless)

W10128193

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

10 8534942 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

14 8572615 Sump & Motor

Assembly

15 8269524 Tab, Sump

16 8533949 Nut

17 661662 Pump, Drain

18 8531019 Volute, Back

(Also Order

Items 23 & 30)

19 8269144 Hose, Drain

20 8534941 Motor

21 8268397 Seal, Volute

22 8531017 Impeller Kit

(Also Order

Item 30)

23 8268403 Face Seal Assembly

(Also Order

Item 30)

24 356138 Clamp, Hose

W10082647

Optical Water

Indicator

26 8269507 Capacitor

27 8534946 Shield,

Capacitor

30 8531018 Washer
