Whirlpool GU2700XTSB0 Manuale utente

DOOR AND PANEL PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

5−06 Litho in U.S.A. (ebk) Part No. 8194419

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8575348 Instructions,

Installation

8575901 Energy Guide

8575899 Guide, Use & Care

Tech Sheet

8572216 English/French

2 Arm, Hinge

8534858 Left

8534857 Right

3 8268983 Stiffener,

Door

4 Panel Front

W10073200

Black

W10073210

White

W10073220

Biscuit

8269845 Stainless

5 Access Panel

(Includes Item 7)

8558260 Black

8558261 White

8558262 Biscuit

6 8268580 Insulation, Door

7 8542578 Insulation,

Access Panel

8 Toe Panel

(Includes Items

9 & 11)

8558252 Black

8558253 White

8558254 Biscuit

9 8269016 Clip, Grounding

10 8269740 Clip, Grounding

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

3400865 Biscuit

13 304392 Screw

15 489470 Screw

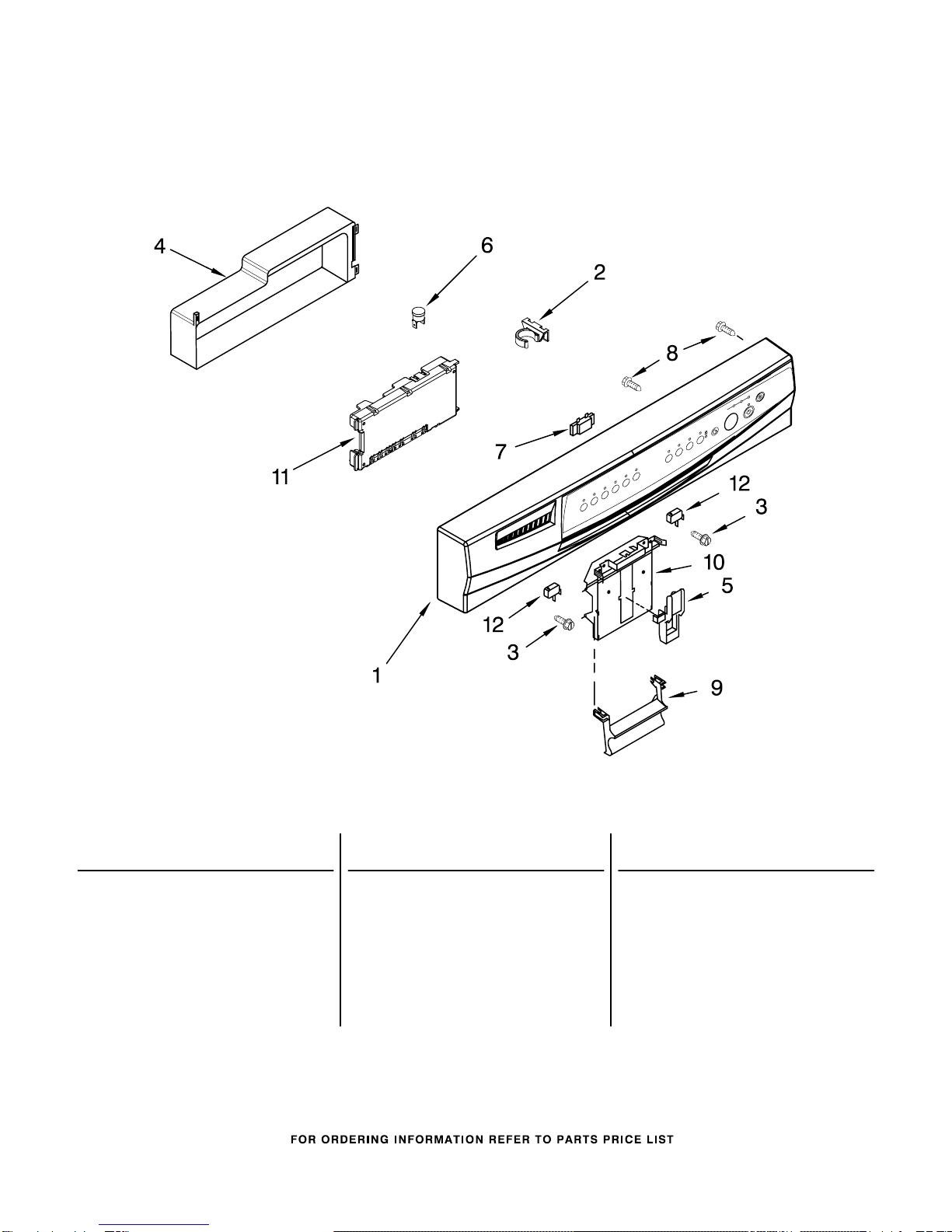

CONTROL PANEL PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Console Asm.

Includes Active

Overlay & Insert

W10008710

Black

W10008720

White

W10020990

Biscuit

W10021000

Silver

2 8546546 Clip, BI−Metal

3 3400412 Screw

W10056090

Cover Control

Shield Assembly

5 8524471 Actuator, Latch

6 661663 Fuse, Thermal

Electronic

7 8269206 Display, Dual

Digit

8 3369051 Screw (6)

9 Handle, Latch

8575331 Black

8575332 White

8575333 Biscuit

8575334 Grey

10 8524476 Bolt, Latch

11 8562996 Control,

Electronic

12 8269209 Switch, Door

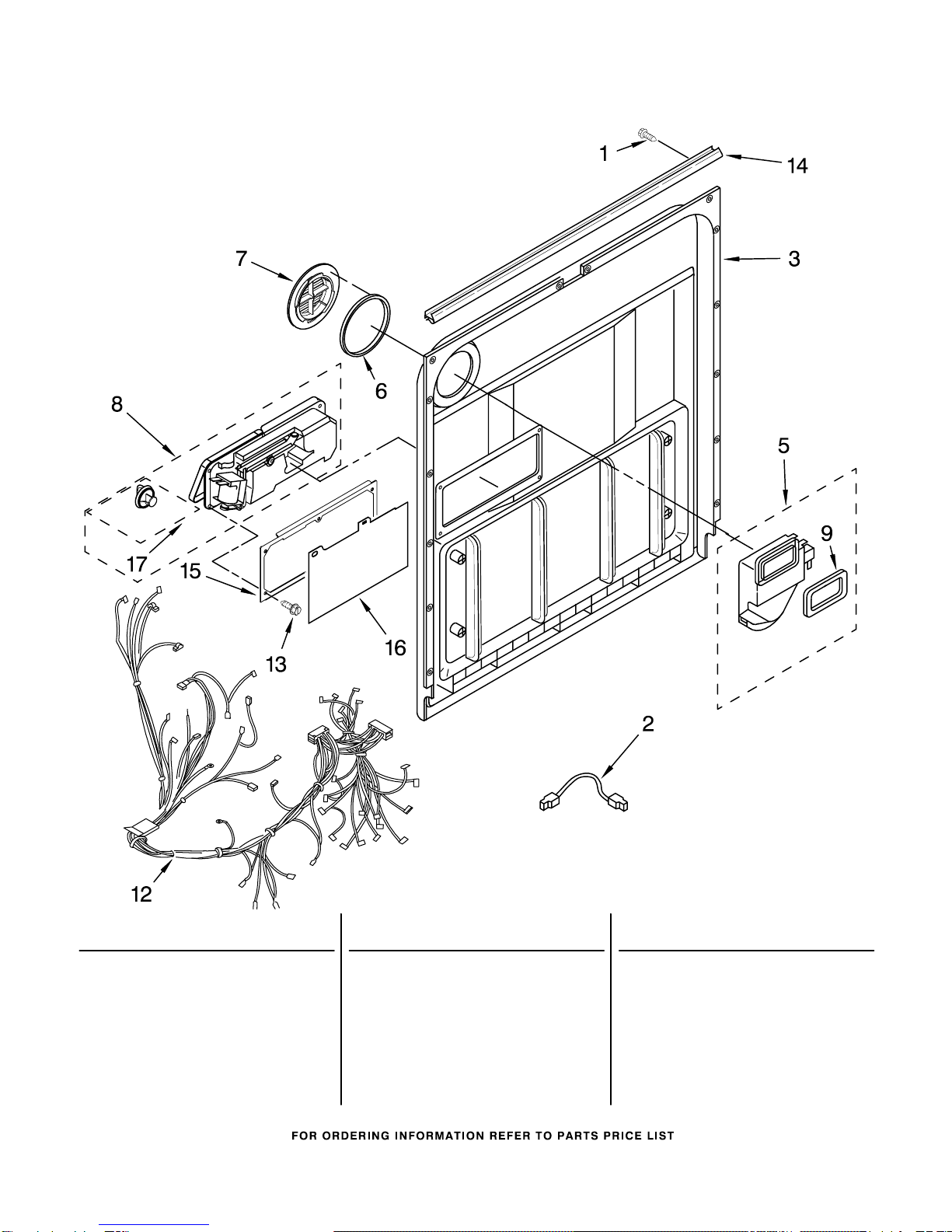

DOOR AND LATCH PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8545608 Harness, Vent

Motor

3 8575895 Inner Door

(Also Order

Item 6)

5 8572583 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

7 8575893 Deflector, Vent

(Also Order

Item 6)

8 8565815 Dispenser,

Assembly

9 8269258 Seal, Front

12 8575632 Wiring Harness

Main

13 8281154 Screw (6)

14 8269296 Seal,

Console/door

15 8535637 Bracket, Dispenser

16 8531865 Shield, Dispenser

17 8558307 Knob, Dispenser

LOWER WASHARM PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION

1 8268333 Wash Arm Assembly

2 8268343 Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

4 8268342 Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION

1 8563007 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 8269262 Bracket, Heater

Support

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563407 Fill Valve

Assembly

8 304392 Screw

11 8268909 Switch, Overfill

Control

12 8545881 Standpipe,

Overfill

13 304231 Screw

15 8268895 Float & Retainer

Assembly

16 8268892 Lever, Overflow

Switch

TUB AND FRAME PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

TUB AND FRAME PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION

1 8575978 Tub Assembly

(Also Order

Heater)

2 8573061 Strain Relief

3 8268888 Door Seal

5 8531022 Drain Loop

With Check Valve

8 8533836 Screw (8)

10 3367670 Screw

11 8269145 Bracket,

Undercounter

13 3400924 Retainer, Push−In

15 8269831 Wheel Leg

16 8524584 Leveler, Leg

18 8524473 Spring, Door

Balance

19 8575897 Wheel & Mount

Assembly

20 3400892 Screw

21 8268991 Cover, Terminal

Box

23 8268961 Pad, Friction

25 8268587 Insulator, Sound

26 304231 Screw

28 8573241 Shield, Sound

Tub

29 3378595 Bracket,

Thermostat

30 661566 Thermostat

31 8580309 Strike, Latch

33 8268990 Bushing, Door

Spring

34 3378128 Washer

35 3400014 Screw

36 8575616 Actuator Assembly

37 8559844 Motor Wax

48 356138 Clamp, Hose (1)

50 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

PUMP AND MOTOR PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

PUMP AND MOTOR PARTS

For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0

(Black) (White) (Biscuit) (Stainless) (Silver)

8194419

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

10 8534942 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

14 8572615 Sump & Motor

Assembly

15 8269524 Tab, Sump

16 8533949 Nut

17 661662 Pump, Drain

18 8531019 Volute, Back

(Also Order

Items 23 & 30)

19 8269144 Hose, Drain

20 8534941 Motor

21 8268397 Seal, Volute

22 8531017 Impeller Kit

(Also Order

Item 30)

23 8268403 Face Seal Assembly

(Also Order

Item 30)

24 356138 Clamp, Hose

W10055980

Optical Water

Indicator

26 8269507 Capacitor

27 8534946 Shield,

Capicator

30 8531018 Washer
