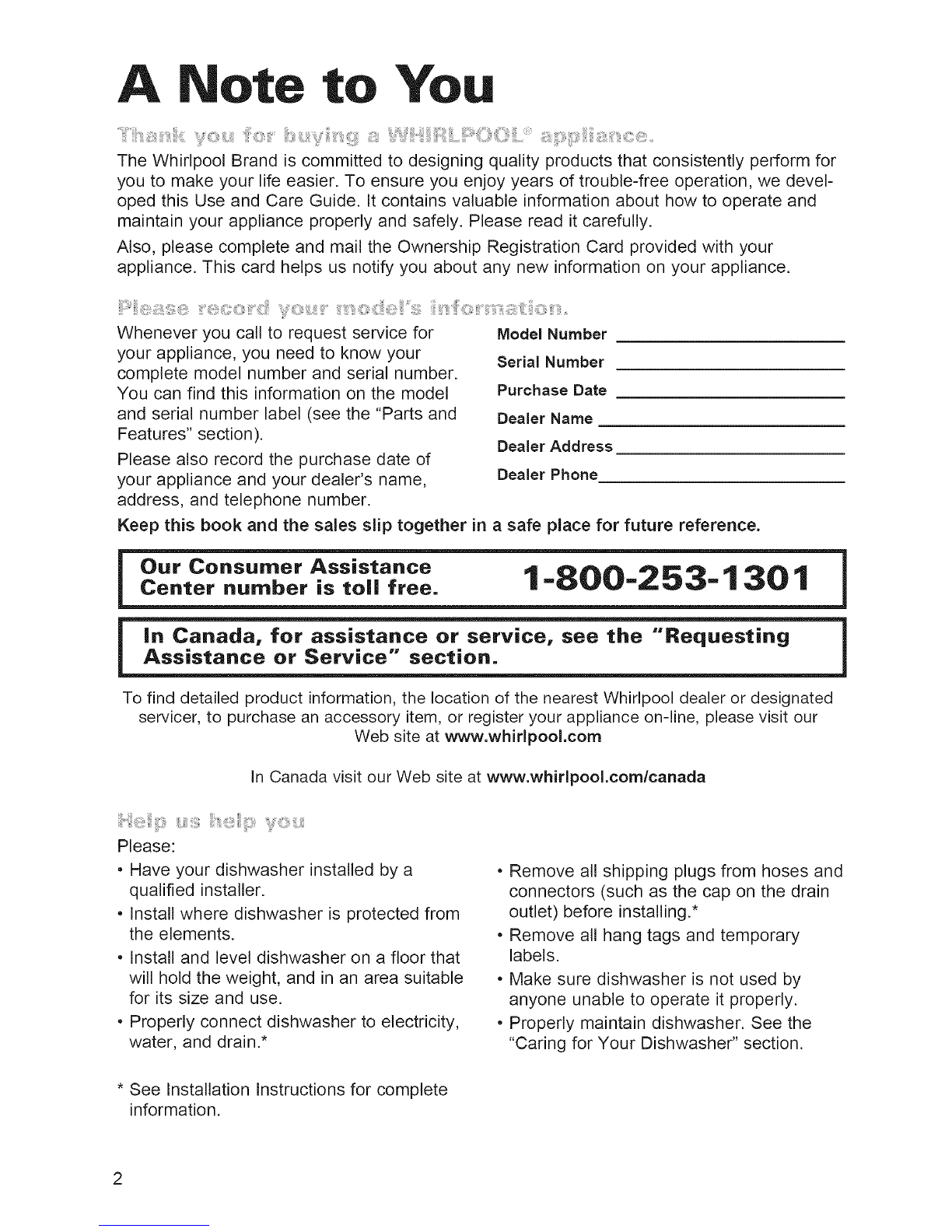

A Note to You

_iiii_ ,_ _, _y_g _ W_©©_ '_ __

The Whirlpool Brand is committed to designing quality products that consistently perform for

you to make your life easier. To ensure you enjoy years of trouble-free operation, we devel-

oped this Use and Care Guide. It contains valuable information about how to operate and

maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Whenever you call to request service for Model Number

your appliance, you need to know your Serial Number

complete model number and serial number.

You can find this information on the model Purchase Date

and serial number label (see the "Parts and Dealer Name

Features" section). Dealer Address

Please also record the purchase date of

your appliance and your dealer's name, Dealer Phone

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

iOur Consumer Assistance i

Centern.mberistoll free. 1-800-253-1301

I InCanada, for assistance or service, see the "Requesting J

Assistance or Service" section.

To find detailed product information, the location of the nearest Whirlpool dealer or designated

servicer, to purchase an accessory item, or register your appliance on-line, please visit our

Web site at www.whirlpool.com

In Canada visit our Web site at www.whirlpool.com/canada

Please:

• Have your dishwasher installed by a

qualified installer.

• Install where dishwasher is protected from

the elements.

• Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

• Properly connect dishwasher to electricity,

water, and drain.*

• Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.*

• Remove all hang tags and temporary

labels.

• Make sure dishwasher is not used by

anyone unable to operate it properly.

• Properly maintain dishwasher. See the

"Caring for Your Dishwasher" section.

* See Installation Instructions for complete

information.

ishwasher Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions.

You can be killed or seriously injured

if you don't follow instructions,

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the

dishwasher, follow basic precautions,

including the following:

• Read all instructions before using the

dishwasher.

• Use the dishwasher only for its

intended function.

• Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

• When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

• Do not wash plastic items unless they

are marked "dishwasher safe" or the

equivalent. For plastic items not so

marked, check the manufacturer's

recommendations.

• Do not touch the heating element

during or immediately after use.

• Do not operate the dishwasher unless

all enclosure panels are properly in

place.

• Do not tamper with controls.

• Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

• To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

• Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

• Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

aFeatures

Top

(p. 31)

Extra=capacity

fold-down

(p. 10)

Water inlet opening

(p. 9) ..........

Bottom rack .... ........

(p. 9) .....................................

Rack bumper ......................

(p. 9) .............................................

Heating element

Silverware

basket

(p. 8)

Cutlery basket

(p. 7)

Fold-down tines

..................................................(p. 10)

...........Upper spray arm

.......... (p. 10)

Fold-down divider

.................. (p. 9)

Model and serial

number label

(on right side)

spray arm

(p. 9)

POWER CLEAN TM

filter module

(p. 31)

Overfill protector

(p. 20)

Detergent

dispensers

(p. 11)

Rinse agent

dispenser

(p. 12)

Cycle selector pads Option selector pads

i Your

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

shwasher

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground

connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

GROUNDING iNSTRUCTIONS

•For a grounded, cord connected

dishwasher:

The dishwasher must be grounded, in

the event of a malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

For a permanently connected

dishwasher:

The dishwasher must be connected to

a grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

SAVE THESE INSTRUCTIONS

1. Load the dishwasher. See the "Loading

Your Dishwasher" section. 6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn off water.

2. Spin the spray arms. They should turn

freely.

3. Add detergent. See the "Using the

Dispensers" section.

7. Press a Cycle. If desired, press one

or more Options. The

dishwasher starts filling once

you press a Cycle unless

you select the delay wash

cycle. You can press Options

as the machine is filling.

'-L#J

The indicator glows when a

cycle or an option is selected.

4. Add rinse agent, if needed.

5. Close door firmly until it latches.

You can stop your dishwasher anytime

during a cycle. All you have to do is:

• Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close the door to

continue the cycle.

iiiii:::ii i! ii!iiii ii!3i ii',i¸!ii ili......

• Press Cancel/Drain. Once pressed, a

2-minute drain starts.

Loadin Your ishwasher

!iii iii;i i iilii''¸¸¸¸'iiii i iii'iii, iiiii! ii;::!ilit iiiili ¸

• To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

• Remove large pieces of food, bones, and

other hard items. The POWER CLEAN x'v'

filter module removes food particles from

the water. The module contains a chopping

device which reduces the size of food

items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the

POWER CLEAN filter module, you might

hear chopping, grinding, crunching, or

buzzing sounds. Those sounds are normal

when hard items enter the module. Do not

let metallic items (such as pot handle

screws) get into the POWER CLEAN filter

module. Damage can occur.

• Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to

dry over a period of time. Run a Rinse

Only cycle to keep dishes moist if you do

not plan to wash them soon.

• Load dishes so soiled surfaces face the

rotating spray arm.

• Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

• Secure lightweight load items in the racks.

• Pot lids and handles, pizza pans, cookie

sheets, etc. should not touch interior walls

or interfere with the spray arm's rotation.

• Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Use the cutlery basket to hold long items,

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery,

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the holding buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

iili,,,o;ii!i_i:!i;i,_:i_iii_ilii_i_ili_ii,li!i_!iilj 111:iiii'iii,_iii!i!i!ii__iii!!i_iiiiiii!iiiiii_,_,_i_,y,_i_!!!_ii_,_iiiii"_,_ii_,i_,_,i_J_iii!!ili_i__ii,ii_i'''_ii!i:_:!_!i!i_,iiiii!i::ii__i!!_i!!i__!i_!!_ii_iiiili,,_i_i:i_il!!!!!!!ildli:

• Load the silverware basket while it is in

the door or take the basket out for loading

on a counter or table.

• Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. Load spoons with baked on food

pointing up.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

• Put small items (baby bottle caps, jar lids,

etc.) in the section with the lid.

• You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to

avoid spilling water on the silverware.

NOTE: The basket may be hung on the

door or on the bottom rack. It can also be

placed inside the bottom rack.

To remove the basket:

1. Grab the basket by the handle and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

• Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

i Xii t iiiii,il

Load items with cooked=on or dried=on food 12 place setting load

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

• Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

• Make sure pot handles and other items do

not stop rotation of the spray arm. Spray

arm must move freely.

• Load heavily soiled cookware face down

in rack.

•Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

• Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTES:

• Do not load glasses, cups, or plastic items

in the bottom rack.

• Do not load items between the bottom rack

and the dishwasher tub. This can block

the water inlet opening.

• If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Mixed load

Utensil load

Bumpers must face

dishwasher door

Fold=down dividers

Fold-down dividers at the back of the rack

can be lowered to make room for deep

bowls, roasters, and other large items.

iili,,,_iii:iiiiii_¸,_i_i:ii!!ii,l_Ciii!iiiiiiiiiiiii_i_i:iii!iiiiilliiili,i_,_ii!!ii:!!;!_, 1!::,_ii::i:iiii_,ii_iil::iiii;__iii;i_i'''_:_iii!!!_i_i_i_i_i__ili::iiiii_iiii_,_,iii:i

The top rack is designed for cups, glasses, 12 place setting

and smaller items.

Cup and glass load

• Load so open ends face down for

cleaning and draining.

• Load glasses in top rack only - bottom

rack is not designed for glasses. Damage

can occur.

• Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

• Secure lightweight items.

• China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage can occur.

Cup and glass load

Mixed load

• Small bowls, pans, and other utensils can

be placed in the top rack.

• Load plastic items in the top rack only.

Plastic items can melt in the bottom rack.

• Wash only plastic items marked

"dishwasher safe."

• Load plastic items so the force of the

spray does not move them during the

cycle.

Mixed load

Fold=down tines

Fold down tines in the top rack to

accommodate larger items.

Extra=capacity fold=down

shelves

Fold down the extra shelves on the top rack

to hold items such as cups, juice glasses

and cereal bowls.

Altri manuali per series 980

Indice

Altri manuali Whirlpool Lavastoviglie

Whirlpool

Whirlpool WDF518SAFW Manuale utente

Whirlpool

Whirlpool ADP 7551 Manuale utente

Whirlpool

Whirlpool WDF518SAHW0 Manuale utente

Whirlpool

Whirlpool TUD6710P Manuale utente

Whirlpool

Whirlpool Gold GU2275XTV Manuale utente

Whirlpool

Whirlpool WDF130PAHB Manuale utente

Whirlpool

Whirlpool RUD0800EB Manuale utente

Whirlpool

Whirlpool DU1100 Manuale utente

Whirlpool

Whirlpool WFE2B19XUKN Manuale di installazione e funzionamento

Whirlpool

Whirlpool DU930PWST - on 24 Inch Full Console... Guida utente

Whirlpool

Whirlpool RUD6000 Manuale utente

Whirlpool

Whirlpool ADP 931 Manuale utente

Whirlpool

Whirlpool ADG 751 Manuale utente

Whirlpool

Whirlpool ADP 6332 WH Manuale utente

Whirlpool

Whirlpool W7F HS51 AX UK Manuale di installazione e funzionamento

Whirlpool

Whirlpool ADG 422 Manuale utente

Whirlpool

Whirlpool ADG 7622 Manuale utente

Whirlpool

Whirlpool DU850SWPB0 Manuale utente

Whirlpool

Whirlpool W7I HP42 L Manuale di installazione e funzionamento

Whirlpool

Whirlpool GU2800XTVB - 24" Wide Dishwasher Istruzioni per il montaggio

Whirlpool

Whirlpool 3LCED9100 Manuale utente

Whirlpool

Whirlpool ADG 684/6 Manuale utente

Whirlpool

Whirlpool WDI NC334C PES Manuale di installazione e funzionamento

Whirlpool

Whirlpool RUD4000 Manuale utente

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Whirlpool series 980 Manuale utente

Manuali Lavastoviglie popolari di altre marche
