Whirlpool LE3300XPWO Manuale utente

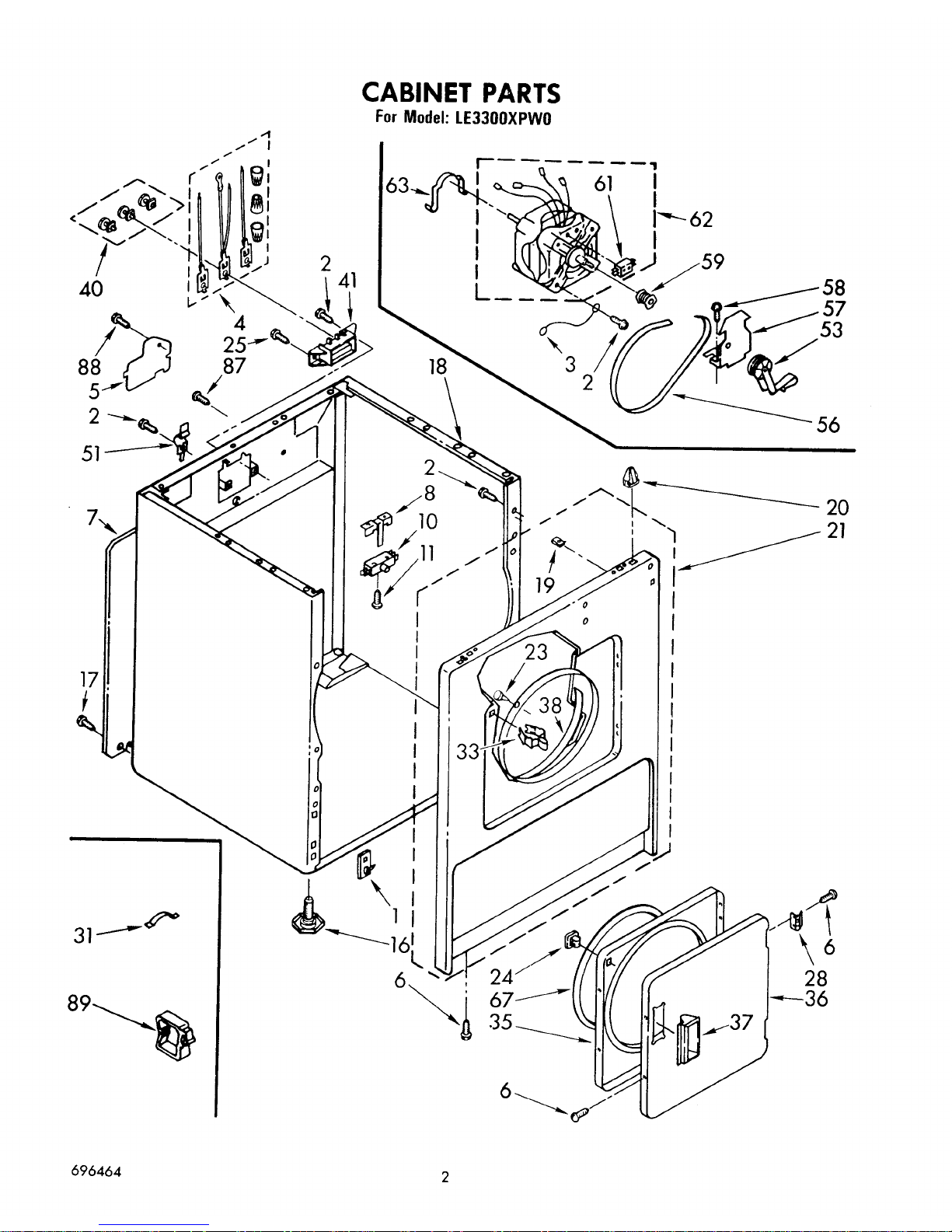

1 237823 Clip (2)

2 343641 Screw, 10-16 x 1/2

3 690236 Wire, Ground (Motor)

4 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)

5 690893 Cover, Terminal Block

6 694091 Screw

7 346368 Panel, Rear

8 295998 Lever, Door Switch

10 347207 Switch, Door

11 98129 Screw, 6-20 x 7/8

16 688222 Foot, Dryer (4)

17 693994 Screw, Hex Washer Head

18 Cabinet

690847 White

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Front Panel

693197 White

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

25 9416643 Screw, Terminal Block to Cabinet

28 348023 Hinge & Pin Assembly

31 98997 Clip, Harness

33 696144 Strike, Door

35 Door, Rear

348201 White

36 Door, Front

348205 White

37 686711 Handle, Door

38 349462 Seal & Bearing Assembly

40 279393 Terminal Screw Kit For Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 694871 Pulley, 60 Hz.

61 337351 Switch (Use W/695075 Motor)

62 695075 Motor Assembly, 60 Hz.

63 660658 Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

67 685763 Seal, Door

87 690989 Screw, 10-32 x 1/2 (Grounding)

88 693995 Screw, 10-16 x 1/2

89 688412 Clip, Harness Retainer

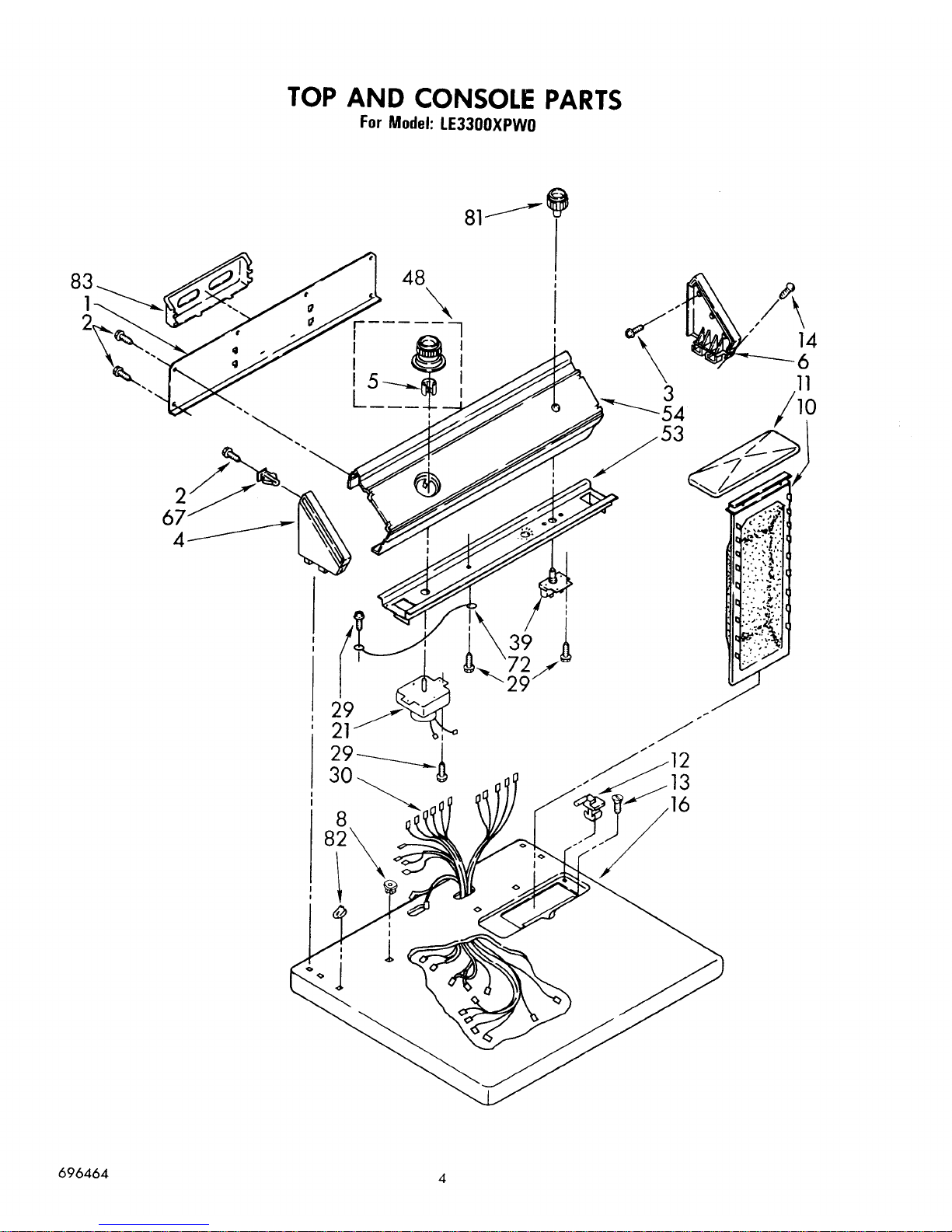

1 386367 Panel, Rear Console

2 343641 Screw, 10-16 x 1/2

3 355326 Screw, 13-16 x 5/8

4 Cap, End (L.H.)

63790 White

5 688805 Clip

6 Cap, End (R.H.)

63796 White

8 358472 Stop, Push-In (2)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 64211 Screw, 8-18 x 1

16 Top

695507 White

21 687952 Timer Assembly, 60 Hz.

29 339554 Screw

30 695356 Harness

39 660936 Switch, Push-To-Start

346364 (Alt.)

692021 (Alt.)

48 695556 Timer Knob Assembly

53 386627 Bracket, Control

54 696509 Panel, Control

67 689559 Clip, Push-On (4)

72 690853 Wire, Console Ground

81 696075 Knob, Push To Start

82 358473 Nut, Push-In (2)

83 63020 Rack, Literature

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT696234 Instructions, Installation

LIT696204 Guide, Use & Care

LIT693849 Guide, Dryer

LIT696464 List, Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

350930 White

350938 Primer, Gray

350941 Leveler (Thinner)

799344 White (Uncut)

DO-IT-YOURSELF REPAIR MANUALS

LIT677813 (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

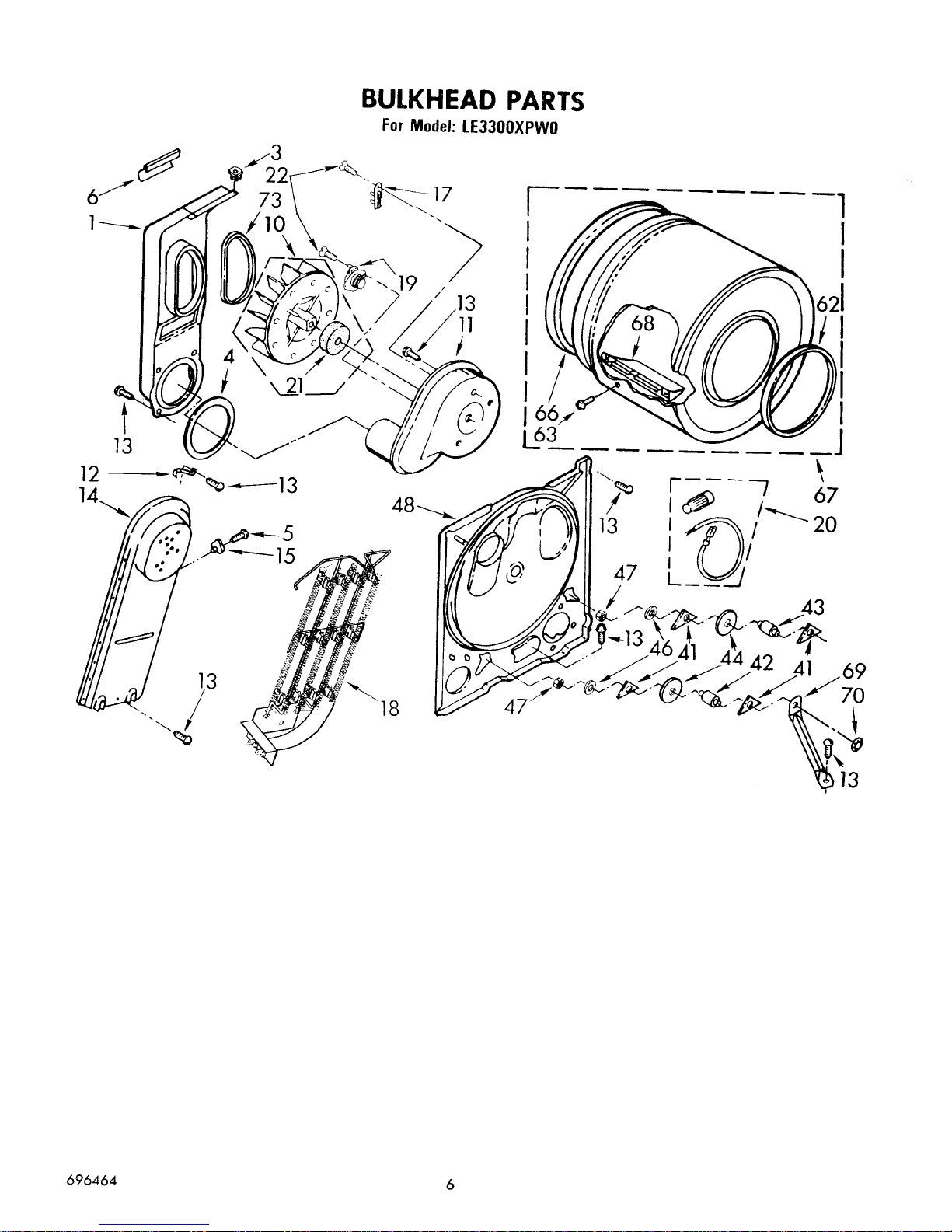

1 694283 Lint Chute

3 98460 Nut, Push-In (2)

4 347139 Seal, Lint Chute

5 90767 Screw, 8A x 3/8

6 686770 Support Protector

10 695499 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip, Heater Box to Bulkhead

13 687128 Screw, 10-16 x 1/2

14 685457 Box, Heater

15 341195 Thermostat, Safety (250~F) (121.1~C)

17 694511 Thermal Fuse

18 660982 Element, Heater (For 240 Volt Installation)

693300 (Alt.)

693298 (Alt.)

693062 (Alt.)

696326 Element, Heater (For 208 Volt Installation

19 660039 Thermostat, Operating (150~F) (65.6~C)

341146 (Alt.)

20 279457 Wire Kit, Terminal (For Heater Element Wiring Harness Repair)

21 694630 Seal, Blower

22 695239 Screw, 8-18 x 3/8

41 690997 Ring, Tri (4)

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 349241 Roller, Support

46 348197 Washer, Support

47 120377 Nut, 3/8-16

48 685769 Bulkhead

62 297936 Ring, Bearing

63 690372 Screw, 11-16 x 7/8

66 337449 Seal, Rear Drum

67 337928 Drum

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal, Lint Chute to Bulkhead
