AUTOMATIC

DRYERS

Electric Model

LE3300XS

Akrowave Ovens. Trash Compaclors. Room Air Condllloners. Dehumldlfws. Automatic Washers. Clothes Dryers. freezers, Refrlgeralor-f

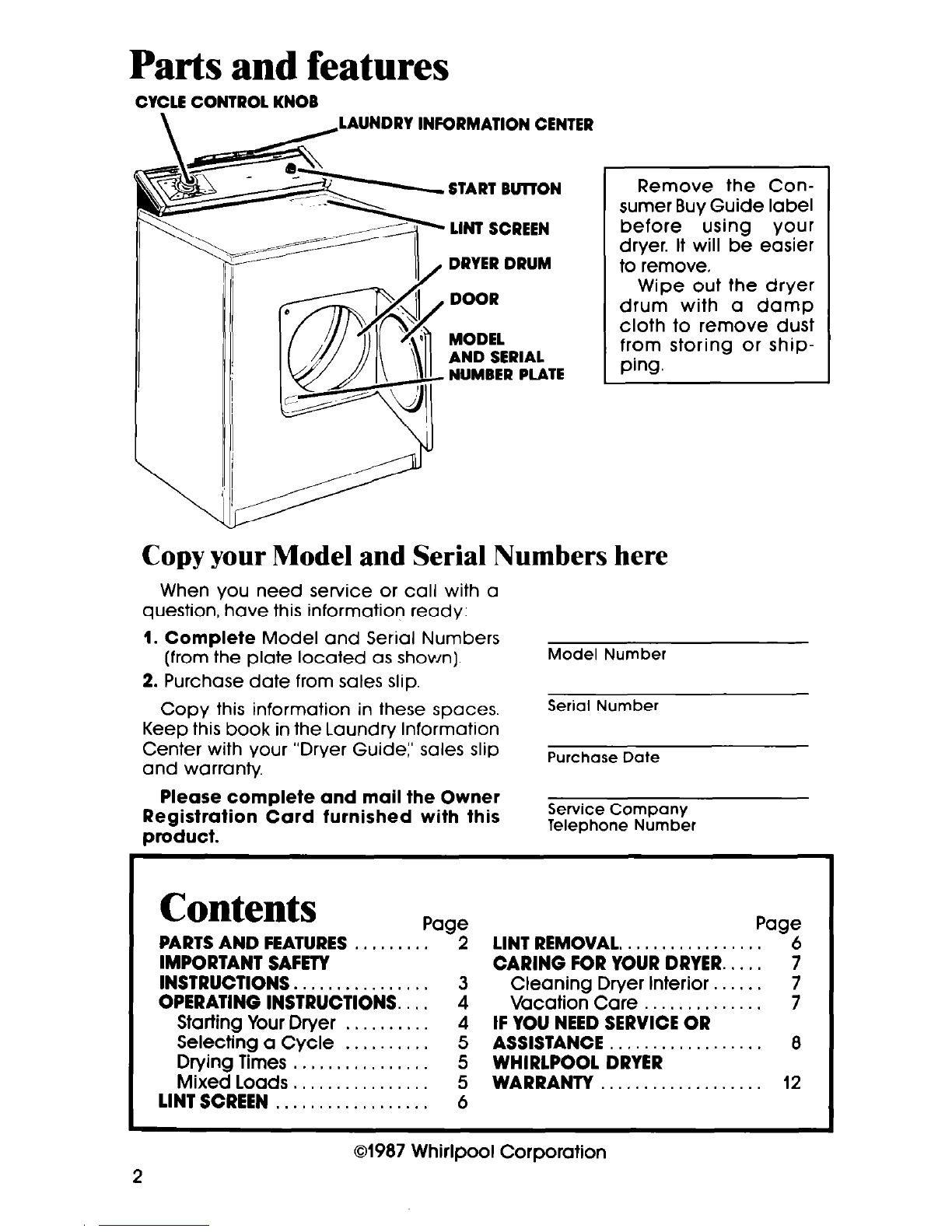

Parts and features

CYCLE CONTROL KNOB LAUNDRY INFORMATION CENTER

DRYERDRUM

‘i !

DOOR

MODEL

AND SERIAL

NUMBER PLATE

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

(from the plate located as shown).

2. Purchase date from sales slip.

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Dryer Guide:’ sales slip

and warranty.

Please complete and mail the Owner

Registration Card furnished with this

product.

Model Number

Serial Number

Purchase Date

Service Company

Telephone Number

Contents

Page

PARTS AND FEATURES . . , . . . . . . 2

IMPORTANT SAFETY

INSTRUCTIONS. . . . . . . . . . . . 3

OPERATING INSTRUCTIONS.. . . 4

Starting Your Dryer . . . . . . . 4

Selecting a Cycle . . . . . . . . 5

Drying Times . . . . . . . . . . . . . . 5

Mixed Loads . . . . . . . . . . 5

LINT SCREEN . . . . . . . . . . . . 6

LINT REMOVAL. . . . . . . . . . . . . . . ” 6

CARING FOR YOUR DRYER.. . . . 7

Cleaning Dryer Interior.. . . . 7

Vacation Care . . . . . . . . 7

IF YOU NEED SERVICE OR

ASSISTANCE . . . . . . 8

WHIRLPOOL DRYER

WARRANTY , . . . . . . 12

2 01987 Whirlpool Corporation

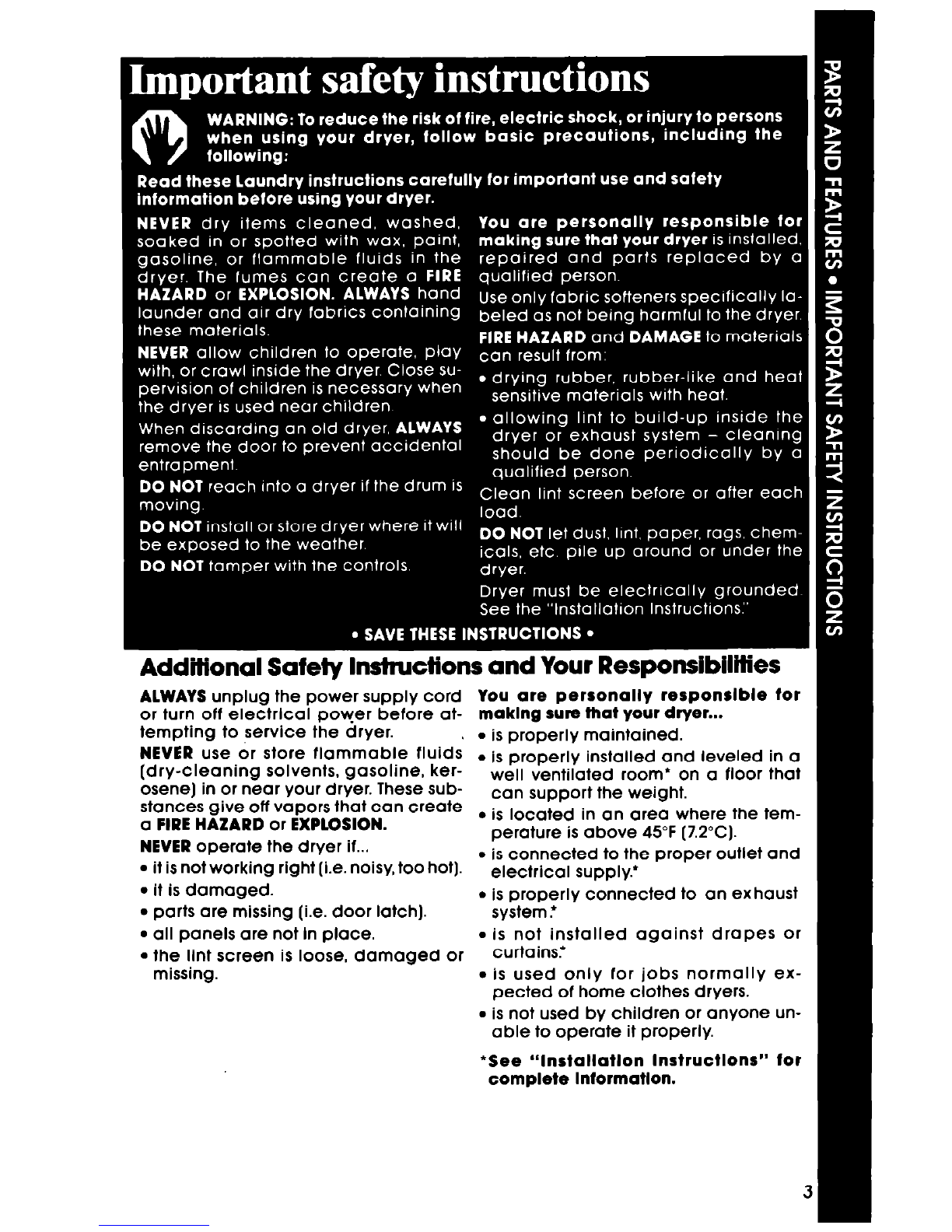

Additional Safety lnstruclions and Your Responsibilities

ALWAYS

unplug the power supply cord

or turn off electrlcal payer before at-

tempting to service the dryer. ,

NEVER

use or store flammable fluids

[dry-cleaning solvents. gasoline, ker-

osene) in or near your dryer. These sub-

stances give off vapors that can create

FIRE HAZARD

EXPLOSION.

NEVER

operate the dryer if...

it is not working right (i.e. noisy, too hot).

it is damaged.

You are personally responslble tar

maklng sure that your dryer...

is properly maintained.

Is properly installed and leveled in a

well ventilated room* on a floor that

can support the weight.

parts are missing (i.e. door latch).

9 all panels are not In place.

the lint screen is loose, damaged or

missing.

is located in an area where the tem-

perature is above 45°F (7.2%).

is connected to the proper outlet and

electrical supply.’

Is properly connected to an exhaust

system .*

. is not installed against drapes or

curtains.*

. is used only for jobs normally ex-

pected of home clothes dryers.

. is not used by children or anyone un-

able to operate it properly.

*See “lnstallatlon Instructlons” for

complete Intormatlon.

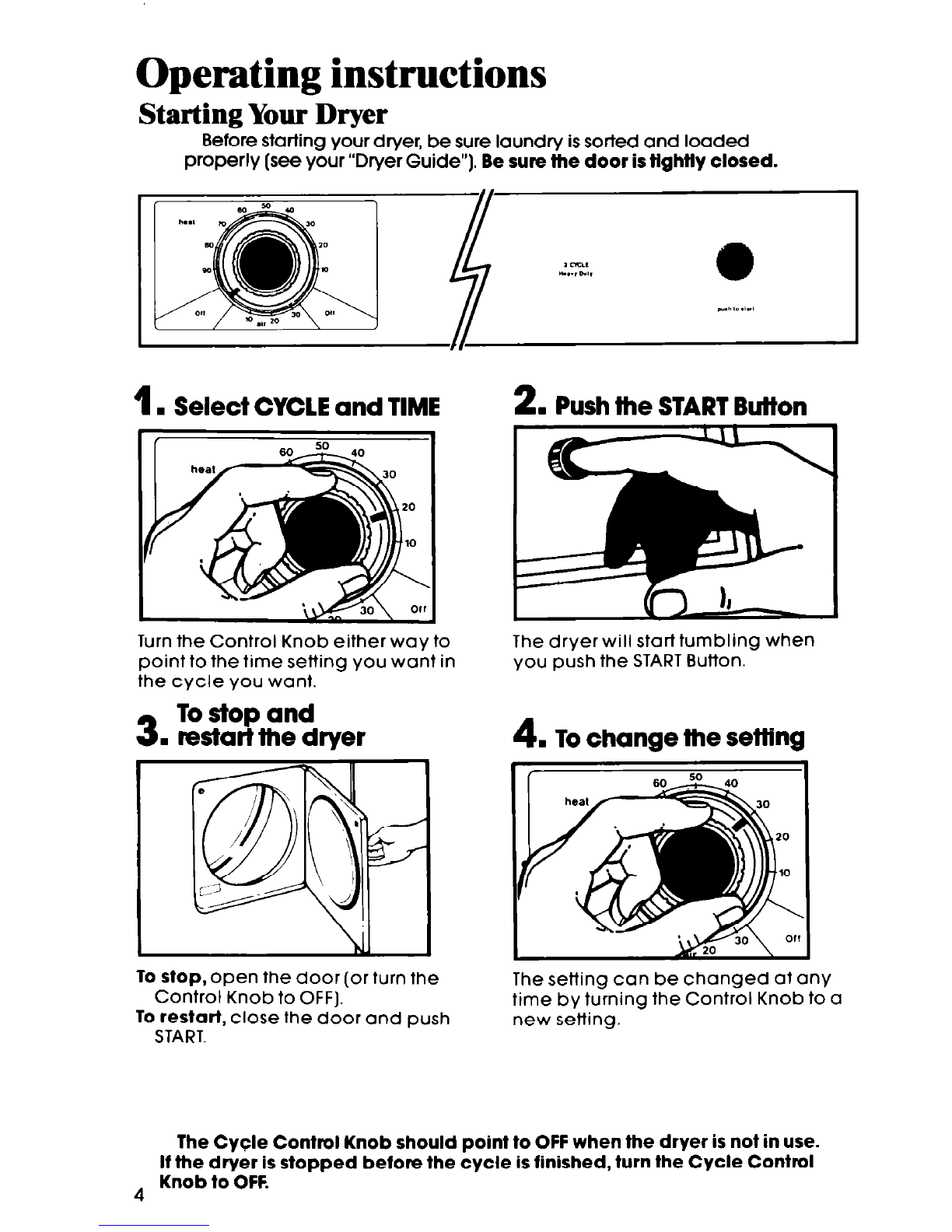

Operating instructions

Starting Your Dryer

Before starting your dryer, be sure laundry is sorted and loaded

properly (see your “Dryer Guide”). Be sure the door is tlghtly closed.

Select CYCLE and TIME

Turn the Control Knob either way to

point to the time setting you want in

the cycle you want.

To stop and

. restart the dryer

To stop, open the door (or turn the

Control Knob to OFF].

To restart, close the door and push

START.

. Push the STARTBulton

The dryer will start tumbling when

you push the START Button.

4. To change lhe setting

The setting can be changed at any

time by turning the Control Knob to a

new setting.

The Cy@e Control Knob should point to OFF when the dryer is not in use.

If the dryer is stopped before the cycle is finished, turn the Cycle Control

4 Knob to OFF.

Selecting a Cycle

Each dryer cycle is designed to dry certain kinds of fabrics. Use the

chart below to help you decide which cycle to use.

TYPE OF LOAD SUGGESTED CYCLE

COTTONS

HEAVY - Bedspreads, mattress pad&quilts , HEAT

MEDIUM AND LIGHTWEIGHT - Shirts, dresses,

sheets,diaoers,towels. work clothes . HEAT

PERMANENT PRESS

HEAVY - Work clothes,jackets, raincoats,etc. HEAT

MEDIUMWEIGHT -

Shirts,uniforms,dresses.slacks,etc. HEAT

KNITS

HEAVYWEIGHT - COTTONS, RAYONS, BLENDS -

T-Shirts,slacks,poloshirts.etc. . HEAT

LIGHTWEIGHT - SYNTHETIC FIBERS (polyester,

acrylic, etc.) AND BLENDS -

Linaerie. blouses.dresses.etc. . , HEAT

DELICATELY CONSTRUCTED FABRICS -

Sheer Curtains (2 or 3 panels) ............................. HEAT

RUBBER, PLASTIC, HEAT-SENSITIVE MATERIALS

Foam pillows, bras.etc. ................................... AIR

Plastic shower curtains.tablecloths ......................... AIR

Rubber backed rugs ...................................... AIR

Olefin,polypropylene,sheernylon ......................... AIR

The lost 5 minutes of the HEAT Cycle are without heat. This helps cool

down the load for easier handling and to reduce wrinkling.

Drying times Mixed loads

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

See your “Dryer Guide”

for more information.

To help reduce wrinkling, take

the load from the dryer as soon

as tumbling stops. This is very

important for permanent press,

knits and other synthetic

fabrics.

When drying a Load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove

dry items and reset the control.

DO NOT OVERDRY. Overdrying

can cause shrinkage, static

cling, and can damage some I

fabrics.

Lint screen

Clean the lint screen betore each load. A screen blocked by lint con

increase drying time and may be a FIREHAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more otten, depending

on dryer usage.

Heat Element

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid Injury or damage-do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel.

2. Avoid damaging wires or

thermostats.

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

relevel dryer.

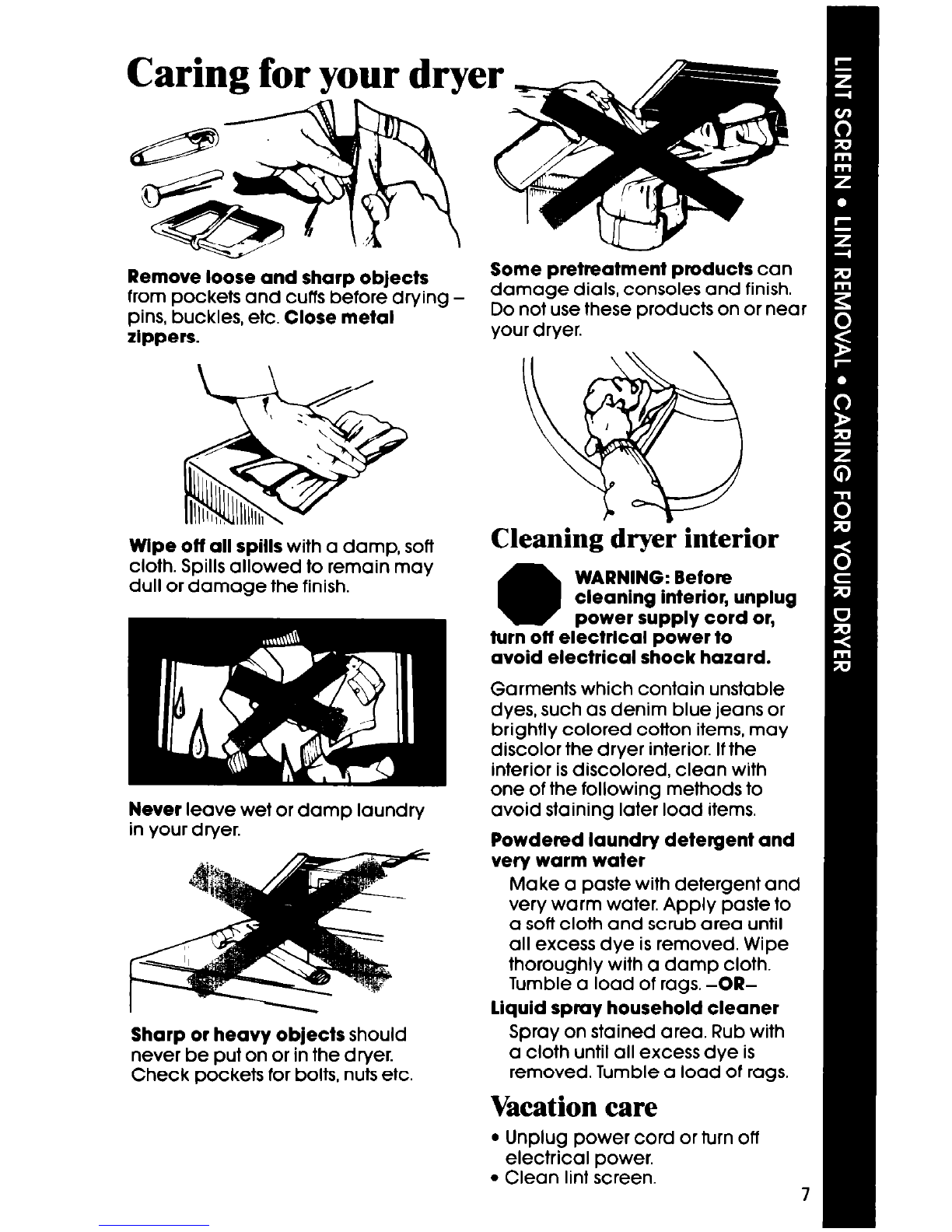

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning drye; interior

WARNING: Before

cleaning interior, unplug

power supply cord or,

turn off electrical power to

avoid electrical shock hazard.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

Unplug power cord or turn off

electrical power.

Clean lint screen.

If you need service or assistance,

we suggest you follow these five steps:

Before calling for

assistance...

Performance problems often result

from little things you can find and fix

yourself without tools of any kind.

IF YOUR DRYER DOES NOT RUN:

Is the power supply plugged into a

live circuit with the proper voltage?

Is the door closed tightly?

Did you push the STARTButton?

IF YOUR DRYER DOES NOT HEAT:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

An electric dryer uses a circuit

breaker or 2 fuses. If one

fuse

blown, the dryer may run, but not

heat.

IF DRYING TIME SEEMS LONG:

Is the lint screen clean? See page 6

of this book for cleaning instructions.

See page 5 of this book and your

“Dryer Guide:’

Have you checked your home’s

main fuses or circuit breaker box?

If you need

assistance?. .

Call Whirlpool COOL-LINEa serv-

ice assistance telephone number.

Dial free from anywhere in the U.S.:

l-800-253-l3Ol

and talk with one of our trained Con-

sultants. The Consultants can instruct

you in how to obtain satisfactory oper-

ation from your appliance or, if serv-

ice is necessary, recommend a

qualified service company in your

area.

If you need service%.

Whirlpool has

a nationwide net-

work of franchised

TECH-CARE” Serv-

ice Companies.

TECH-CARE serv-

ice technicians are trained to fulfill the

product warranty and provide after-

warranty service, anywhere in the

United States. To locate TECH-CARE

service in your area, call our COOL-

LINE service assistance telephone

number (see Step 2) or look in your

telephone directory Yellow Pages

under:

If you have a

problem?..

Call our COOL-LINE service as-

sistance telephone number (see Step

2) and talk with one of our Consultants,

or if you prefer, write to:

Mr. Robert Stanley

Division Vice President

Whirlpool Corporation

2000 M-63

Benton Harbor, Ml 49022

If you need FSP”

replacement parts%.

FSP is a registered trademark of

Whirlpool Corporation for quality

parts. Look for this symbol of quality

whenever you need a replacement

part for your Whirlpool appliance. FSP

replacement parts will fit right and

work right, because they are made to

the same exacting specifications

used to build every new Whirlpool

appliance.

*If you must call or write, please pro-

vide: model number, serial number,

date of purchase, and a complete

description of the problem. This

information is needed in order to

better respond to your request for

assistance.

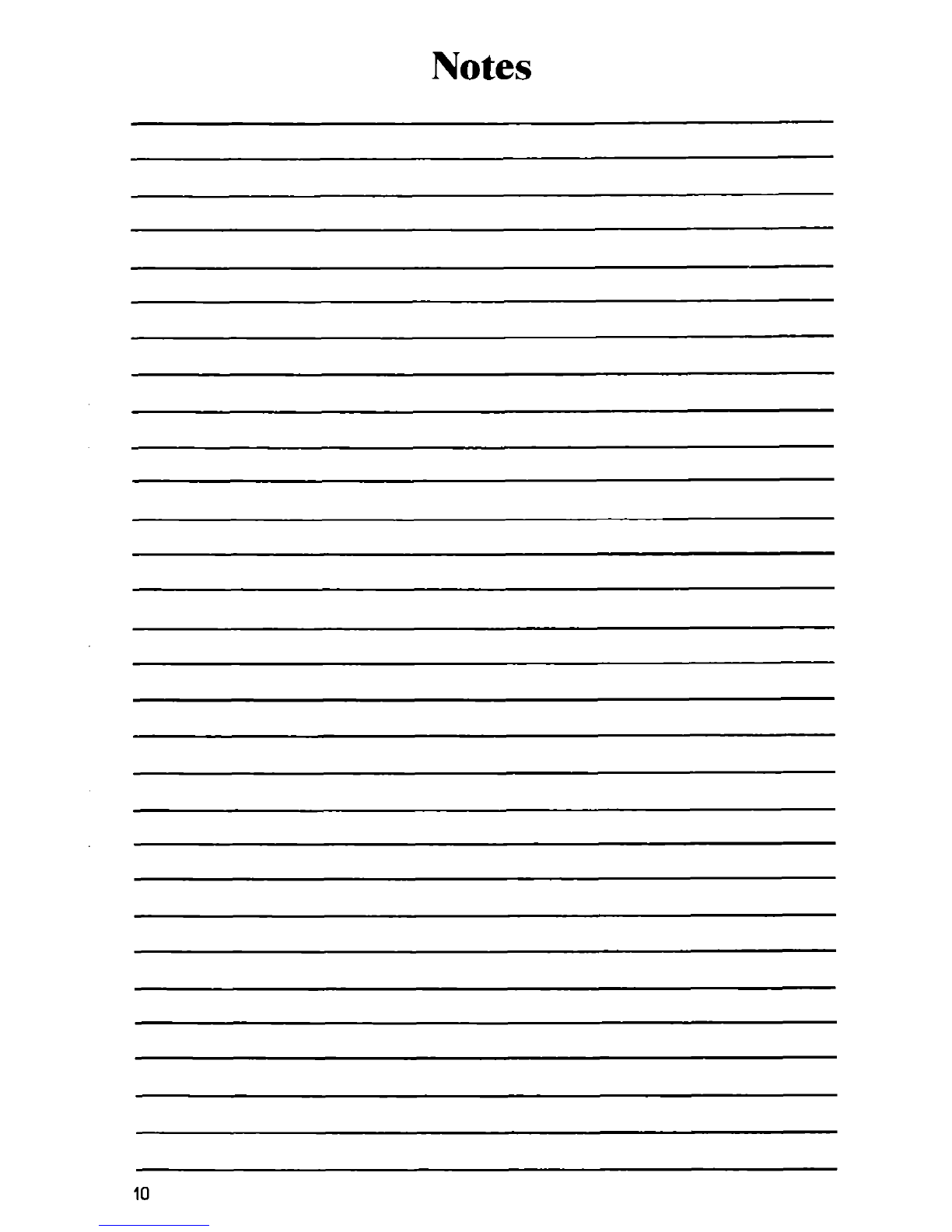

Notes

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool W10115228B Manuale utente

Whirlpool

Whirlpool Duet W10049540 Manuale utente

Whirlpool

Whirlpool Duet WGD9400SB0 Manuale utente

Whirlpool

Whirlpool AWZ8CDS/PRO Guida all'installazione

Whirlpool

Whirlpool Duet Sport W10151581A Manuale utente

Whirlpool

Whirlpool HWFB9002GW Guida all'installazione

Whirlpool

Whirlpool YLEV4634JQ1 Manuale utente

Whirlpool

Whirlpool Gold GGQ9800PW3 Manuale utente

Whirlpool

Whirlpool WED94HEAC Manuale utente

Whirlpool

Whirlpool WGD70HEBW Manuale utente

Whirlpool

Whirlpool WED6200SW1 Manuale utente

Whirlpool

Whirlpool CEM2760TQ0 Manuale utente

Whirlpool

Whirlpool Duet Steam Manuale utente

Whirlpool

Whirlpool MAYTAG MLG-52 Manuale utente

Whirlpool

Whirlpool WGD7300X Manuale utente

Whirlpool

Whirlpool WED9050XW Manuale utente

Whirlpool

Whirlpool W10115226B Manuale utente

Whirlpool

Whirlpool WED5500XW Manuale utente

Whirlpool

Whirlpool WGD7500GW Manuale utente

Whirlpool

Whirlpool MED8200FC Manuale utente

Whirlpool

Whirlpool YWED8800YW0 Manuale utente

Whirlpool

Whirlpool Electric and Gas Dryers Manuale utente

Whirlpool

Whirlpool FFT M22 9X2B UK Manuale utente

Whirlpool

Whirlpool W10757742A Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
