I------I

AUTOMATIC

DRYERS

Electric Model

LE5600XP

and

Gas Model

LG56olXP

Owave OvenS. Trash Compactors, Room Air Conditioners. Oehumldlflers, Automatic Washers, Clothes Dryers, Freezers. Refrigerator-Free21

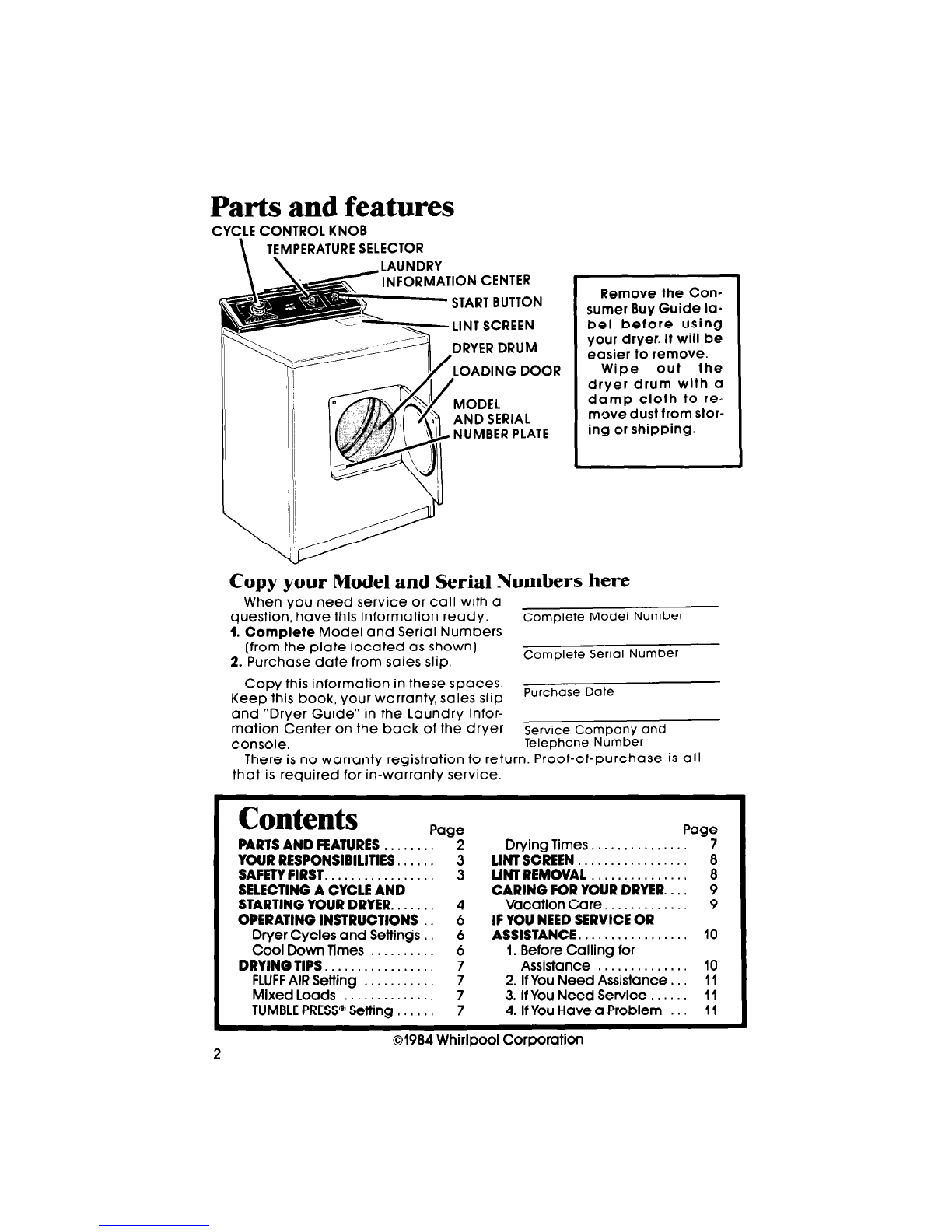

Parts and features

CYCLE CONTROL KNOB

\ TEMPERATURE SELECTOR

Contents

PARTS AND FEATURES . . . . . . . . 2

YOUR RESPONSIBILITIES. . . . . . 3

SAFETY FIRST. . . . . , . . . . . . . . . . , 3

SELECTING A CYCLE AND

STARTING YOUR DRYER. . . . . . . 4

OPERATING INSTRUCTIONS . . 6

Dryer Cycles and Settings . . 6

Cool Down Times . . . . . . 6

DRYING TIPS. . . . . . . . . . . . . 7

FLUFFAIR Setting . . . . . . . . 7

Mixed Loads . 7

TUMBLE PRESS@Setting . . . . . 7

LAUNDRY

;. INFORMATION CENTER

START BUTTON

DRYER DRUM

LOADING DOOR

NUMBER PLATE

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Complete Model

Number

4. Complete Model and Serial Numbers

(from-the plate located as shown).

2. Purchase date from sales slip.

Complete Serial

Number

Copy this information in these spaces.

Keep this book, your warranty, sales slip

Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console. Telephone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Page Page

Drying Times. . . . . . . . . . . . . 7

LINT SCREEN . . . . . . . . . . . . . . . B

LINT REMOVAL . . . . . . . . . . . . 8

CARING FOR YOUR DRYER. . . . 9

Vacation Care. . . . . . . . . 9

IF YOU NEED SERVICE OR

ASSISTANCE. . . . . . . . . . . . . 10

1. Before Calling for

Assistance . . . . . . . . . . 10

2. If You Need Assistance . . 11

3. IfYouNeedService . . . . . . 11

4. If You Have a Problem . . 11

01984 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room’ on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2‘CJ.

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems.’

is used only for jobs normally ex-

pected of home clothes dryers.

ISnot run where there may beexplo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

*See the “Installation Instructions” for

complete information.

l FOR YOUR SAFETY l

IF YOU SMELL GAS:

OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

3. EXTINGUISH ANY OPEN

FLAME.

4. IMMEDIATELY CALL

YOUR GAS SUPPLIER.

. FOR YOUR SAFETY l

DO NOT STOREOR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THIS OR ANY OTHER

APPLIANCE.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts. EX HEAVY

HEAVYWEIGHT FABRICS - Towels, PERM’T

jeans, corduroys, work clothes HEAVY PRESS

MEDIUMWEIGHT COTTONS - HEAVY

Sheets, pillowcases, cotton HIGH

underwear, diapers MEDIUM

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie LIGHT

PERMANENT PRESS, SYNTHETICS PERMIT PRESS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes, PERMIT

jackets, raincoats 40-50 MINS. PRESS

MEDIUMWEIGHT FABRICS - Shirts, play HEAVY

clothes, sheetsslacks _. _. 30-40 MINS. HIGH

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses 20-30 MINS.

KNITS PERM’T PRESS

HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS

blends, T-shirts, slacks, shirts _. 40-50 MINS. HEAVY HIGH

LIGHTWEIGHT - Synthetics (polyester, KNITS GENTLE

acrylic, etc.) and blends, lingerie, LOW

blouses, dresses 30-40 MINS.

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels] PERM’T PRESS KNITS GENTLE

20-30 MINS.

Gauze, lace, etc. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys 20-30 MINS. FLUFF

PLASTIC - Shower curtains, AIR

tablecloths 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEERNYLON 15-20 MIN.%

Select a

1. CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for informatlon on

the cycles.

Push the

3. START Button

2. SELECTOR

needed drying temperature

To stop and restart

the dryer

The dryer will start tumbling when

you push the START Button. To stop the dryer. open the door [or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

Dryer cycles and settings

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...0 period of heated drying

followed by a IO minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads.

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is deslgned to be

long enough to dry a load of heavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

f MORE TlhlE LESS ll:.lE -b

If the load is not as dry as you want,

set the dial more to the left the next

time you dry that kind of load.

If the load is dryer than you want,

set the dial more to the right the next

time you dry that kind of load.

Cool down times

In all cycles, the heat shuts off

before the dryer stops tumbling. This

cool down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

The PERMANENT PRESS Cycle has

10 minutes of cool down time at the

end of the cycle.

All other cycles have 5 minutes of

cool down time.

Drying tips

FLUFF AIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting con be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, snea kers,

etc.

1. Turn the Temperature Selector to

FLUFFAIR.

2. Turn the Control Knob to the

number of minutes you want in the

PERMANENT PRESSCycle.

3. Push the STARTButton.

Mixed loads

When drying a load with different

kinds and weights of fabrics. use the

cycle suggested for the lightest

fabrics. When the dryer stops. remove

dry items and reset the control.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may hove been pocked

in a suitcase, closet. or items not

removed from the dryer.

1. Set Temperature Selector to PERM’T

PRESS/HEAVY HIGH.

2. Set Control Knob to TUMBLE PRESS.

3. Push START Button.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Drying times

Drying times will vary depending on

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryer temperature

Selection.

See page 6 in your”Dryer Guide”

for more information.

Lint screen

Clean the lint screen before each load. A screen blocked by lint con

increase drying time and may be Q FIRE HAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen

with your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly bock into

place.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric)

or lower access panel [gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art- with a sofl brush or

vacuum cleaner.

4, Replace panel; reconnect and

re-level dryer.

Caring for your dryer

Remove sharp objects from clothing

before drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp.soft

clothSpills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry in

your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Non-colorfast items can stain the

drum. Wipe carefully after drying to

make sure there is no dye to be

transferred to items in the next load.

Vacation care

Some pretreatment products can

damaae dials, console and finish. D

not usethese products on or near

your dryer.

Unplug power cord or For gas dryers, close Clean lint screen.

turn off electrical power. gas valve.

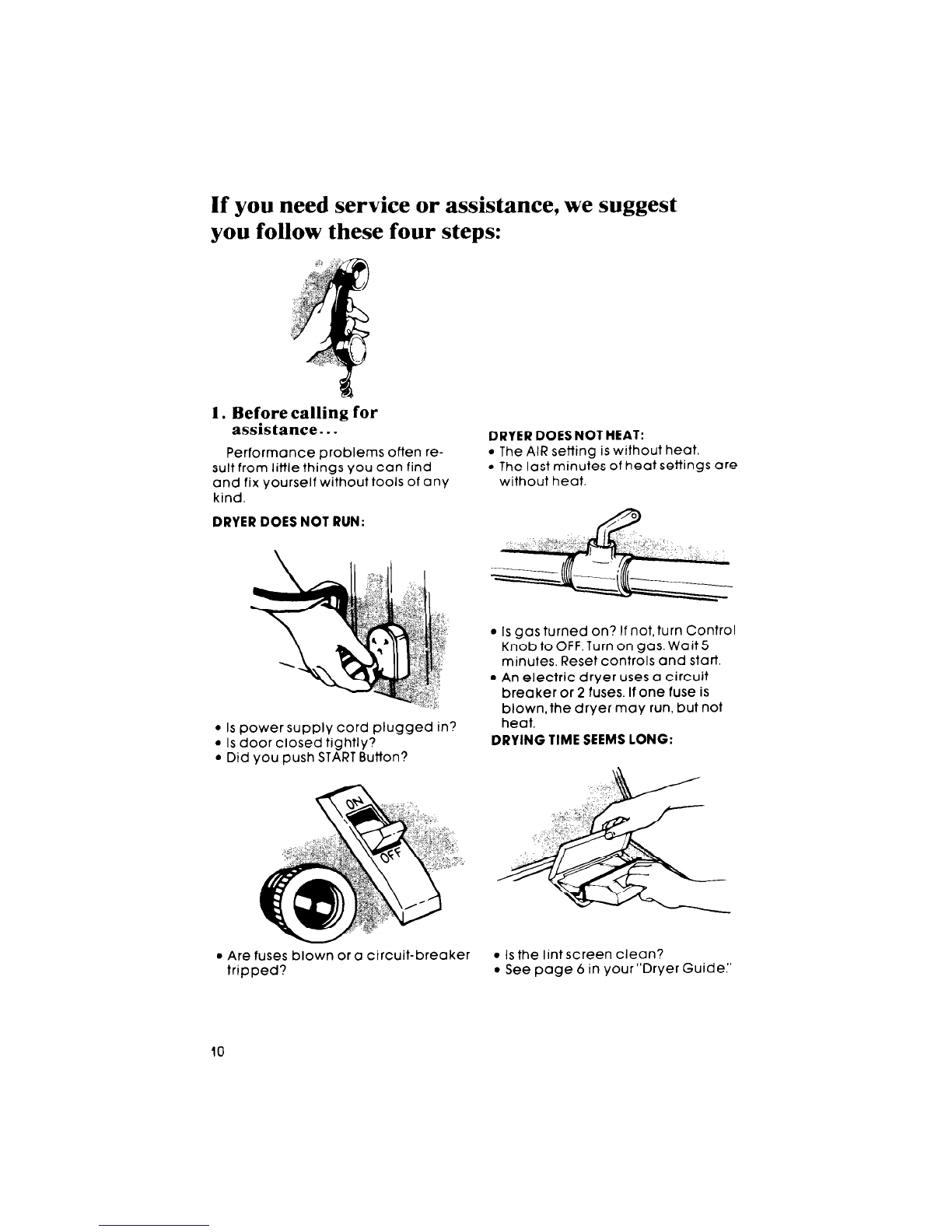

If you need service or assistance, we suggest

you follow these four steps:

1. Before calling for

assistance.. .

Performance problems often re-

sult from little things you can find

and fix yourself without tools of any

kind.

DRYER DOES NOT RUN:

Is power supply cord plugged in?

Is door closed tightly?

Did you push START Button?

DRYER DOES NOT HEAT:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Is gas turned on? If not, turn Control

Knob to OFF. Turn on gas. Wait 5

minutes. Reset controls and start.

An electric dryer uses a circuit

breaker or 2 fuses. If one fuse is

blown, the dryer may run, but not

heat.

DRYING TIME SEEMS LONG:

Are fuses blown or a circuit-breaker

Mooed?

Is the lint screen clean?

See page 6 in your”Dryer Guide:’

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool WGD9151YW Manuale utente

Whirlpool

Whirlpool LER4624DQ0 Manuale utente

Whirlpool

Whirlpool GGW9250PW Manuale utente

Whirlpool

Whirlpool Vantage WGD7990X Manuale utente

Whirlpool

Whirlpool 8TCEM2760KQ0 Manuale utente

Whirlpool

Whirlpool LGV4634JQ0 Manuale utente

Whirlpool

Whirlpool LEW0050PQ2 Guida alla risoluzione dei problemi

Whirlpool

Whirlpool WGD8620HW Manuale utente

Whirlpool

Whirlpool AWZ8CD/PRO Guida all'installazione

Whirlpool

Whirlpool LE7000XP Manuale utente

Whirlpool

Whirlpool W10150612A Manuale utente

Whirlpool

Whirlpool LER5624BN0 Manuale utente

Whirlpool

Whirlpool LE6090XS Manuale utente

Whirlpool

Whirlpool LER56000 Manuale utente

Whirlpool

Whirlpool Duet Sport W10151581A Manuale utente

Whirlpool

Whirlpool duet GEW9260PL1 Manuale utente

Whirlpool

Whirlpool Cabrio WGD6200S Manuale elenco delle parti

Whirlpool

Whirlpool 6LE5700XSW0 Manuale utente

Whirlpool

Whirlpool Duet GEW9250PW Manuale utente

Whirlpool

Whirlpool WED8120HC Manuale utente

Whirlpool

Whirlpool WGD9400SW1 Manuale utente

Whirlpool

Whirlpool FFT M22 9X2SBX GCC Manuale utente

Whirlpool

Whirlpool WED4850X Guida utente

Whirlpool

Whirlpool GEQ9800PW Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
