Parts and features

CYCLE CONTROL KNOB

LAUNDRYINFORMATIONCENTER

TEMPERATURESELECTOR

STARTBUI"rON

' SERIAL

iNUMBERPLATE

ELECTRONIC

DRYNESS

SENSOR

DRYER DRUM

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

LOADING DOOR

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

[from the plate located as shown].

2. Purchase date from sales slip.

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your "Dryer Guide;' sales slip

and warranty.

Please complete and mail the Owner

Registration Card furnished with this

product.

Model Number

Serial Number

Purchase Date

Service Company

Telephone Number

Contents Page

Page

PARTS AND FEATURES ......... 2

IMPORTANT SAFETY

INSTRUCTIONS ................ 3

OPERATING INSTRUCTIONS .... 4

Selecting a Cycle and

Starting Your Dryer ........ 4

Automatic Cycles ........... 6

Timed Drying ............... 6

DRYING TIPS .................. 7

FLUFFAiR Setting ............ 7

TUMBLEPRESS" Setting ....... 7

Electronic DRY-MISERR

Control ................... 7

Gentle Heat ................. 7

Drying Times ................ 8

Mixed Loads ................ 8

End-of-Cycle Signal ......... 8

Lint Signal .................. 8

LINT SCREEN .................. 9

LINT REMOVAL ................. 9

CARING FOR YOUR DRYER..... 10

Cleaning Dryer Interior ...... 10

Vacation Care .............. 10

IF YOU NEED SERVICE OR

ASSISTANCE .................. 11

WHIRLPOOL DRYER

WARRANTY ................... 12

2 _1987 Whirlpool Corporation

Additional Safety Instructions and Your Responsibilities

NEVER operate the dryer if...

•it is not working right (i.e. noisy, too hot).

• it is damaged.

• parts are missing [i,e. door latch].

• all panels are not in place.

• the lint screen is loose, damaged or

missing.

FOR YOUR SAFETY

If you smell gas:

t. Open windows.

2. Don't touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

ALWAYS shut off the gas vane before leav-

ing on vacation.

ALWAYS unplug the power supply cord or

turn off electrical power before attempting

to service the dryer. Shut off GAS VALVE if

yours is a gas dryer.

You are personally responsible for making

sure that your dryer...

• is properly maintained.

•is properly installed and leveled in a well

ventilated room" on a floor that can sup-

port the weight.

• is located in an area where the tempera-

ture is above 45 F [7.2 C],

• is connected to the proper outlet and

electrical supply.*

• is properly connected to fuel and ex-

haust systems.*

• is not installed against drapes or

curtains."

• is used only for jobs normally expected

of home clothes dryers.

• is not used by children or anyone unable

to operate it properly.

*See "Installation Instructions" for com-

plete information.

Operating instructions

Selecting a Cycle

and Starting

Your Dryer

Before starting your dryer, be

sure laundry is sorted and loaded

properly [see your "Dryer Guide"].

Be sure the door is tightly closed.

SUGGESTED SUGGESTED

TYPEOF LOAD CYCLE TEMPERATURE

CoI"rONS - LINENS

EXTRAHEAVY- Bedspreads,

mattress pads, quilts ...................

HEAVYWEIGHT FABRICS- Towels,

jeans, corduroys, work clothes .........

MEDIUMWEIGHT CoI"rONS -

Sheets, pillowcases, cotton

underwear, diapers ...................

LIGHTWEIGHTCo1"rONS -Batistes,

organdies, lingerie ....................

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHTFABRICS-Work clothes,

jackets, raincoats .....................

MEDIUMWEIGHT FABRICS- Shirts, play

clothes, sheets, slacks ..................

LIGHTWEIGHTFABRICS- Lingerie,

blouses, dresses .......................

HEAVY

HIGH

AUTOMATIC PERM"rPRESS

REGULAR MED

AUTOMATIC

PERMANENT

PRESS

KNITSGENTLE

LOW

PERM'T PRESS

MED

MED LOW

KNITS

HEAVYWEIGHT- Cottons, rayons,

blends, T-shirts, slacks, shirts ............

LIGHTWEIGHT- Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses .......................

AUTOMATIC MED LOW

PERMANENT

PRESS KNITS GENTLE

LOW

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC

Sheer Curtains (2 or 3 panels) ............ PERMANENT EX LOW

Gauze, lace, etc ......................... PRESS

RUBBER,PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stuffed toys ............................

PLASTIC- Shower curtains,

tablecloths ............................

RUBBER-BACKEDRUGS ....................

OLEFIN, POLYPROPYLENE,SHEERNYLON ...

FLUFF EXLOW

AIR

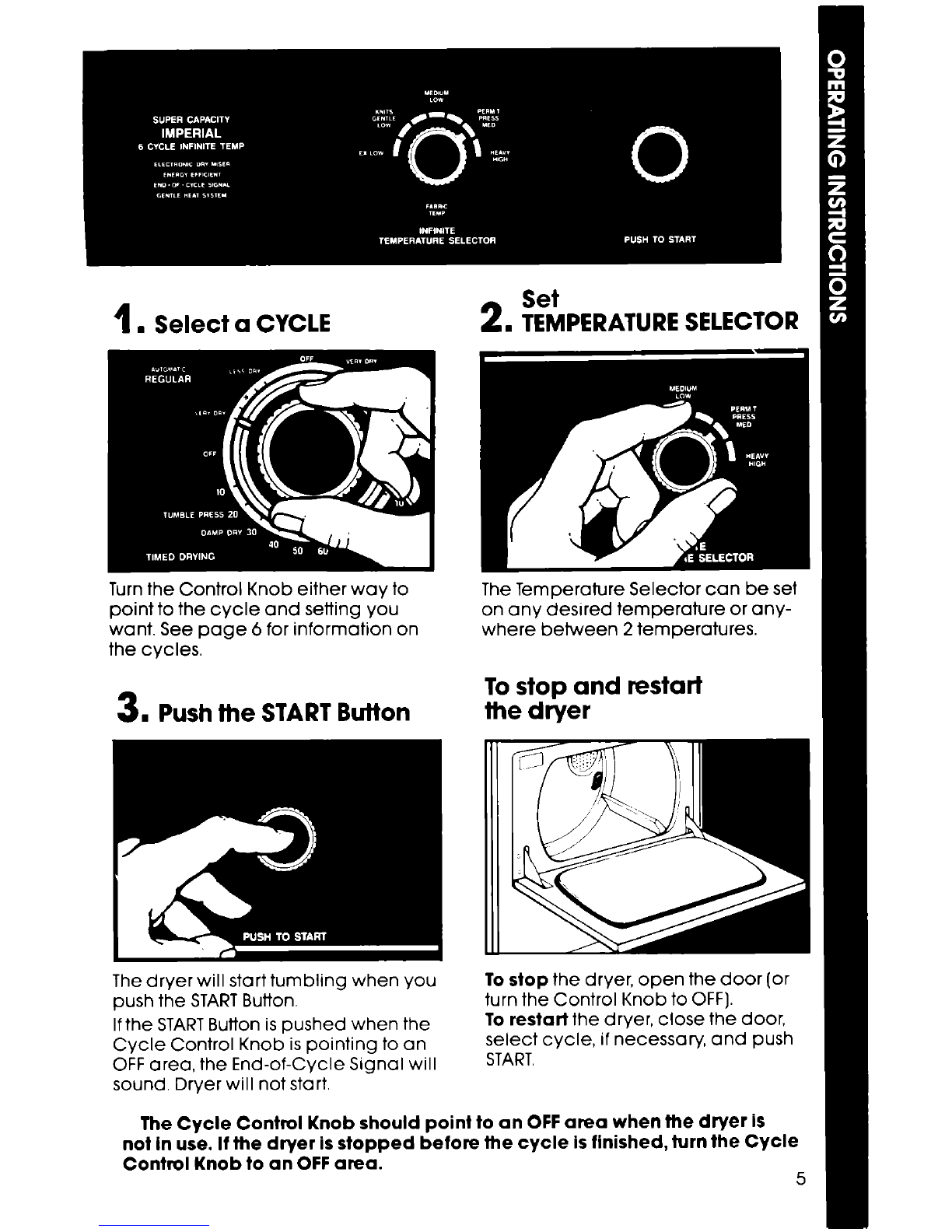

1. Select a CYCLE Set

2. TEMPERATURESELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

3. Push the START Button

The Temperature Selector can be set

on any desired temperature or any-

where between 2temperatures.

To stop and restart

the dryer

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start.

To stop the dryer, open the door (or

turn the Control Knob to OFF].

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to an OFF area when the dryer is

not In use. If the dryer is stopped before the cycle is finished, turn the Cycle

Control Knob to an OFF area. 5

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Cycle Control Knob will not

move until the clothes load is almost

dry, or the COOL-DOWN portion of

the cycle has been reached. After

COOL-DOWN, the knob automatically

moves to an OFF area and tumbling

stops.

For the first few loads, set the Control

Knob to point to an_ in either auto-

matic cycle. When the dryer stops,

feel the dried items.

Use

AUTOMATIC

REGULAR to

dry heavy

and medium-

weight cotton items. The load tum-

bles without heat during the last 5

minutes. This helps make the load

easier to handle.

• It items are drier than you like, use

a setting to the right of the_the next

time you dry a similar load,

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in and

ma kes the load easier to handle.

•If items are not as dry as you like,

use a setting to the left of the • the

next time you dry a similar load.

Timed drying

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

• Turn the Control Knob to the number

of minutes you want- from 10 to 70.

• The last 5 minutes of this cycle are

without heat - a cool-down time. This

helps make the load easier to

handle.

Drying tips

FLUFF AIR

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

TUMBLE PRESS" Setting

The TUMBLEPRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

t. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

Electronic DRY-MISER"

Control

An electronic sensor determines

the amount of moisture in the

clothes and automatically shuts off

when the proper dryness is reached.

t. Set Control Knob to TUMBLEPRESS.

2. Set Temperature Selector to PERM'T

PRESS/MED.

3. Push STARTButton,

The load will tumble in heated air

for 15 minutes. The heat shuts off and

the dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLEPRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops,

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVY HIGH and

PERM'TPRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

Drying times Mixed loads

Drying times will vary depending on:

•amount of moisture in the clothes.

• type and weight of the fabric.

• size of the load.

• room temperature around the dryer

• temperature of the wash rinse water.

• amount of lint in the lint screen.

• dryer temperature selection.

See your "Dryer Guide" for more

information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove dry

items and reset the control.

End-of-cycle signal

The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal ishelpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

Lint signal

Clean lint screen before each load. Ifyou

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency,

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIREHAZARD.

Open the lid and pull the lint screen

straight out, ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more often, depending

on dryer usage. Funnel

Heater Box.

Thermostats

ELECTRIC DRYERS

Igniter

Lower

Access

Panel

GAS DRYERS

Cleaning should be done only by a qualified person.

1. Remove back panel [electric]

or lower access panel [gas}.

2. Avoid damaging wires,

thermostats, funnel or igniter,

3. Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer. 9

Caring for your dryer

Remove loose and sharp objects Some pretreatment products can

damage dials, consoles and finish.

from pockets and cuffs before drying -Do not use these products on or near

pins, buckles, etc. Close metal your dryer.

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Cleaning dryer interior

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags.-OR-

Liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

•Unplug power cord or turn off

electrical power.

• For gas dryers, close gas valve.

• Clean lint screen.

Altri manuali per LE6098XS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool Electric and Gas Dryers Manuale utente

Whirlpool

Whirlpool LEV4624BW0 Manuale utente

Whirlpool

Whirlpool LE5750XK Manuale utente

Whirlpool

Whirlpool LE61OOXS Manuale utente

Whirlpool

Whirlpool WED560LHW Manuale utente

Whirlpool

Whirlpool AWD712S2 Manuale utente

Whirlpool

Whirlpool W10097012B Manuale utente

Whirlpool

Whirlpool YWED9500TU0 Manuale utente

Whirlpool

Whirlpool LEQ8800JQ1 Manuale utente

Whirlpool

Whirlpool 3LCGD9100 Manuale utente

Whirlpool

Whirlpool WGD6200SW1 Manuale utente

Whirlpool

Whirlpool duet GEW9260PL1 Manuale utente

Whirlpool

Whirlpool 29" Manuale utente

Whirlpool

Whirlpool WED5800 Manuale utente

Whirlpool

Whirlpool WED5500ST Manuale utente

Whirlpool

Whirlpool GEW9868KQ Manuale utente

Whirlpool

Whirlpool GEC9858HQ0 Manuale utente

Whirlpool

Whirlpool LGQ8000JQ5 Manuale utente

Whirlpool

Whirlpool LET7646AQ2 Manuale utente

Whirlpool

Whirlpool LE7005XP Manuale utente

Whirlpool

Whirlpool WGD9050X Manuale

Whirlpool

Whirlpool Estate TGDS840JQ1 Manuale utente

Whirlpool

Whirlpool LEV7646AW1 Manuale utente

Whirlpool

Whirlpool CABRIO W10305227B Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
