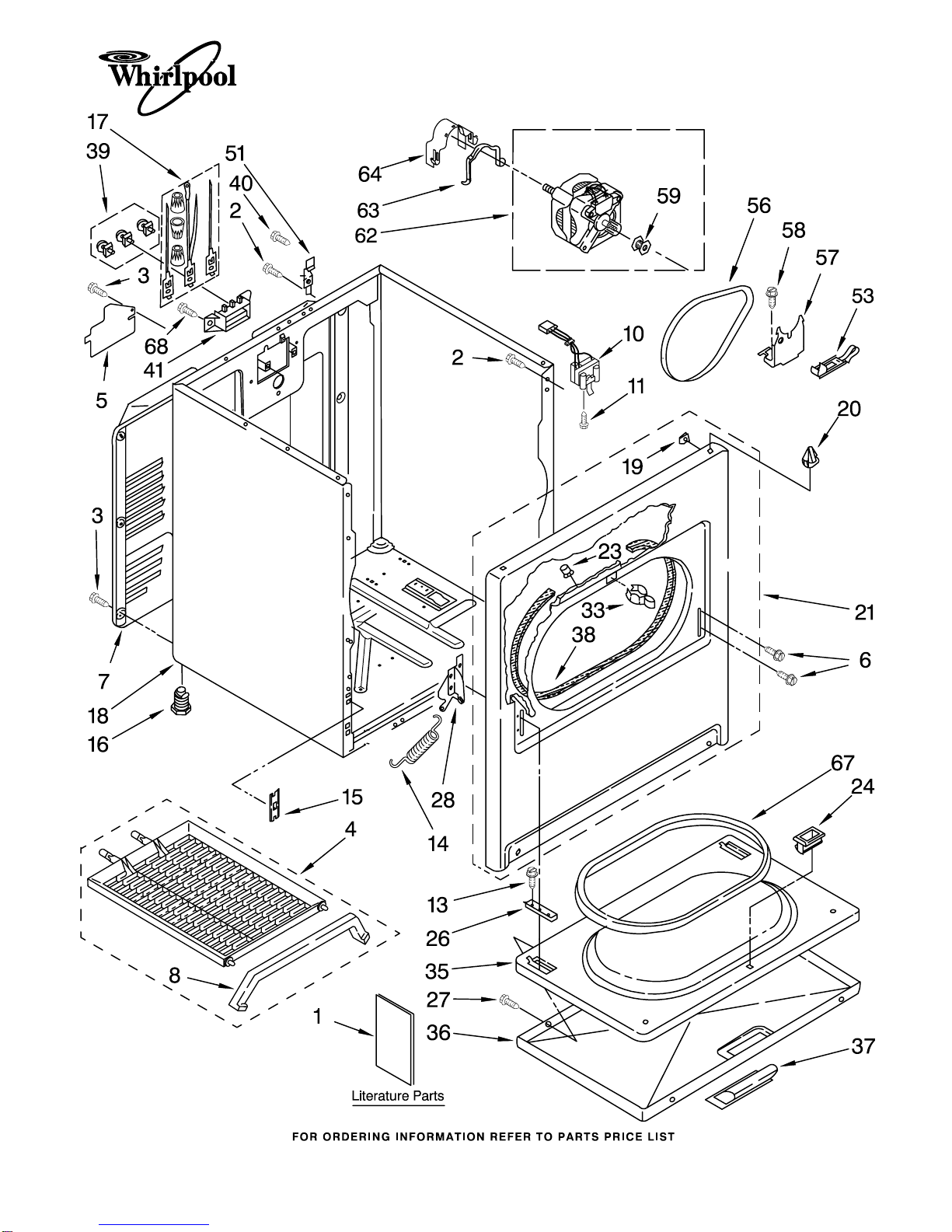

CABINET PARTS
1
For Model: LEB6400KQ1
(Designer White)
10−01 Litho in U.S.A. (djc) Part No. 4377991
29"ELECTRIC DRYER
CABINET PARTS
2
For Model: LEB6400KQ1
(Designer White)
4377991
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT3397618
Instructions,
Installation
LIT8528324
Use & Care Guide
LIT3406661
Label, Wiring
Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, 8−18 x 3/8
4 3406839 Dry Rack
Assembly
5 3396795 Cover, Block
6 342043 Screw, 10−32 x 3/8
7 3396805 Panel, Rear
8 692989 Bracket,
Dry Rack
10 3406107 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
13 3357011 Screw, 10−16 x 1/2
14 692495 Spring, Door (2)
15 3394083 Clip, Front
Panel (2)
16 3392100 Foot, Dryer
279810 Foot−Optional
(Extended Length
Package of 2)
(Not Included)
17 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 39)
18 8530603 Cabinet
19 98234 Clip, Ground
20 690363 Lock, Front Top (2)
21 695620 Panel, Front
23 685203 Clip, Felt Pad (3)
24 3389441 Catch, Door
Assembly
26 337189 Clip, Hinge (2)
27 694091 Screw, 8−18 x 3/8
28 8066056 Hinge, R.H.
8066057 Hinge, L.H.
33 696144 Strike, Door
35 695737 Door, Rear
36 3393549 Door, Front
37 690270 Handle, Door
38 3406129 Seal & Bearing
Assembly
39 279393 Terminal Block
Kit (For
Terminal Block)
40 697776 Screw, 10−32 x 5/8
41 3397659 Block, Terminal
51 238088 Hinge, Top (2)
53 3394332 Idler & Slide
Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3394341 Pulley, 60 Hz.
62 661654 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 3390731 Seal, Door
68 3393008 Screw, 10−16 x 1/2

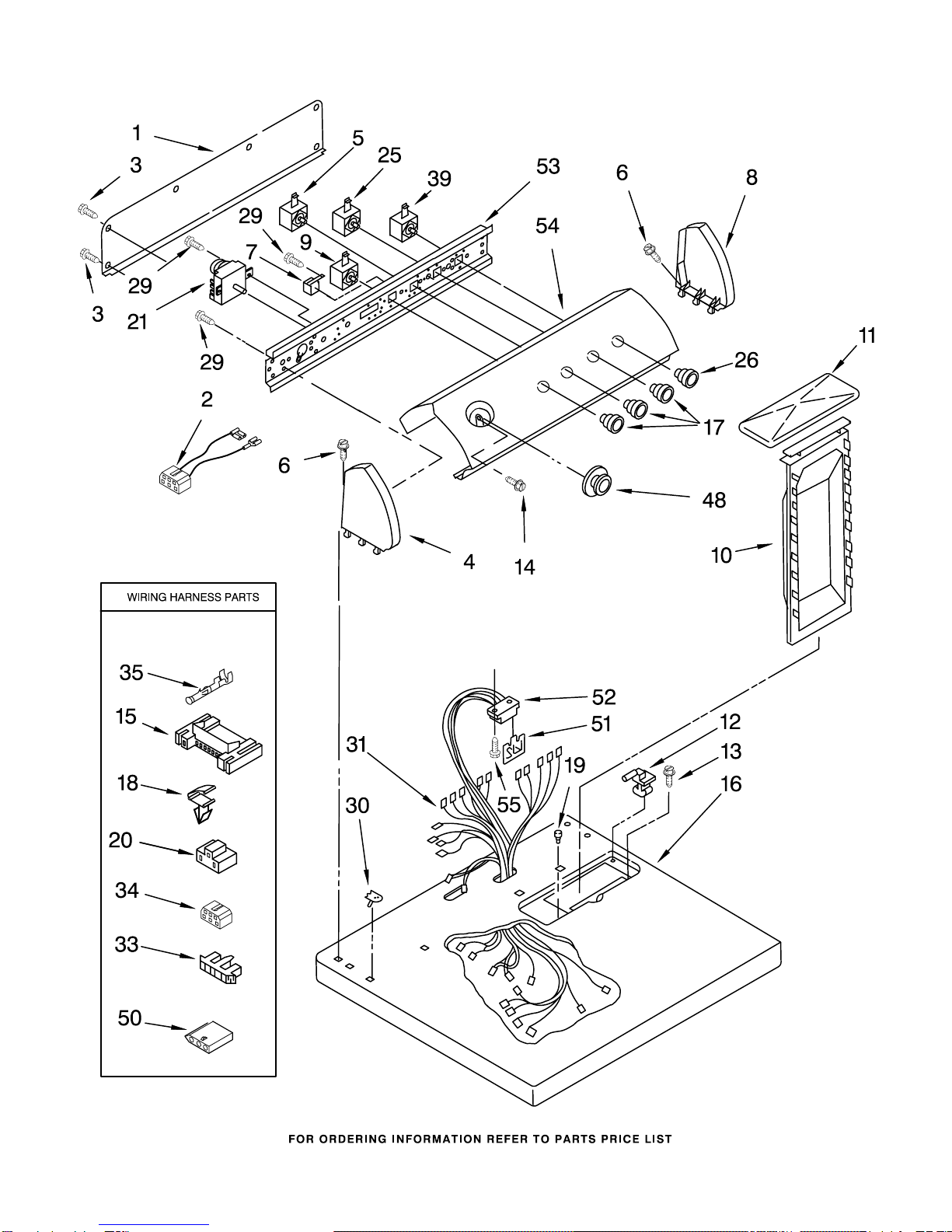

TOP AND CONSOLE PARTS
3
For Model: LEB6400KQ1
(Designer White)
4377991
TOP AND CONSOLE PARTS
OPTIONAL PARTS (NOT INCLUDED)
4
For Model: LEB6400KQ1
(Designer White)
4377991
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8274261 Panel, Rear
Console
2 3401695 Wire, Jumper
(Buzzer On/Off)
3 693995 Screw, Hex Head
4 8271365 Cap, End (L.H.)
5 3405154 Switch,
Finish Guard
6 388326 Screw, Console
7 694419 Buzzer, Mini
8 8271359 Cap, End (R.H.)
9 8528330 Switch,
Temperature
10 349639 Screen, Lint
11 8283378 Cover, Lint
Screen
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 3400859 Screw, Grounding
15 3395683 Connector
(Motor)
16 8271390 Top
17 8271339 Knob, Control (3)
18 3394427 Clip−Harness
19 297535 Bumper, Lint Lid
20 3401144 Connector,
(PTS Relay)
21 3406725 Timer, 60 Hz.
25 3405152 Switch,
End of Cycle
26 8271341 Knob,
Push−To−Start
29 3390646 Screw, Mounting
(8−18 x 5/16)
30 357213 Nut, Push−In (2)
31 8299889 Harness, Wiring
33 3397269 Connector
(Timer)
34 3347243 Connector
6−Circuit
35 94614 Terminal
39 3398094 Switch,
Push−To−Start
48 8312687 Timer Knob
Assembly
50 3936144 Connector
51 3390537 Control,
Electronic
52 3391885 Connector, Edge
53 8271418 Bracket, Control
54 3977860 Panel, Control
55 343641 Screw, 10−16 x 1/2
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)

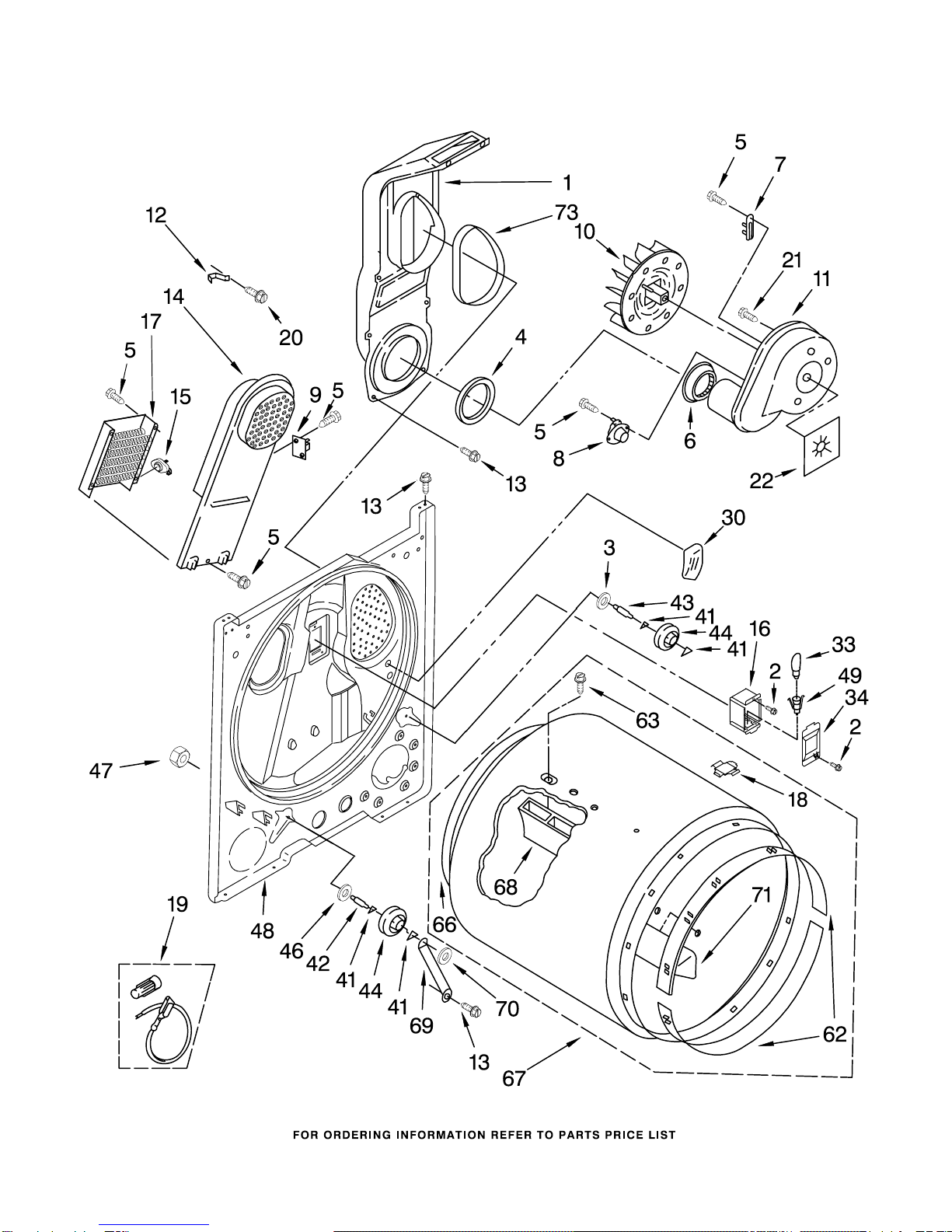

BULKHEAD PARTS
5
For Model: LEB6400KQ1
(Designer White)
4377991
BULKHEAD PARTS
6
For Model: LEB6400KQ1
(Designer White)
4377991
Illus. Part
No. No. DESCRIPTION
1 348368 Lint Chute
Assembly
2 487909 Screw, 8−15 x 1/2
3 3388703 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 696302 Shield, Exhaust
7 3392519 Thermal Fuse
8 8318268 Thermostat,
Internal−Bias
9 3977393 Thermal, Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
10 694089 Wheel, Blower
(Includes Illus.
No. 22)
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
15 3977767 Thermostat,
221 F
(105 C)
16 3977373 Bracket, Drum
Light
17 3403585 Element, Heater
18 8066086 Drum Hole
Plug
19 279457 Wire Kit, Terminal
(For Heater
Element Wiring
Harness Repair)
20 489463 Screw, 8−18 x 5/8
21 3390647 Screw, 8−18 x 1/2
22 3394196 Seal, Blower
30 3976479 Pad, Sensor
33 3406124 Bulb
34 3402841 Lens, Drum Light
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3403414 Bulkhead
49 3403634 Socket Assembly
62 692526 Ring, Bearing (2)
63 97787 Screw, 11−16 x 3/4
66 3406130 Seal, Rear Drum
67 695587 Drum Assembly
68 692490 Baffle, Drum (2)
69 3976434 Bracket, Support
70 90296 Clip
71 3403636 Baffle, Drum (1)
73 339956 Seal
