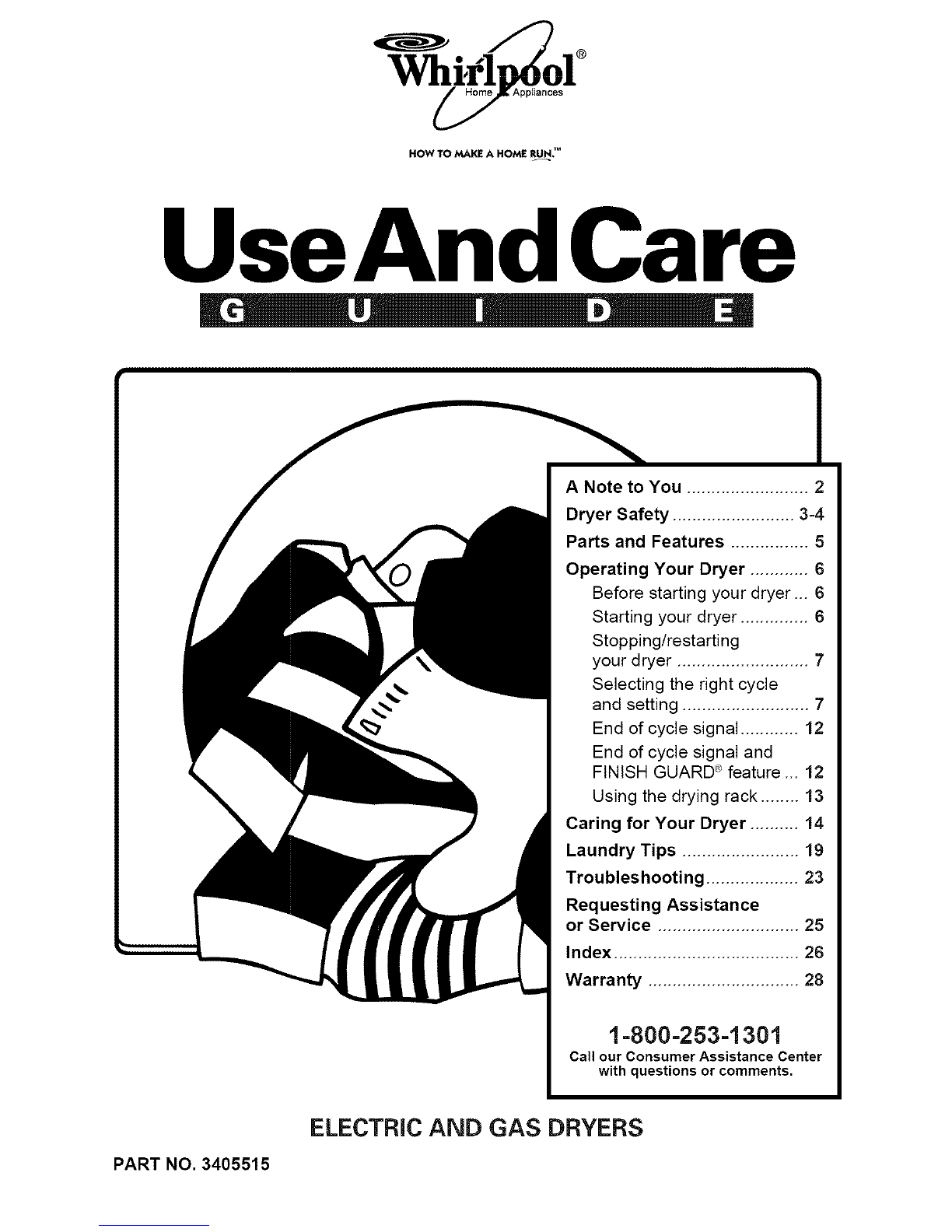

Whirlpool LEC8858EZ0 Manuale utente

HOW TO MAKE A HOME RUN.TM

Use And Care

PART NO. 3405515

A Note to You ......................... 2

Dryer Safety ......................... 3-4

Parts and Features ................ 5

Operating Your Dryer ............ 6

Before starting your dryer ... 6

Starting your dryer .............. 6

Stopping/restarting

your dryer ........................... 7

Selecting the right cycle

and setting .......................... 7

End of cycle signal ............ 12

End of cycle signal and

FINISH GUARD ®feature ... 12

Using the drying rack ........ 13

Caring for Your Dryer .......... 14

Laundry Tips ........................ 19

Troubleshooting ................... 23

Requesting Assistance

or Service ............................. 25

Index ...................................... 26

Warranty ............................... 28

1-800=253-1301

Call our Consumer Assistance Center

with questions or comments.

ELECTRIC AND GAS DRYERS

A Note to You

Thank you for buying aWHIRLPOOL ®appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dryers are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. tt contains valuable informa-

tion about how to operate and maintain your dryer properly and safely. Please read it care-

fully. Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model's information.

Whenever you call to request service on

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

page 5 for location of label).

Please also record the purchase date of

your appliance and your dealer's name,

address, and telephone number.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

number is toil-free, i-uvv-_-_-i _v_

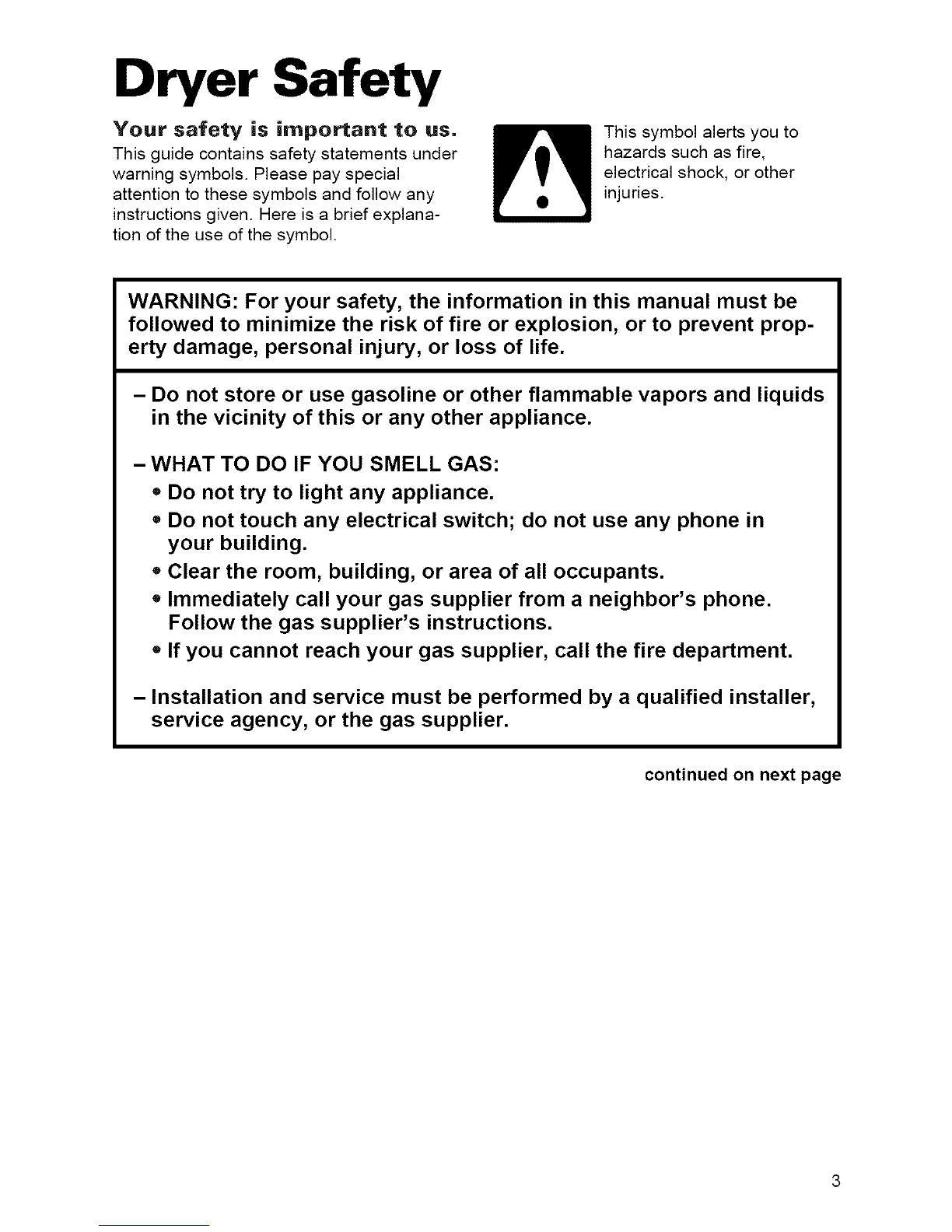

Dryer Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to

hazards such as fire,

electrical shock, or other

injuries.

WARNING: For your safety, the information in this manual must be

followed to minimize the risk of fire or explosion, or to prevent prop-

erty damage, personal injury, or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids

in the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in

your building.

•Clear the room, building, or area of all occupants.

Immediately call your gas supplier from a neighbor's phone.

Follow the gas supplier's instructions.

•If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

continued on next page

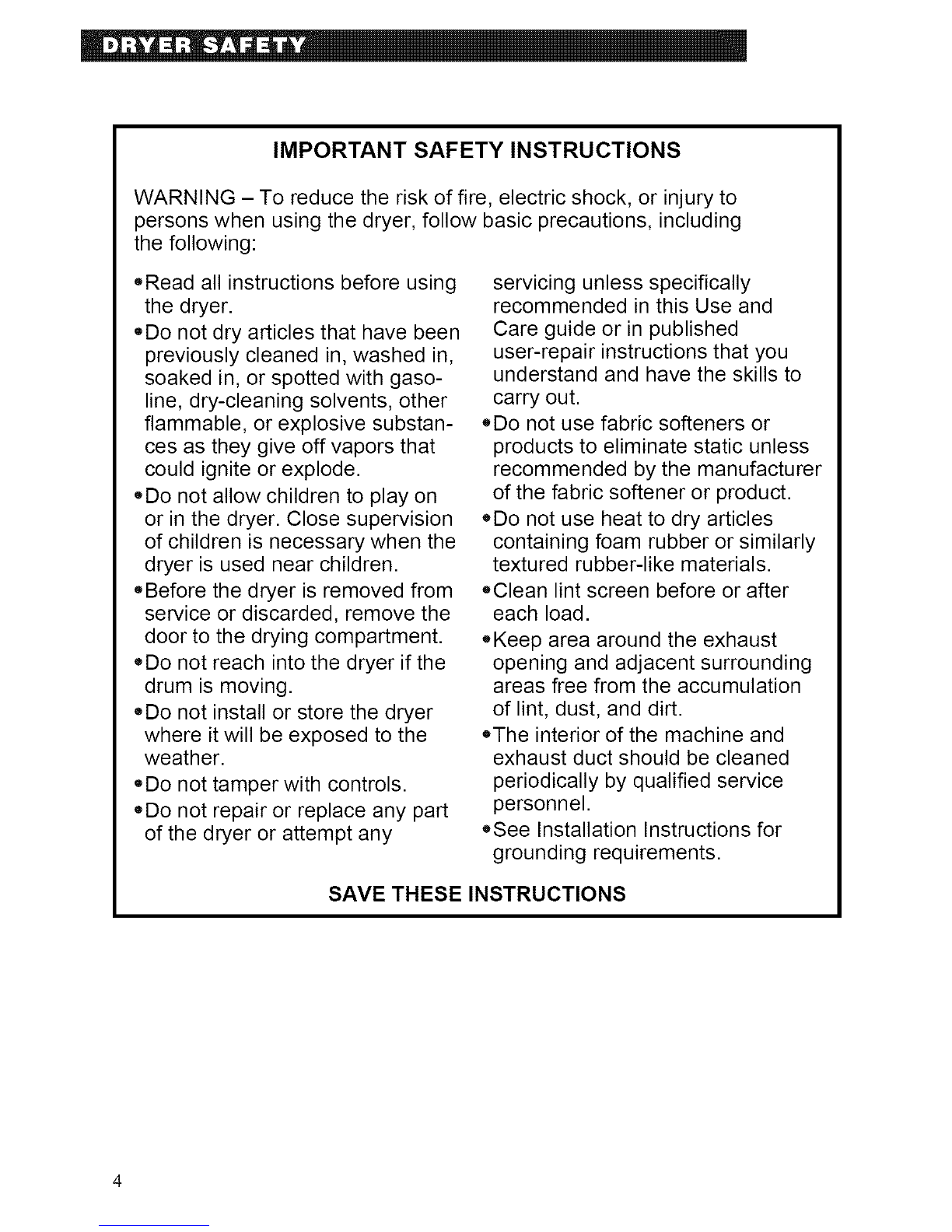

IMPORTANT SAFETY INSTRUCTIONS

WARNING -To reduce the risk of fire, electric shock, or injury to

persons when using the dryer, follow basic precautions, including

the following:

• Read all instructions before using

the dryer.

eDo not dry articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gaso-

line, dry-cleaning solvents, other

flammable, or explosive substan-

ces as they give off vapors that

could ignite or explode.

oDo not allow children to play on

or in the dryer. Close supervision

of children is necessary when the

dryer is used near children.

eBefore the dryer is removed from

service or discarded, remove the

door to the drying compartment.

eDo not reach into the dryer if the

drum is moving.

eDo not install or store the dryer

where it will be exposed to the

weather.

eDo not tamper with controls.

eDo not repair or replace any part

of the dryer or attempt any

servicing unless specifically

recommended in this Use and

Care guide or in published

user-repair instructions that you

understand and have the skills to

carry out.

eDo not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer

of the fabric softener or product.

eDo not use heat to dry articles

containing foam rubber or similarly

textured rubber-like materials.

eClean lint screen before or after

each load.

*Keep area around the exhaust

opening and adjacent surrounding

areas free from the accumulation

of lint, dust, and dirt.

*The interior of the machine and

exhaust duct should be cleaned

periodically by qualified service

personnel.

eSee Installation Instructions for

grounding requirements.

SAVETHESEINSTRUCTIONS

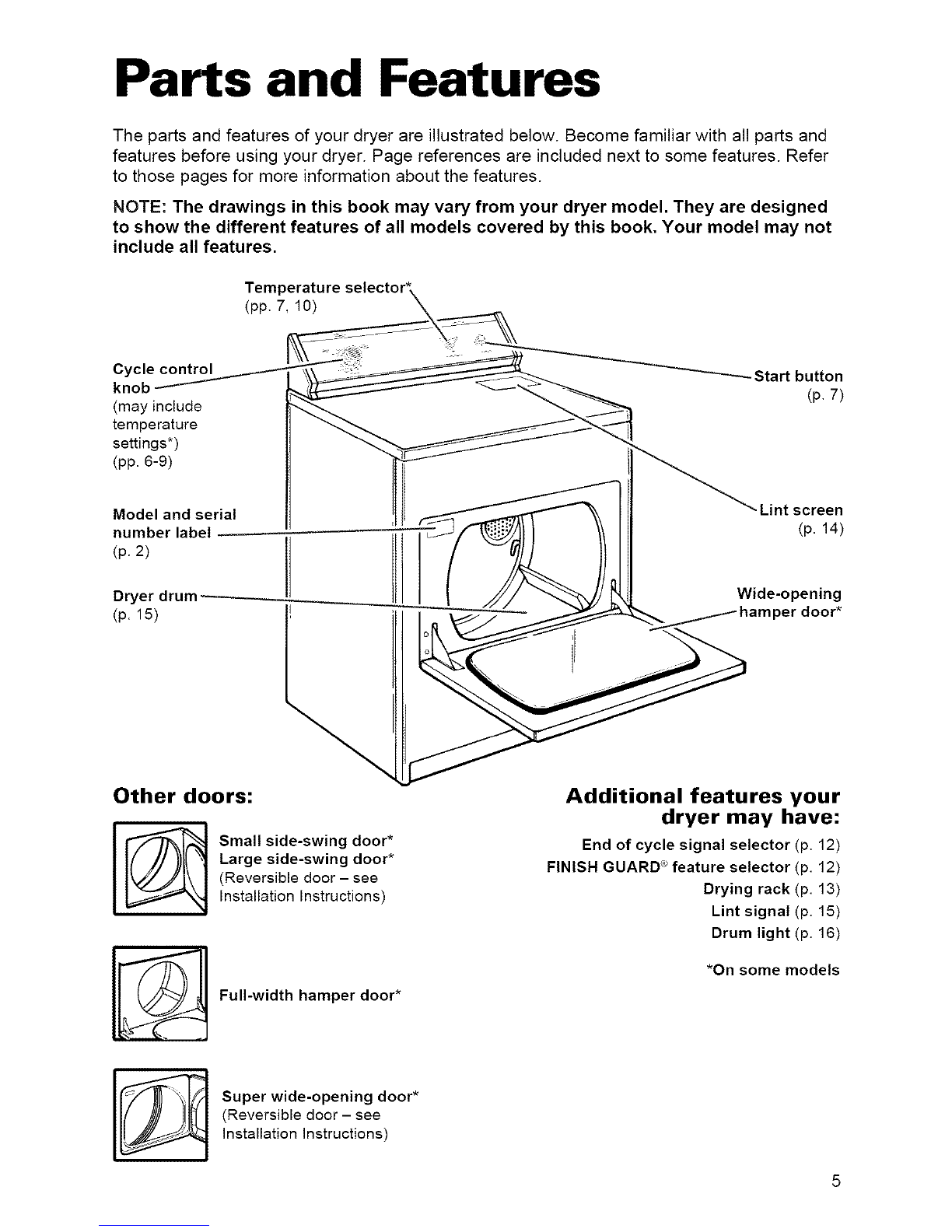

Parts and Features

The parts and features of your dryer are illustrated below. Become familiar with all parts and

features before using your dryer. Page references are included next to some features. Refer

to those pages for more information about the features.

NOTE: The drawings in this book may vary from your dryer model. They are designed

to show the different features of all models covered by this book. Your model may not

include all features.

Temperature

(pp. 7, 10)

Cycle control

knob

(may include

temperature

settings*)

(pp. 6-9)

Start button

(p. 7)

Model and serial

number label

(p. 2)

Dryer drum

(p. 15) I"-Lint screen

(p. 14)

Wide-opening

per door*

Other doors:

Small side-swing door*

Large side-swing door*

(Reversible door - see

Installation Instructions)

Full-width hamper door*

Additional features your

dryer may have:

End of cycle signal selector(p. 12)

FINISHGUARD_feature selector (p. 12)

Drying rack(p. 13)

Lint signal (p. 15)

Drum light (p. 16)

*On some models

Super wide-opening door*

(Reversible door - see

installation instructions)

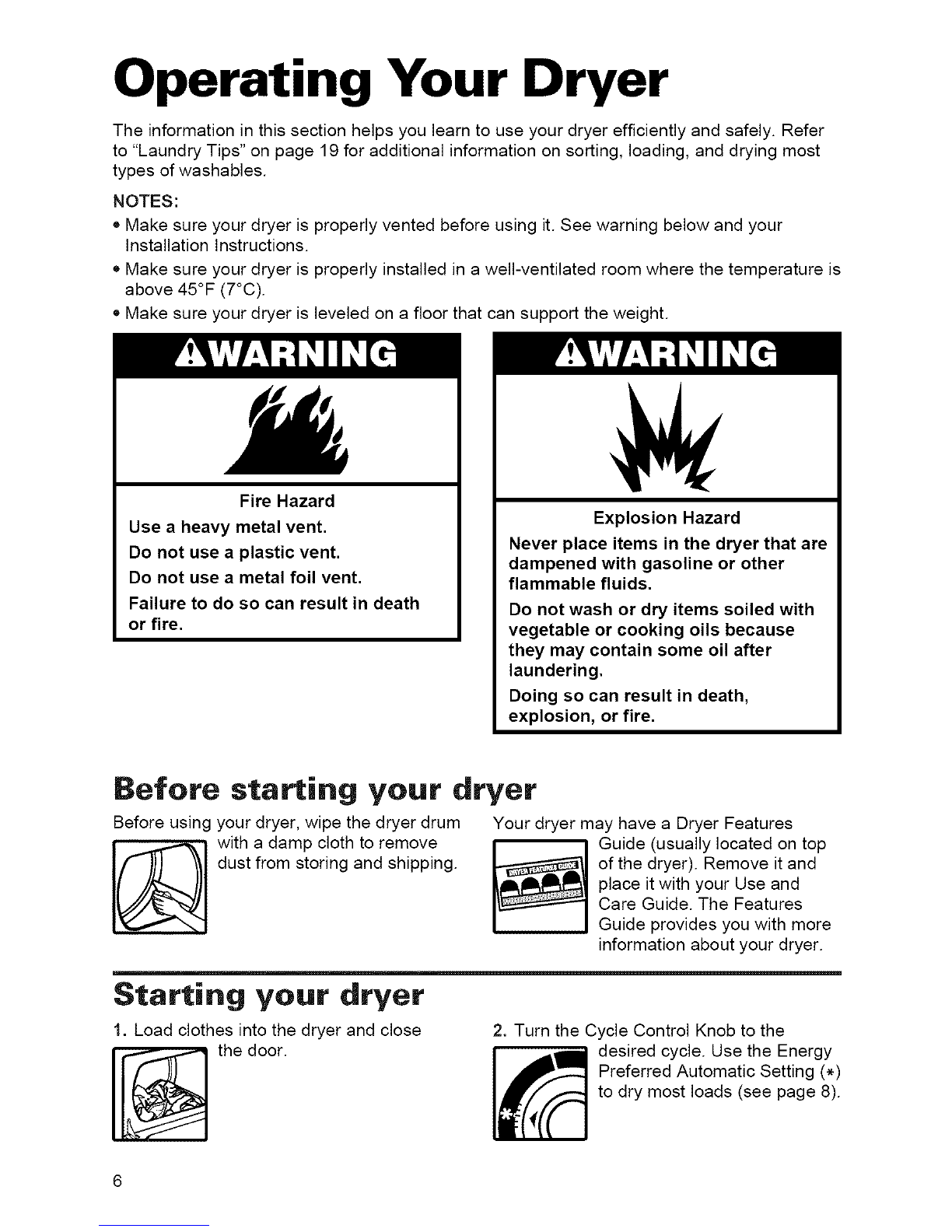

Operating Your Dryer

The information in this section helps you learn to use your dryer efficiently and safely. Refer

to "Laundry Tips" on page 19 for additional information on sorting, loading, and drying most

types of washables.

NOTES:

• Make sure your dryer is properly vented before using it. See warning below and your

Installation Instructions.

• Make sure your dryer is properly installed in a well-ventilated room where the temperature is

above 45°F (7°C).

• Make sure your dryer is leveled on a floor that can support the weight.

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to do so can result in death

or fire.

Explosion Hazard

Never place items in the dryer that are

dampened with gasoline or other

flammable fluids.

Do not wash or dry items soiled with

vegetable or cooking oils because

they may contain some oil after

laundering.

Doing so can result in death,

explosion, or fire.

Before

Before using your dryer, wipe the dryer drum

with a damp cloth to remove

dust from storing and shipping.

starting your dryer

Your dryer may have a Dryer Features

Guide (usually located on top

of the dryer). Remove it and

place it with your Use and

Care Guide. The Features

Guide provides you with more

information about your dryer.

Starting your dryer

1. Load clothes into the dryer and close

the door. 2. Turn the Cycle Control Knob to the

.__ desired cycle. Use the Energy

Preferred Automatic Setting (*)

to dry most loads (see page 8).

3.If your dryer has a Temperature Selector,

set it to the desired setting

_ (see page 10). Some dryer

....... models have either a rotary

O knob or tap touch

Temperature Selector.

4. Push the Start Button.

NOTE: Your dryer stops automatically when

a cycle ends.

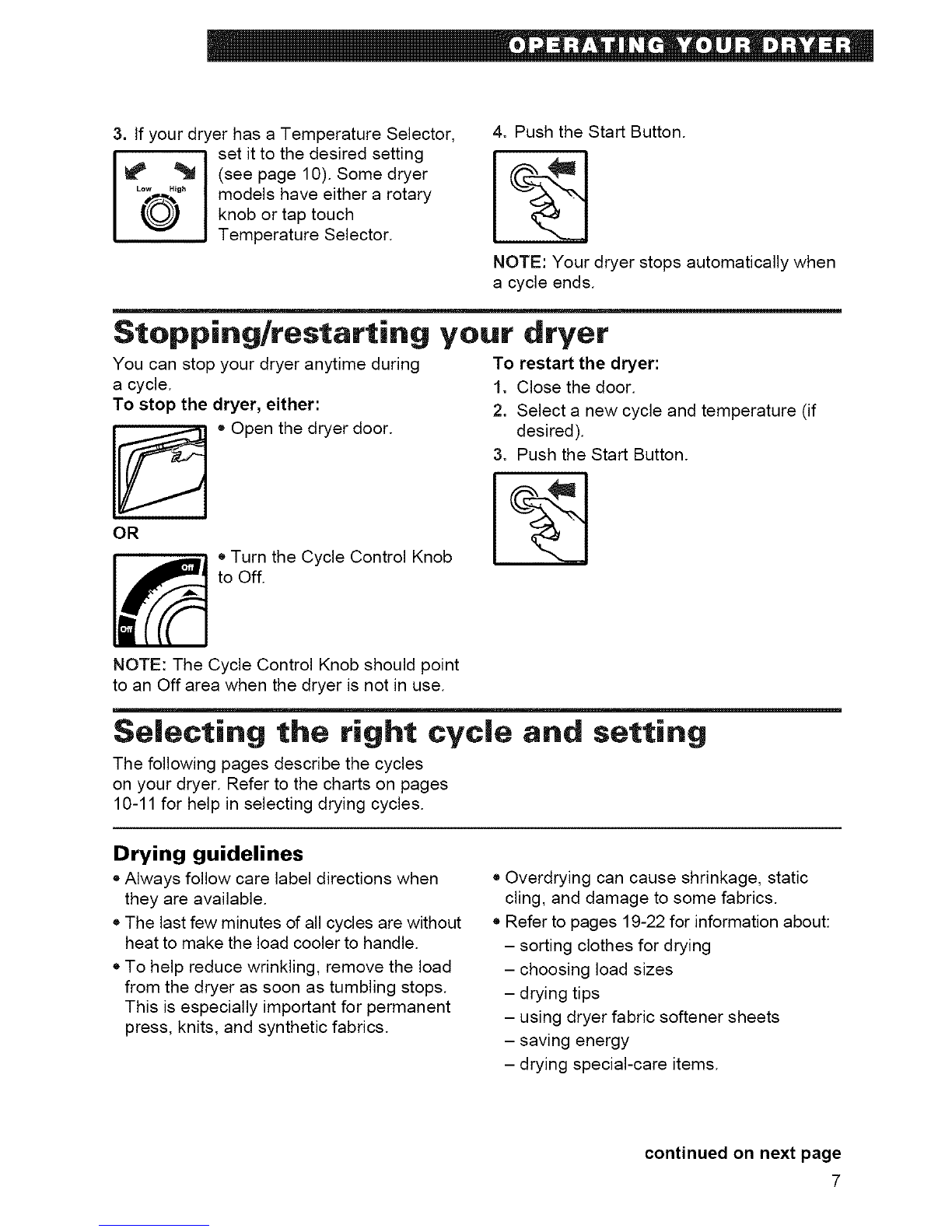

Stopping/restarting your dryer

You can stop your dryer anytime during

a cycle.

To stop the dryer, either:

• Open the dryer door.

To restart the dryer:

1. Close the door.

2. Select a new cycle and temperature (if

desired).

3. Push the Start Button.

• Turn the Cycle Control Knob

to Off.

NOTE: The Cycle Control Knob should point

to an Off area when the dryer is not in use.

Selecting the right cycle and setting

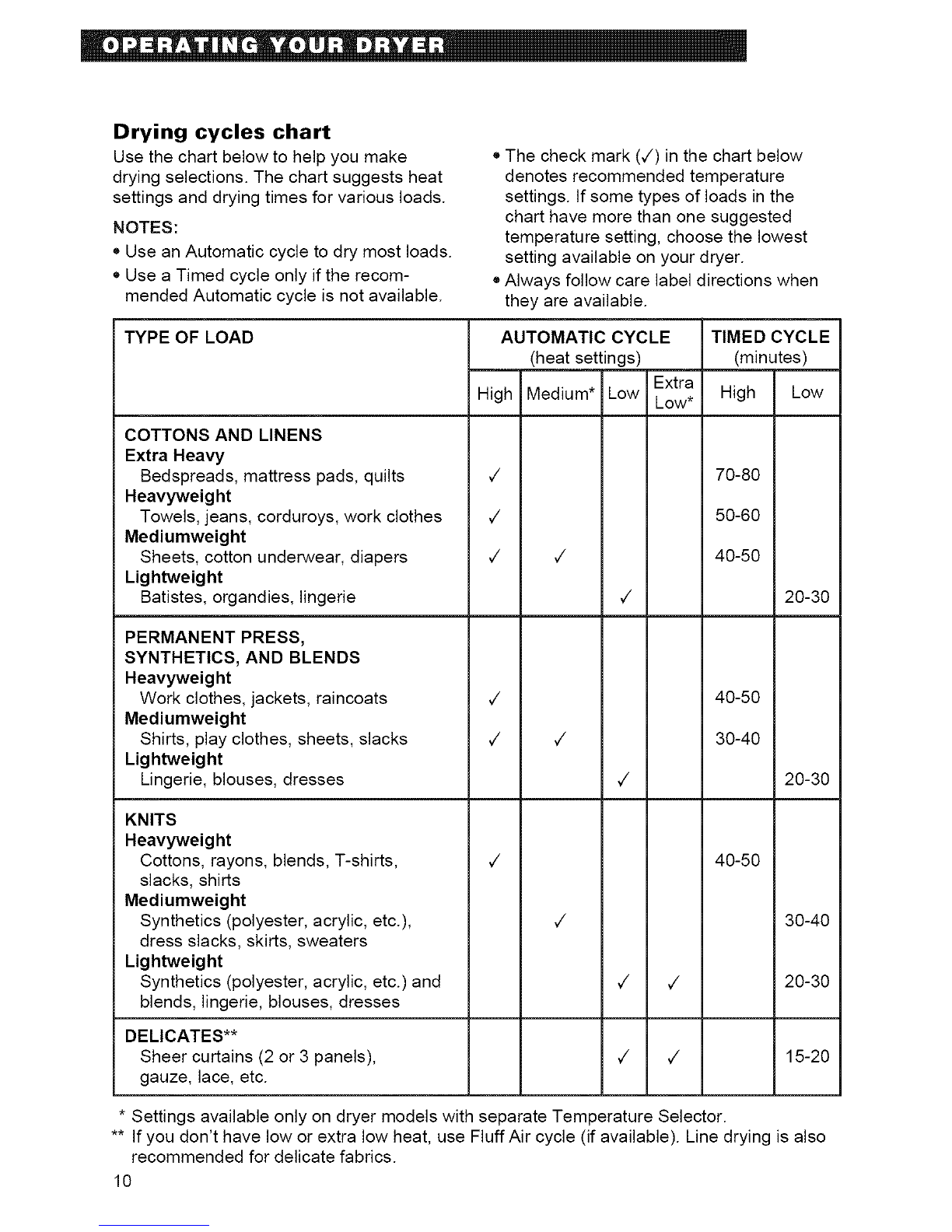

The following pages describe the cycles

on your dryer. Refer to the charts on pages

10-11 for help in selecting drying cycles.

Drying guidelines

• Always follow care label directions when

they are available.

• The last few minutes of all cycles are without

heat to make the load cooler to handle.

• To help reduce wrinkling, remove the load

from the dryer as soon as tumbling stops.

This is especially important for permanent

press, knits, and synthetic fabrics.

• Overdrying can cause shrinkage, static

cling, and damage to some fabrics.

• Refer to pages 19-22 for information about:

- sorting clothes for drying

- choosing load sizes

- drying tips

- using dryer fabric softener sheets

- saving energy

- drying special-care items.

continued on next page

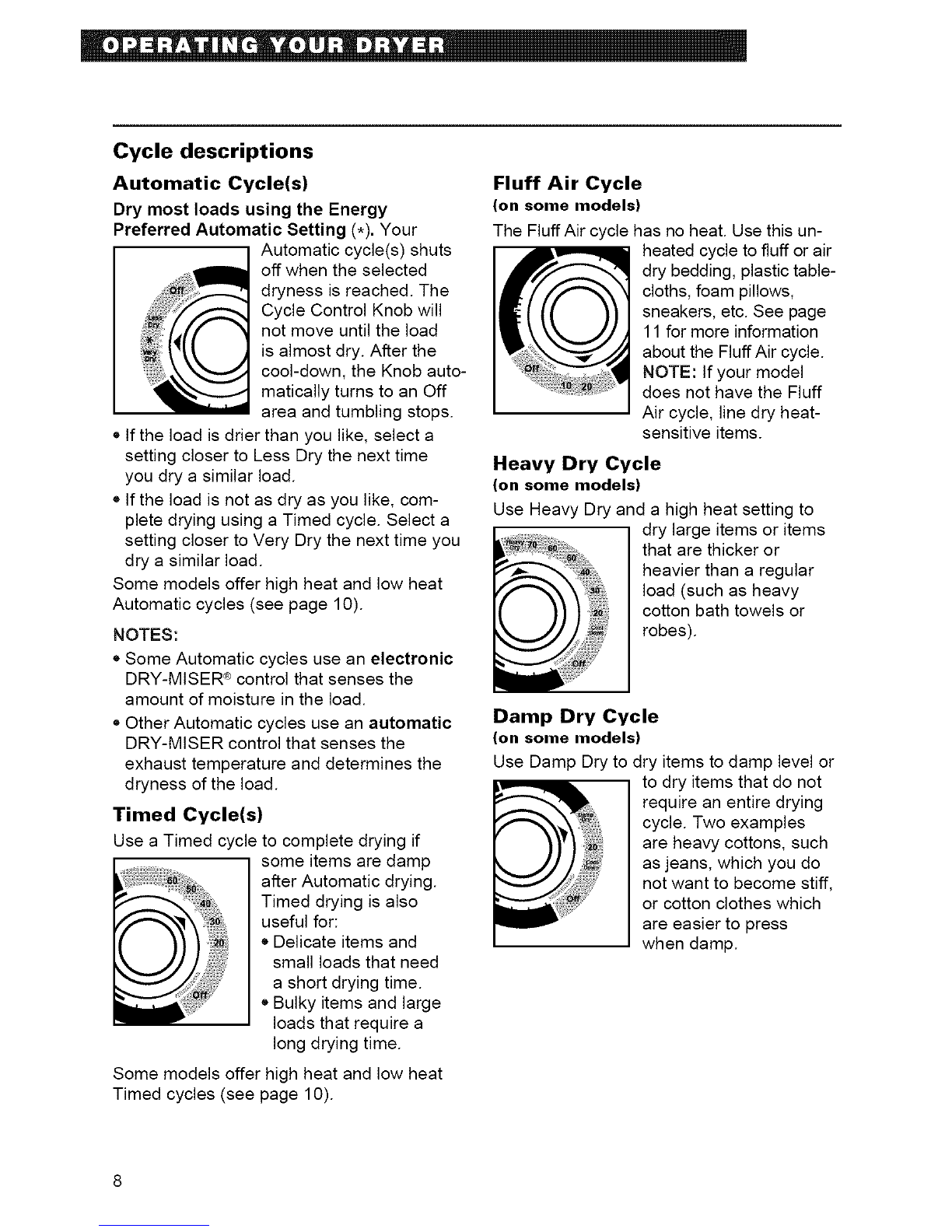

Cycle descriptions

Automatic Cycle(s)

Dry most loads using the Energy

Preferred Automatic Setting (*/. Your

Automatic cycle(s) shuts

off when the selected

dryness is reached. The

Cycle Control Knob will

not move until the load

is almost dry. After the

cool-down, the Knob auto-

matically turns to an Off

area and tumbling stops.

• If the load is drier than you like, select a

setting closer to Less Dry the next time

you dry a similar load.

• If the load is not as dry as you like, com-

plete drying using a Timed cycle. Select a

setting closer to Very Dry the next time you

dry a similar load.

Some models offer high heat and low heat

Automatic cycles (see page 10).

NOTES:

• Some Automatic cycles use an electronic

DRY-MISER _ control that senses the

amount of moisture in the load.

• Other Automatic cycles use an automatic

DRY-MISER control that senses the

exhaust temperature and determines the

dryness of the load.

Timed Cycle(s)

Use a Timed cycle to complete drying if

some items are damp

after Automatic drying.

Timed drying is also

useful for:

• Delicate items and

small loads that need

a short drying time.

• Bulky items and large

loads that require a

long drying time.

Some models offer high heat and low heat

Timed cycles (see page 10).

Fluff Air Cycle

(on some models)

The FluffAir cycle has no heat. Use this un-

heated cycle to fluff or air

dry bedding, plastic table-

cloths, foam pillows,

sneakers, etc. See page

11 for more information

about the FluffAir cycle.

NOTE: If your model

does not have the Fluff

Air cycle, line dry heat-

sensitive items.

Heavy Dry Cycle

(on some models)

Use Heavy Dry and a high heat setting to

dry large items or items

that are thicker or

heavier than a regular

load (such as heavy

cotton bath towels or

robes).

Damp Dry Cycle

(on some models)

Use Damp Dry to dry items to damp level or

to dry items that do not

require an entire drying

cycle. Two examples

are heavy cottons, such

as jeans, which you do

not want to become stiff,

or cotton clothes which

are easier to press

when damp.

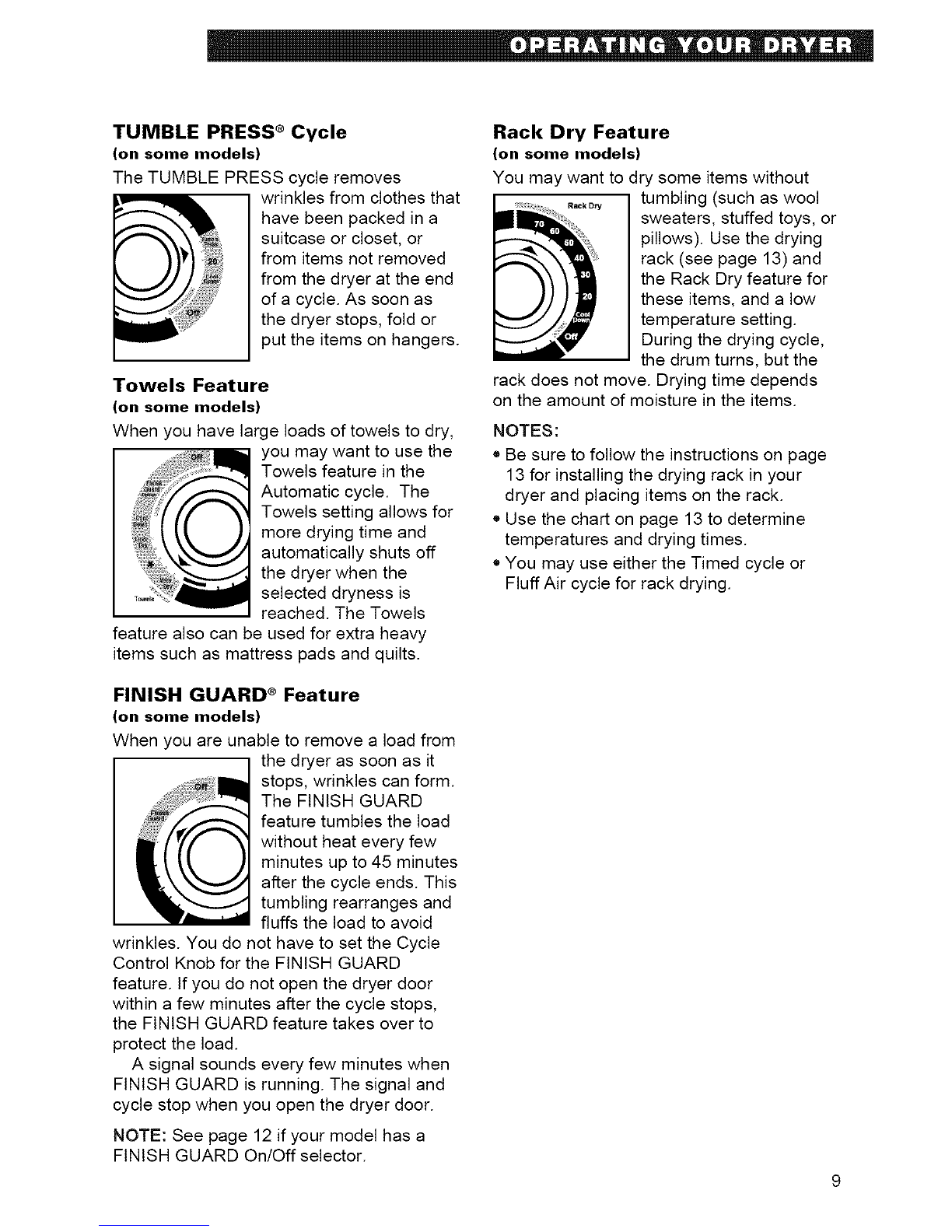

TUMBLE PRESS _Cycle

(on some models)

The TUMBLE PRESS cycle removes

wrinkles from clothes that

have been packed in a

suitcase or closet, or

from items not removed

from the dryer at the end

of a cycle. As soon as

the dryer stops, fold or

put the items on hangers.

Towels Feature

(on some models)

When you have large loads of towels to dry,

you may want to use the

Towels feature in the

Automatic cycle. The

Towels setting allows for

more drying time and

automatically shuts off

the dryer when the

selected dryness is

reached. The Towels

feature also can be used for extra heavy

items such as mattress pads and quilts.

Rack Dry Feature

(on some models)

You may want to dry some items without

_aoko_ tumbling (such as wool

sweaters, stuffed toys, or

pillows). Use the drying

rack (see page 13) and

the Rack Dry feature for

these items, and a low

temperature setting.

During the drying cycle,

the drum turns, but the

rack does not move. Drying time depends

on the amount of moisture in the items.

NOTES:

• Be sure to follow the instructions on page

13 for installing the drying rack in your

dryer and placing items on the rack.

• Use the chart on page 13 to determine

temperatures and drying times.

• You may use either the Timed cycle or

Fluff Air cycle for rack drying.

FINISH GUARD ®Feature

(on some models)

When you are unable to remove a load from

the dryer as soon as it

stops, wrinkles can form.

The FINISH GUARD

feature tumbles the load

without heat every few

minutes up to 45 minutes

after the cycle ends. This

tumbling rearranges and

fluffs the load to avoid

wrinkles. You do not have to set the Cycle

Control Knob for the FINISH GUARD

feature, tf you do not open the dryer door

within a few minutes after the cycle stops,

the FINISH GUARD feature takes over to

protect the load.

A signal sounds every few minutes when

FINISH GUARD is running. The signal and

cycle stop when you open the dryer door.

NOTE: See page 12 if your model has a

FINISH GUARD On/Off selector.

Drying cycles chart

Use the chart below to help you make

drying selections. The chart suggests heat

settings and drying times for various loads.

NOTES:

• Use an Automatic cycle to dry most loads.

• Use a Timed cycle only if the recom-

mended Automatic cycle is not available.

• The check mark (7) in the chart below

denotes recommended temperature

settings. If some types of loads in the

chart have more than one suggested

temperature setting, choose the lowest

setting available on your dryer.

• Always follow care label directions when

they are available.

TYPE OF LOAD

COTTONS AND LINENS

Extra Heavy

Bedspreads, mattress pads, quilts

Heavyweight

Towels, jeans, corduroys, work clothes

Mediumweight

Sheets, cotton underwear, diapers

Lightweight

Batistes, organdies, lingerie

PERMANENT PRESS,

SYNTHETICS, AND BLENDS

Heavyweight

Work clothes, jackets, raincoats

Mediumweight

Shirts, play clothes, sheets, slacks

Lightweight

Lingerie, blouses, dresses

KNITS

Heavyweight

Cottons, rayons, blends, T-shirts,

slacks, shirts

Mediumweight

Synthetics (polyester, acrylic, etc.),

dress slacks, skirts, sweaters

Lightweight

Synthetics (polyester, acrylic, etc.) and

blends, lingerie, blouses, dresses

DELICATES**

Sheer curtains (2 or 3 panels),

gauze, lace, etc.

AUTOMATIC CYCLE

(heat settings) Extra

High Medium* Low Low*

¢ ¢

,/ ,/

¢ ¢

¢,/

TIMED CYCLE

(minutes)

High Low

70-80

50-60

40-50

30-40

,/ 40-50

20-30

30-40

20-30

15-20

* Settings available only on dryer models with separate Temperature Selector.

** If you don't have low or extra low heat, use Fluff Air cycle (if available). Line drying is also

recommended for delicate fabrics.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool WEL98HEBU0 Manuale utente

Whirlpool

Whirlpool Clothes Dryer Manuale utente

Whirlpool

Whirlpool 7MWGD1860EM0 Manuale utente

Whirlpool

Whirlpool w10562333a Manuale utente

Whirlpool

Whirlpool LGR4634PQ Manuale utente

Whirlpool

Whirlpool LE61OOXS Manuale utente

Whirlpool

Whirlpool YCEE2760KQ2 Manuale utente

Whirlpool

Whirlpool Cabrio WGD6200S Manuale elenco delle parti

Whirlpool

Whirlpool LER4624BW2 Manuale utente

Whirlpool

Whirlpool LEQ8800JQ1 Manuale utente

Whirlpool

Whirlpool WGD6400SB Manuale utente

Whirlpool

Whirlpool W10240879B - SP Manuale utente

Whirlpool

Whirlpool 1CWED4900DW0 Manuale utente

Whirlpool

Whirlpool LET7646AQ2 Manuale utente

Whirlpool

Whirlpool LER7646AQ2 Manuale utente

Whirlpool

Whirlpool GGW9250PW Manuale utente

Whirlpool

Whirlpool LGQ8000JQ Manuale utente

Whirlpool

Whirlpool W11364660B Manuale utente

Whirlpool

Whirlpool WED5100HW Manuale utente

Whirlpool

Whirlpool LER7646DW1 Manuale utente

Whirlpool

Whirlpool LE5650XK Manuale utente

Whirlpool

Whirlpool Duet Steam Manuale utente

Whirlpool

Whirlpool 4LEC7646EZ0 Manuale utente

Whirlpool

Whirlpool Easy Clean 100 Series Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
