TOP AND CONSOLE PARTS
1
For Model: LER3634JW0
(White)
6−00 Litho in U.S.A. (djc) Part No. 4320161
29" ELECTRIC DRYER
TOP AND CONSOLE PARTS
2
For Model: LER3634JW0
(White)
4320161
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8314844
Guide, Use & Care
LIT3397618
Instructions,
Installation
LIT3406688
Label, Wiring
Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 3399638 Switch,
Temperature
3 3390646 Screw, 8−18 x 5/16
4 8271367 Cap, End (L.H.)
5 3936144 Connector
6 388326 Screw, Console
7 693995 Screw, Hex Head
8 8271361 Cap, End (R.H.)
9 297535 Bumper, Lint Lid
10 339392 Screen, Lint
11 8283378 Cover, Lint Screen
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 3400859 Screw, Grounding
15 8274261 Panel, Rear
Console
16 8271390 Top
18 3395683 Connector
(Motor)
19 3394427 Clip−Harness
20 8283286 Wire−Jumper
Assembly
21 3976575 Timer, 60 Hz.
22 94614 Terminal
23 3401076 Resistor Assembly
25 3347243 Connector
6−Circuit
30 357213 Nut, Push−In (2)
31 3394290 Harness, Wiring
32 8271338 Knob, Control
39 3395382 Switch,
Push−To−Start
48 8312690 Timer Knob
Assembly
53 8271418 Bracket, Control
54 3977814 Panel, Control
81 8271343 Knob, Push
To Start
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350956 Almond
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
OPTIONAL PARTS (NOT INCLUDED)
CABINET PARTS
3
For Model: LER3634JW0
(White)
4320161
CABINET PARTS
4
For Model: LER3634JW0
(White)
4320161
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 3393008 Screw, 10−16 x 1/2
4 343641 Screw, 10−16 x 1/2
5 3396795 Cover, Terminal
Block
7 3396807 Panel, Rear
8 3404413 Plug, Hinge
Hole (4)
9 342055 Screw, 8−18 x 1/2
10 3406104 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
13 693995 Screw, Rear Panel
Mounting
15 238614 Bumper
16 3392100 Foot, Dryer
279810 Foot−Optional
(Extended Length
Package Of 2)
(Not Included)
18 3399580 Cabinet
(Includes Illus.
Nos. 5,7,16,29
41 And 57.)
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 3403571 Front Panel
Assembly
23 685203 Clip, Felt Pad
24 690081 Catch, Door
28 3405514 Hinge and Pin
Assembly (2)
29 3394083 Clip, Front
Panel (2)
33 696144 Strike, Door
35 3403371 Door, Rear
36 3403361 Door Front
37 3405184 Handle, Door
38 349464 Seal & Bearing
Assembly
40 279393 Terminal Block
Kit For
Terminal Block
41 3397659 Block, Terminal
51 238088 Hinge, Top (2)
53 3394332 Idler & Slide
Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3394341 Pulley, 60 Hz.
62 3976707 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 3405245 Seal, Door
87 697776 Screw, 10−32 x 1/2
(External Ground)
90 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)

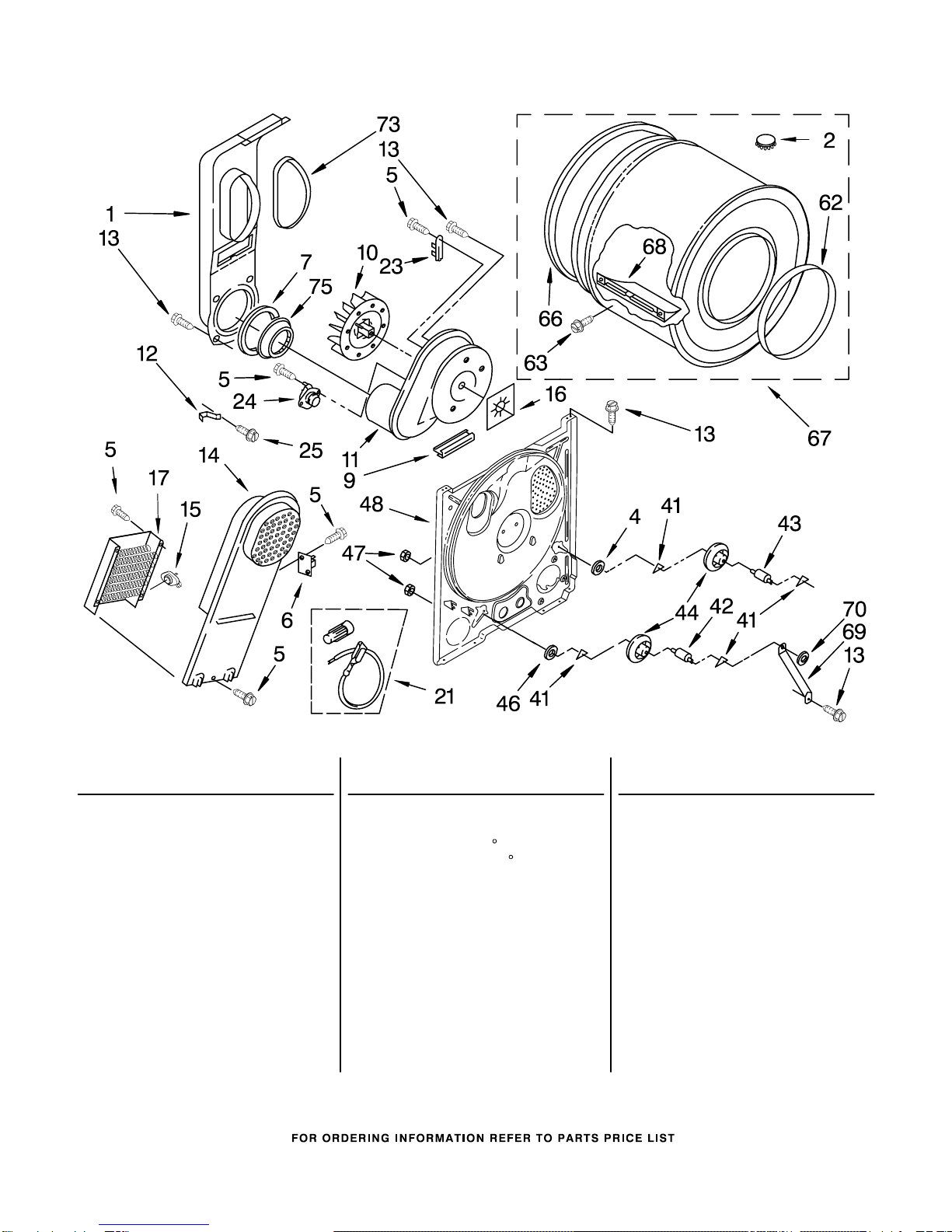

BULKHEAD PARTS
5
For Model: LER3634JW0
(White)
4320161
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
2 3977358 Drum Hole
Plug
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3977393 Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
15 3399693 Thermostat,
250 F
(121.1 C) (60 Hz.)
16 3394196 Seal, Blower
Shaft
17 3403585 Element, Heater
(For 240 Volt
Installation)
21 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
23 3392519 Fuse, Thermal
24 3387134 Thermostat,
Internal Bias
25 489463 Screw, 8−18 x 5/8
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3397264 Bulkhead
62 3394509 Ring, Bearing
63 97787 Screw, 11−16 x 3/4
66 8066085 Seal, Rear Drum
67 3396777 Drum Assembly
68 342847 Baffle, Drum
69 3976435 Bracket, Support
70 90296 Clip
73 339956 Seal
75 696302 Shield, Exhaust
