TOP AND CONSOLE PARTS

For Model: LER4634BQ0

(Designer White)

1−95 Litho in U.S.A. (dhb) Part No. 4377359

ELECTRIC DRYER

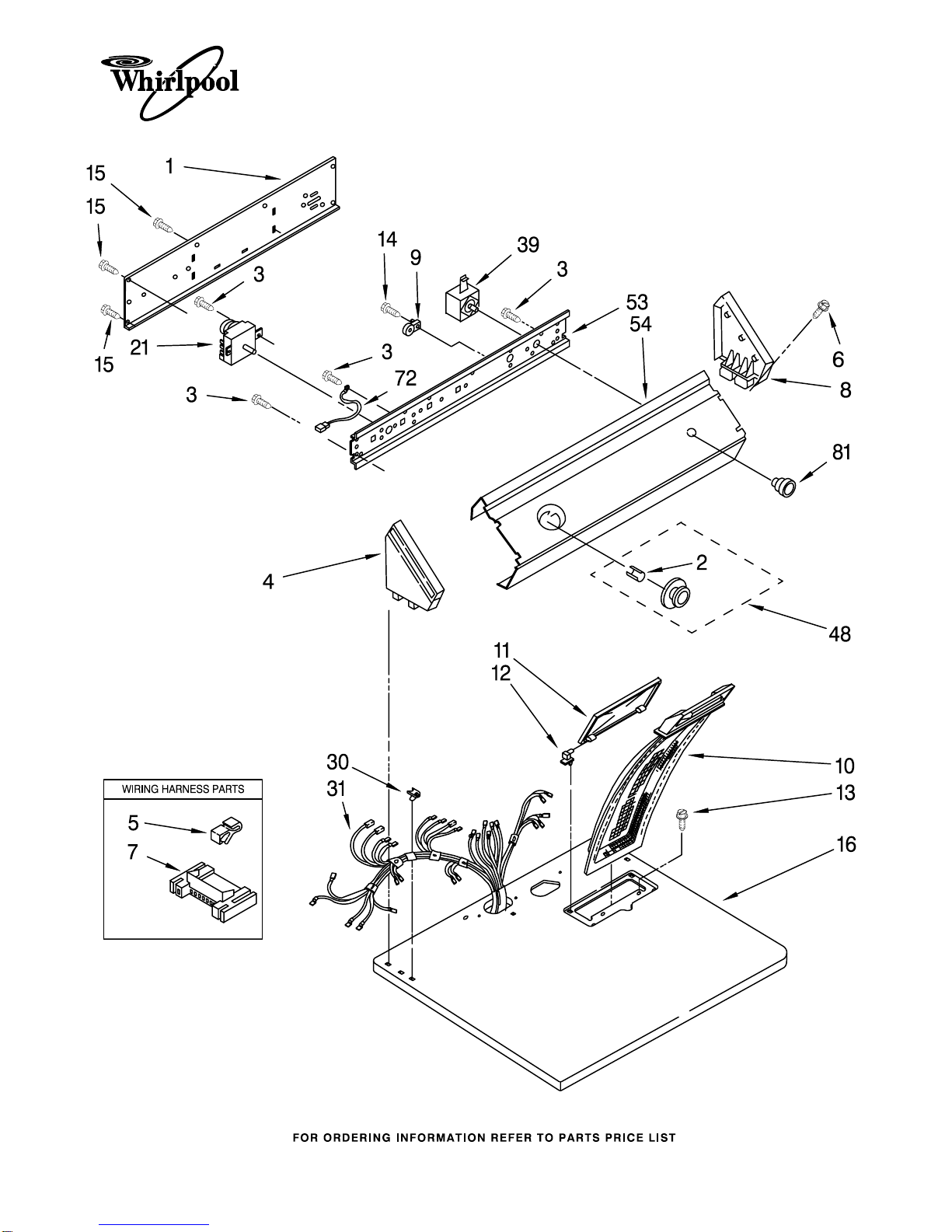

TOP AND CONSOLE PARTS

For Model: LER4634BQ0

(Designer White)

4377359

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 688805 Clip

3 3390646 Screw,

8−18 x 5/16

4 3358531 Cap, End (L.H.)

5 689180 Clip, Retainer

6 3353145 Screw, Console

7 3395683 Housing, Connector

(Motor)

8 3358516 Cap, End (R.H.)

9 3388706 Resistor

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3390647 Screw, 8−18 x 1/2

15 693995 Screw, Hex Head

16 Top

3396022 White

LITERATURE AND OPTIONAL PARTS

21 3393934 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3399651 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 3396146 Timer Knob

Assembly

53 3396293 Bracket, Control

54 3399022 Panel, Control

72 690853 Wire, Ground

81 3396161 Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401083 Use & Care Guide

LIT3397597 Instructions,

Installation

LIT3401728 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818 Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT, BULK (1 qt.)

799344 White (Uncut)

CABINET PARTS

For Model: LER4634BQ0

(Designer White)

4377359

CABINET PARTS

For Model: LER4634BQ0

(Designer White)

4377359

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 694091 Screw

7 3396807 Panel, Rear

9 342055 Screw, 8−15 x 1/2

10 3397503 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

13 693994 Screw, Rear Panel

Mounting

16 3392100 Foot, Dryer (4)

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 343641 Screw,

10−16 x 1/2

18 Cabinet

3399580 White

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel Assembly

3402200 White

22 238614 Bumper

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 9830733 Hinge & Pin

Assembly

29 3394083 Clip, Front

Panel (2)

31 98997 Clip, Harness

33 696144 Strike, Door

35 3402206 Door, Rear

36 Door Front

3402204 White

37 Handle, Door

4319329 White

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390733 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

BULKHEAD PARTS

For Model: LER4634BQ0

(Designer White)

4377359

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3398671 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3392123 Seal, Blower

Shaft

17 660982 Element, Heater

(For 240 Volt

Installation)

693300 (Alt.)

693298 (Alt.)

693062 (Alt.)

18 691034 Socket Assembly

19 311255 Bulb

20 341165 Lens, Drum Light

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal−Bias

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397266 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3394133 Bracket, Support

70 90296 Clip

73 339956 Seal

74 3400800 Screw, 10−16 x 1/2

75 696302 Shield, Exhaust
