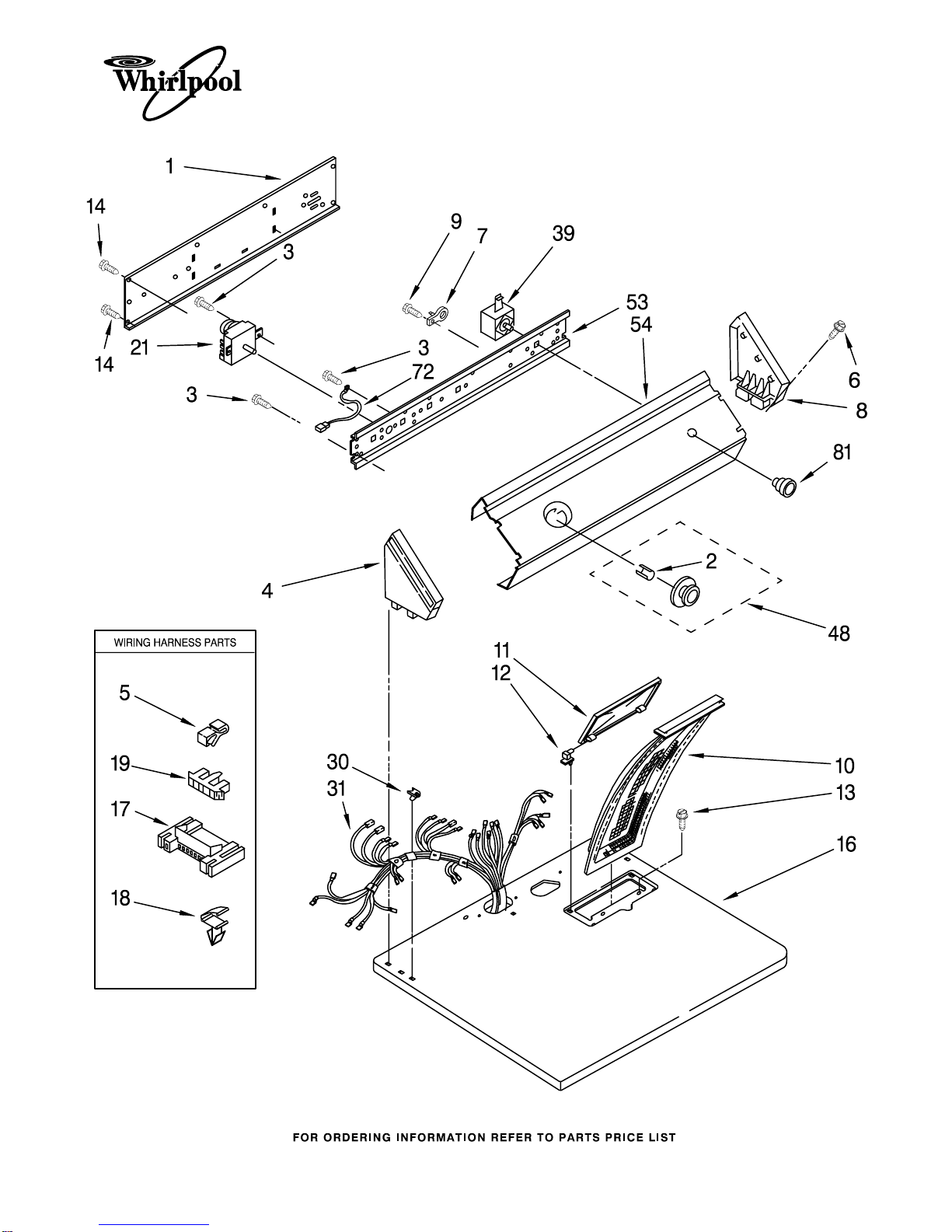

TOP AND CONSOLE PARTS
1
For Model: LET5624DQ1
(Designer White)
12−95 Litho in U.S.A. (tpm) Part No. 4377567
ELECTRIC DRYER
TOP AND CONSOLE PARTS
LITERATURE AND OPTIONAL PARTS
2
For Model: LET5624DQ1
(Designer White)
4377567
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3397545 Panel, Rear
Console
2 688805 Clip
3 3390646 Screw,
8−18 x 5/16
4 3358528 Cap, End (L.H.)
5 689180 Clip, Retainer
6 388326 Screw, Console
7 3388706 Resistor
8 3358513 Cap, End (R.H.)
9 3390647 Screw, 8−18 x 1/2
10 339392 Screen, Lint
11 Cover, Lint Screen
688150 White
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 693995 Screw, Hex Head
16 Top
3396022 White
17 3395683 Connector,
Housing
18 3394427 Clip, Harness
19 3397269 Connector, Timer
21 3392250 Timer, 60 Hz.
30 357213 Nut, Push−In (2)
31 3399653 Harness, Wiring
39 3395382 Switch,
Push−To−Start
48 3396146 Timer Knob
Assembly
53 3396293 Bracket, Control
54 3403655 Panel, Control
72 690853 Wire, Ground
81 3396161 Knob, Push
To Start
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT3401092
Guide, Use & Care
LIT3397597
Instructions,
Installation
LIT3401728
Label, Wiring
Diagram
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer

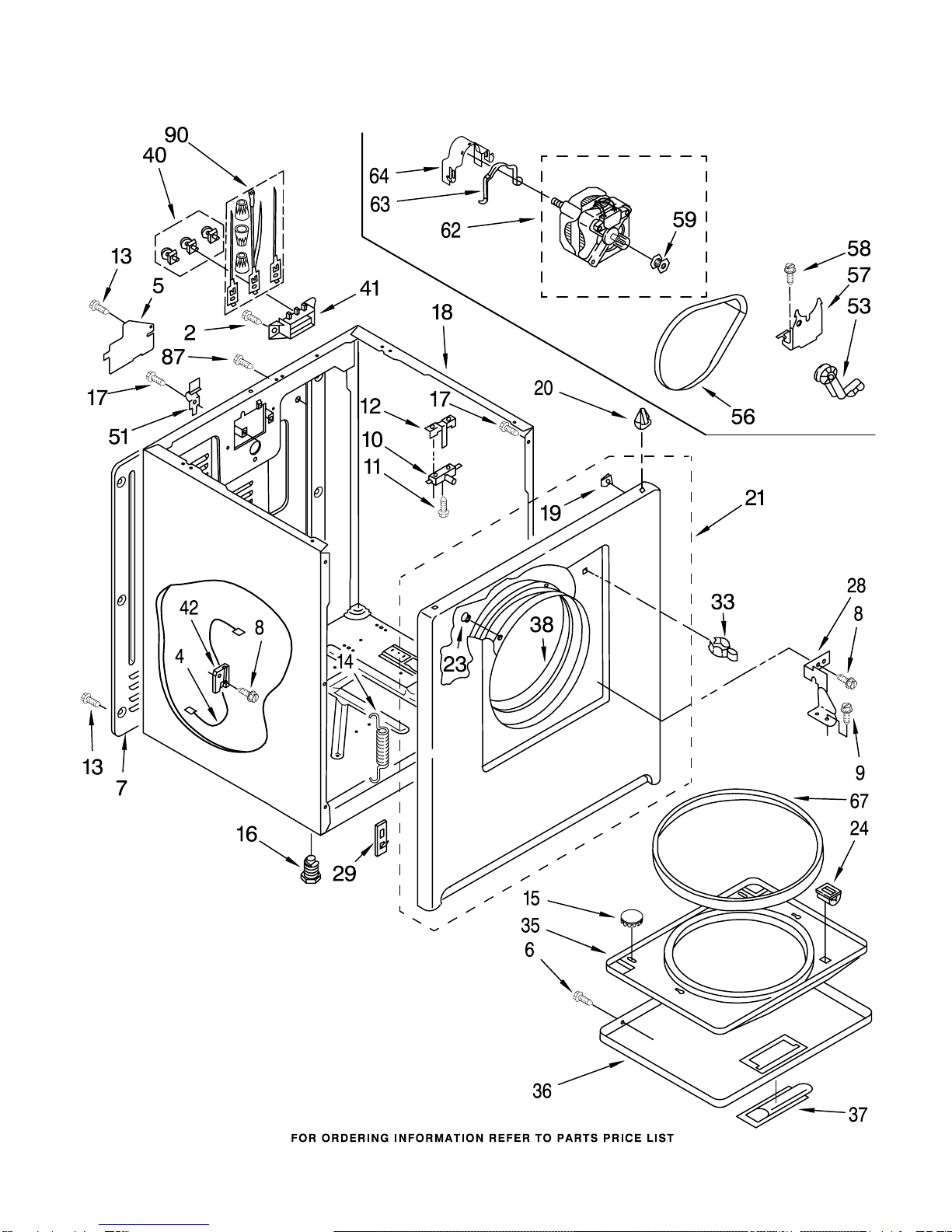

CABINET PARTS
3
For Model: LET5624DQ1
(Designer White)
4377567
CABINET PARTS
4
For Model: LET5624DQ1
(Designer White)
4377567
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 3393008 Screw, 10−16 x 1/2
4 230131 Cable, Door (2)
5 3396795 Cover, Terminal
Block
6 694091 Screw
7 3396807 Panel, Rear
8 339493 Screw
9 688160 Screw, 8−15 x 1/2
10 347207 Switch, Door
11 98129 Screw,
6−20 x 1−3/8 (2)
12 691581 Lever, Door Switch
13 693995 Screw, Rear Panel
Mounting
14 337186 Spring, Door
15 660975 Plug
16 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
17 343641 Screw,
10−16 x 1/2
18 Cabinet
3399580 White
(Includes Illus.
Nos. 5, 7, 16, 29,
41 and 57)
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 Upper Front
Panel Assembly
337464 White
23 685203 Clip, Felt Pad
24 690081 Catch, Door
28 238456 Hinge, Door (R.H.)
238460 Hinge, Door (L.H.)
29 3394083 Clip, Front
Panel (2)
33 696144 Strike, Door
35 695953 Door, Rear
36 Door Front
348737 White
37 Handle, Door
690270 White
38 349462 Seal & Bearing
Assembly
40 279393 Terminal Block
Kit For
Terminal Block
41 690261 Block, Terminal
42 337182 Guide, Cable(L.H.)
337183 Guide, Cable(R.H.)
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley
Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3401143 Pulley, 60 Hz.
62 3395652 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 3390734 Seal, Door
87 697776 Screw, 10−32 x 1/2
(External Ground)
90 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)

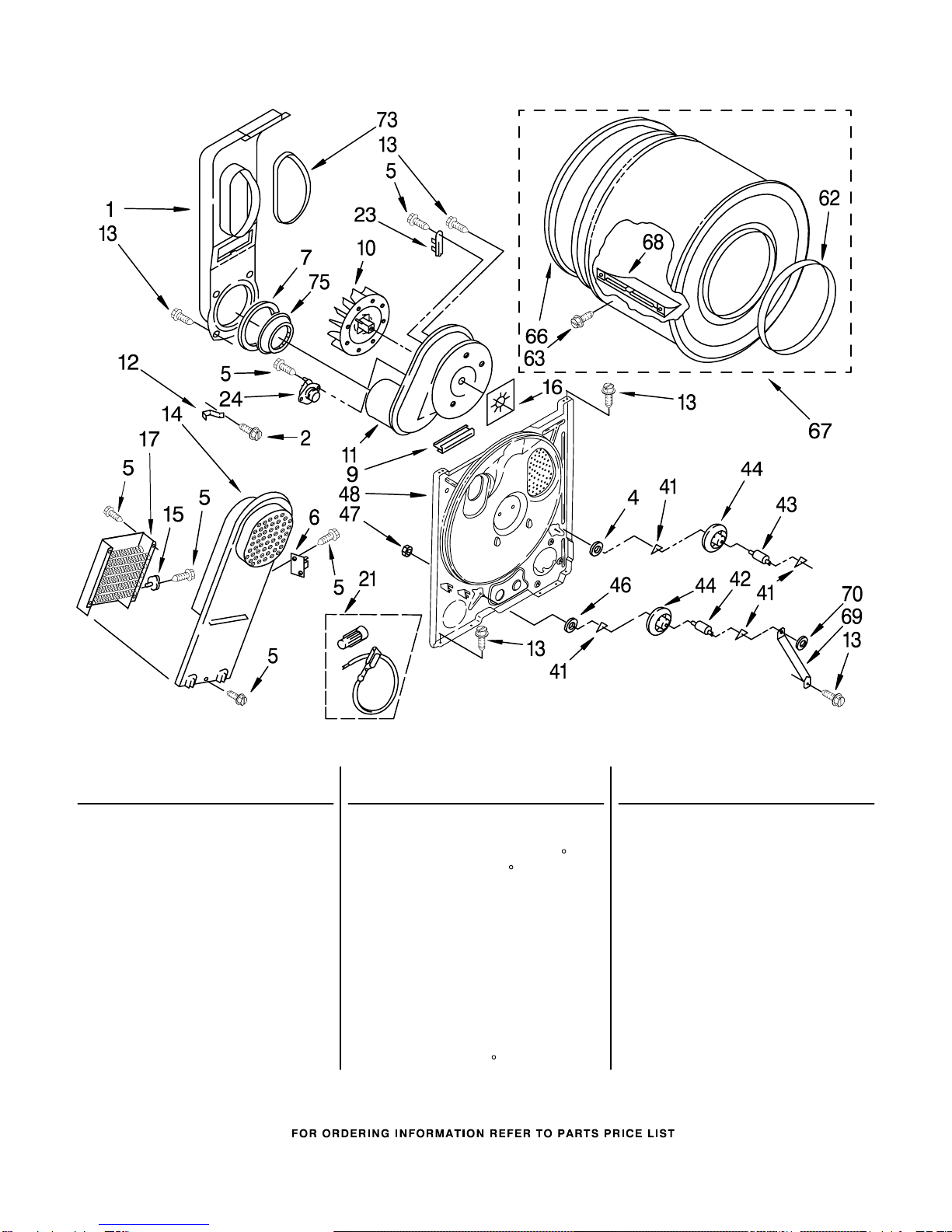

BULKHEAD PARTS
5
For Model: LET5624DQ1
(Designer White)
4377567
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
2 3400800 Screw, 8−18 x 3/4
4 3388703 Washer, Support
5 90767 Screw, 8 x 3/8
6 3399848 Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
15 3390291 Thermostat,
High Limit 250 F
(121.1 C) (60 Hz.)
16 3392123 Seal, Blower
Shaft
17 3398064 Element, Heater
(For 240 Volt
Installation)
21 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
23 3392519 Fuse, Thermal
24 660039 Thermostat,
150 F / 66C
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3397264 Bulkhead
62 3394508 Ring, Bearing
63 97787 Screw, 11−16 x 7/8
66 337449 Seal, Rear Drum
67 3396775 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 339956 Seal
75 696302 Shield, Exhaust
