Whirlpool LET7646AQ0 Manuale utente

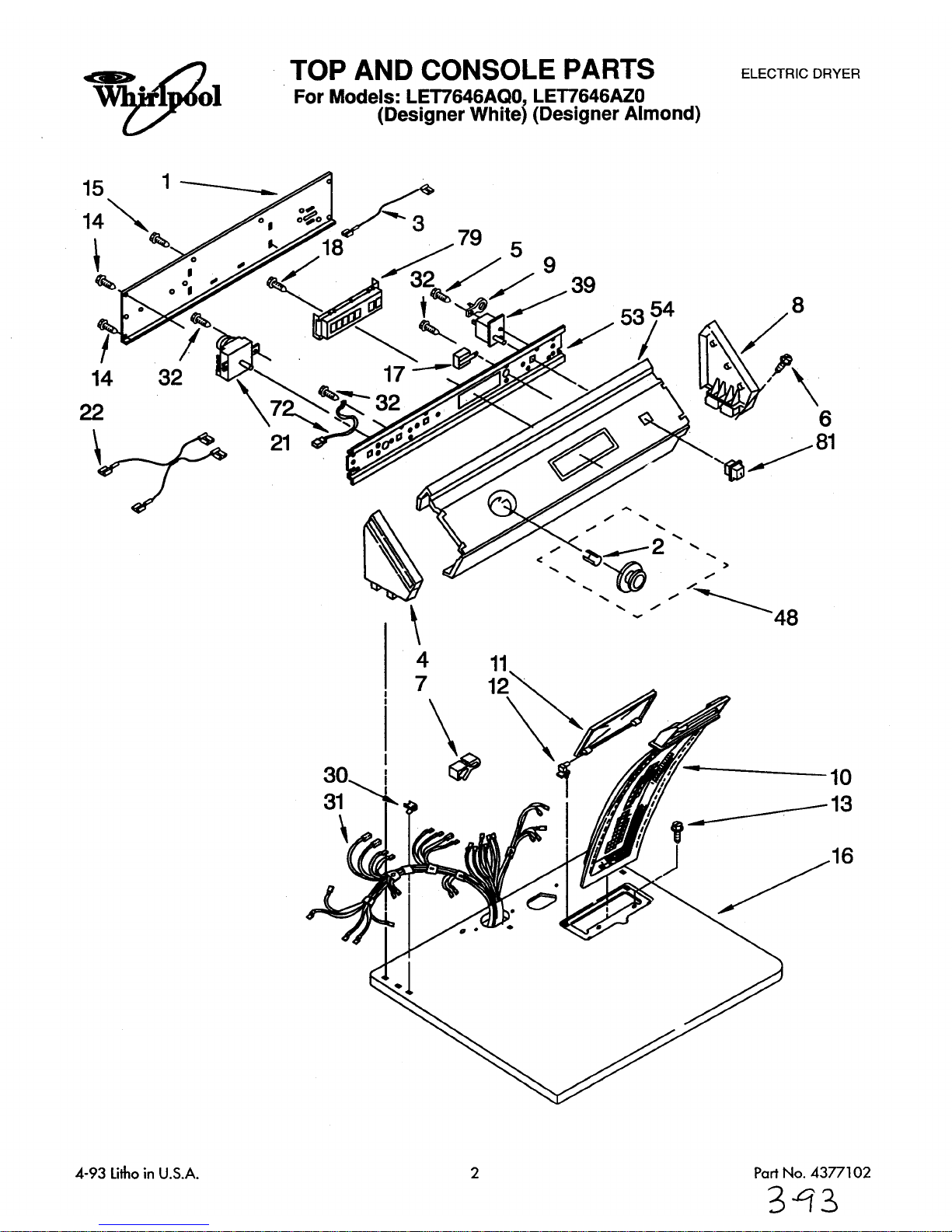

1 3397545 Panel, Rear Console
2 688805 Clip
3 Wire, Jumper
3393811 Violet
3393812 Blue
4 Cap, End (L.H.)
3358531 White
3358532 Almond
5 3390647 Screw, 8-18 x 1/2
6 3353145 Screw, Console
7 689180 Clip, Retainer
8 Cap, End (R.H.)
3358516 White
3358517 Almond
9 3388706 Resistor, Timer
10 349639 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8-18 x 5/8
14 693994 Screw (4)
15 693995 Screw (2)
16 Top
3396022 White
3396023 Almond
17 694419 Buzzer, Mini
18 3397537 Screw, 8-18 x 7/8
21 3396047 Timer, 60 Hz.
22 3396033 Wire, Jumper (Signal Bypass)
30 357213 Nut, Push-In (2)
31 3396229 Harness, Wiring
690261 Includes Terminal Block
32 3390646 Screw, 8-18 x 5/16
39 3395395 Switch, Push-To-Start
48 Timer Knob Assembly
3396146 White
3396149 Almond
53 3396295 Bracket, Control
54 Panel, Control
3397222 White
3397242 Almond
72 690853 Wire, Ground
79 Switch, Clean-Touch
3396239 White
3396237 Almond
81 Button, Push To Start
3396176 White
3396177 Almond
LITERATURE AND OPTIONAL PARTS
LITERATURE PARTS
LIT3396297 Use & Care Guide
LIT3397597 Instructions, Installation
LIT4377102 List, Service Parts
OPTIONAL PARTS NOT INCLUDED
PAINTS
PAINT,TOUCH UP (1/2 oz.)
72017 White
72107 Almond
PAINT PRESSURIZED SPRAY (13 oz.)
350930 White
350956 Almond
350938 Primer, Gray
350941 Leveler (Thinner)
PAINT,BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS
LIT677818 Dryer
1 690236 Wire, Ground (Motor)
2 3393008 Screw, 10-16 x 1/2
3 3393657 Restrainer, Belt
4 237979 Spring, Door (2)
5 690893 Cover, Terminal Block
6 694091 Screw
7 348365 Panel, Rear
8 3388229 Clip, Toe Panel (2)
9 3357011 Screw, 10-16 x 1/2
10 347207 Switch, Door
11 98129 Screw, 6-20 x 1-3/8 (2)
12 691581 Lever, Door Switch
13 693994 Screw, Rear Panel Mounting
14 687905 Hinge, R.H.
687906 Hinge, L.H.
15 343641 Screw, 10-16 x 1/2
16 3392100 Foot, Dryer (4)
17 342043 Screw, 10-32 x 1/2
18 Cabinet
3394118 White
3394119 Almond
19 98234 Clip, Ground
20 690363 Lock, Front Top (2)
21 Upper Front Panel
338012 White
689533 Almond
22 Panel, Toe
692427 White
692428 Almond
23 685203 Clip, Felt Pad
24 337189 Clip, Hinge (2)
27 3397713 Rack, Dry
28 238614 Bumper
29 297092 Clip, Hinge (2)
30 690081 Catch, Door
31 98997 Clip, Harness
33 696144 Strike, Door
35 695954 Door, Rear
36 Door Front
348728 White
689330 Almond
37 Handle, Door
690270 White
690271 Almond
38 349464 Seal & Bearing Assembly
40 279393 Terminal Block Kit For Terminal Block
41 690261 Block, Terminal
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt, 5/16-18 x 3/4
59 3389627 Pulley, 60 Hz.
61 3388235 Switch, Motor
62 3391886 Motor Assembly 60 Hz. (Pulley Not Included With Motor)
63 660658 Clamp, Motor
343481 (Alt.)
685441 (Alt.)
67 3390733 Seal, Door
87 697776 Screw, 10-32 x 1/2 (External Ground)
88 693995 Screw, 10-16 x 1/2
90 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)

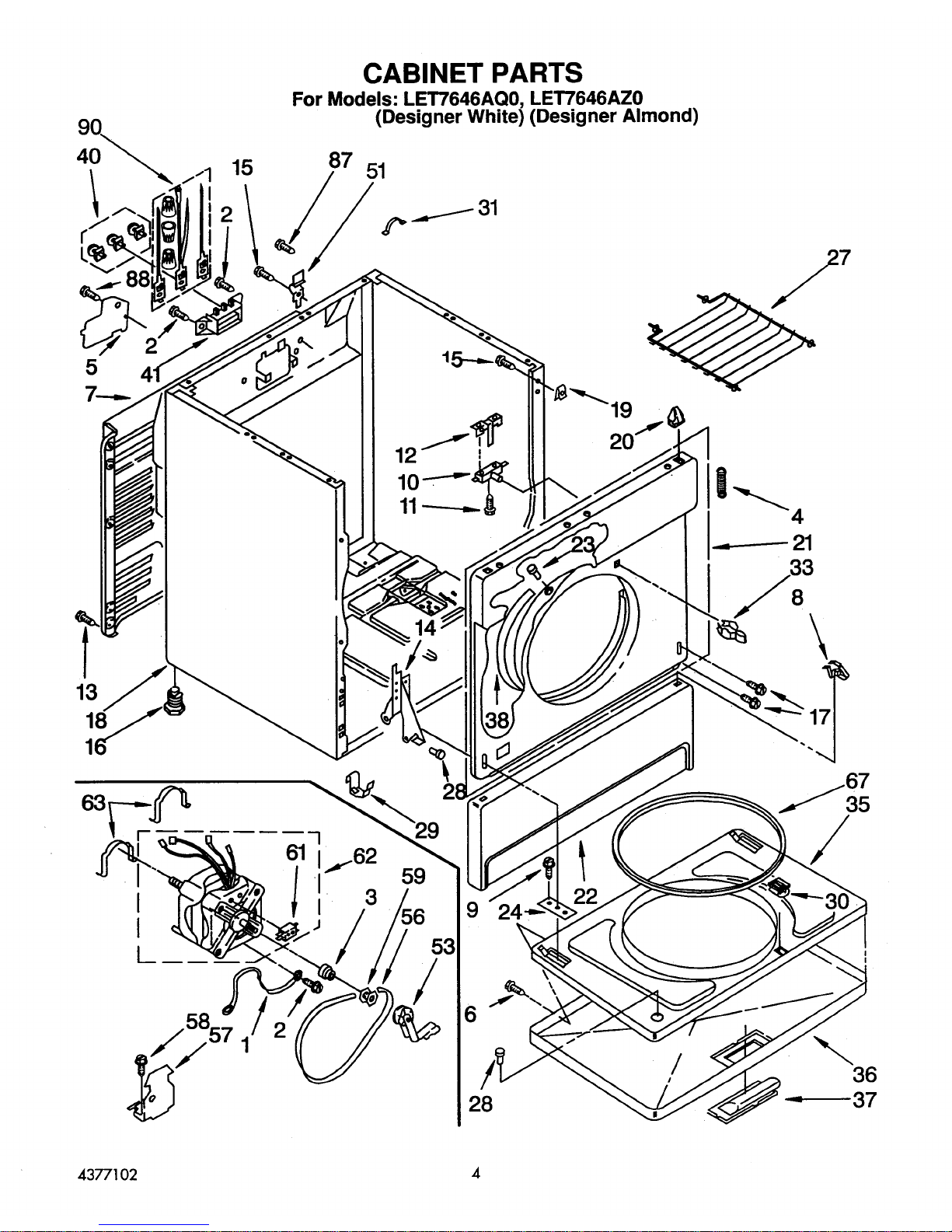

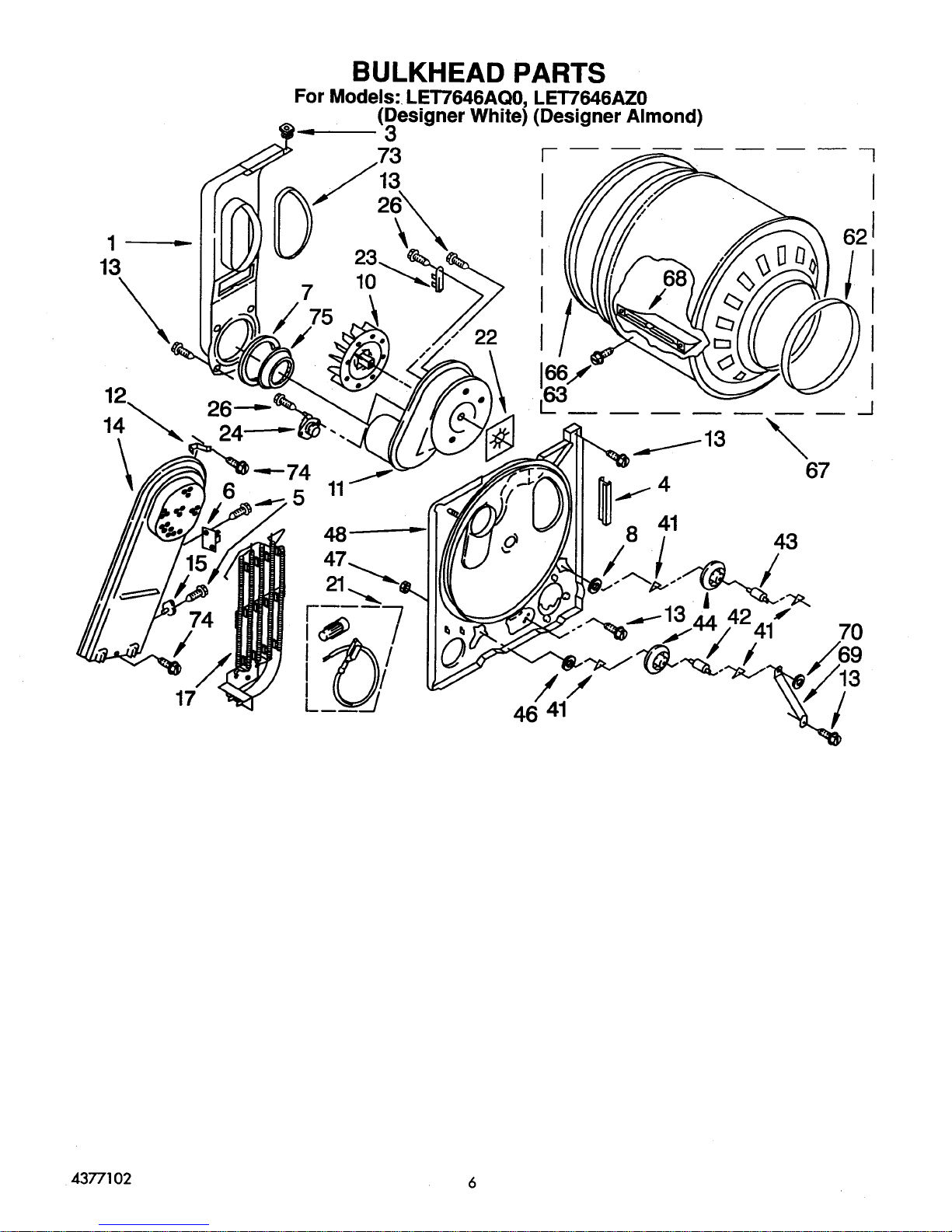

1 3396352 Lint Chute Assembly
3 98460 Nut, Push-In (2)
4 686889 Pad, Cabinet
5 90767 Screw,8x3/8
6 3389946 Thermal, Cut-Off (Hi-Limit Thermostat Illus. No.15 Included)
7 347139 Seal, Lint Chute
8 3388703 Washer, Support
10 694089 Wheel, Blower
11 695081 Housing, Blower
12 337272 Clip
13 343641 Screw, 10-16 x 1/2
14 695547 Box, Heater
15 3390291 Thermostat, High Limit 250~F (121.1~C) (60 Hz.)
17 660982 Element, Heater (For 240 Volt Installation)
693300 (Alt.)
696579 (Alt.)
693062 (Alt.)
21 279457 Wire Kit (For Heater Element Wiring Harness Repair)
22 3392123 Seal, Blower
23 3392519 Fuse, Thermal
24 3387139 Thermostat, Internal Bias
26 695239 Screw, 8-18 x 1/2
41 690997 Ring, Tri
42 347364 Shaft, L.H.
43 339489 Shaft, R.H.
44 3389901 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8-16
48 3396446 Bulkhead
62 3394509 Ring, Bearing
63 97787 Screw, 11-16 x 7/8
66 3397509 Seal, Rear Drum
67 3396778 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 3396466 Seal
74 687128 Screw, 10-16 x 1/2
75 696302 Shield, Exhaust
