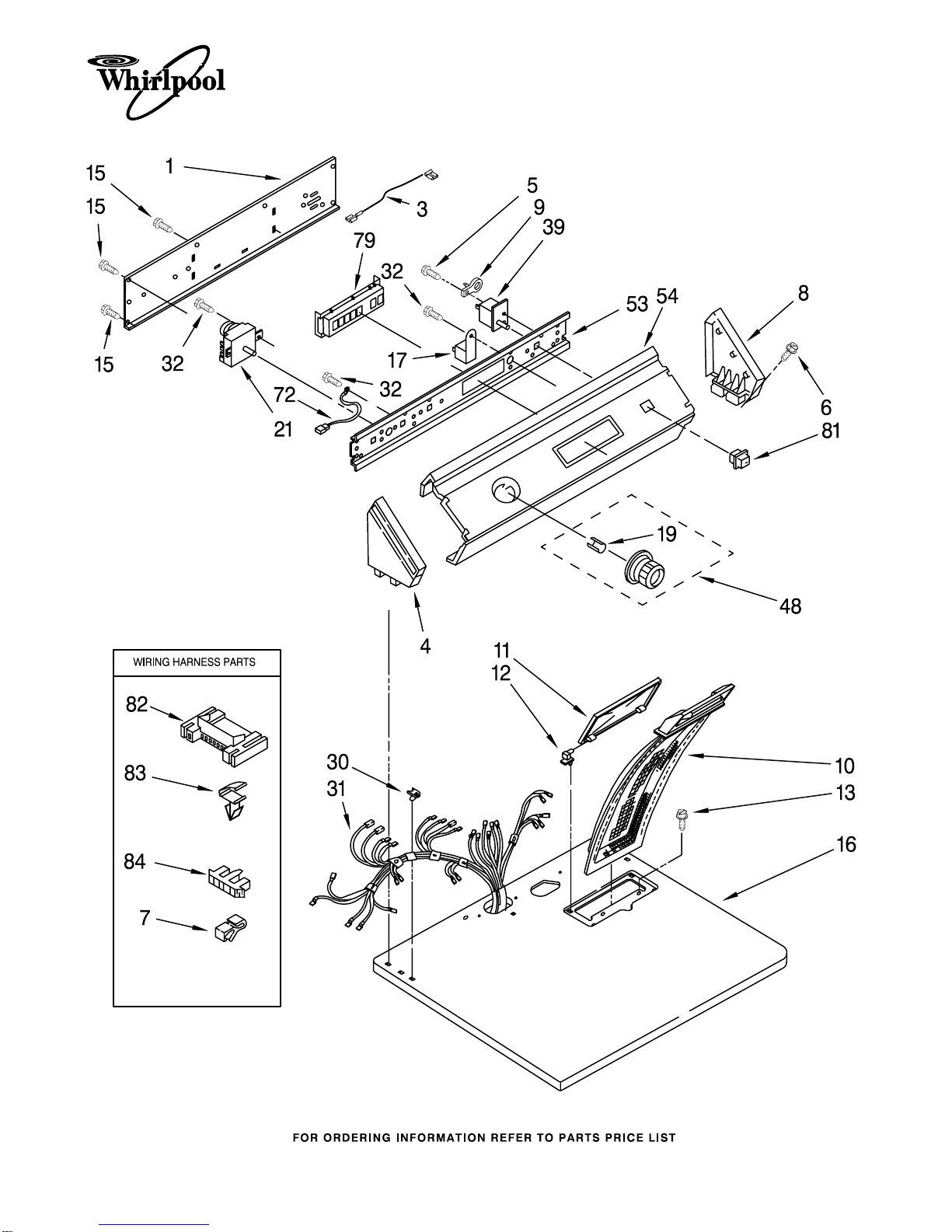

TOP AND CONSOLE PARTS
1
For Models: LEV6646AW2, LEV6646AN2
(White) (Almond)
4−95 Litho in U.S.A. (tpm) Part No. 4377447
ELECTRIC DRYER
TOP AND CONSOLE PARTS
LITERATURE AND OPTIONAL PARTS
2
For Models: LEV6646AW2, LEV6646AN2
(White) (Almond)
4377447
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
3397545
Panel, Rear
Console
3
Wire, Jumper
3393811
Violet
3393812
Blue
4
Cap, End (L.H.)
3358531
White
3358532
Almond
5
3390647
Screw, 8−18 x 1/2
6
3353145
Screw, Console
7
689180
Clip, Retainer
8
Cap, End (R.H.)
3358516
White
3358517
Almond
9
3388706
Resistor, Timer
10
349639
Screen, Lint
11
Cover, Lint Screen
688150
White
689310
Almond
12
339229
Hinge, R.H.
339230
Hinge, L.H.
13
688983
Screw, 8−18 x 5/8
15
693995
Screw, Hex Head
16
Top
3396022
White
3396023
Almond
17
694419
Buzzer, Mini
19
688805
Clip
21
3398137
Timer, 60 Hz.
30
357213
Nut, Push−In (2)
31
3399663
Harness, Wiring
(Includes 690261
Terminal Block)
32
3390646
Screw, 8−18 x 5/16
39
3395395
Switch,
Push−To−Start
48
3396148
Timer Knob
Assembly
53
3396295
Bracket, Control
54
Panel, Control
3398501
White
3398502
Almond
72
690853
Wire, Ground
79
3396238
Switch,
Clean Touch
81
3396175
Button, Push
To Start
82
3395683
Connector
(Motor)
83
3394427
Clip, Harness
84
3397269
Connector, Timer
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT3401083
Use & Care Guide
LIT3397597
Instructions,
Installation
LIT3401723
Label, Wiring
Diagram
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017
White
72107
Almond
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930
White
350956
Almond
350938
Primer, Gray
PAINT, BULK (1 qt.)
799344
White (Uncut)
978883
Almond (Uncut)
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
CABINET PARTS
3
For Models: LEV6646AW2, LEV6646AN2
(White) (Almond)
4377447
CABINET PARTS
4
For Models: LEV6646AW2, LEV6646AN2
(White) (Almond)
4377447
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2
3393008
Screw, 10−16 x 1/2
4
237979
Spring, Door (2)
5
3396795
Cover, Terminal
Block
6
694091
Screw
7
3396805
Panel, Rear
8
3388229
Clip,
Toe Panel (2)
9
3357011
Screw,
10−16 x 1/2
10
347207
Switch, Door
11
98129
Screw,
6−20 x 1−3/8 (2)
12
691581
Lever, Door Switch
13
693995
Screw, Rear Panel
Mounting
14
687905
Hinge, R.H.
687906
Hinge, L.H.
15
343641
Screw, 10−16 x 1/2
16
3392100
Foot, Dryer
279810
Foot−Optional
(Extended Length
Package of 2)
(Not Included)
17
342043
Screw,
10−32 x 1/2
18
Cabinet
(Includes Illus.
Nos. 5,7,16,41,
& 57)
3399585
White
3399586
Almond
19
98234
Clip, Ground
20
690363
Lock, Front
Top (2)
21
Upper Front
Panel
338012
White
689533
Almond
22
Panel, Toe
692427
White
692428
Almond
23
685203
Clip, Felt Pad
24
337189
Clip, Hinge (2)
28
238614
Bumper
29
297092
Clip, Hinge (2)
30
690081
Catch, Door
31
98997
Clip, Harness
33
696144
Strike, Door
35
695954
Door, Rear
36
Door Front
348728
White
689330
Almond
37
Handle, Door
690270
White
690271
Almond
38
349464
Seal & Bearing
Assembly
40
279393
Terminal Block
Kit For
Terminal Block
41
690261
Block, Terminal
51
238088
Hinge, Top (2)
53
691366
Idler & Pulley
Assembly
56
660996
Belt, Drive
57
348780
Base, Motor
58
172455
Bolt,
5/16−18 x 3/4
59
3401143
Pulley, 60 Hz.
62
3395652
Motor Assembly
60 Hz.
63
660658
Clamp, Motor
343481 (Alt.)
685441 (Alt.)
67
3390733
Seal, Door
87
697776
Screw, 10−32 x 1/2
(External Ground)
90
279318
Terminal, Tinned
& Brass (3)
(Includes Illus. 40)
BULKHEAD PARTS
5
For Models: LEV6646AW2, LEV6646AN2
(White) (Almond)
4377447
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
3396352
Lint Chute Assembly
5
90767
Screw, 8 x 3/8
6
3399848
Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7
347139
Seal, Lint
Chute
8
3388703
Washer, Support
10
694089
Wheel, Blower
11
695081
Housing, Blower
12
3398161
Clip
13
343641
Screw, 10−16 x 1/2
14
3397566
Box, Heater
15
3390291
Thermostat,
250 F
(121.1 C) (60 Hz.)
17
3398064
Element, Heater
(For 240 Volt
Installation)
21
279457
Wire Kit (For
Heater Element
Wiring Harness
Repair)
22
3392123
Seal, Blower
23
3392519
Fuse, Thermal
24
3387139
Thermostat,
Internal Bias
41
690997
Ring, Tri
42
3399506
Shaft, L.H.
43
3399507
Shaft, R.H.
44
3397588
Roller, Support
46
348197
Washer, Support
47
3359452
Nut, 3/8−16
48
3399464
Bulkhead
62
3394509
Ring, Bearing
63
97787
Screw, 11−16 x 7/8
66
3397509
Seal, Rear Drum
67
3396778
Drum Assembly
68
342847
Baffle, Drum
69
3394133
Bracket, Support
70
90296
Clip
73
3398160
Seal
74
3400800
Screw, 8−18 x 3/4
75
696302
Shield, Exhaust
