CABINET PARTS
For Model: WED5510VQ0
(Designer White)
2−09 Litho in U.S.A. (LT)(bay) Part No. W10252020 Rev. A
29"ELECTRIC DRYER
CABINET PARTS
2
For Model: WED5510VQ0
(Designer White)
W10252020
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10150612
Installation
Instructions
W10042960
Sheet,
Cycle Feature
W10150610
Use & Care Guide
8576817 Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677818 Dryer
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex
Washer Head
4 8541400 Bracket, Cabinet
5 3396795 Cover,
Terminal Block
6 342043 Screw, 10−32 x 3/8
7 3396805 Panel, Rear
8 691366 Idler & Pulley
Assembly
9
W10131364
Belt, Drive
10 3406107 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
12 348780 Base, Motor
13 3357011 Screw, 10−16 x 1/2
14
W10041960
Spring, Door (2)
15 3394083 Clip, Front
Panel (2)
16 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
17 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 39)
18 8530603 Cabinet
(Includes
Illus. 4)
19 98234 Clip, Ground
20 690363 Lock, Front Top (2)
21 695620 Panel, Front
22 3400500 Bolt,
5/16−18 x 3/4
23 685203 Clip, Felt Pad (3)
24 3389441 Catch, Door
Assembly
25 8066184 Pulley, 60 Hz.
26 337189 Clip, Hinge (2)
27 694091 Screw, 8−18 x 3/8
28 8066056 Hinge, R.H.
8066057 Hinge, L.H.
29
W10194250
Motor Assembly
60 Hz.
30
W10121316
Clamp, Motor
31 3404162 Clamp, Motor
(W/Shield)
32 3390731 Seal, Door
33 696144 Strike, Door
34 697776 Screw, 10−32 x 5/8
(External Ground)
35 695737 Door, Rear
36 3393549 Door, Front
37
W10095180
Handle, Door
38 3406129 Seal & Bearing
Assembly
39 279393 Terminal Block
Kit (For
Terminal Block)
40 3393008 Screw, 10−16 x 1/2
41 3397659 Block, Terminal
42 8066217 Hinge, Top (2)
TOP AND CONSOLE PARTS
3
For Model: WED5510VQ0
(Designer White)
W10252020

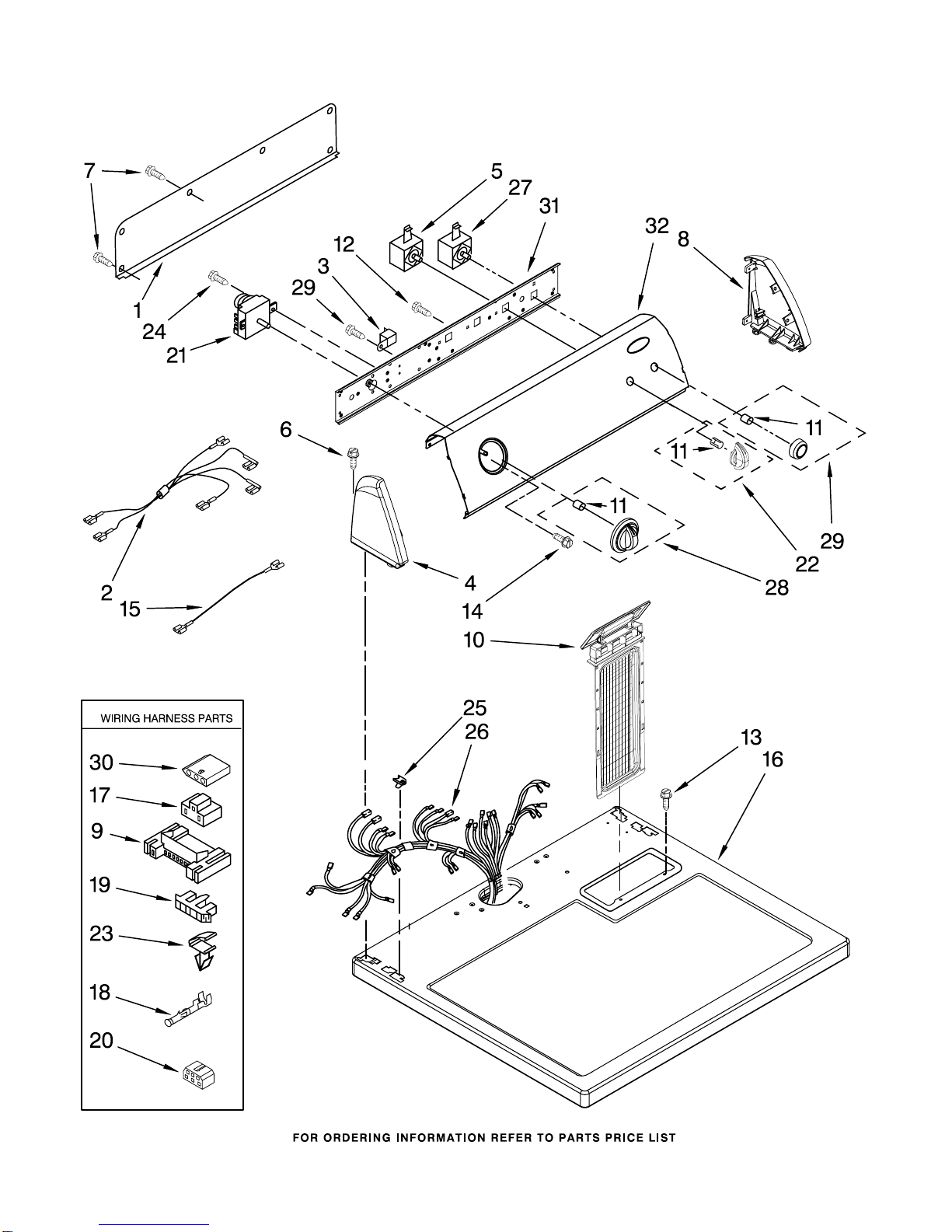

TOP AND CONSOLE PARTS
4
For Model: WED5510VQ0
(Designer White)
W10252020
Illus. Part
No. No. DESCRIPTION
1 8274261 Panel, Rear
Console
2 8539893 Wire, Jumper
(Temp. Switch)
3 694419 Buzzer
4 8271365 Cap, End (L.H.)
5 3399639 Switch, Rotary
6 388326 Screw, Console
7 693995 Screw, Hex Head
8 8271359 Cap, End (R.H.)
9 3395683 Housing, Connector
(Motor)
10 8557857 Screen, Lint
11 8536939 Clip, Spring
12 8533971 Screw, 8−18 x 5/16
13 688983 Screw, 8−18 x 5/8
14 8533951 Screw, Grounding
15 3401684 Wire, Jumper
(Timer−Signal)
16 8557930 Top
17 3347243 Connector,
(6−Circuit)
18 94614 Terminal
19 3397269 Connector, Timer
20 3401144 Connector,
(PTS Relay)
21 3979617 Timer, 60 Hz.
22 8565944 Knob, Control
23 3394427 Clip, Harness
24 8533971 Screw, 8−18 x 5/16
25 357213 Nut, Push−In (2)
26 8576503 Harness, Wiring
27 3398095 Switch,
Push−To−Start
28 8566061 Timer Knob
Assembly
29 8566073 Knob,
Push−To−Start
30 3936144 Connector
31 8544895 Bracket, Control
32
W10226241
Panel, Control
5
BULKHEAD PARTS
For Model: WED5510VQ0
(Designer White)
W10252020
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 348368 Lint Chute
Assembly
2 489463 Screw, 8−18 x 5/8
3 3388703 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 696302 Shield, Exhaust
7 3392519 Thermal Fuse
8 3387134 Thermostat,
Internal−Bias
9 3977393 Thermal Cut−Off
(Includes
Illus. 15)
10 694089 Wheel, Blower
(Includes
Illus. 22)
11 8577230 Housing, Blower
12 8066155 Clip
13 343641 Screw, 10−16 x 1/2
14 8541818 Box, Heater
15 3977767 Thermostat,
221 F
(105 C)
16 3977373 Bracket,
Drum Light
17 3403585 Element, Heater
18
W10136369
Socket Assembly
19 279457 Wire Kit, Terminal
(For Heater
Element Wiring
Harness Repair)
20 3406124 Bulb, Light
21 3402841 Lens,
Drum Light
22 339956 Seal
23 487909 Screw, 8−15 x 1/2
24 8066086 Drum Hole
Plug
25 3390647 Screw, 8−18 x 1/2
26 690997 Ring, Tri
27 3399506 Shaft, L.H.
28 3399507 Shaft, R.H.
29 3397590 Roller, Support
30 348197 Washer, Support
31 3359452 Nut, 3/8−16
32 3403493 Bulkhead
33 692526 Ring, Bearing
34
W10219342
Screw, 8−16 x 1/2
35 3406130 Seal, Rear Drum
36 695587 Drum Assembly
37 692490 Baffle, Drum (2)
38 3976434 Bracket, Support
39 90296 Clip
40 3403636 Baffle, Drum (1)
OPTIONAL PARTS (NOT INCLUDED)
6
For Model: WED5510VQ0
(Designer White)
W10252020
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
8522199 Kit, Dryer
Vent Testing
3404351 Dry Rack
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
