Whirlpool WGD5200T Manuale utente
TOP AND CONSOLE PARTS
1
For Model: WGD5200TQ0
(Designer White)
2−07 Litho in U.S.A. (LT) Part No. W10131173 Rev.A.
29" GAS DRYER
TOP AND CONSOLE PARTS
2
For Model: WGD5200TQ0
(Designer White)
W10131173
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8578183 Use & Care Guide
8562582 Installation
Instructions
W10042960
Sheet,
Cycle Feature
8576793 Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677818 Dryer
2 693995 Screw, Hex Head
3 8533971 Screw, 8−18 x 5/16
4 8271365 Cap, End (L.H.)
5 3936144 Connector
6 388326 Screw, Console
7 8533951 Screw, Grounding
8 8271359 Cap, End (R.H.)
9 8274261 Panel, Rear
Console
10 8557861 Screen, Lint
11 8536939 Clip, Spring
13 688983 Screw, 8−18 x 5/8
14 94614 Terminal
15 3395683 Connector
(Motor)
16 8557930 Top
18 3394427 Clip, Harness
19 3397269 Connector (Timer)
20 3403499 Connector,
2 Position
(Gas Valve)
21 3976584 Timer, 60 Hz.
22 357213 Nut, Push−In (2)
23 8299876 Harness, Wiring
24 3977456 Switch,
Push−To−Start
25 8566061 Timer Knob
Assembly
26 8544895 Bracket, Control
27 8578844 Panel, Control
28 8566065 Knob,
Push−To−Start
29 3403498 Connector,
3 Position
(Gas Valve)
30 717252 Receptacle (2−Way)

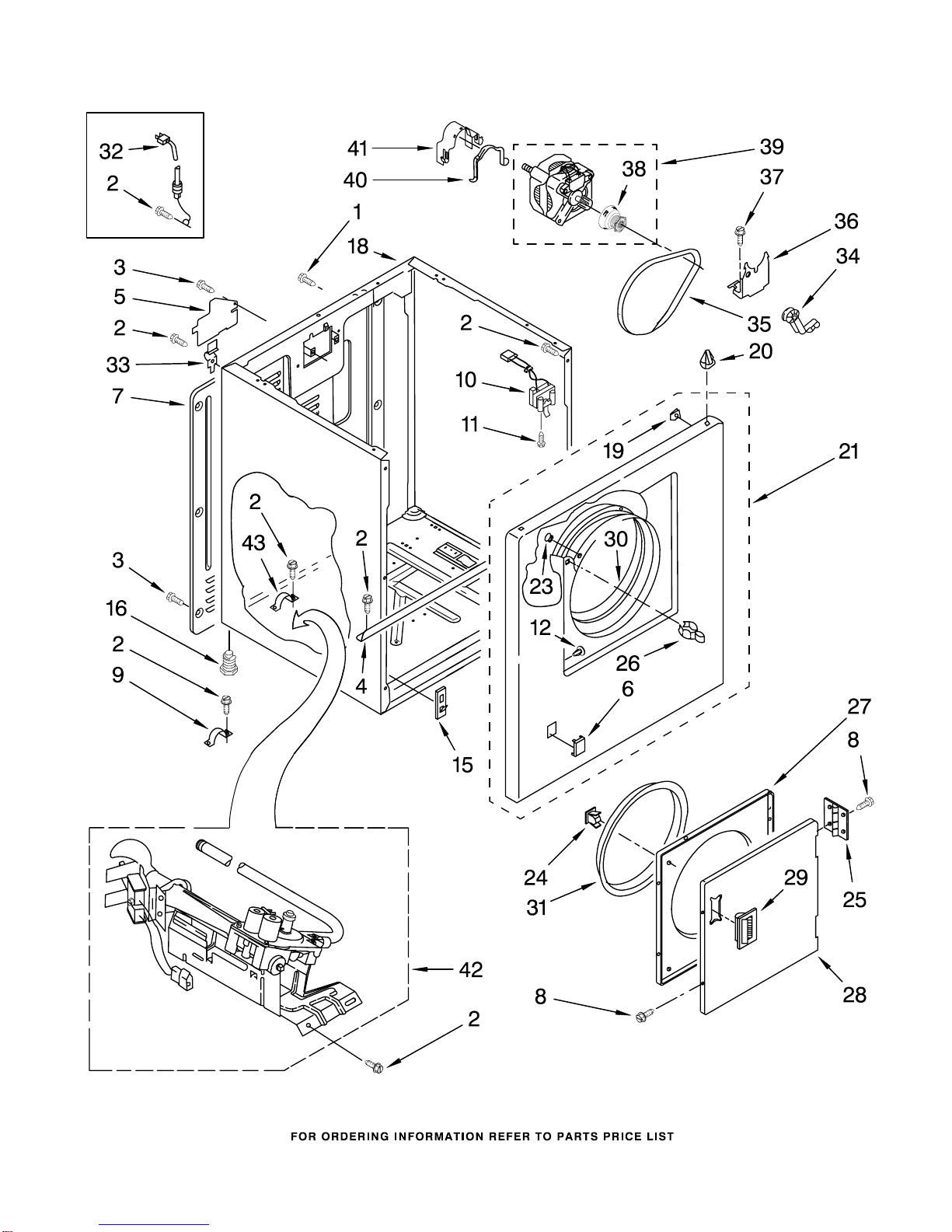

CABINET PARTS
3
For Model: WGD5200TQ0
(Designer White)
W10131173
CABINET PARTS
4
For Model: WGD5200TQ0
(Designer White)
W10131173
Illus. Part
No. No. DESCRIPTION
1 697776 Screw, 10−32 x 5/8
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex Head
4 8541400 Bracket, Cabinet
5 3396795 Cover, Block
6 3394975 Plug, Front Panel
7 3396807 Panel, Rear
8 342055 Screw, 8−18 x 1/2
9 3980175 Clamp, Elbow
10 3406104 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
12 3404413 Plug−Hole
15 3394083 Clip, Front Panel
16 3392100 Foot, Dryer (4)
18 8530603 Cabinet
(Includes
Illus. 4)
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 3403574 Front Panel
Assembly
23 685203 Clip, Felt Pad
24 690081 Catch, Door
25 3405514 Hinge & Pin
Assembly (2)
26 696144 Strike, Door
27 3403371 Door, Rear
28 3403361 Door, Front
29 8566059 Handle, Door
30 8066124 Seal & Bearing
Assembly
31 3405245 Seal, Door
32 344020 Cord, Power
33 8066217 Hinge, Top (2)
34 691366 Idler & Pulley
Assembly
35 8066065 Belt, Drive
36 348780 Base, Motor
37 3400500 Bolt,
5/16−18 x 3/4
38 8066184 Pulley, 60 Hz.
39 8066206 Motor, 60 Hz.
40 660658 Clamp, Motor
41 3404162 Clamp, Motor
(W/Shield)
42 8318272 Burner Assembly,
60 Hz.
(Refer To Pages
5 & 6 For Further
Breakdown)
43 341029 Clamp, Pipe
BA−150

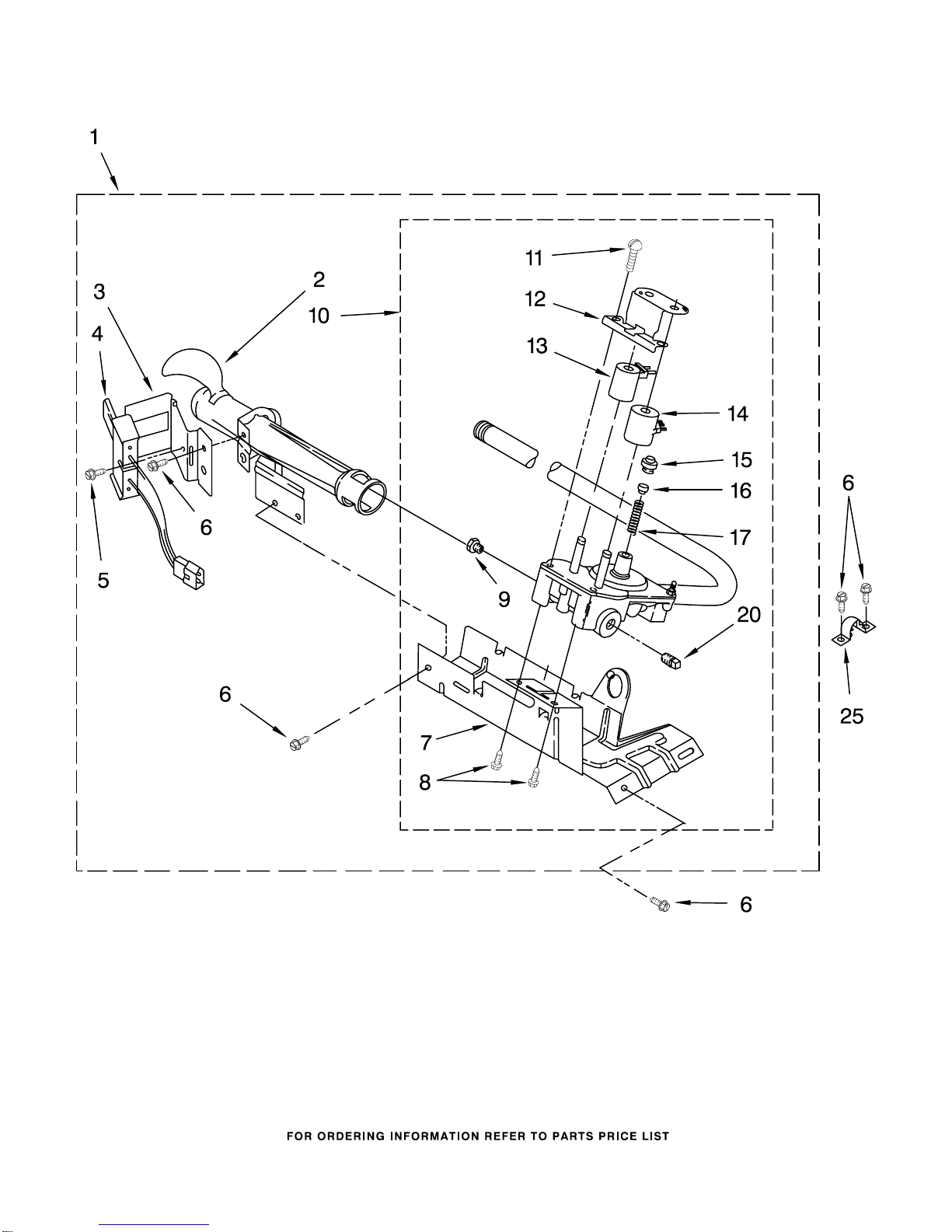

8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
5
For Model: WGD5200TQ0
(Designer White)
W10131173
Illus. Part
No. No. DESCRIPTION
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
1 8318272 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 693986 Base, Burner
8 3387057 Screw, 8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8318277 Valve, 60 Hz.
(Includes Pipe &
Illus. #7)
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
20 239822 Plug, Pipe
25 341029 Clamp, Pipe
694572 Conversion Kit
(Type 1)
to Type (4) L.P.G.
Following Parts Not Illustrated
6
For Model: WGD5200TQ0
(Designer White)
W10131173

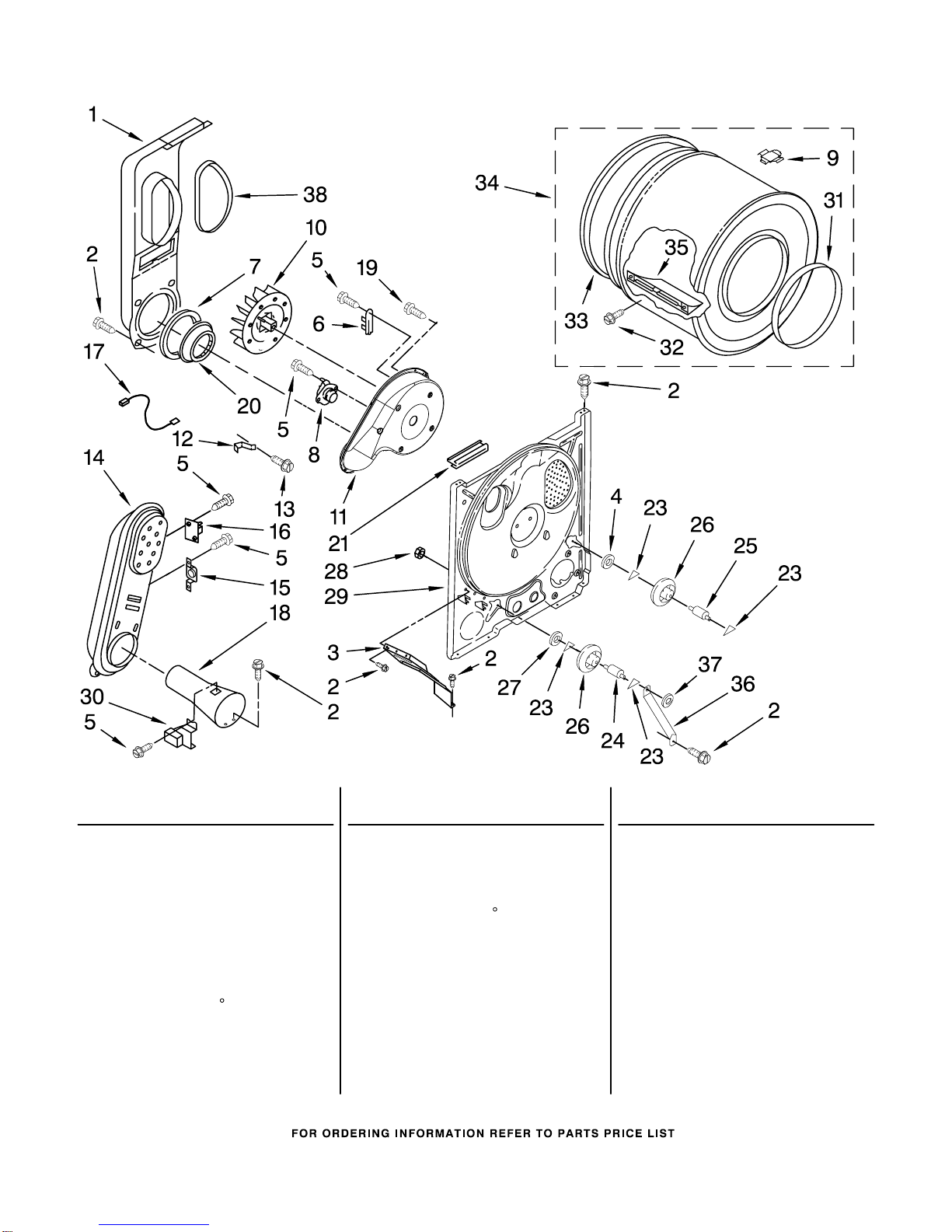

BULKHEAD PARTS
7
For Model: WGD5200TQ0
(Designer White)
W10131173
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute
Assembly
2 343641 Screw, 10−16 x 1/2
3 3406022 Bracket, Bulkhead
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3392519 Fuse, Thermal
7 347139 Seal, Lint
Chute
8 3387134 Thermostat,
150 F(60C)
9 8066086 Drum Hole
Plug
10 694089 Wheel, Blower
11 8577230 Housing, Blower
12 3398161 Clip
13 489463 Screw, 8−18 x 5/8
14 8530285 Box, Heater
15 3403140 Thermostat,
205 F (96C)
16 280010 Kit,
Thermal Cut−Off
(Includes
Illus. 15)
17 3401707 Wire, Jumper
18 8066048 Funnel, Burner
19 3390647 Screw, 8−18 x 1/2
20 696302 Shield, Exhaust
21 3392247 Pad, Blower
Housing
23 690997 Ring, Tri
24 3399506 Shaft, L.H.
25 3399507 Shaft, R.H.
26 3397590 Roller, Support
27 348197 Washer, Support
28 3359452 Nut, 3/8−16
29 8529955 Bulkhead
30 338906 Sensor, Radiant
31 3394509 Ring, Bearing
32
W10109200
Screw, 11−16 x 3/4
33 8066085 Seal, Rear Drum
34 3396777 Drum Assembly
35 342847 Baffle, Drum
36 3976435 Bracket, Support
37 90296 Clip
38 339956 Seal
OPTIONAL PARTS (NOT INCLUDED)
8
For Model: WGD5200TQ0
(Designer White)
W10131173
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
8522199 Kit, Dryer
Vent Testing
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
689790 Dry Rack
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
