Whirlpool EV161FZRQ00 Manuale utente

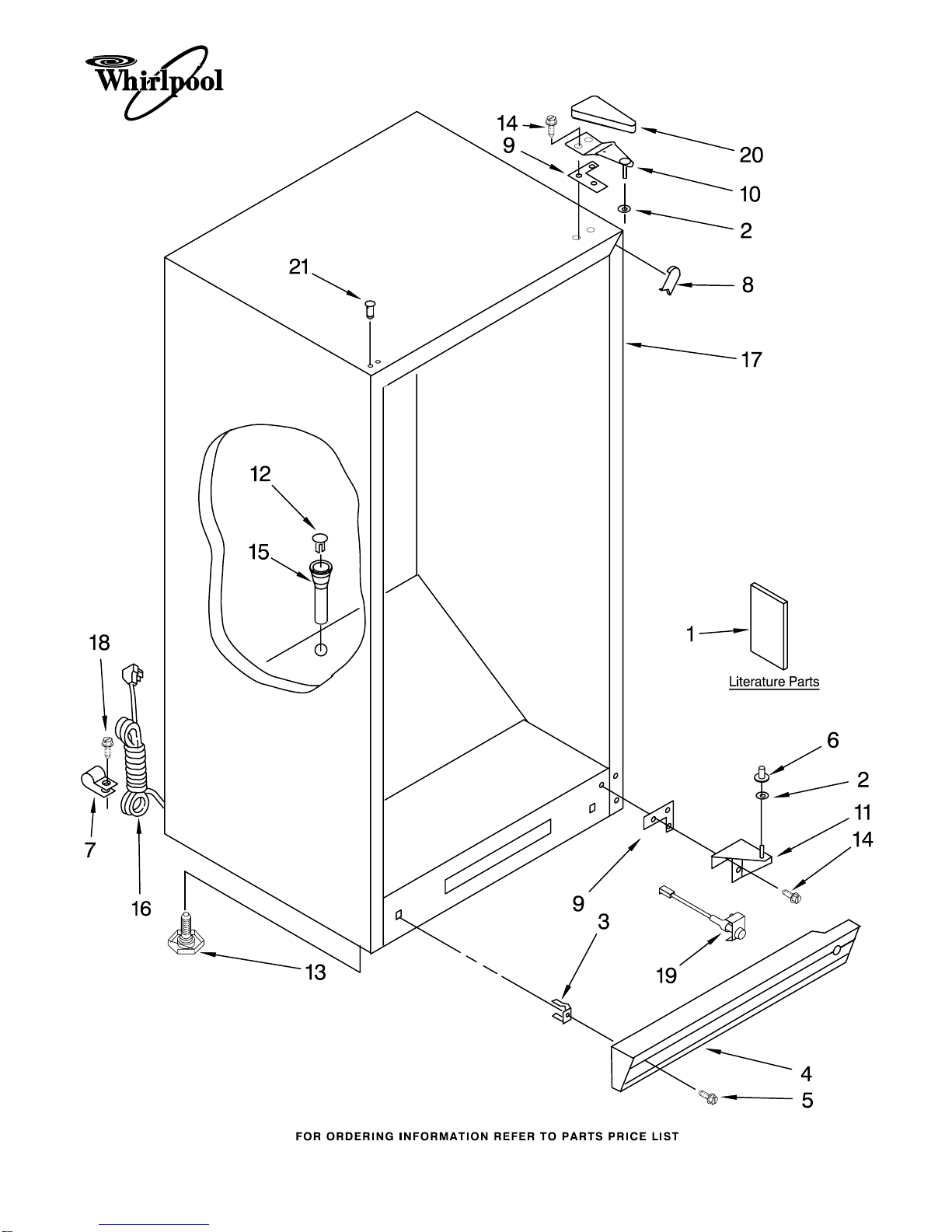

CABINET PARTS

For Model: EV161FZRQ00

(White)

3−06Litho in U.S.A. (tpm) Part No. 8214789

VERTICAL FREEZER

CABINET PARTS

For Model: EV161FZRQ00

(White)

8214789

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210396 Energy Label/Tag

2 4390520 Washer, Door

Spacer

3 4356803 Clip, Grille

4 8210293 Grille

5 4357139 Screw

6 4390659 Bushing, Hinge

7 4356643 Clamp, Tube

8 8210227 Corner Filler (2)

9 4390489 Shim, Bottom

10 8210222 Hinge, Top

11 8210238 Hinge, Bottom

12 4357019 Drain Plug

13 4390866 Leg, Leveler

14 4356830 Screw

15 4357269 Grommet, Drain

16 8210375 Cord, Power

17 Cabinet (Not A

Serviceable Part)

18 4357139 Screw

19 4390905 Power Light

Assembly

20 4357279 Cover, Hinge

21 4390596 Plug, Hole

(White)

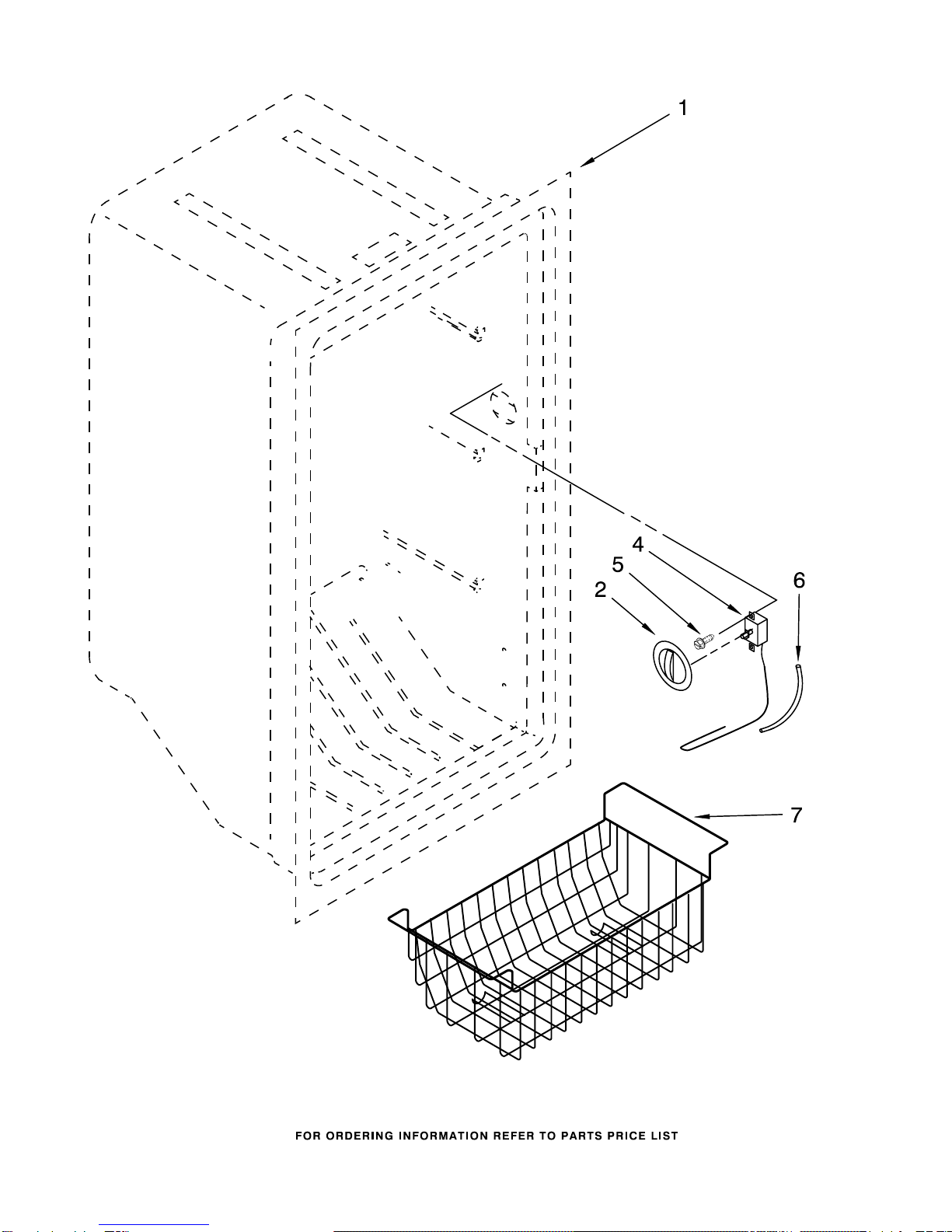

LINER PARTS

For Model: EV161FZRQ00

(White)

8214789

LINER PARTS

For Model: EV161FZRQ00

(White)

8214789

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8210348 Knob, Control

4 8210395 Thermostat

5 4357042 Screw

6 8210246 Tubing,

Thermostat

7 4390621 Basket

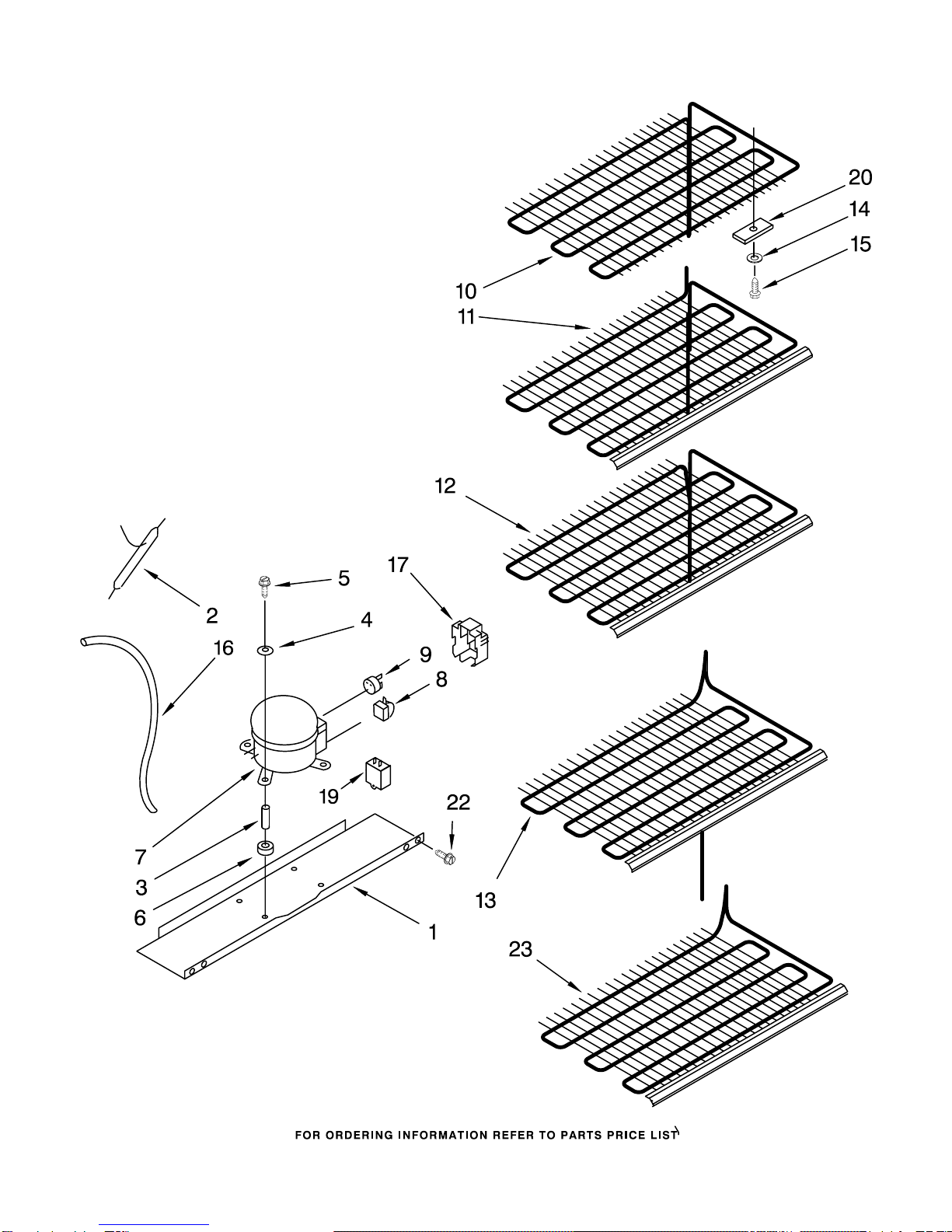

UNIT PARTS

For Model: EV161FZRQ00

(White)

8214789

UNIT PARTS

For Model: EV161FZRQ00

(White)

8214789

Illus. Part

No. No. DESCRIPTION

1 4357257 Pan, Compressor

Mounting

2 4357299 Drier

3 4356846 Sleeve, Grommet

4 4356847 Washer

5 8210220 Screw, Compressor

Mounting

6 4356335 Grommet

7 4390734 Compressor

(Includes Items

6, 8, 9, & 17)

8 4356738 Relay

9 4390624 Overload

10 8210398 Evaporator, Top

11 8210304 Evaporator Shelf

12 8210305 Evaporator Shelf

13 8210306 Evaporator Shelf

14 4357057 Washer

15 4357223 Screw, Evaporator

Mounting

16 4390881 Heat Exchanger

17 4356777 Cover

19 8210273 Capacitor

20 4356854 Clamp

22 4356820 Screw

23 8210257 Evaporator Shelf,

Bottom

REFRIGERANT CHARGE

6.9 oz.

(R−134A)

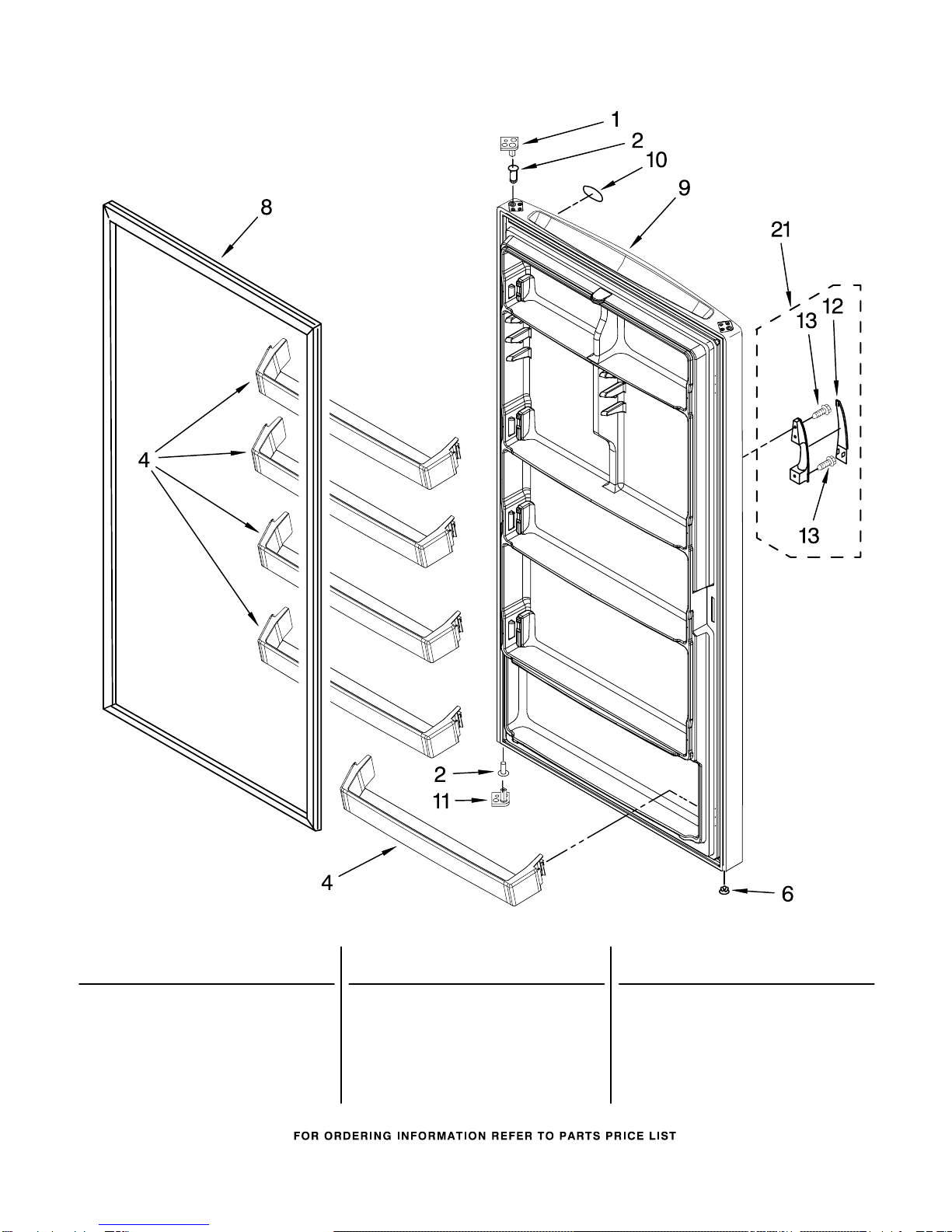

DOOR PARTS

For Model: EV161FZRQ00

(White)

8214789

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Stop, Door

(Top)

8210401 White

2 4390659 Hinge, Bushing

4 8210397 Rail, Door (5)

6 4357067 Vent Plug

8 8210340 Gasket, Door

9 8210363 Door Assembly

(Includes Interior

Liner)

10 4390656 Nameplate

11 Stop, Door

(Bottom)

8210400 Natural

12 4390668 Insert, Handle

13 4390669 Screw

21 4390667 Handle Assembly

(Includes Items

12 & 13)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV161FZRQ00

(White)

8214789

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72107 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
