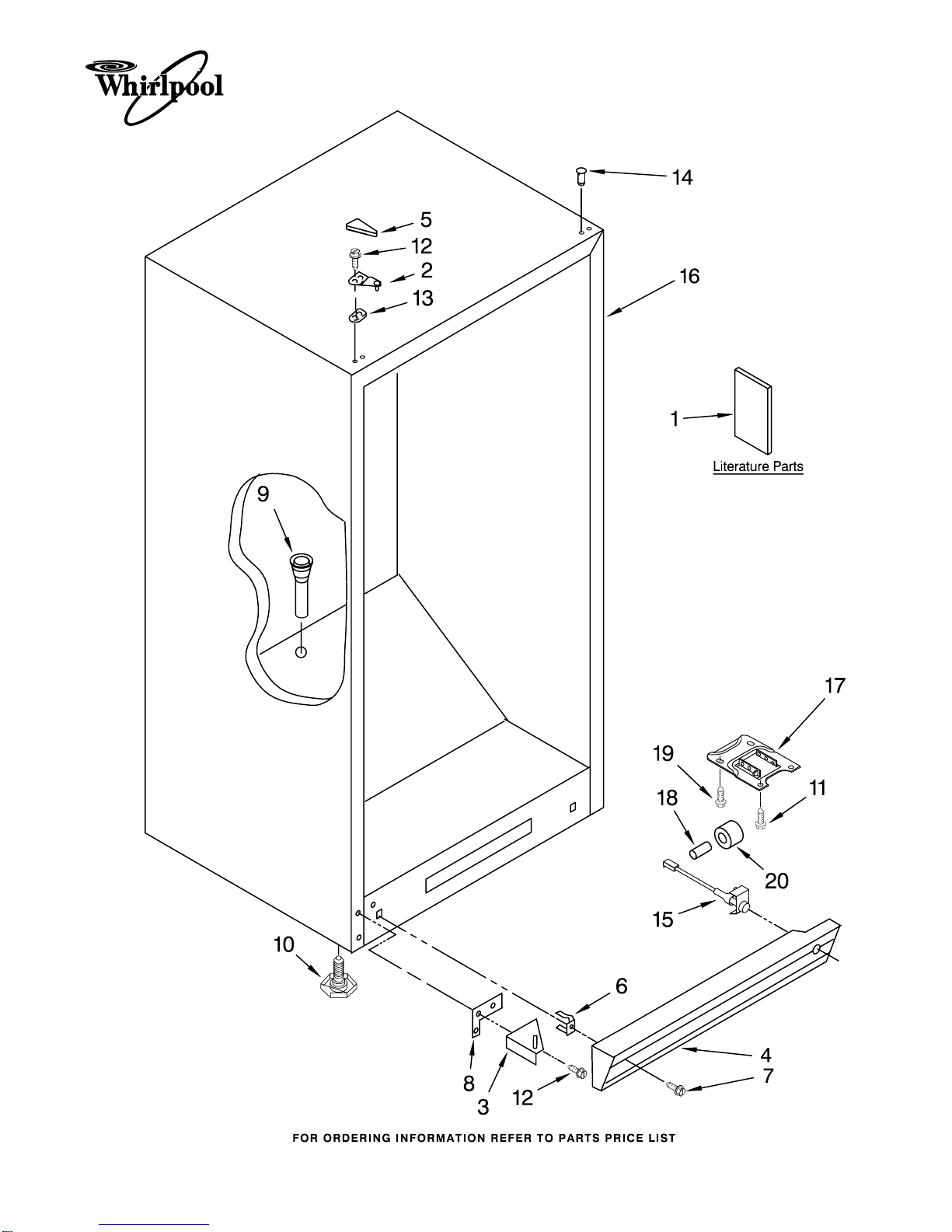

CABINET PARTS

For Model: EV181NZRQ02

(White)

4−08 Litho In U.S.A. (wam)(bay) Part No. W10203826 Rev. A

VERTICAL FREEZER

CABINET PARTS

For Model: EV181NZRQ02

(White)

W10203826

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210345 Energy Guide/Tag

2 Top Hinge

8210222 White

3 Bottom Hinge

8210223 White

4 Grille

8210293 White

(Includes 6 & 7)

5 Hinge Cover

4357279 White

6 4356803 Clip, Grille

7 4357243 Screw

8 4390489 Shim Bottom

W10164544

Grommet, Drain

W10177675

Leg, Leveller

11 4357277 Screw

12 4356830 Screw

13 4390489 Shim, Hinge

14 4390596 Plug, Hole

15 4390905 Light, Power

Indicator

16 Cabinet (Not A

Serviceable Part)

17 8210265 Bracket, Roller

18 4390755 Axle

19 8210266 Screw

20 4390754 Roller, Front

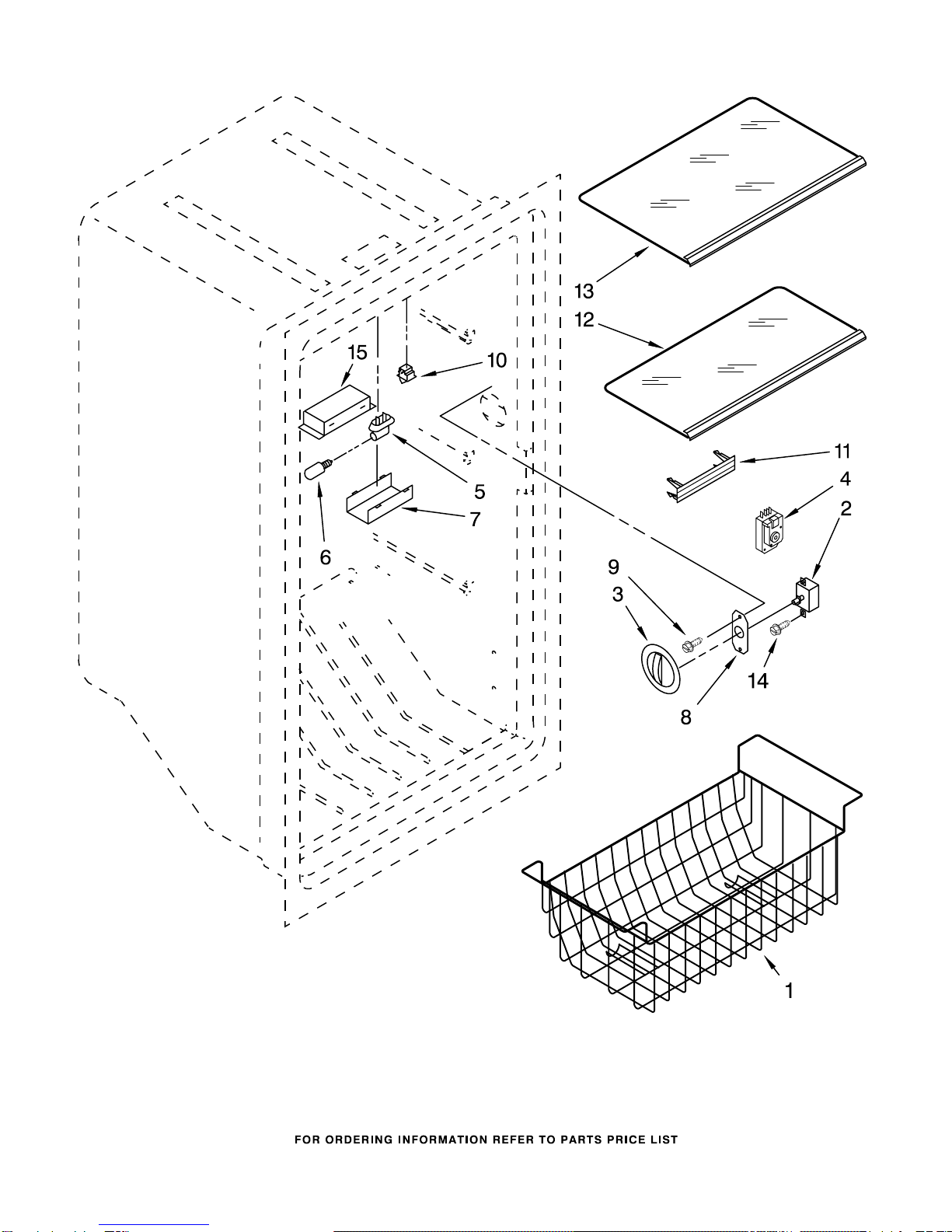

LINER PARTS

For Model: EV181NZRQ02

(White)

W10203826

LINER PARTS

For Model: EV181NZRQ02

(White)

W10203826

Illus. Part

No. No. DESCRIPTION

1 4390621 Basket

2 8210311 Thermostat

3 4390619 Knob, Thermostat

4 4357124 Timer, Defrost

5 8210350 Lamp, Socket

6 4390465 Bulb

7 4390743 Light Shield

8 4357041 Thermostat,

Plate

9 4357042 Screw

10 4390513 Light, Switch

11 4357295 Vent Plug

12 4390817 Shelf, Middle (2)

13 4390816 Shelf, Top (2)

14 4357043 Screw

W10135693

Bracket, Light

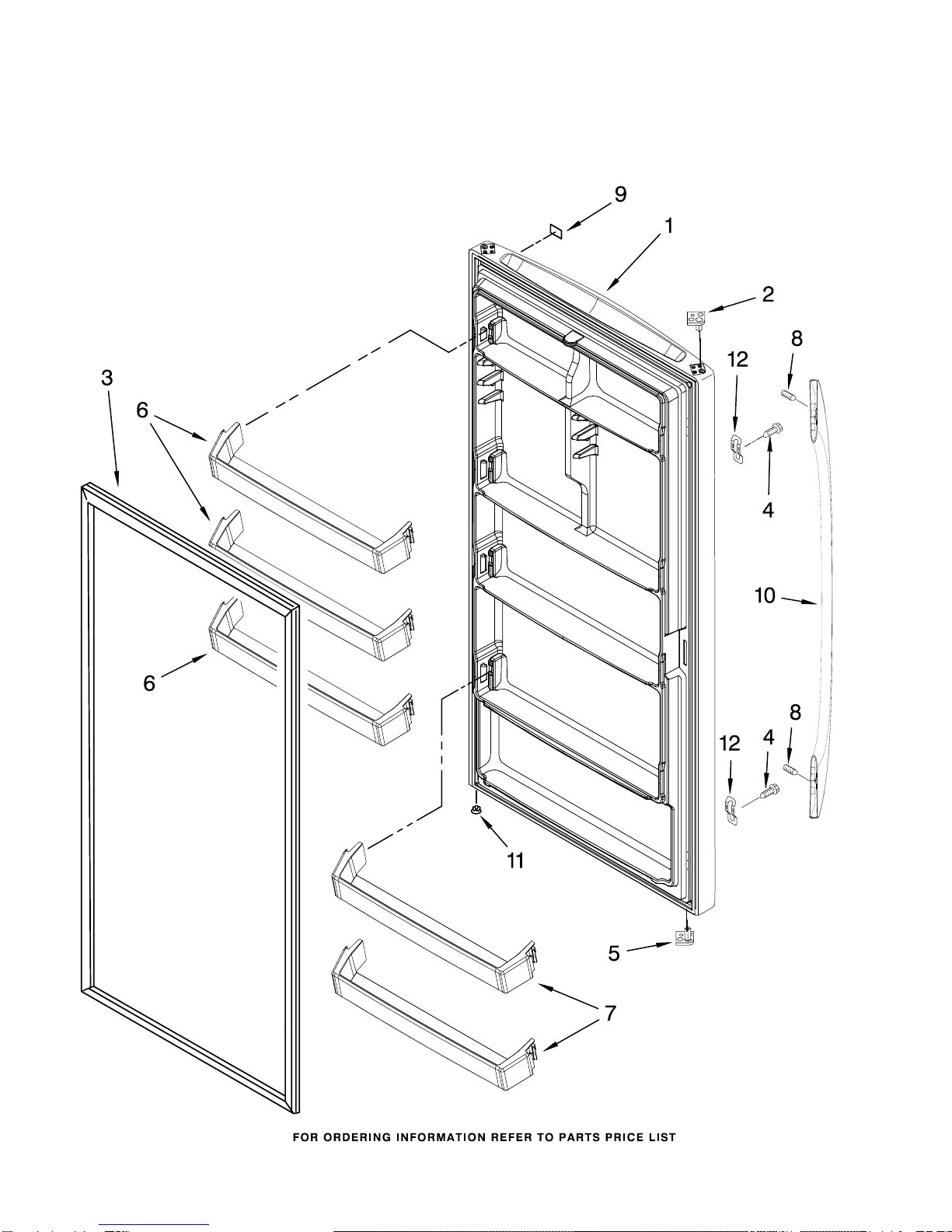

DOOR PARTS

For Model: EV181NZRQ02

(White)

W10203826

DOOR PARTS

For Model: EV181NZRQ02

(White)

W10203826

Illus. Part

No. No. DESCRIPTION

1 Exterior Door

Assembly

(Includes

Interior Panel)

8210359 White

2 8210401 Stop, Door

(Upper)

3 Gasket

8210338 White

4 489491 Screw

5 8210400 Stop, Door

(Lower)

6 8210385 Rail, Door

(Upper)

7 8210379 Rail, Door

(Lower)

8 8533920 Screw

9 2255121 Nameplate

10 Handle

2313345W White

11 4357067 Vent Plug

12 2255411 Clip, Handle

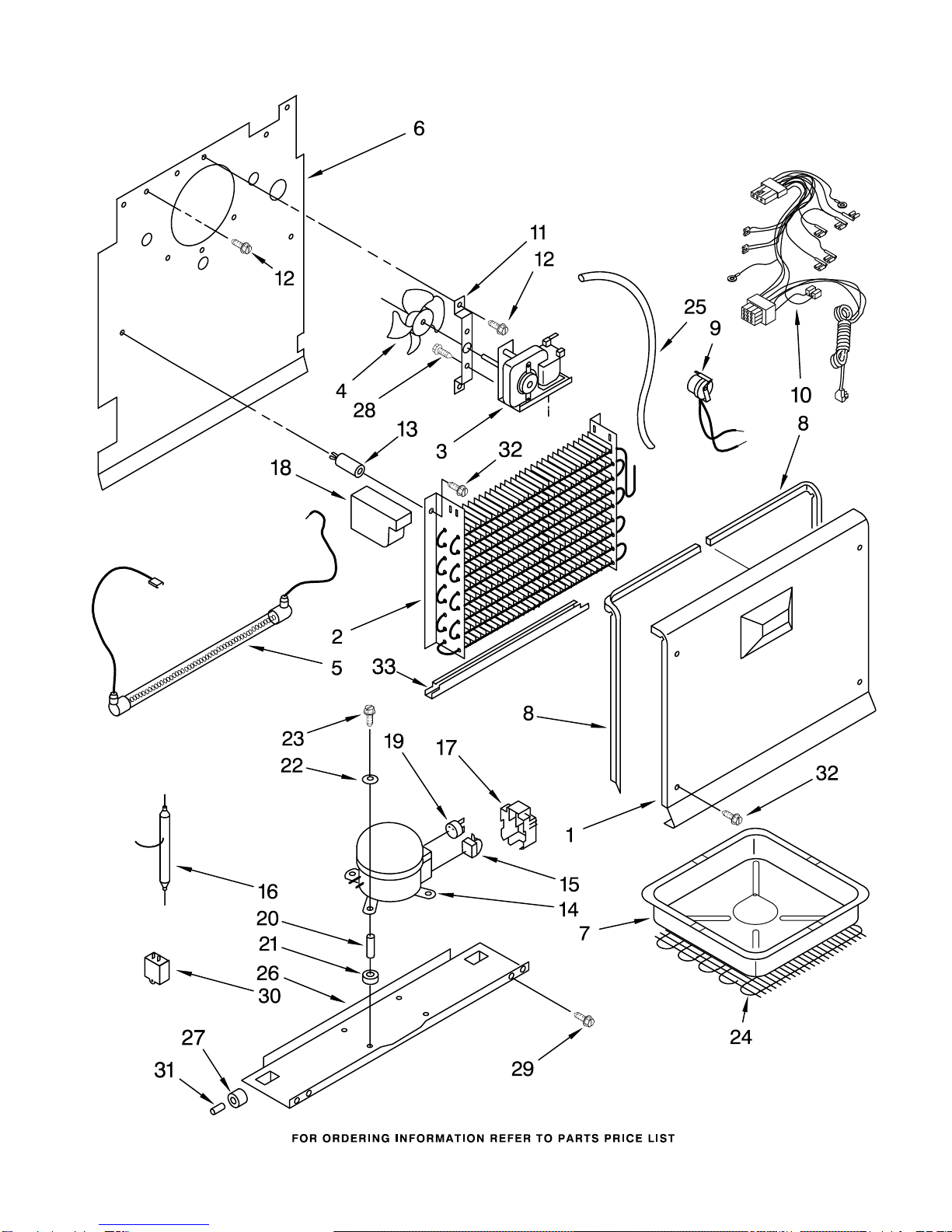

UNIT PARTS

For Model: EV181NZRQ02

(White)

W10203826

UNIT PARTS

For Model: EV181NZRQ02

(White)

W10203826

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4357244 Evaporator

3 4357004 Motor, Fan

4 4356920 Blade, Fan

W10179594

Heater, Defrost

6 4357123 Plate, Evaporator

Mount

W10164623

Drain Pan

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

10 8210386 Harness, Wiring

(With Power Cord)

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357020 Grommet

14 4356775 Compressor

(Includes Items

15,17,19, & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

18 8210261 Block, Foam

19 4356776 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Screw, Compressor

24 8210248 Condenser

25 4357263 Heat, Exchanger

26 8210202 Pan, Compressor

27 4390754 Roller

28 4356970 Screw

W10134902

Screw

30 8210224 Capacitor

31 4390755 Axle

32 4390821 Screw

W10164624

Shield, Heater

REFRIGERANT CHARGE

5.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV181NZRQ02

(White)

W10203826

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94
