CABINET PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

2−08 Litho In U.S.A. (wam) Part No. W10189258 Rev. A

VERTICAL FREEZER

CABINET PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210345 Energy Guide/Tag

2 Top Hinge

8210222 White

8210251 Black

3 Bottom Hinge

8210223 White

8210235 Black

4 Grille

8210290 White

8210294 Black

(Includes 6 & 7)

5 Hinge Cover

4357279 White

4390763 Black

6 4356803 Clip, Grille

7 4357243 Screw

8 4390520 Washer

9 4390489 Shim Bottom

10 Filler, Corner

8210227 White

8210228 Black

W10164544

Grommet, Drain

12 4390866 Leg, Leveller

W10177675

White

W10177676

Black

13 4357277 Screw

14 4356830 Screw

15 4390489 Shim, Hinge

16 Cabinet (Not A

Serviceable Part)

17 8210265 Bracket, Roller

18 4390755 Axle

19 4390754 Roller, Front

LINER PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

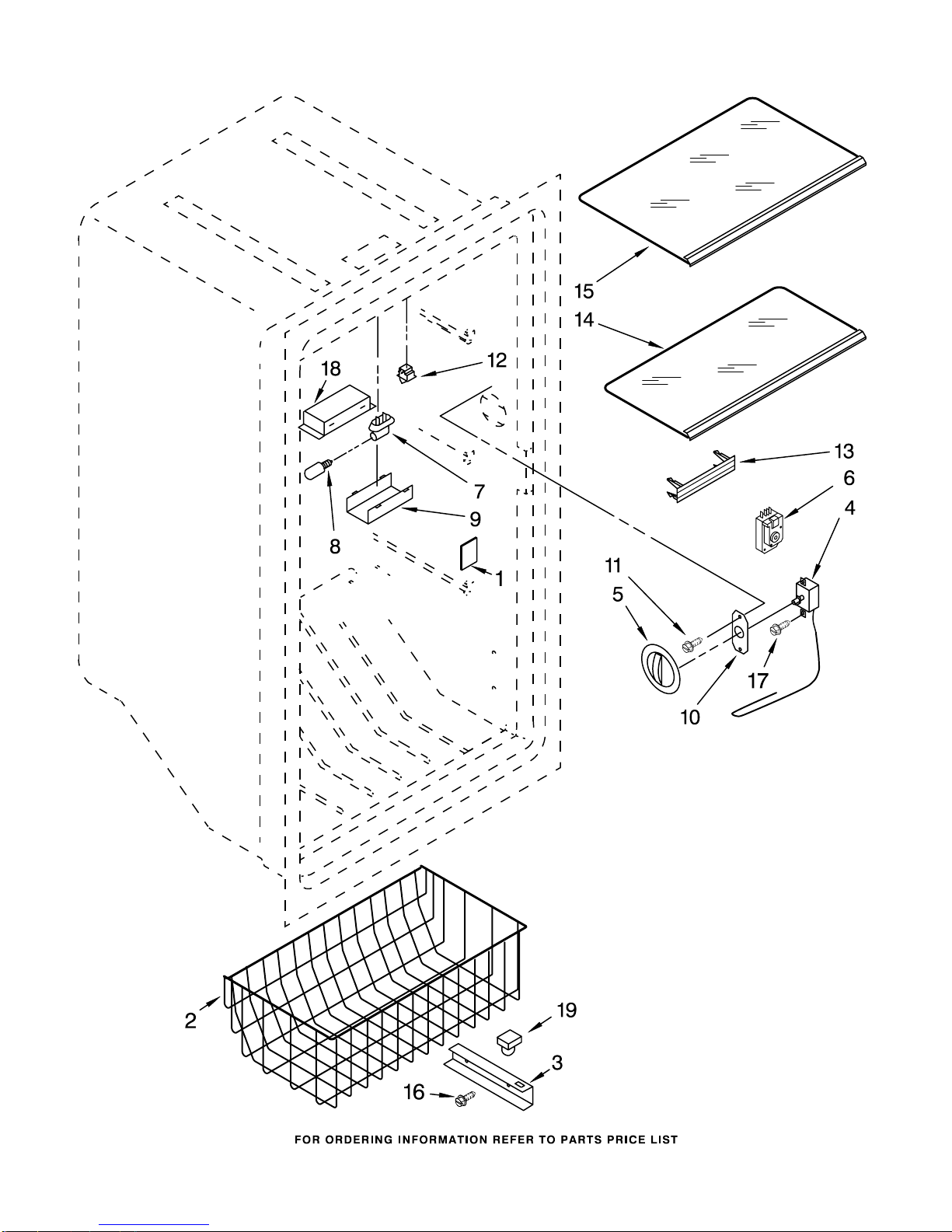

LINER PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

Illus. Part

No. No. DESCRIPTION

1 4390649 Cover,

Icemaker Hole

2 4390818 Basket, Middle

3 Rail, Basket

4390819 Right

4390820 Left

4 8210311 Thermostat

5 4390619 Knob, Thermostat

6 4357124 Timer, Defrost

7 8210350 Socket, Lamp

8 4390465 Bulb

9 4390743 Shield, Light

10 4357041 Plate,

Thermostat

11 4357043 Screw

12 4390513 Light, Switch

13 4357295 Vent Plug

14 4390817 Shelf, Middle

15 4390816 Shelf, Top

16 Screw

4390821 5/8"

4390822 1 1/2"

17 4357043 Screw

W10135693

Bracket, Light

19 4390823 Stop, Basket

DOOR PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

DOOR PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

Illus. Part

No. No. DESCRIPTION

1 Door Assembly

(Includes Interior

Door Liner)

8210360 White

8210367 Stainless Steel

8210368 Satina

2 Gasket

8210339 White

8210343 Black

3 Stop, Door

(Top)

8210401 White

8210402 Black

4 Stop, Door

(Bottom)

8210400 Natural

5 8210379 Rail, Door (1)

(Lower)

6 8210383 Cover, Bin

7 8533976 Screw, Set

W10179592

Bin, Door (6)

9 488208 Screw

10 Bushing

4390731 White

4390869 Black

11 489491 Screw

12 2219698 Stud, Handle

13 Nameplate

4390656 White

4390758 Black

14 Handle

2313345W White

2313345B Black

2317777S Brushed Aluminum

(Includes Item 8)

15 4357067 Vent Plug

16 2255411 Clip, Handle

UNIT PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

UNIT PARTS

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4357244 Evaporator

3 4357004 Motor, Fan

4 4356920 Blade, Fan

5 4356923 Heater, Defrost

6 4357123 Plate, Evaporator

Mount

W10164623

Drain Pan

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

10 8210394 Harness, Wiring

(With Power Cord)

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4356775 Compressor

(Includes Items

14,16,17, & 19)

14 4356738 Relay

15 4357299 Drier

16 4356777 Cover

17 4356776 Overload

18 4356846 Sleeve

19 4356335 Compressor,

Grommet

20 4356847 Washer

21 8210220 Screw, Compressor

22 8210248 Condenser

23 4357263 Heat, Exchanger

24 8210202 Pan, Compressor

25 4356952 Clip, Thermostat

26 4390754 Roller

27 4356970 Screw

28 4357277 Screw

29 4390674 Capacitor

30 4390755 Axle

31 4390821 Screw

32 4356924 Shield, Heater

33 4357020 Grommet

34 4357128 Shield, Motor

REFRIGERANT CHARGE

5.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: EV187NYRQ04, EV187NYRS04, EV187NYRV04

(White) (Stainless Steel) (Satina)

W10189258

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94
