UseAndCare

A Note to You ................ 2

Ice Maker Safety ...........3

Parts and Features .......4

Using Your

Ice Maker ....................... 5

Cleaning Your

Ice Maker .......................9

Vacation and

Moving Care ................ 15

Troubleshooting ......... 16

Requesting Assistance

or Service .................... 17

Index ............................ 19

Warranty .................20-21

1-800-253-I 301

Call our Consumer Assistance Center

with questions or comments from

anywhere in the U.S.A.

AUTOMATIC ICE MAKER

Part No. 2180633 1O/94

I’ 4

_.--

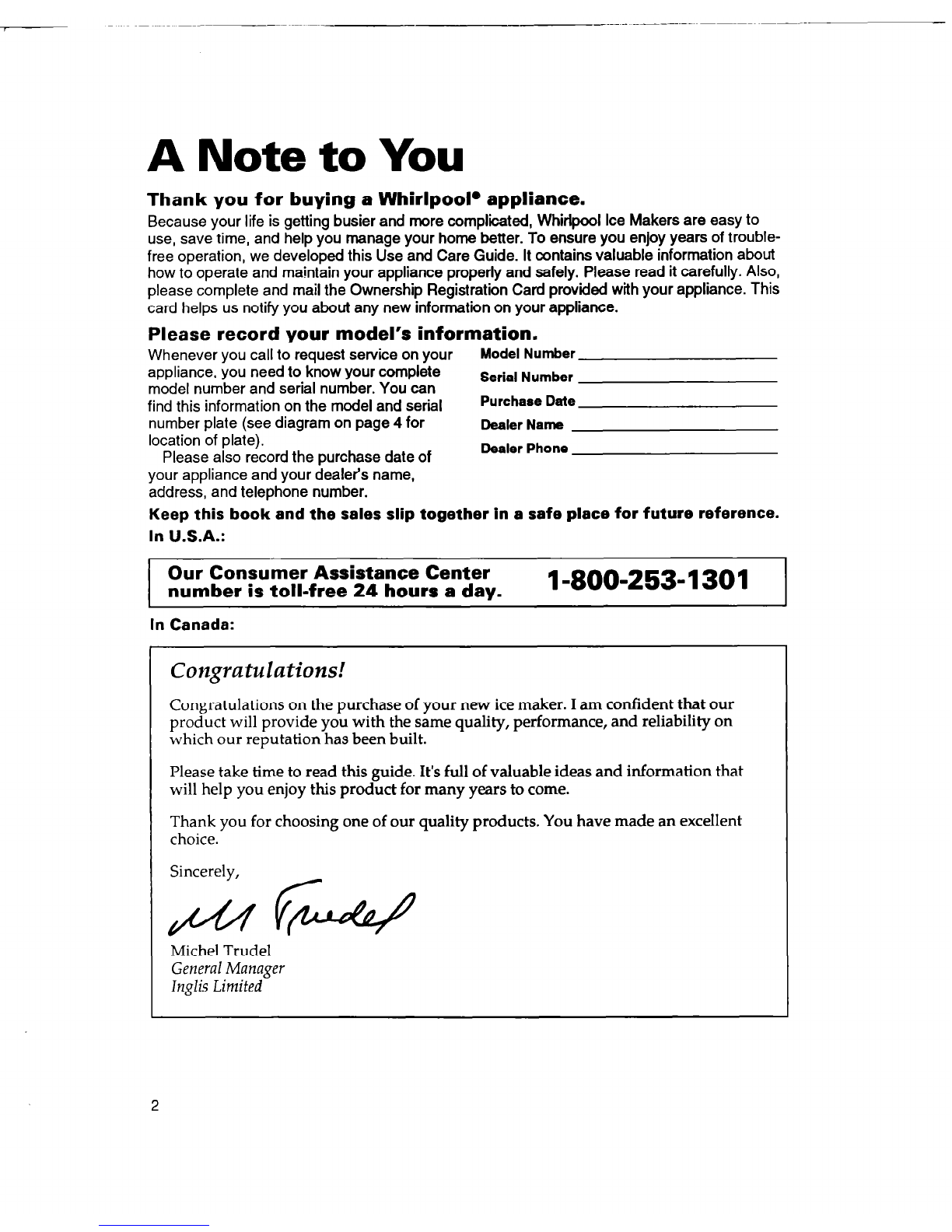

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier

and more complicated,

Whirlpool Ice Makers are easy to

use, save time, and help you manage your home better. To ensure you enjoy years of trouble-

free operation, we developed this Use and Care Guide. It contains valuable information about

how to operate and maintain your appliance property and safely. Please read it carefully. Also,

please complete and mail the Ownership Registration Card provided with your appliance. This

card helps us notify you about any new information on your appliance.

Please

record your model’s information.

Whenever you call to request service on your Model Number

appliance, you need to know your complete

model number and serial number. You can Serial Number

find this information on the model and serial Purchase Date

number plate (see diagram on page 4 for Dealer Name

location of plate).

Please also record the purchase date of Dealer Phone

your appliance and your healer’s name,

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

In U.S.A.:

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

In Canada:

Congratulations!

Congratulations on the purchase of your new ice maker. I am confident that our

product will provide you with the same quality, performance, and reliability on

which our reputation has been built.

Please take time to read this guide. It’s full of valuable ideas and information that

will help you enjoy this product for many years to come.

Thank you for choosing one of our quality products. You have made an excellent

choice.

Michel Trudel

General Manager

Inglis Limited

Ice Maker Safety

Your safety is important to us.

This guide contains statements under warn-

ing symbols. Please pay special attention to

these symbols and follow any instructions

given. Here is a brief explanation of the use

of the warning symbol.

This symbol alerts you to such dangers

1 electrical shock. ’

as personal injury burns fire and

’ ’

IMPORTANT SAFETY INSTRUCTIONS

l Read all instructions before using the

ice maker. l FOR YOUR SAFETY l

l Never allow children to operate, play DO NOT STORE OR USE GASOLINE OR

with, or crawl inside the ice maker. OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

l Never clean ice maker parts with ANY OTHER APPLIANCE. THE FUMES

flammable fluids. The fumes can CAN CREATE A FIRE HAZARD OR

create a fire hazard or explosion. EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please be sure your ice maker:

l is installed where it is protected from

the elements.

l is located so that the front is not blocked to

restrict incoming or discharged air flow.

l is properly leveled.

l is located in a well-ventilated area with

temperatures above 55°F (13°C) and below

110°F (43°C). Best results are obtained at

temperatures between 70°F (21“C) and

90°F (32°C).

l is properly connected to a water supply

I..

l is connected only to the proper kind of

outlet, with the correct electric supply and

grounding. A 120 Volt, 60 Hz., 15 amp

fused electrical supply is required.

NOTE: Time delay fuse or circuit breaker

is recommended.

l is not used by anyone unable to operate

it properly.

l is used only to do what ice makers are

designed to do.

l is properly maintained.

NOTE: A drain pump kit (EKDP3) is

. .

ana araln. available as an option for installation where

a floor drain is inaccessible.

Parts and Features

This section contains captioned illustrations

your appliance. Use them to become familiar

with the location and appearance of all parts and features.

Ice thickness

(not shown)

Ice retainer baffle

Lower access

Using Your Ice Maker

In order to obtain the best possible results from your ice maker, you must operate it properly.

This section will tell you how to do just that.

Understanding how your ice maker works

1. Water is constantly circulated over a

freezing plate. As the water freezes into

ice, the minerals in the water are rejected.

This produces a sheet of ice with a low

mineral content.

NOTE:

The ice maker is designed to make

clear ice from the majority of water

sources on a daily basis. If your results are

unsatisfactory, water may need to be

filtered or treated. See “Filtering and

treating water” on page 14.

2. When the desired thickness is reached,

the ice sheet is released and slides onto a

cutter grid. The grid divides the sheet into

individual cubes.

3. The water containing the rejected minerals

is drained after each freezing cycle.

4. Fresh water enters the machine for the

next ice making cycle.

5. Cubes fall into the storage bin. When the

bin is full, the ice maker shuts off automati-

cally and restarts when more ice is

needed.

Setting the controls

1. Select ice thickness. The ice maker has

been preset to produce ice approximately

l/z” (13 mm) thick, while operating in a

room temperature of 70°F (21°C).

Operation in different room tempera-

tures may require readjusting the control

toward “THICK” or “THIN.”

Best operation will be obtained with ice

l/z’ (13 mm) to %I’ (16 mm) thick.

If operating in a warm room (above

90°F [32X]) DO NOT set control to

maximum thickness or the unit may

malfunction.

2. To start the normal ice making cycle, turn

the Cycle Control Knob to “ON.”

3. To stop ice maker operation, turn Cycle

Control Knob to “OFF.”

The “CLEAN” setting is used whenever

solutions are circulated through the ice

maker for cleaning. Only the water pump

operates at this setting. See “Cleaning the

ice maker system” on page 11 for specifii

instructions.

Changing the bin door panel

You can easily change the color of the front

panel on the storage bin door. Two colors

are available: Black and White.

To change panel:

1. Open the storage bin door. Remove the

two screws on the top of the door, which

hold the handle.

2. Loosen the screws in both of the side trim

pieces.

3. Remove the handle and the handle insert.

4. Carefully slide the panel out. You will find

the reverse side is white. For units with

white panels showing, the reverse side

will be black.

5. Choose the color you want to show and

carefully slide the panel back into the

door.

NOTE: Be careful not to scratch the panel

as it is inserted.

6. Replace the handle insert and tighten the

screws in both side trim pieces. Replace

the handle and the screws.

NOTE: You

can make a decorative wood

front to match existing cabinets. The panel

should be l/r* (6 mm) thick and 17” x llV4”

(4% mm x 266 mm). Remove the color

panel and break off the ribs on the door

insulation to allow for wood thickness.

Changing the lower access panel

Electrical Shock Hazard

Do not operate ice maker with lower

access panel or control panel removed.

Electrical shock or personal injury could

result.

1. Remove the two screws in the lower grille

area and the one screw from the center of

the front panel support. (Open bin door

slightly for better access to screw.) Pull

forward and down to remove the lower

access panel.

2. Remove the two screws from the top panel

trim and remove the top trim.

3. Carefully slide the panel out.

4. Choose the color you want to show and

carefully slide the panel back into the lower

access panel.

NOTE:

Be careful not to scratch the panel

as it is inserted.

5. Replace the top trim and screws. Replace

the lower access panel assembly and

screws.

NOTE:

You can make a decorative wood

front to match existing cabinets. The panel

should be l/4* (6 mm) thick and 17” x 1115/16”

(433 mm x 303 mm). Remove the color

panel and spacers to allow for wood

thickness.

Changing the light bulb

Electrical Shock Hazard

Before removing the light bulb, either

unplug the ice maker or disconnect the

electricity leading to the ice maker at the

main power supply.

Shock and injury can occur if electricity

remains connected.

The ice maker has a light bulb in the top of

the storage bin. To replace it, open the bin

door and follow these instructions:

1. Disconnect ice maker from power supply.

2. Remove the two thumb screws and slide the

ice cutter grid forward, out of the two slots

near the water pan. Set the ice cutter grid on

the bin door.

3. Press the front of the light shield in while

pulling down to remove it from the light

bracket.

4. Remove and replace with a 12-volt wedge

base-type bulb (automotive #917).

5. Replace the light shield, ice cutter grid, and

two thumb screws.

6. Reconnect power supply.

Cleaning Your Ice Maker

Periodically inspect and clean the ice maker

to keep it operating at peak efficiency and to

prevent premature failure of system compo-

nents.

Both the ice making system and the air

cooled condenser need to be cleaned

regularly.

The minerals rejected from the circulating

water during the freezing cycle will eventually

form a hard scaly deposit in the water system

which prevents

rapid release of the ice from

the freezing plate.

A dirty or clogged condenser:

prevents proper air flow.

reduces ice making capacity.

causes higher than recommended operating

temperatures which may lead to component

failure.

Clean the ice and water system periodically

to remove mineral scale buildup. Frequency

of cleaning depends on water hardness. With

hard water (15 to 20 grains/gal. [4 to 5 grains/

liter]), cleaning may be required as frequently

as every six months.

Cleaning exterior surfaces

Wash the exterior enamel surfaces and

gaskets with warm water and mikf soap or

detergent. Rinse and dry. Regular use of a

good household appliance cleaner and wax

will help protect the finish.

Do not use abrasive cleaners on enamel

surfaces as they may scratch the finish.

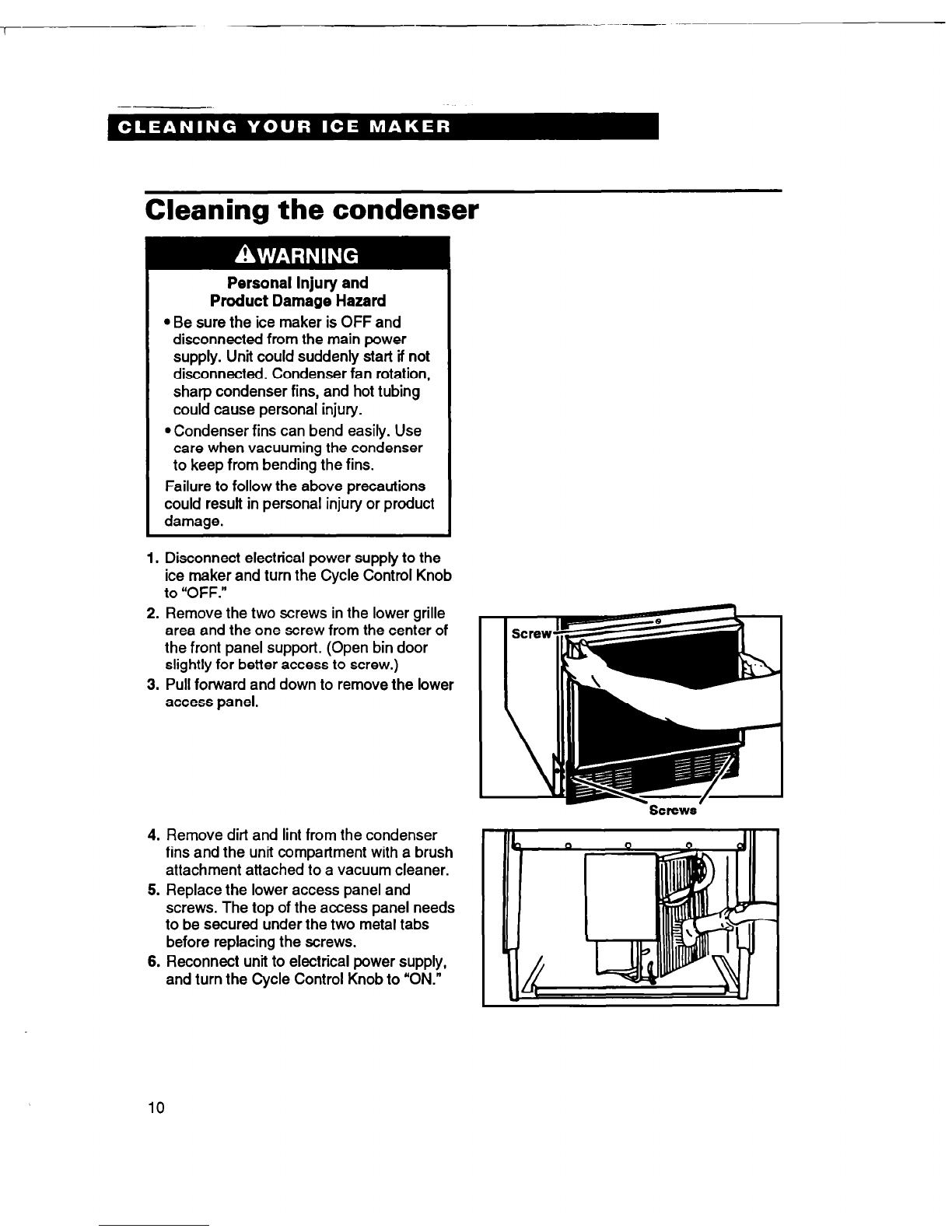

Cleaning the condenser

Personal Injury and

Product Damage Hazard

Be sure the ice maker is OFF and

disconnected from the main power

supply. Unit could suddenly start if not

disconnected. Condenser fan rotation,

sharp condenser fins, and hot tubing

could cause personal injury.

Condenser fins can bend easily. Use

care when vacuuming the condenser

to keep from bending the fins.

Failure to follow the above precautions

could result in personal injury or product

damage.

Disconnect electrical power supply to the

ice maker and turn the Cycle Control Knob

to “OFF.”

2. Remove the two screws in the lower grille

area and the one screw from the center of

the front panel support. (Open bin door

slightly for better access to screw.)

3. Pull forward and down to remove the lower

access panel.

4. Remove dirt and lint from the condenser

fins and the unit compartment with a brush

attachment attached to a vacuum cleaner.

5. Replace the lower access panel and

screws. The top of the access panel needs

to be secured under the two metal tabs

before replacing the screws.

6. Reconnect unit to electrical power supply,

and turn the Cycle Control Knob to “ON.”

Indice

Lingue:

Altri manuali Whirlpool Macchina per il ghiaccio

Whirlpool

Whirlpool GI15NFLTS - Ice Maker Manuale utente

Whirlpool

Whirlpool 50 Manuale utente

Whirlpool

Whirlpool GI15NFRTS - INSTALLATION REV A Manuale utente

Whirlpool

Whirlpool ECKMF-281 Manuale utente

Whirlpool

Whirlpool GI15NDXTB - 15" 50 lb. Icemaker Manuale del proprietario

Whirlpool

Whirlpool GI15NDXZS Manuale utente

Whirlpool

Whirlpool GI15NDXXS1 Manuale utente

Whirlpool

Whirlpool CHCH8AE Manuale utente

Whirlpool

Whirlpool ECKMF95 Manuale utente

Whirlpool

Whirlpool ECKMF-6 Manuale utente

Whirlpool

Whirlpool EC5100 Manuale utente

Whirlpool

Whirlpool GI15NFRTB0 Manuale utente

Whirlpool

Whirlpool GI15NDXTB4 Manuale utente

Whirlpool

Whirlpool 3EHC 50/51-1 Guida all'installazione

Whirlpool

Whirlpool W11390949A Manuale utente

Whirlpool

Whirlpool GI15NDXX Manuale elenco delle parti

Whirlpool

Whirlpool GI15NDXZQ0 Manuale utente

Whirlpool

Whirlpool 2180911 Manuale utente

Whirlpool

Whirlpool GI15NFLTB1 Manuale utente

Whirlpool

Whirlpool K20 Manuale operativo

Whirlpool

Whirlpool R-66 Manuale utente

Whirlpool

Whirlpool ADN 112 Manuale utente

Whirlpool

Whirlpool GI15NDXTB - 15" 50 lb. Icemaker Manuale utente

Whirlpool

Whirlpool ECKMF-64 Manuale utente

Manuali Macchina per il ghiaccio popolari di altre marche

Hoshizaki

Hoshizaki KMD-460MWJ Manuale utente

Sub-Zero

Sub-Zero 315I Istruzioni per l’uso

Unold

Unold 48945 Manuale utente

Kenmore

Kenmore 2217402A Manuale utente

Cornelius

Cornelius WM600 Istruzioni operative

GE XPIO43SCSS Manuale utente

Hoshizaki

Hoshizaki KMD-901MAH Manuale utente

Whynter

Whynter FIM-450HA Manuale utente

U-Line

U-Line UMCR014-SC01A Manuale di installazione

Andrew James

Andrew James AJ000522 Manuale utente

Scotsman

Scotsman CME1356 Manuale utente

Scotsman

Scotsman ACM 25 Manuale utente

Kärcher

Kärcher IP 120 Manuale utente

U-Line

U-Line SS1095 Manuale utente

Maytag

Maytag MIM1554WRS - Ice Maker Manuale utente

Hoshizaki

Hoshizaki KM-630MAH Manuale utente

Princess

Princess Yonanas Manuale utente

Unold

Unold 48946 Manuale utente
